| Specification Type | Technical Parameter | Value Detail | |
|---|---|---|---|
| Input Specifications | Input Voltage Range | 260~485V AC | |
| Input Frequency | 45~65Hz | ||
| Input Current | <60A | ||
| Peak Efficiency | ≥96% | ||
| Output Specifications | Constant Power Range | 30KW (300~1000V) | |
| Output Voltage | 150-1000 VDC | ||
| Output Current Range | 0~100A | ||

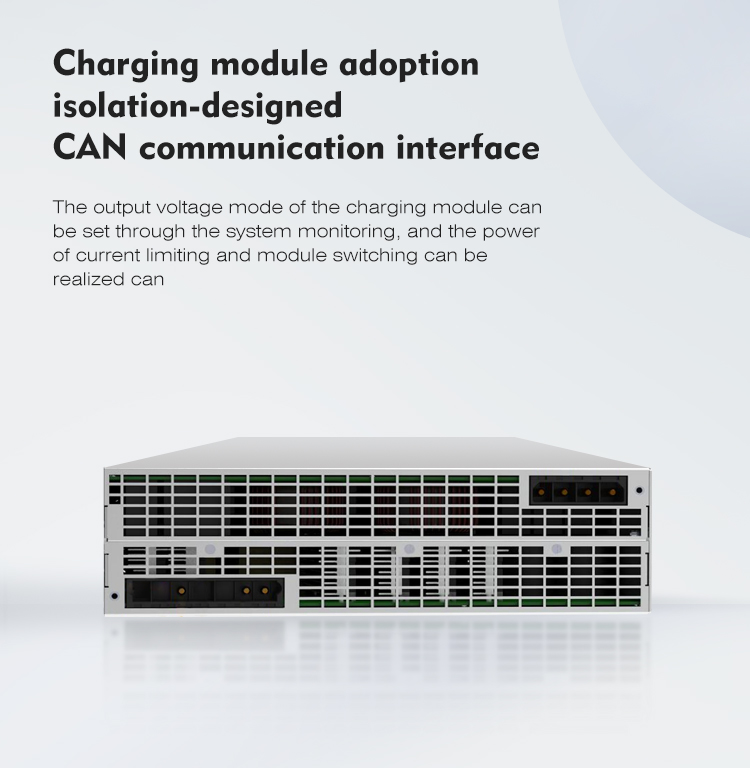

| Communication Interface | CAN, Max.60 | ||

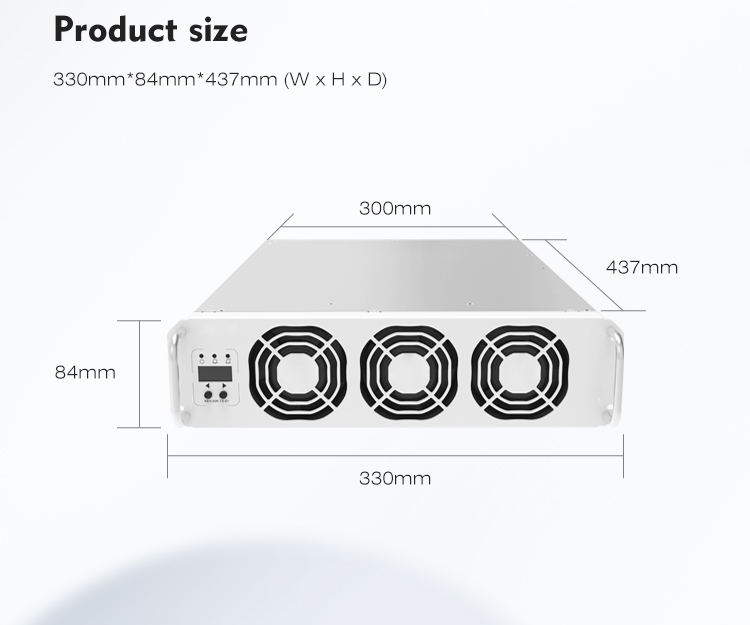

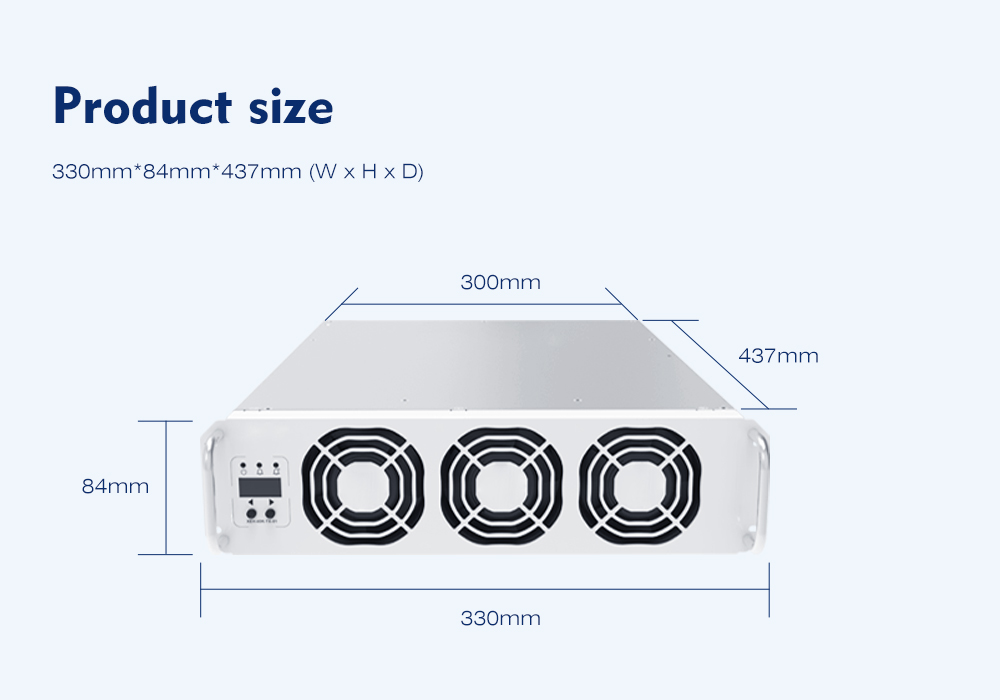

| Product Characteristics | Size (W*D*H) | 300*437*84mm | |
| Weight | ≤15kg | ||
| Fan Noise | <65dB (1m from the device) | ||

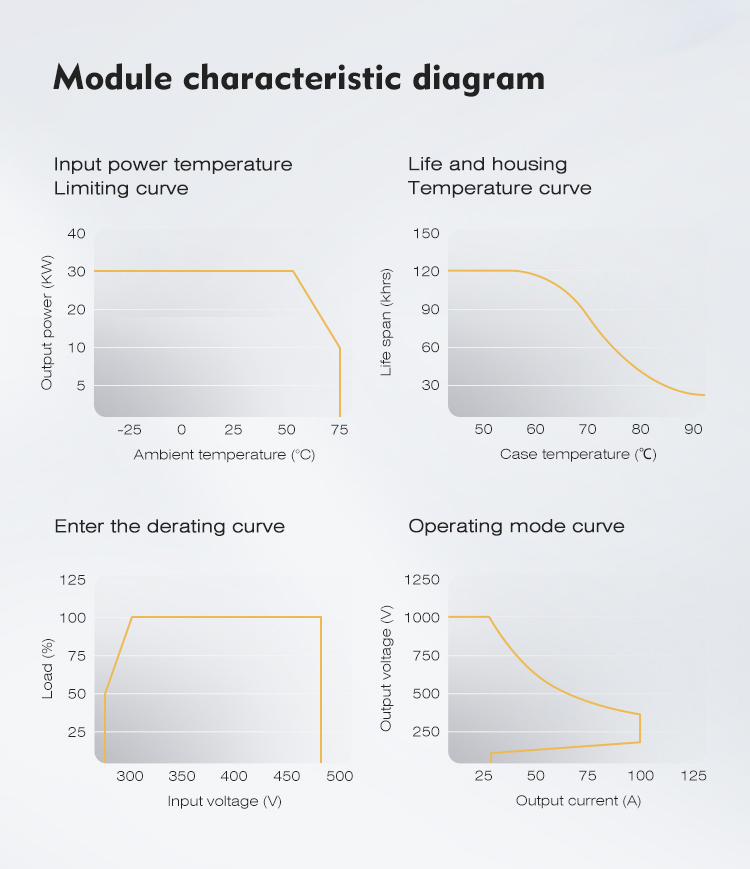

| Environmental Condition | Ambient Temperature | -40℃~75℃ (Derated above 55℃) | |
| Storage Temperature | -40℃~85℃; Humidity: 5%~90% no condensation | ||
| Protection Function | Short Circuit Protection | No module output after short-circuit protection, lock after four times automatic restarts | |
| Output Overvoltage Point | 1010V±10V (manual recovery, starts locking mode after four times overvoltage) | ||
| Overtemperature Protection | Automatic protection starts when detection temperature reaches the preset value. No output after protection. After recovery, start the system by running a command. | ||
