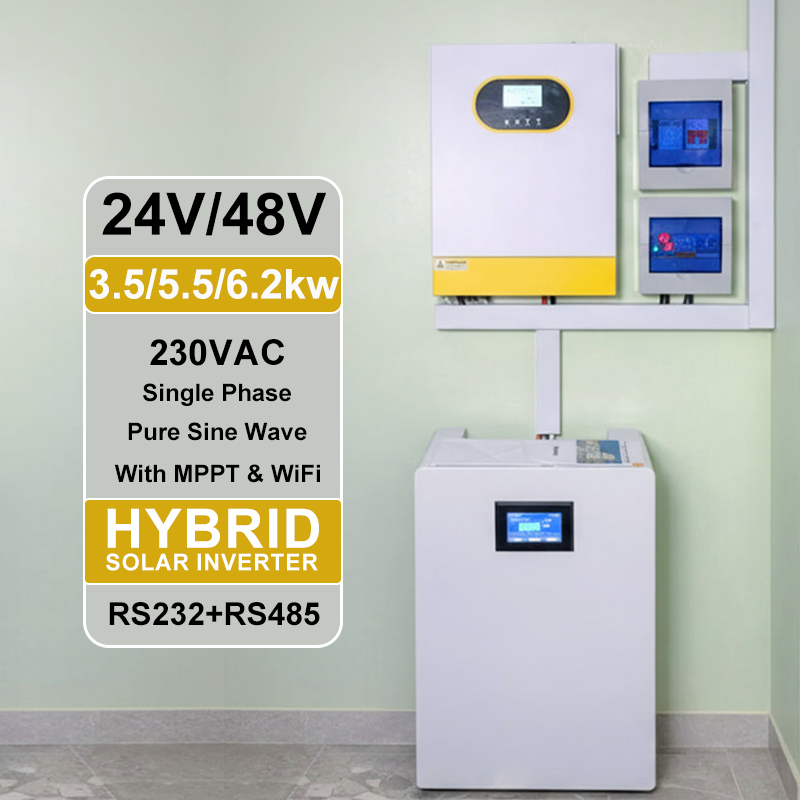

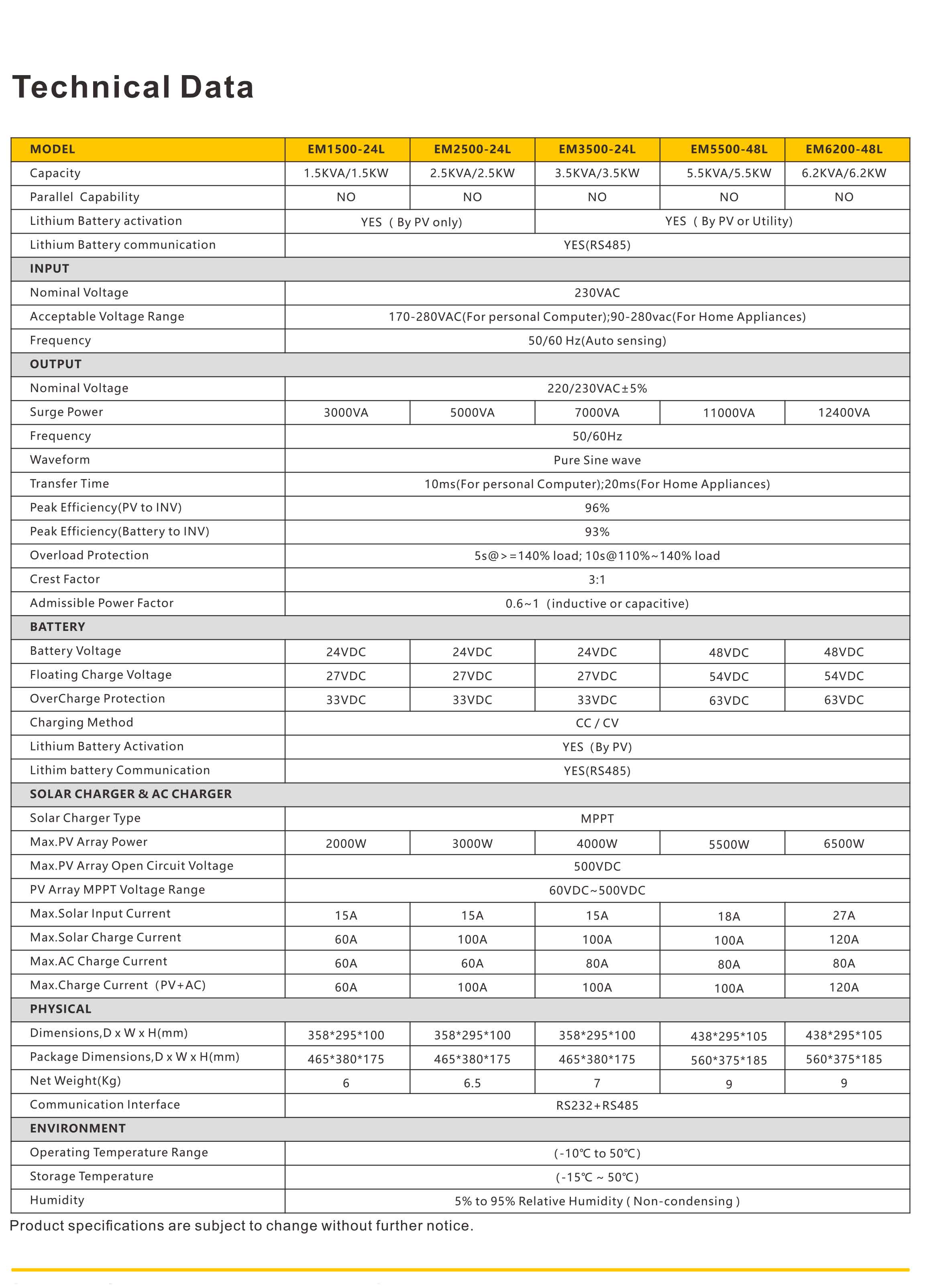

| Model Number | EM3500-24L | EM5500-48L | EM6200-48L |
|---|---|---|---|
| Place of Origin | China | China | China |
| Mounting Method | Wall Bracket | Wall Bracket | Wall Bracket |
| Nominal Battery Voltage (V) | 24VDC | 48VDC | 48VDC |
| Lithium Battery activation | YES( By PV or Utility) | YES( By PV or Utility) | YES( By PV or Utility) |
| Nominal Voltage | 230VAC | 230VAC | 230VAC |
| Lithium Battery communication | YES(RS485) | YES(RS485) | YES(RS485) |
| Frequency | 50/60Hz | 50/60Hz | 50/60Hz |
| Waveform | Pure Sine wave | Pure Sine wave | Pure Sine wave |
| Solar Charger Type | MPPT | MPPT | MPPT |

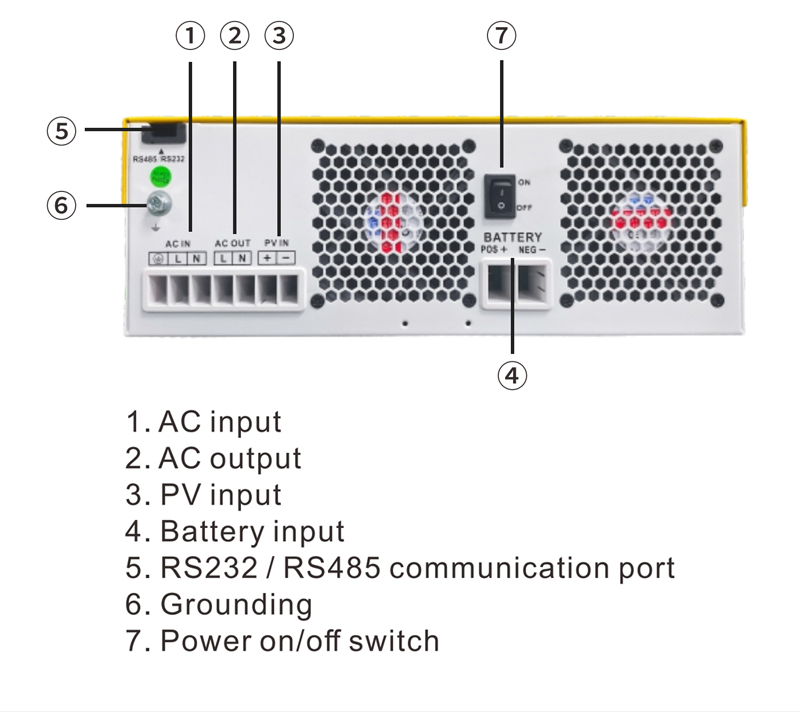

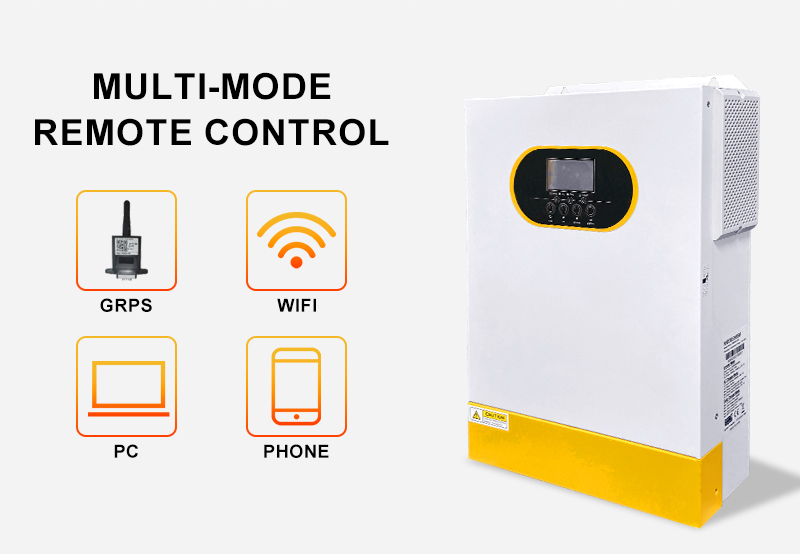

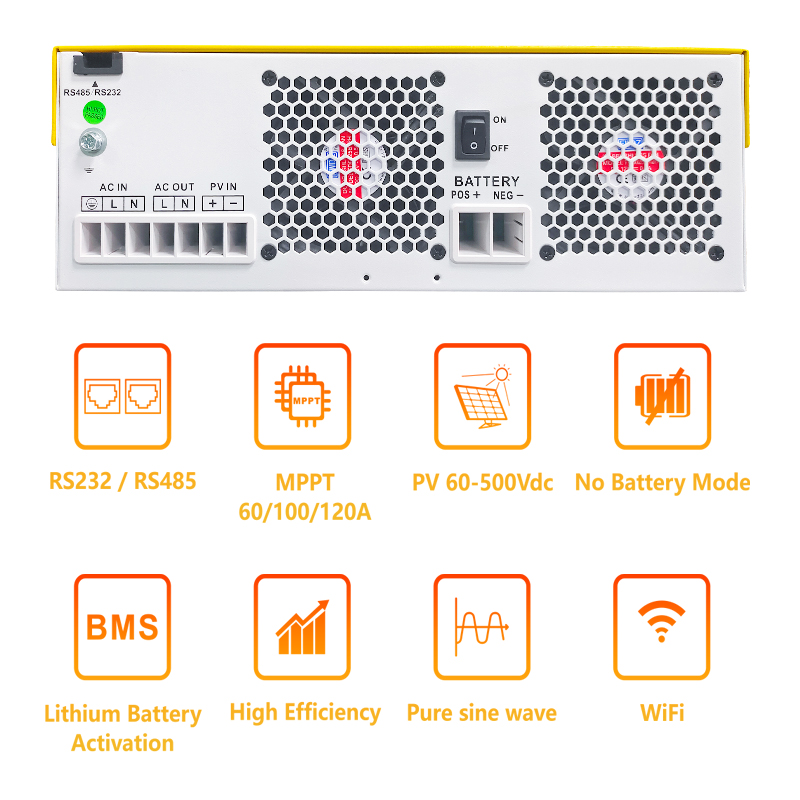

| Communication Interface | RS232+RS485 | RS232+RS485 | RS232+RS485 |
| PV Array MPPT Voltage Range | 60VDC~500VDC | 60VDC~500VDC | 60VDC~500VDC |
| Surge Power | 7000VA | 11000VA | 1240VA |
| Size | 358*295*100mm | 438*295*105mm | 438*295*105mm |
| Weight | 7kg | 9kg | 9kg |
| Operating Temperature Range | (-10℃ to 50℃) | (-10℃ to 50℃) | (-10℃ to 50℃) |
