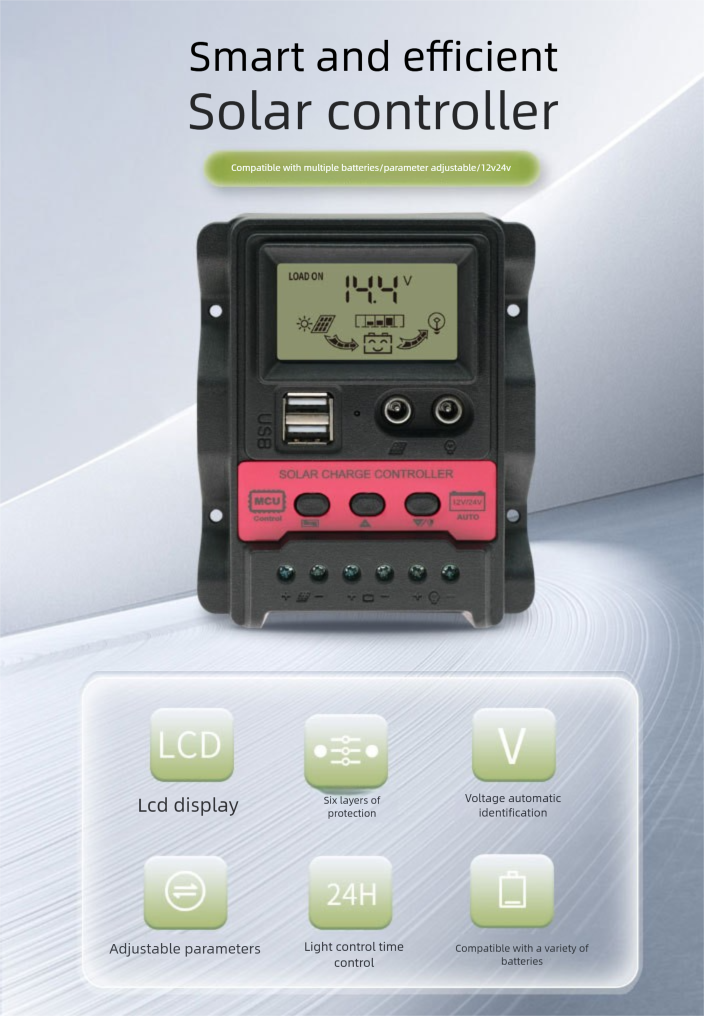

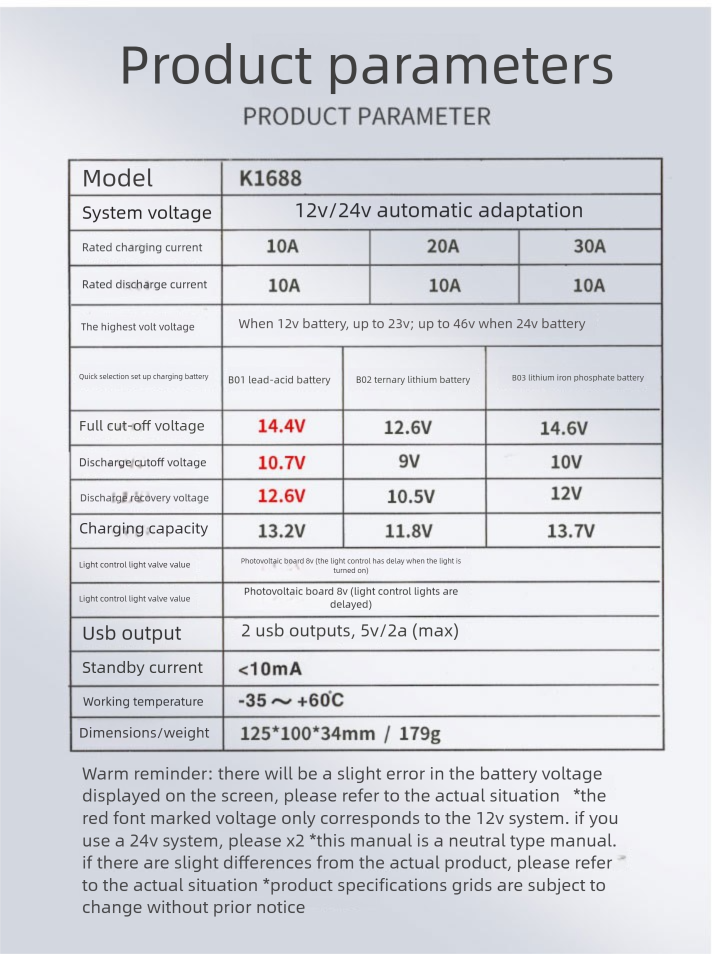

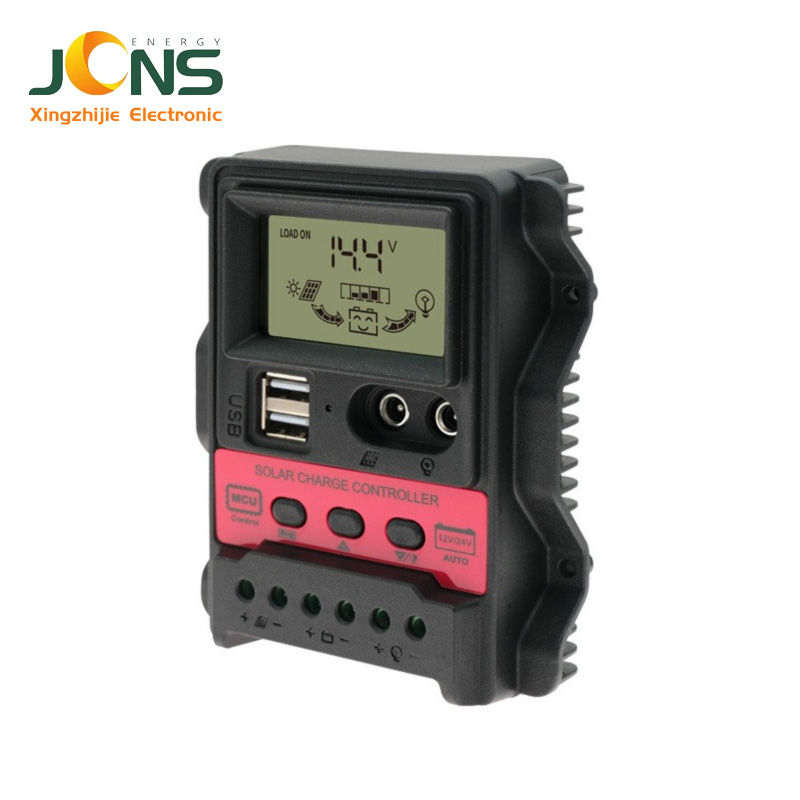

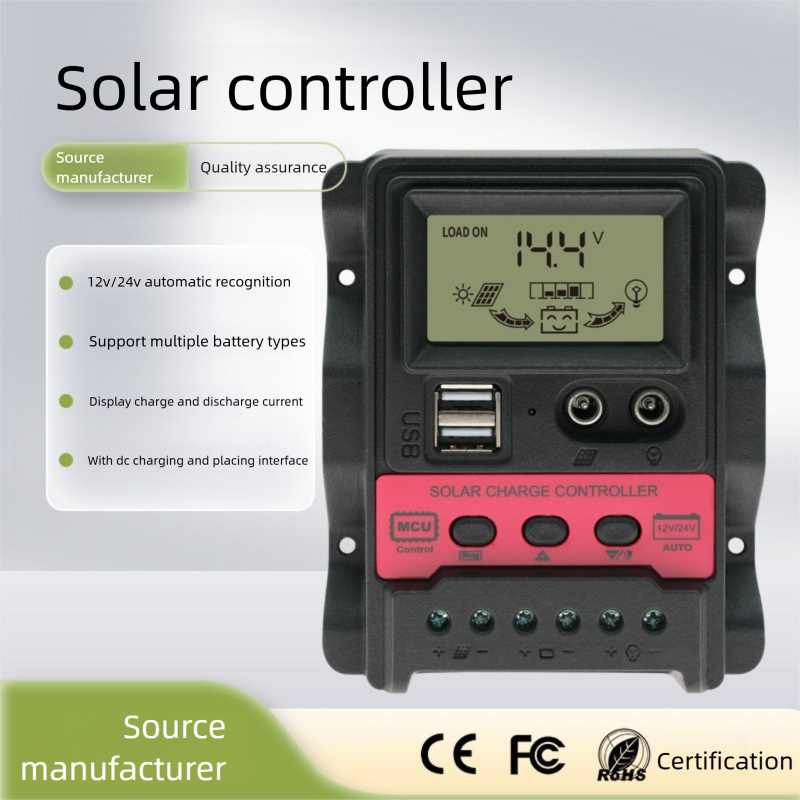

| Item | E-commerce Exclusive 12V/24V Lead-Acid & Lithium Battery Universal Power System, 10A/20A/30A PV Charger PWM Controller solar charger controller |
| Rated charging current | 10A/20A/30A |

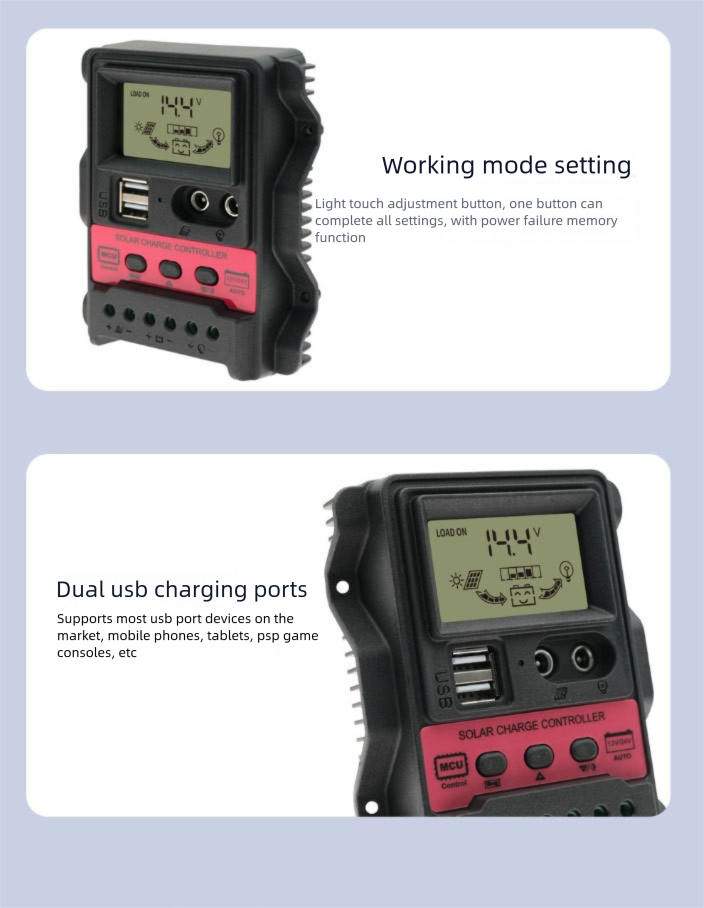

| USB output | 2 USB ports, 5V/2A (maximum) |
| Standby current | Less than 10mA |
| Working temp | -35℃ To +60℃ |
| System voltage | Automatically adapts to 12V or 24V |
| Light control switch threshold | Solar panel 8V |
| Maximum PV voltage | 12V battery, up to 23V; 24V battery, up to 46V |
| Package size | Outer box: 560*410*220mm; Product: 125*112*34mm; 100 pcs/box; Gross weight: 17.9kg |

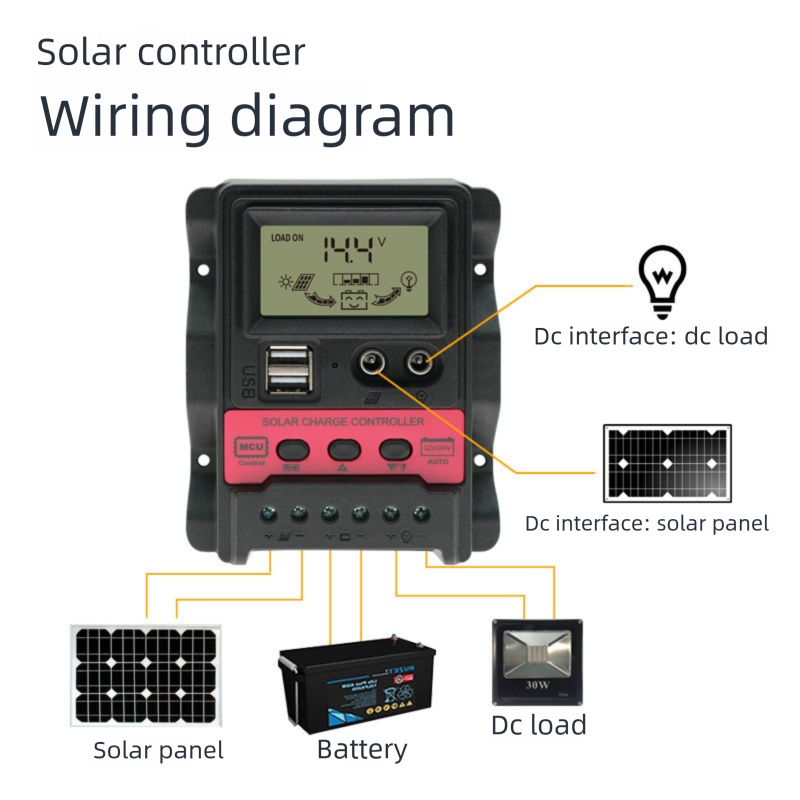

| Applicable scene | Solar power system / Solar street lamp / Solar billboard / Solar smart home / Solar traffic warning sign |

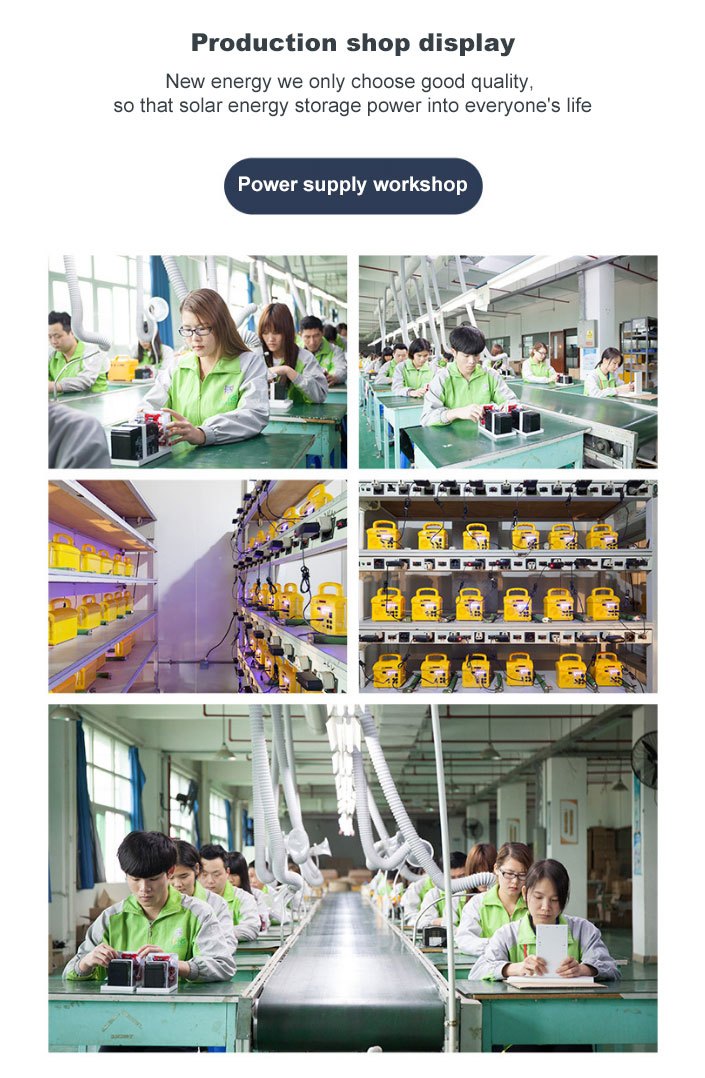

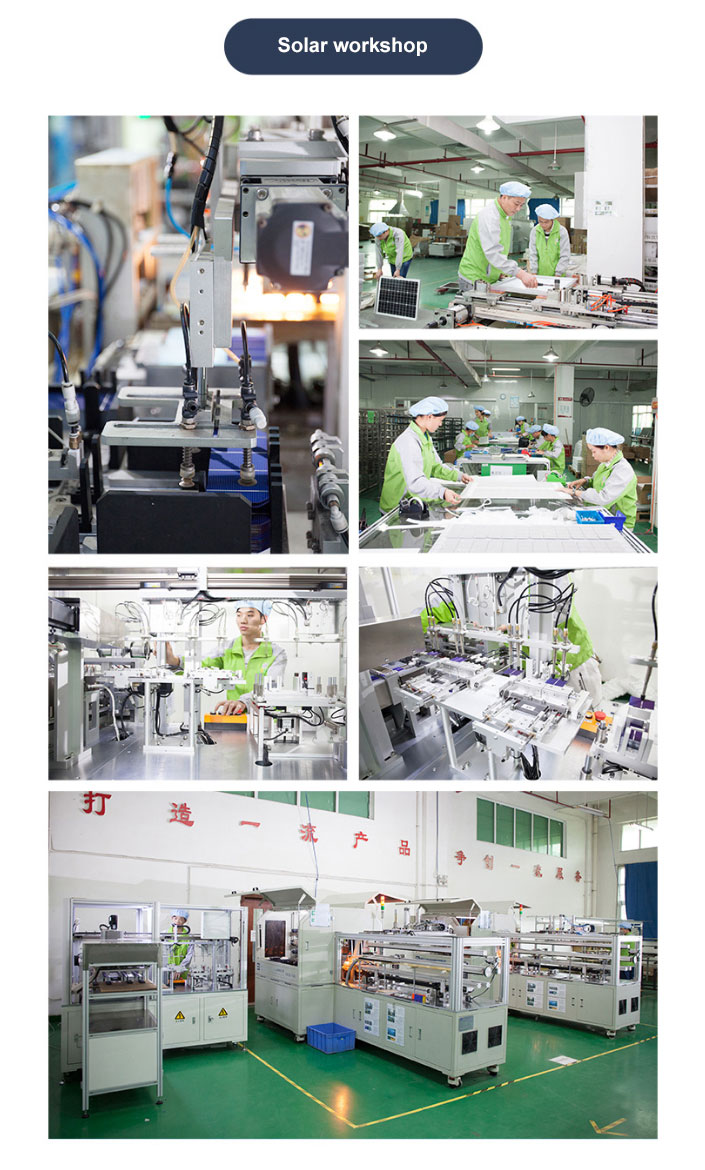

We are a professional manufacturer of solar inverters, solar panels, solar generators, and off-grid intelligent power generation control systems. Our commitment to green energy and sustainable development drives us to reduce manufacturing costs while enhancing product value through continuous technological innovation.

Our goal is to make solar energy—an inexhaustible green renewable resource—accessible to every household, contributing to a harmonious future for humanity.
