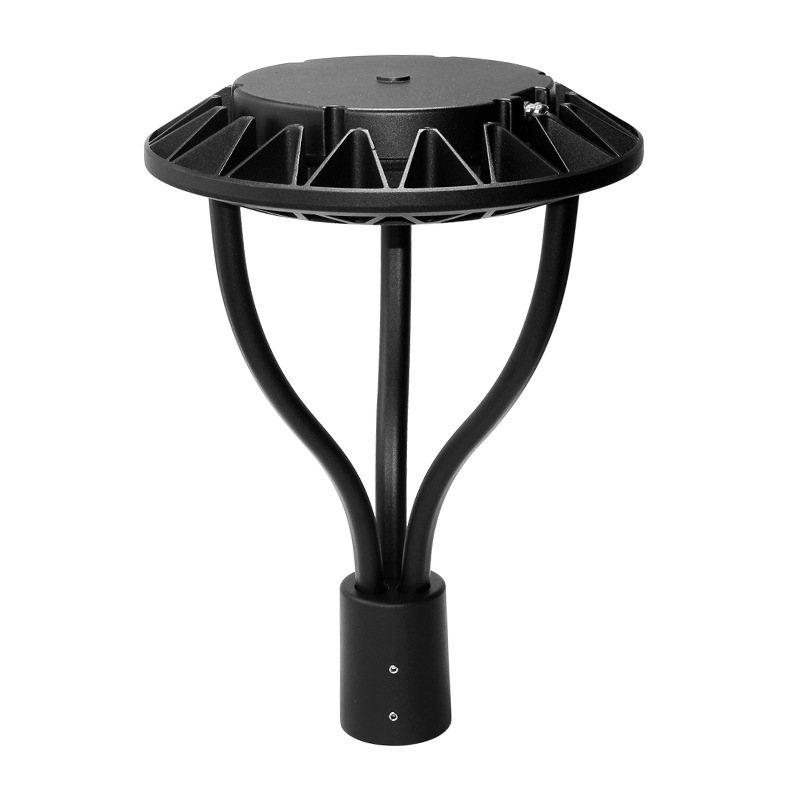

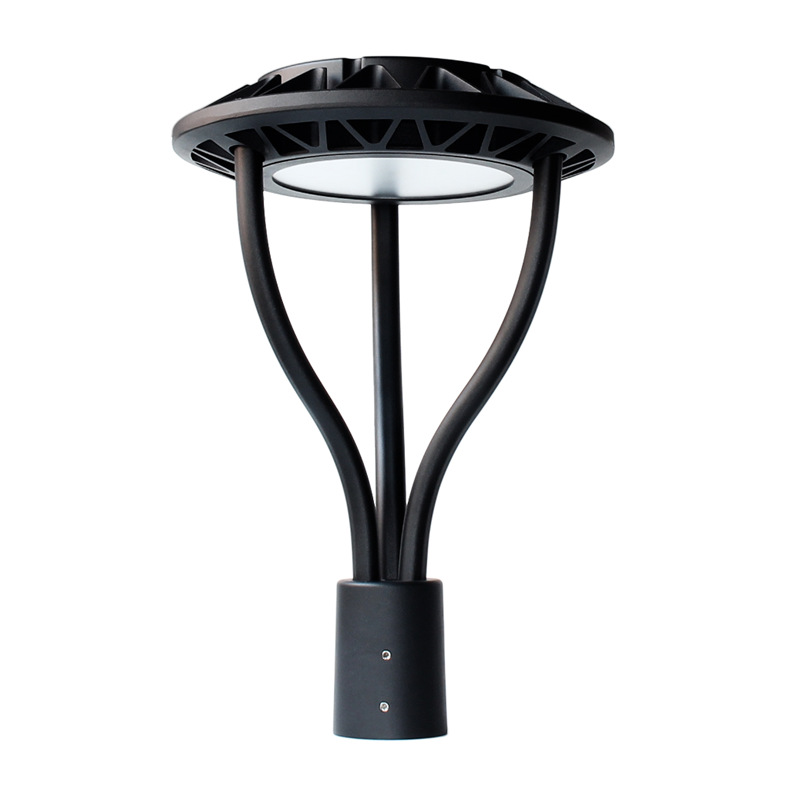

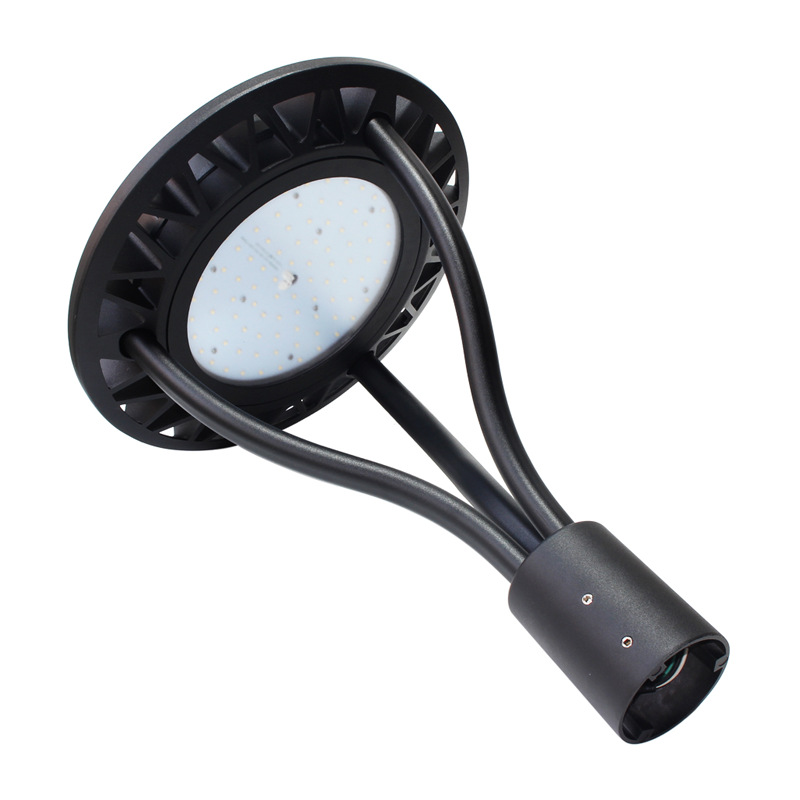

150lm/w Outdoor Yard Garden Lighting 80w 100w 150w 200w DLC Listed Aluminum Housing IP65 Waterproof Post Top Led Garden Light

Product Description

Products Description
LED Post Top Light
LED Post Top Light
  • Super Bright: SMD 3030 LED modules produce 150 Lumens per watt. Total Lumens Output 7500-30000LM. Compared to other high pressure sodium lamps and high intensity discharge lamps, it has improved light utilization and uniformity, has a lifetime of 50,000 hours, is environmentally friendly and energy efficient.
  • Easy Installation: Match install the post light and transform mount for Arm pole mounting with most adapters. This kit comes with 1* led area post lamps, 1* mount, and sufficient mounting screws.

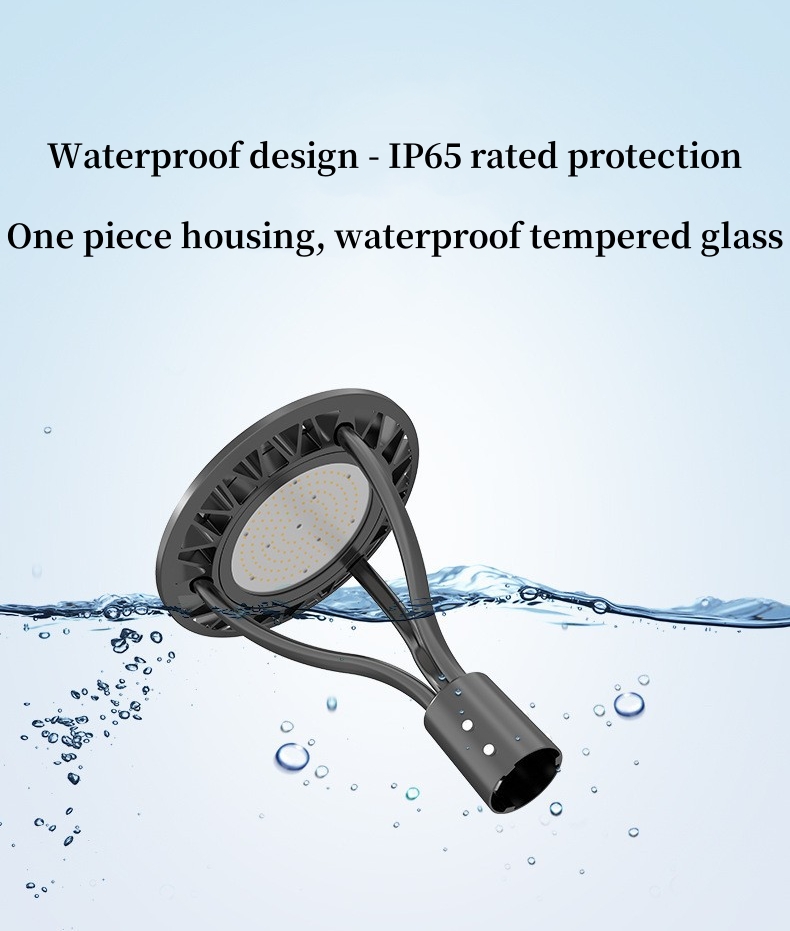

  • High Quality: Die-cast aluminum metal body and impact-resistant, IP65 waterproof rate for outdoor wet locations. The surface is covered with a protective powder coating that will not fade, anti-corrosion, and endures high temperatures. The polycarbonate lens and LED board can be easily unscrewed, and the top is made of dense high-quality aluminum sheet for better heat dissipation.
  • 5-Years Warranty: Full warranty and support for LED technical questions and design advice.
  • Application: A great bright and durable lamp for commercial or industrial lighting, house, garden, garage, yard, warehouse, store, street, path, porch, etc.
  • High Thermal Conductivity: Low light decay, solid color light, no ghosting, no glare, no stroboscopic to protect your eyes, preventing light pollution.
Product Details
Model No. CH-HB01-W50-S4-02 CH-HB01-W80-S4-02 CH-HB01-W100-S4-02 CH-HB01-W150-S4-02 CH-HB01-W200-S4-02
Power 50W 80W 100W 150W 200W
Input Voltage AC100-277V
Lumen Output 7500 12000 15000 22500 30000
Dimension 360x360x504MM
CCT 2700K-6500K
CRI CRI≥80
Power factor Pf>0.95
Working Temperature -20~+45°C
Beam Angle 60° / 90° / 120°
IP Rating IP65 Waterproof
Warranty 5-Year
Lifespan 50000hrs
Certification ETL, cETL, CE, ROHS

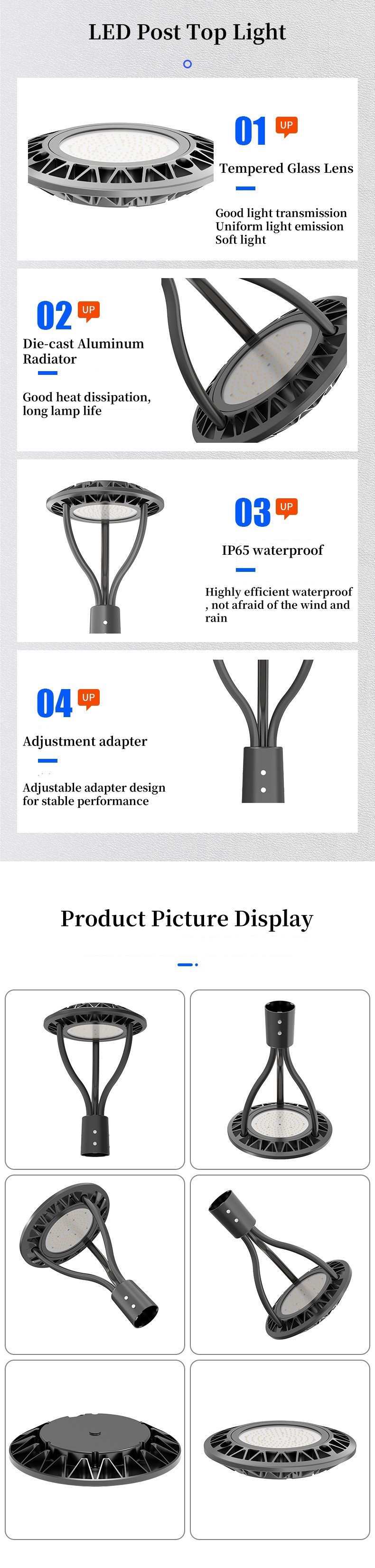

LED Post Top Detail

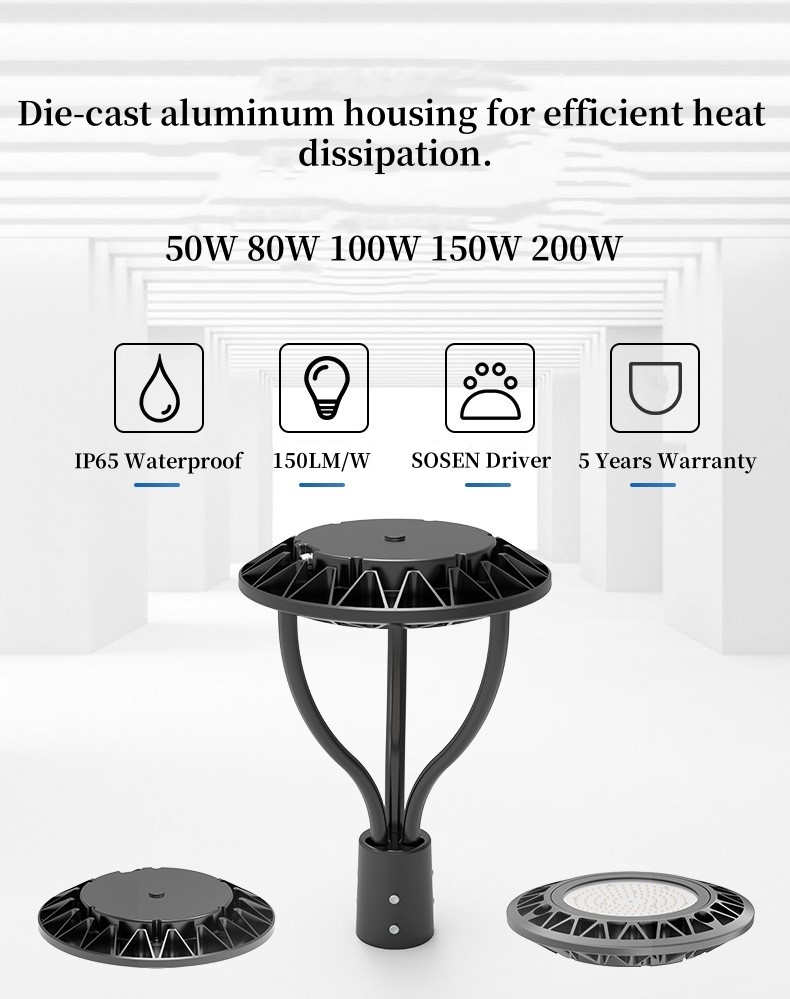

LED Post Top Design

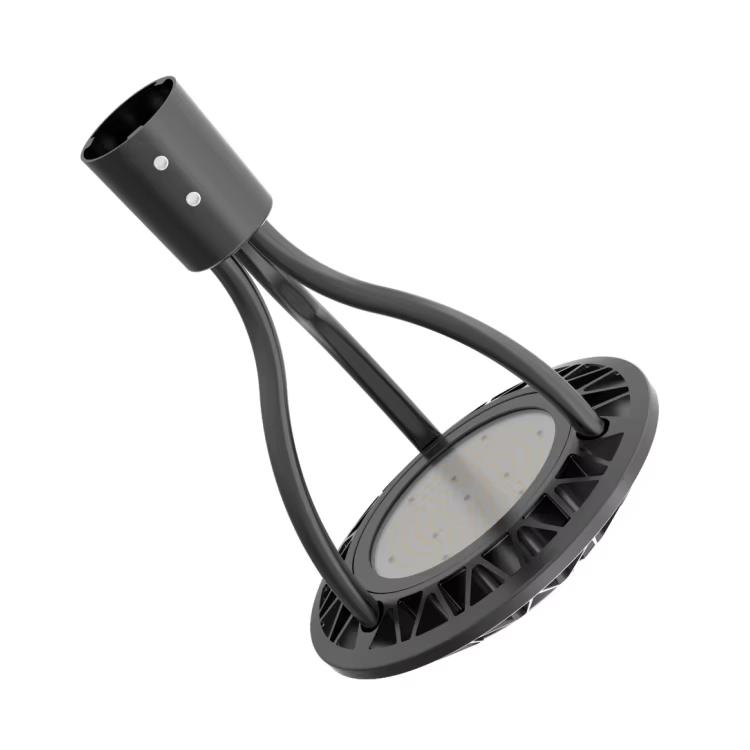

Post Top Light Side View Post Top Light Installation View Post Top Light Bottom View
LED Post Top Features

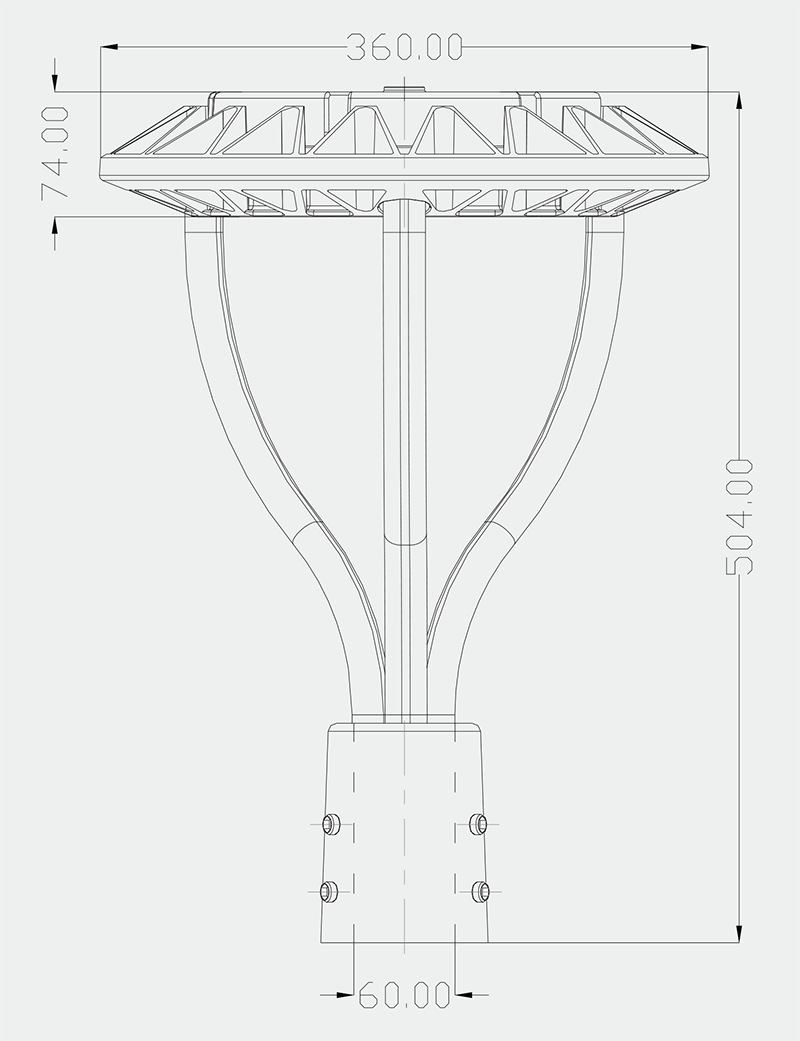

50W-200W LED POST TOP LIGHT Dimensions
Post Top Light Dimension Chart 1 Post Top Light Dimension Chart 2
Installation & Safety Instructions
Installation of ETL IP65 50W 80W 100W 150W 200W LED Post Top Light
  • 1 Please turn off the power before operation.
  • 2 LED lamp is extremely bright. To avoid possible damage to the eyes, do not stare into the LED beam.
  • 3 Please check the working voltage of the product from the product label; do not exceed the working voltage range.
  • 4 Input product line configuration: Brown or Black is L, Blue or White is N, Yellow-Green or Green is GND.
  • 5 Be sure wiring is closed and leakage is prevented when installing.
  • 6 Please install and use the product under local fire regulations.

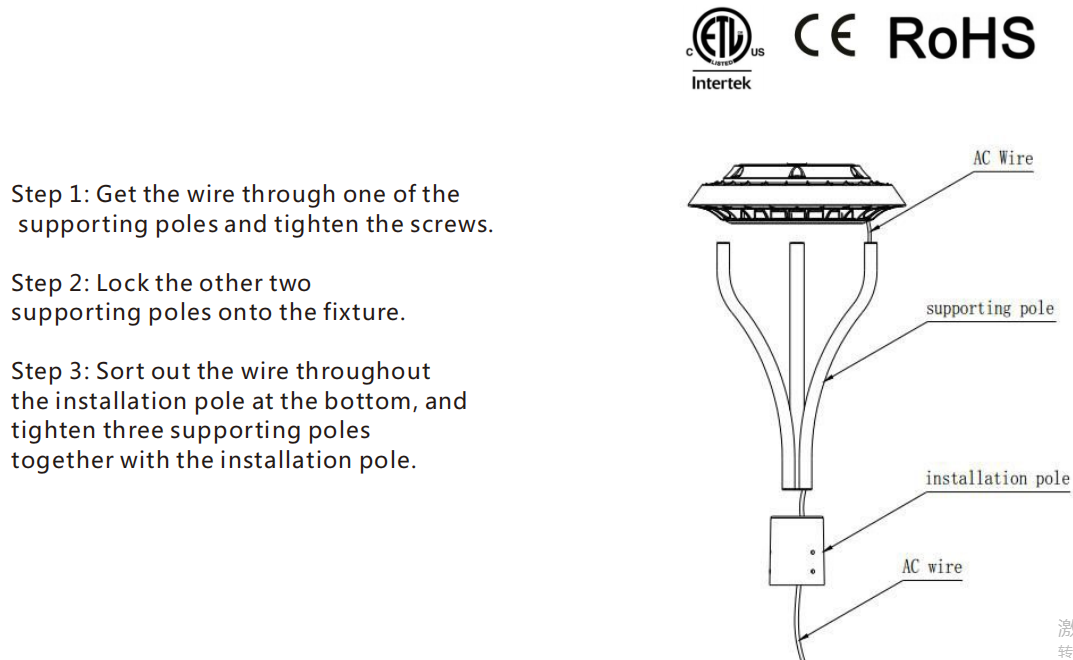

Installation Diagram

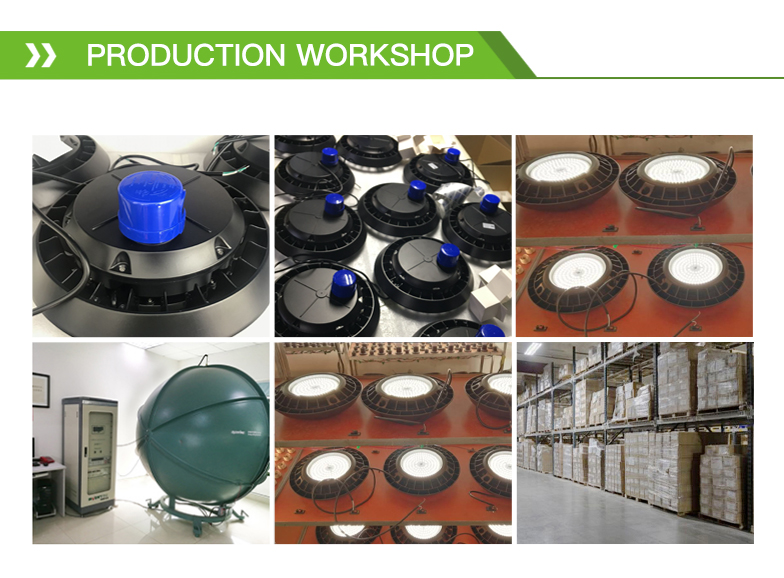

Aging Test

Aging test ETL IP65 50W 80W 100W 150W 200W LED Post Top Light

Aging Test Details
Applications

Ideal for: Parking lots, corporate parks, and retail settings, Courtyard, garden, park, residential area, villa, square, sidewalk...

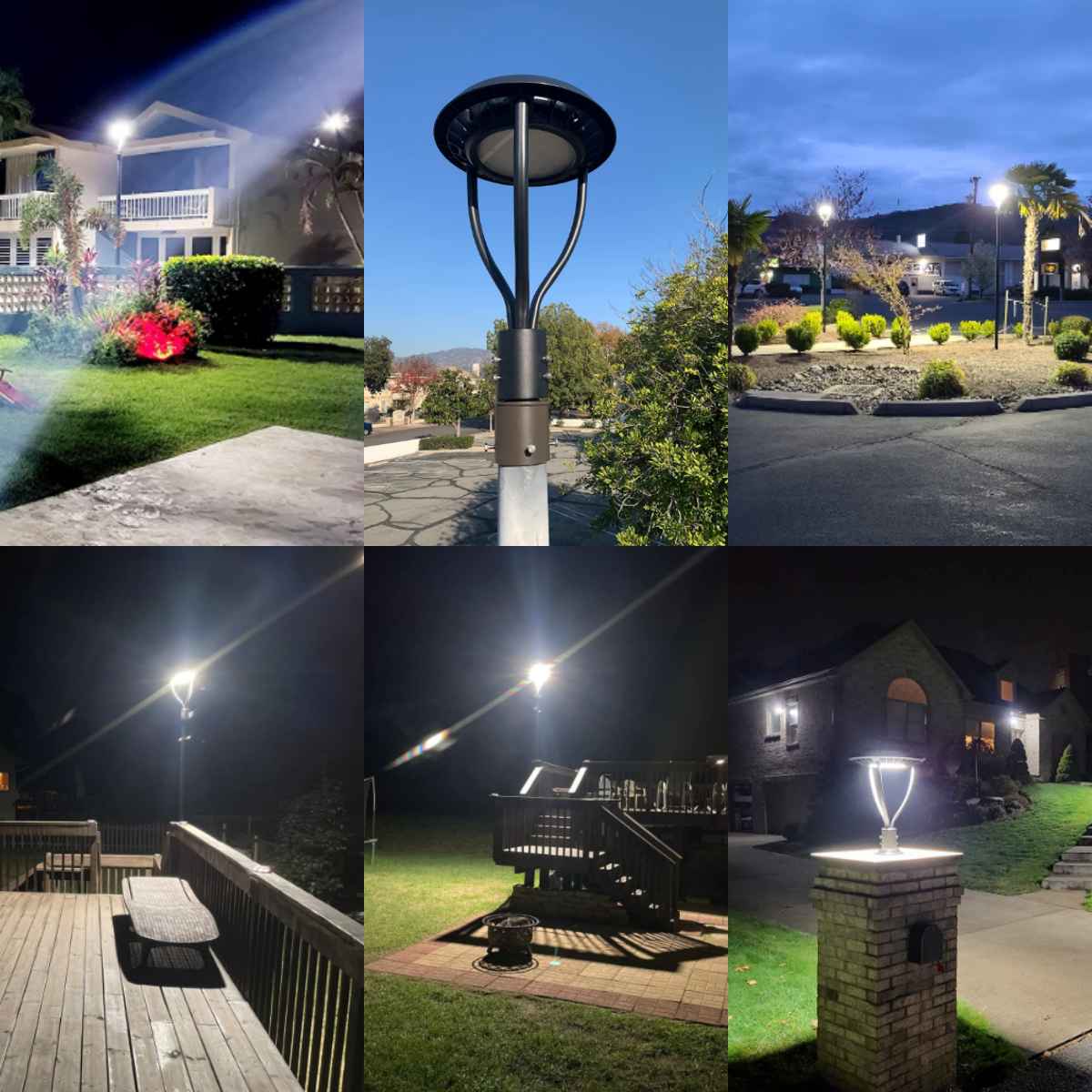

Application Scenario

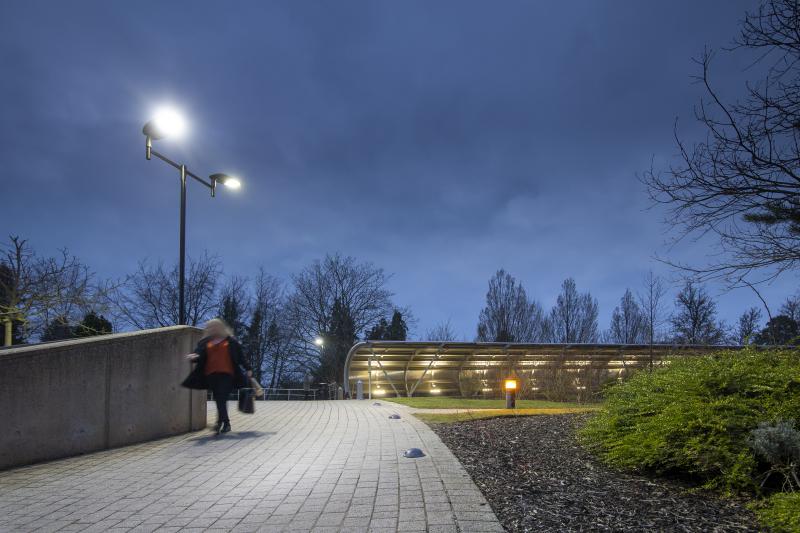

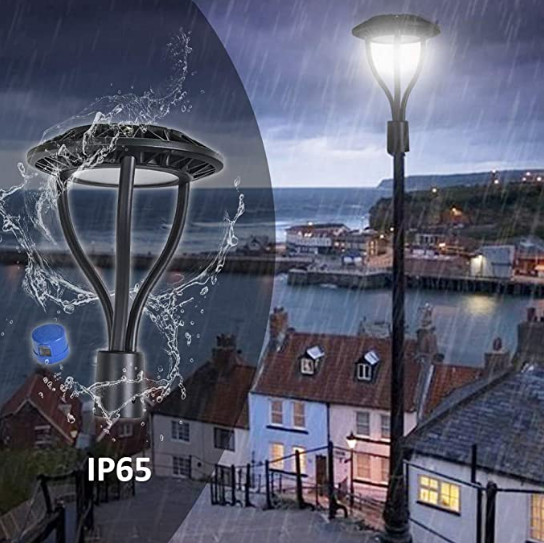

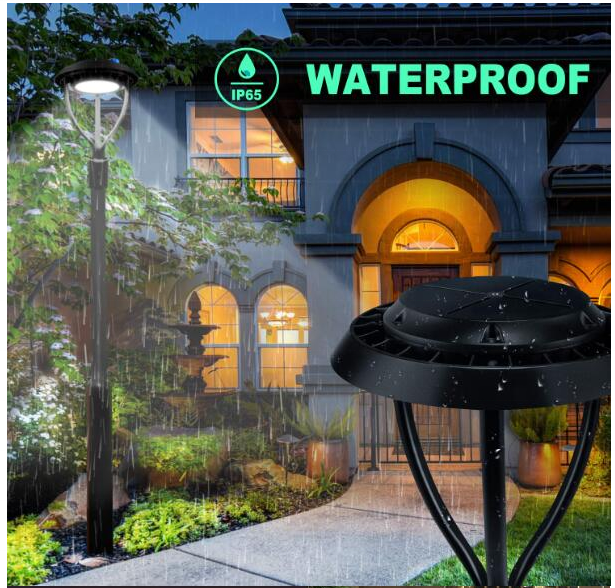

Outdoor Application 1 Outdoor Application 2 Outdoor Application 3
Packaging & Shipping

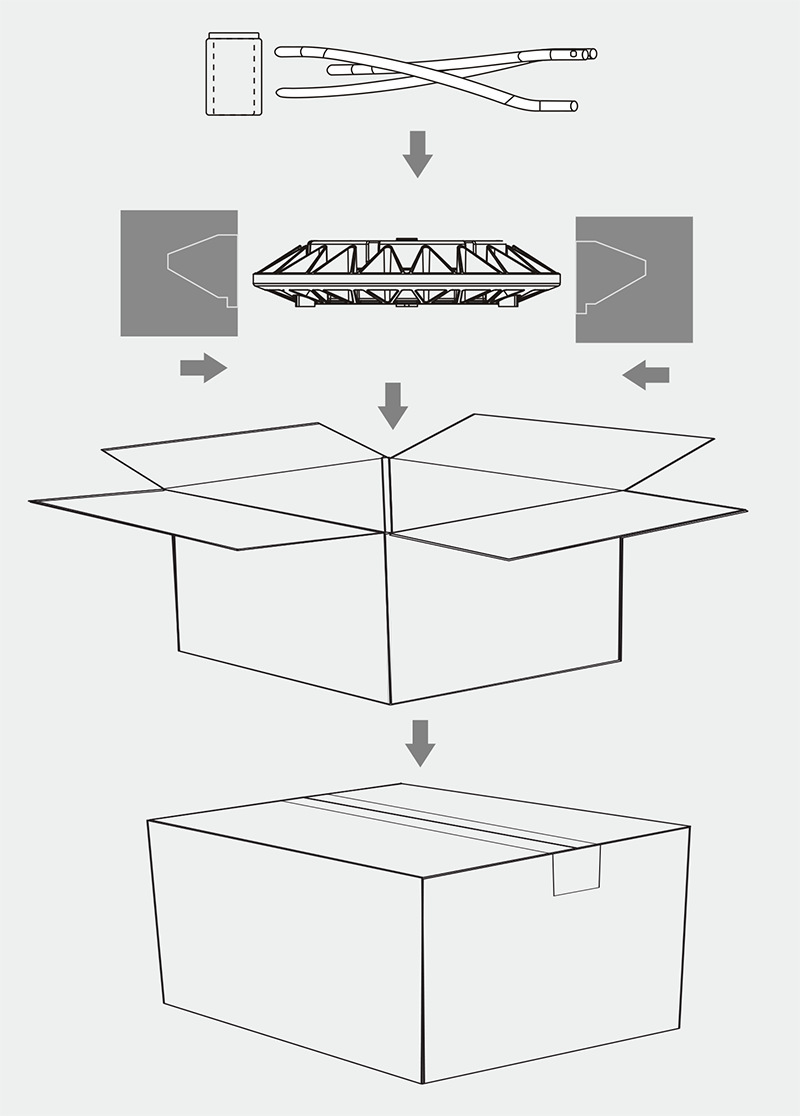

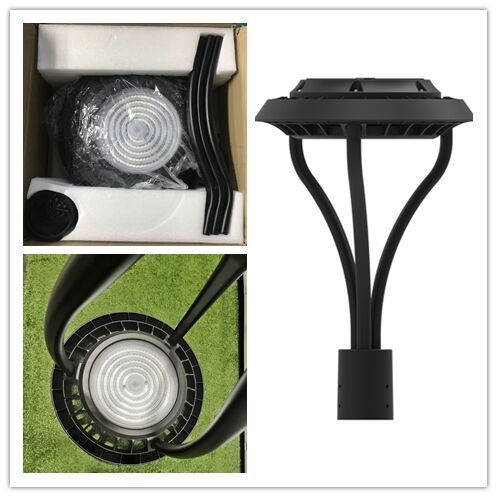

Packaging Detail
Why Choose Us?
  • 100% export to Europe and North America.
  • 11 years of OEM/ODM experience.
  • Bulk orders ready in 15-20 days.
  • All of our products carry a 5-year warranty.
  • Certified with DLC, ETL, SAA, UL, cUL, ERP, CE, and ROHS.
Certification and Quality Assurance
Frequently Asked Questions
Can I have a sample order for this LED light?
Yes, sample orders are welcome to test and check the overall quality. Mixed samples are fully acceptable.
What is the lead time for standard orders?
Samples typically take 3-5 days. Mass production requires 5-7 days for order quantities below 500 pieces.
Do you have a minimum order quantity (MOQ) limit?
There is no MOQ limit. 1 piece for sample checking is fully available.
How are the goods shipped and how long does it take to arrive?
Shipping is typically done via DHL, UPS, FedEx, or TNT, taking 3-5 days to arrive. Airline and ocean shipping options are also available.
What certificates do these LED lights carry?
Our lights carry high-level quality certifications including DLC, ETL, SAA, UL, cUL, ERP, CE, and ROHS.
Do you offer a guarantee for the products?
Yes, we offer a comprehensive 5-year warranty for all our products free of charge after sale.
