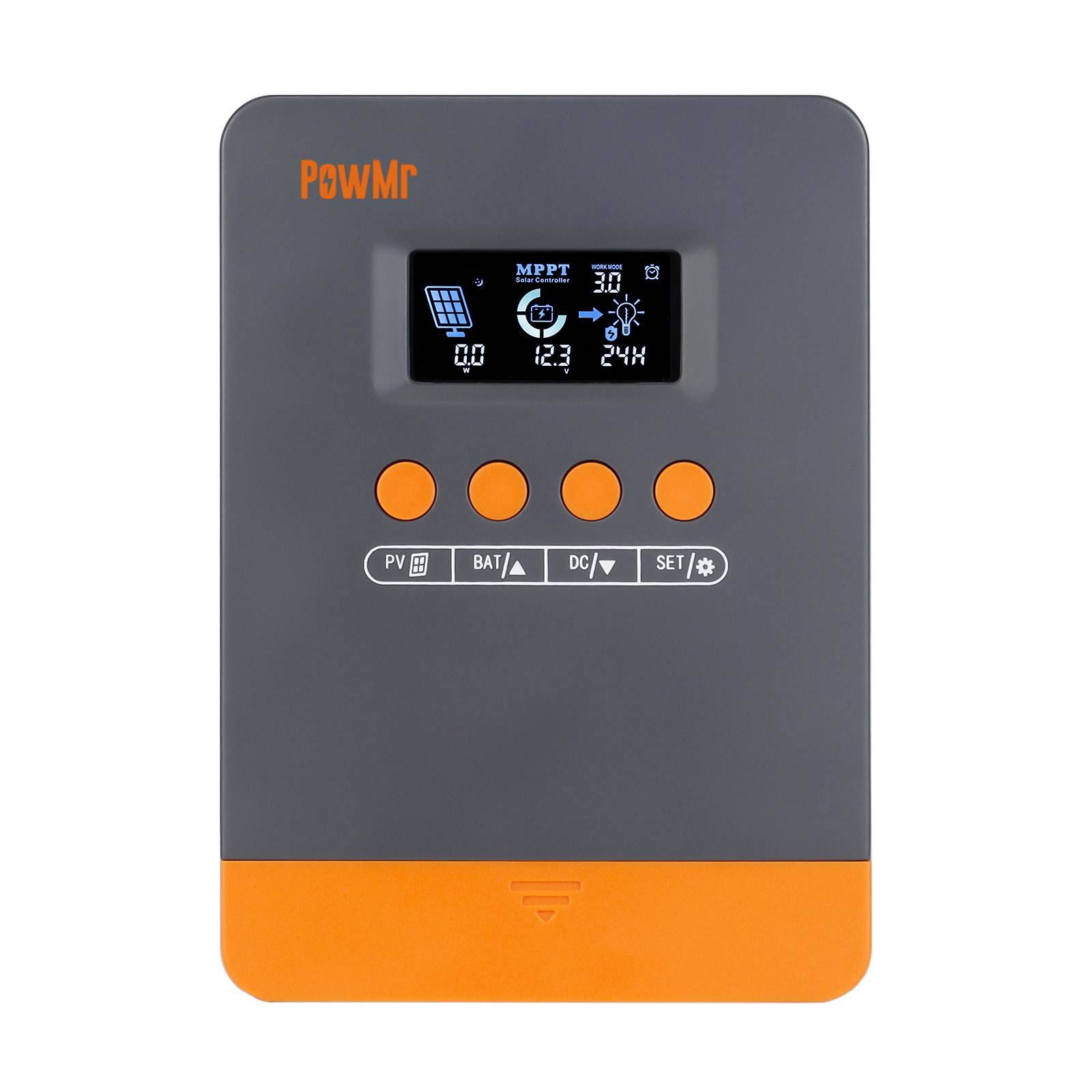

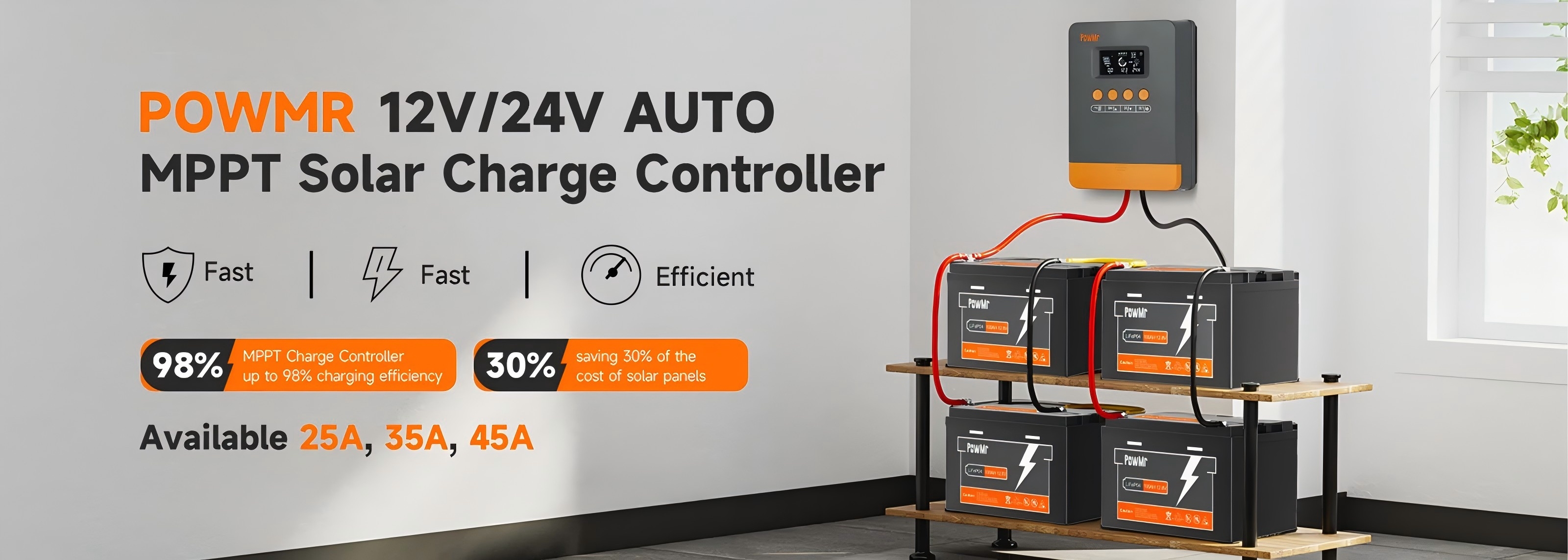

The POW-M series solar controllers are available in 25A, 35A, and 45A charging current options, ensuring your solar system can efficiently capture and store energy. Whether you are seeking an efficient, sustainable, and secure energy management solution or providing robust support for future energy demands, the POW-M series solar controllers are your ideal choice. We are committed to advancing solar technology, offering you exceptional products and services to support your solar system construction.

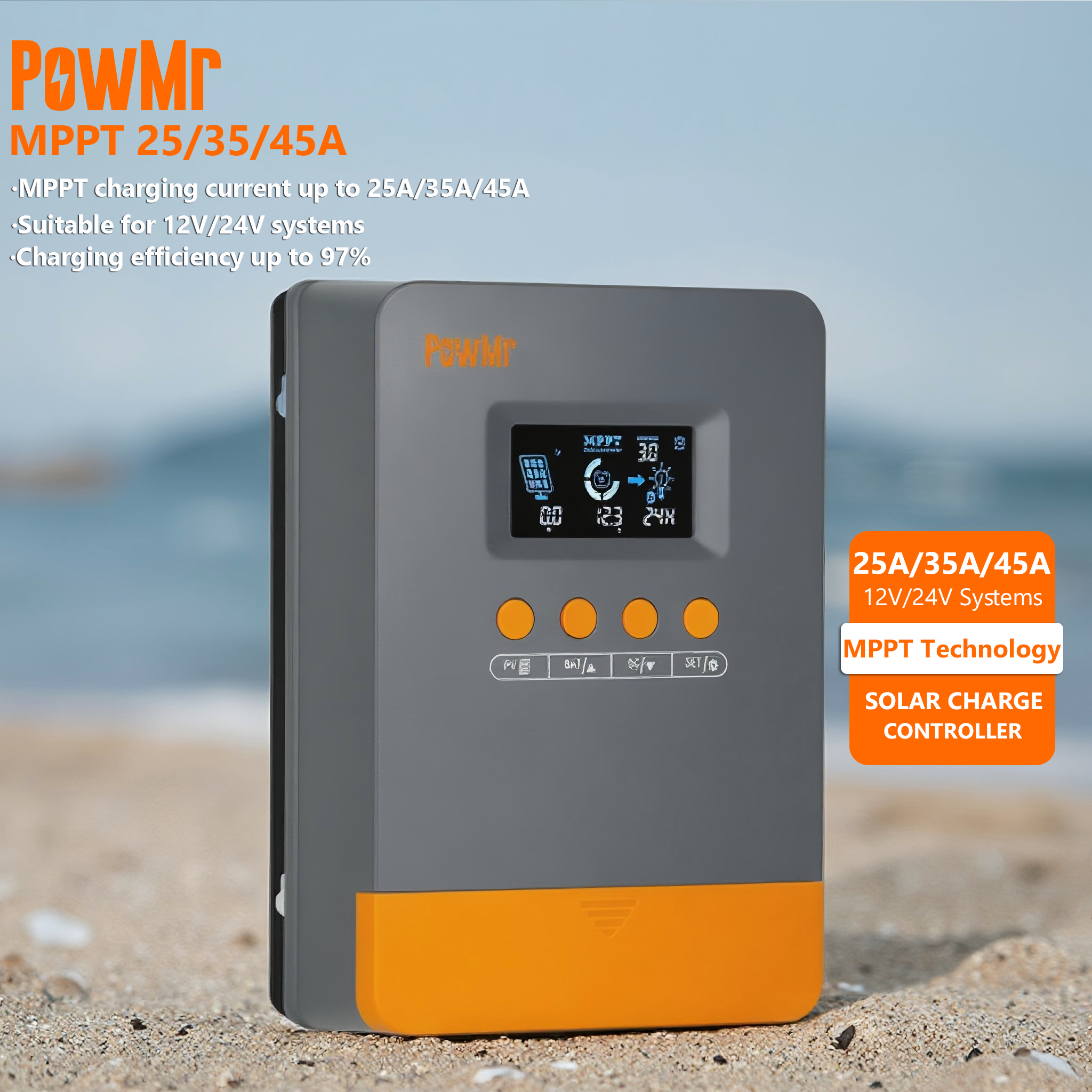

Available in 25A, 35A, and 45A charging current options to meet the needs of various solar energy storage systems. Compatible with 12V/24V system voltages. Innovative MPPT technology with tracking efficiency up to 99.9% and peak conversion efficiency up to 97%, reducing power consumption, heat generation, and operating temperature.

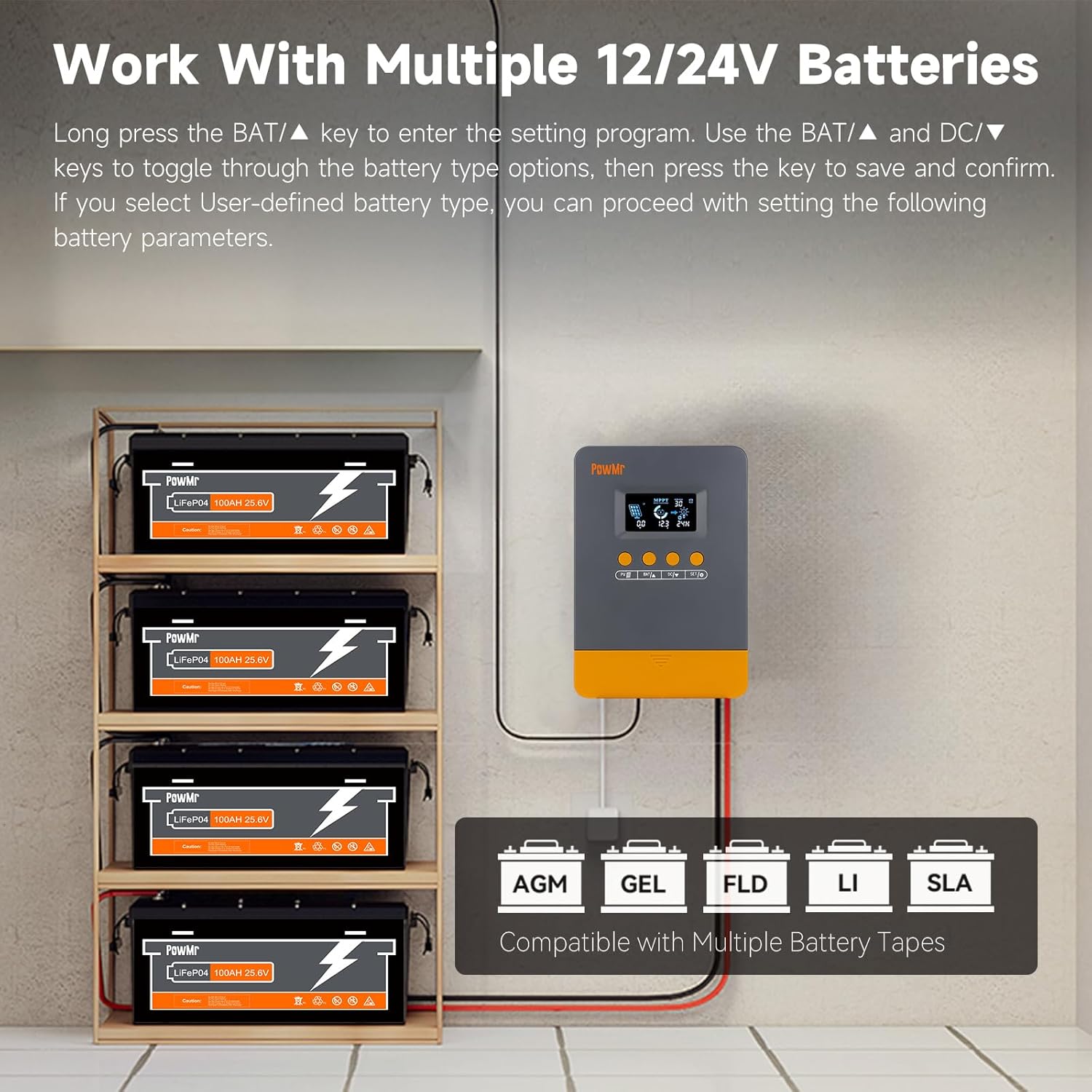

Suitable for most battery types, such as flooded lead-acid, sealed gel, and lithium batteries, delivering optimized charging for RVs, boats, cabins, and other off-grid applications.
Our POW-M series solar controllers offer extensive expandability and customization options, streamlining the solar system configuration process. Their compact size and lightweight design, combined with air-cooled and aluminum alloy back plate natural cooling technologies, enhance operational safety, stability, and suitability for various scenarios. The parallel function allows users to easily scale up their solar energy capacity.
| Models | POW-M25-PRO | POW-M35-PRO | POW-M45-PRO |
|---|---|---|---|
| Max. PV Open-Circuit Voltage | 100V | ||
| Charging Technology | MPPT | ||
| Charging Algorithm | 3 Stages | ||
| Nominal System Voltage | 12V/24V | ||
| Battery Voltage Range | 9~30V | ||
| Rated Charging Current | 25A | 35A | 45A |
| Efficiency | >99% | ||
| Operating Temperature | -35°C~+45°C | ||
| IP Class | IP32 | ||
| Dimensions | 160x115x51mm | 195x135x65mm | 195x135x65mm |
| Net Weight | 500g | 900g | 1035g |
