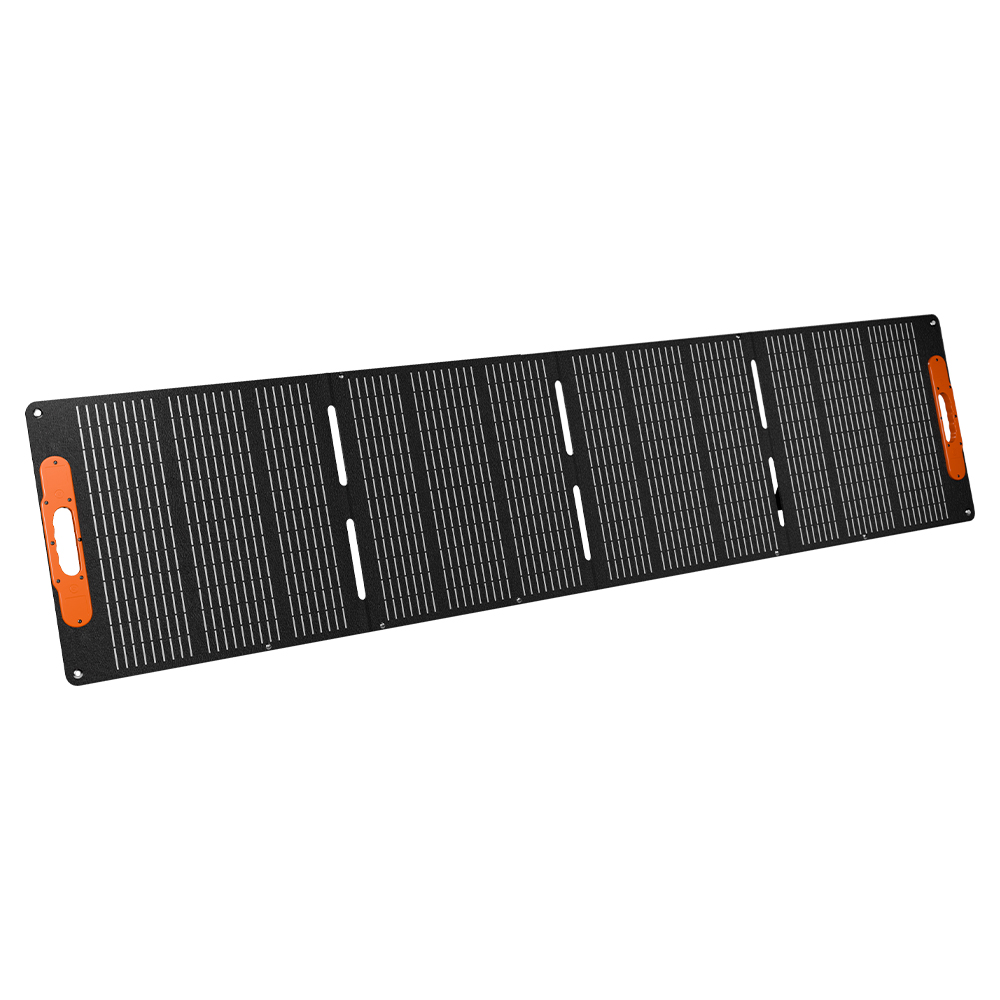

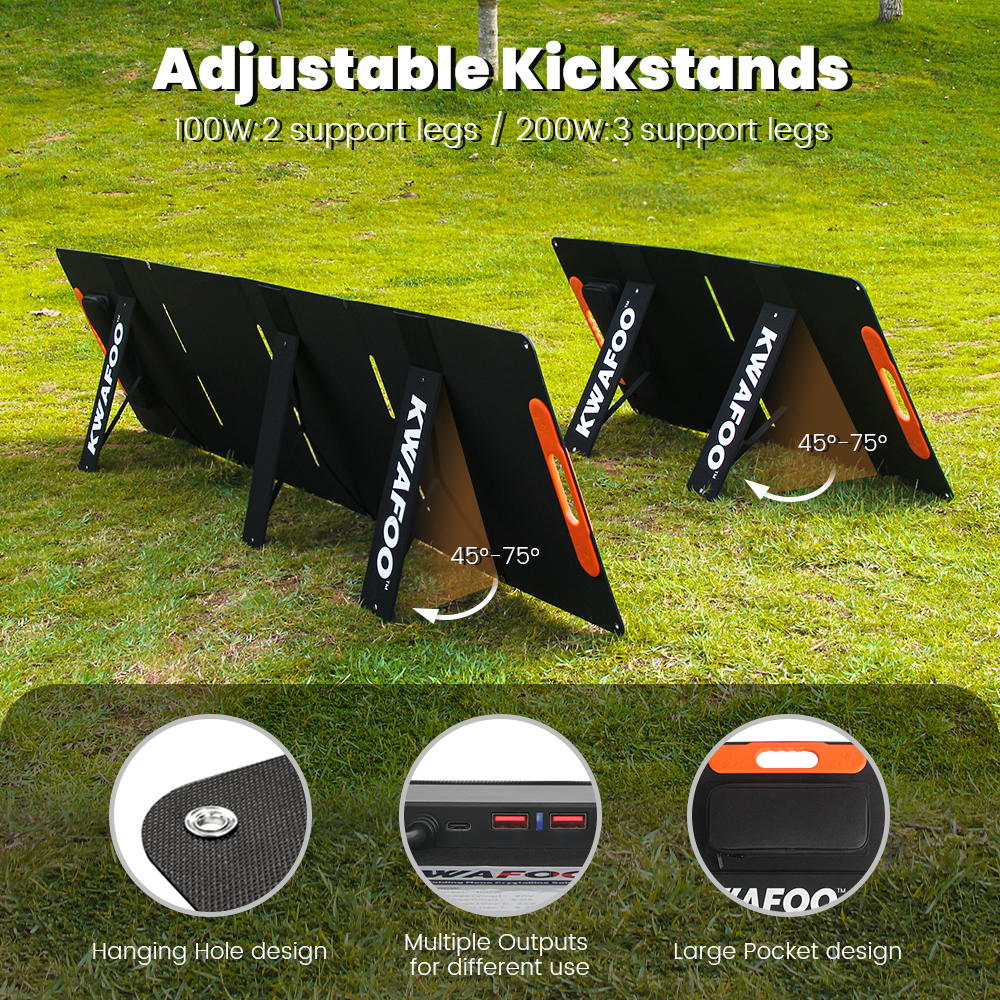

KWAFOO 200W 300W Portable Solar Panel Generator with Folding Solar Panels Home Dual 12V USB IPhones Waterproof 5-Year Warranty
KWAFOO 200W 300W Portable Solar Panel Generator with Folding Solar Panels Home Dual 12V USB IPhones Waterproof 5-Year Warranty
KWAFOO 200W 300W Portable Solar Panel Generator with Folding Solar Panels Home Dual 12V USB IPhones Waterproof 5-Year Warranty
KWAFOO 200W 300W Portable Solar Panel Generator with Folding Solar Panels Home Dual 12V USB IPhones Waterproof 5-Year Warranty
KWAFOO 200W 300W Portable Solar Panel Generator with Folding Solar Panels Home Dual 12V USB IPhones Waterproof 5-Year Warranty
1 / 5
KWAFOO 200W 300W Portable Solar Panel Generator with Folding Solar Panels Home Dual 12V USB IPhones Waterproof 5-Year Warranty
KWAFOO 200W 300W Portable Solar Panel Generator with Folding Solar Panels Home Dual 12V USB IPhones Waterproof 5-Year Warranty
KWAFOO 200W 300W Portable Solar Panel Generator with Folding Solar Panels Home Dual 12V USB IPhones Waterproof 5-Year Warranty
KWAFOO 200W 300W Portable Solar Panel Generator with Folding Solar Panels Home Dual 12V USB IPhones Waterproof 5-Year Warranty
KWAFOO 200W 300W Portable Solar Panel Generator with Folding Solar Panels Home Dual 12V USB IPhones Waterproof 5-Year Warranty

KWAFOO 200W 300W Portable Solar Panel Generator with Folding Solar Panels Home Dual 12V USB IPhones Waterproof 5-Year Warranty

Send Inquiry

Product Description

Portable Folding Solar Panel Showcase
Portable Folding Solar Panel Detail
Folding Solar Panel Application

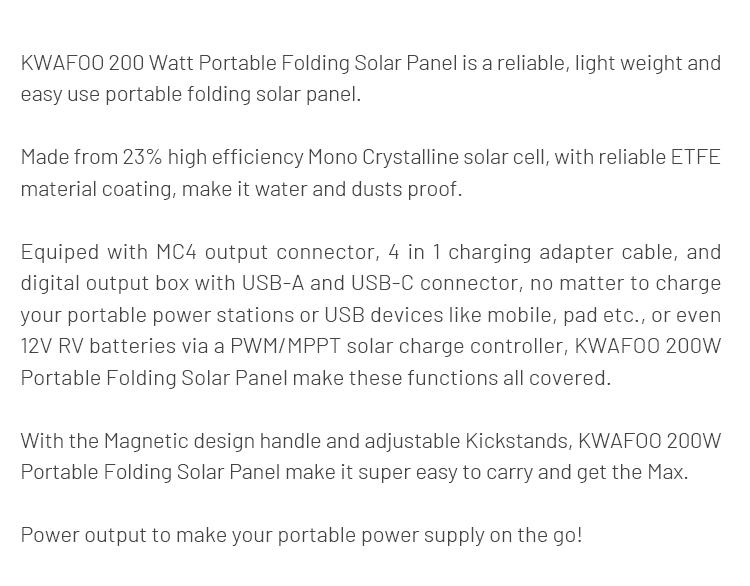

Folding Solar Panel Structure
Solar Panel Output Features
Product Specifications
Item 200W Portable Folding Solar Panel
Solar Cell Type A grade Mono Crystalline
Peak Power (Pm) 200W
Max. Power Voltage (Vm) 20.0V
Max. Power Current (Im) 10A
Open Circuit Voltage (Voc) 24.0V
Short Circuit Current (Isc) 10.5A
Solar Cell Efficiency 23%
Solar Panel Configuration 4X50W

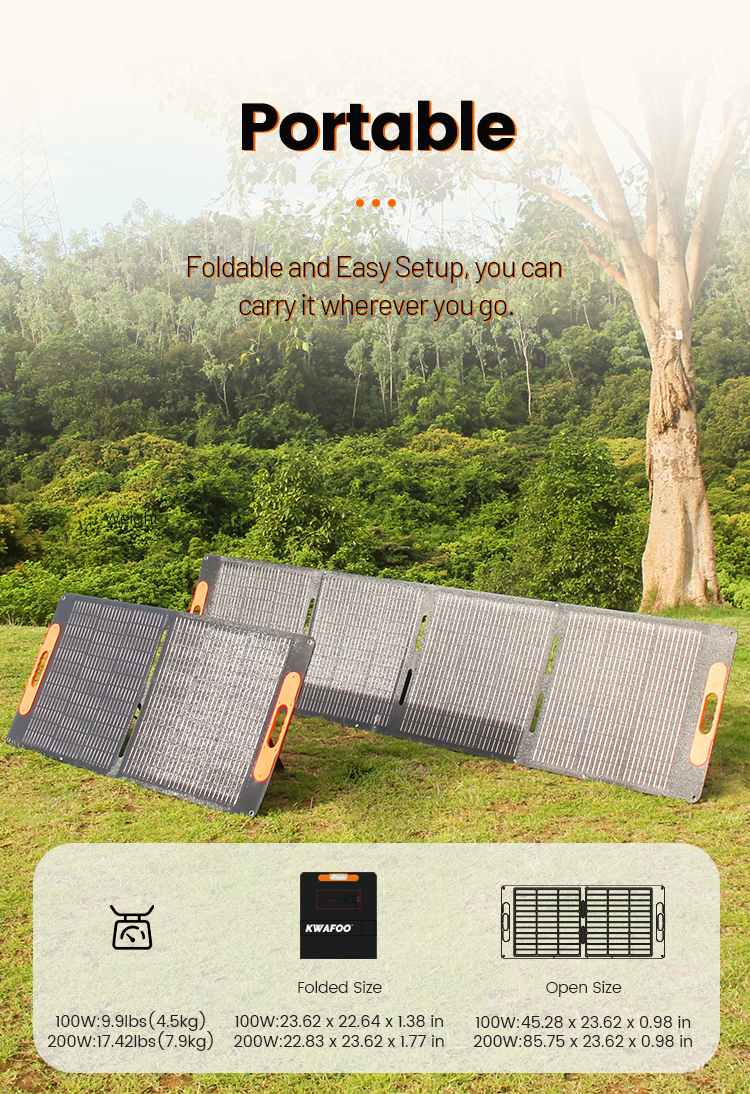

Folded Size 580x600x45mm (22.83 x 23.62 x 1.77 inches)
Open Size 2178x600x25mm (85.75 x 23.62 x 0.98 inches)
Net Weight 8.5Kgs (17.42 Pounds)

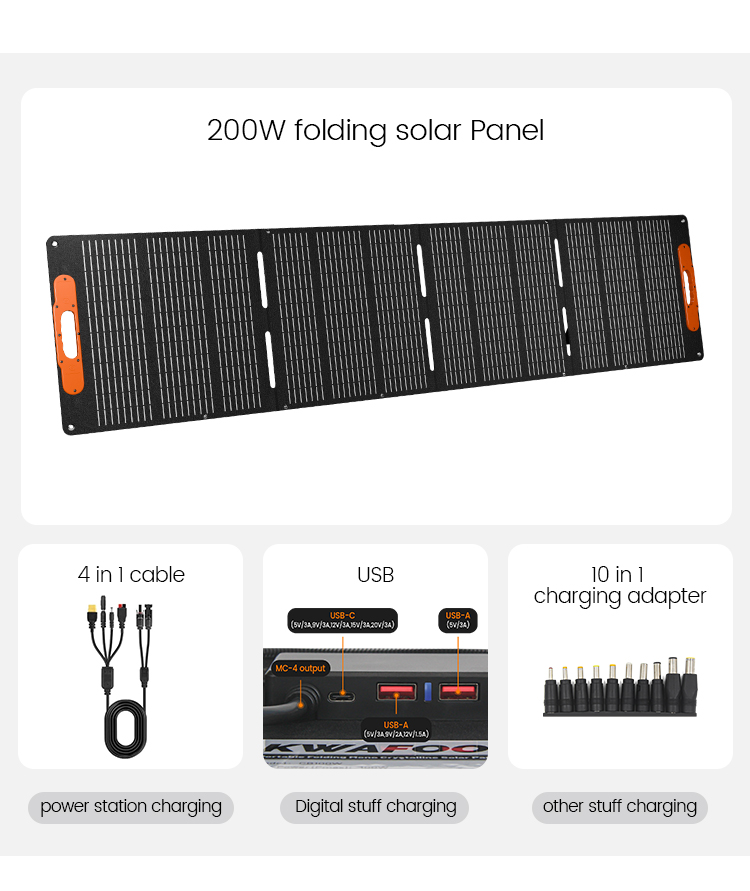

Output Ports DC20V(MC4) , USB-A X 2 , USB-C (PD60W) X 1
Specifications Diagram
Production Process 1
Production Process 2
Production Process 3
Production Process 4
Quality Testing
Product Options Matrix
Package Details
Certification Standards

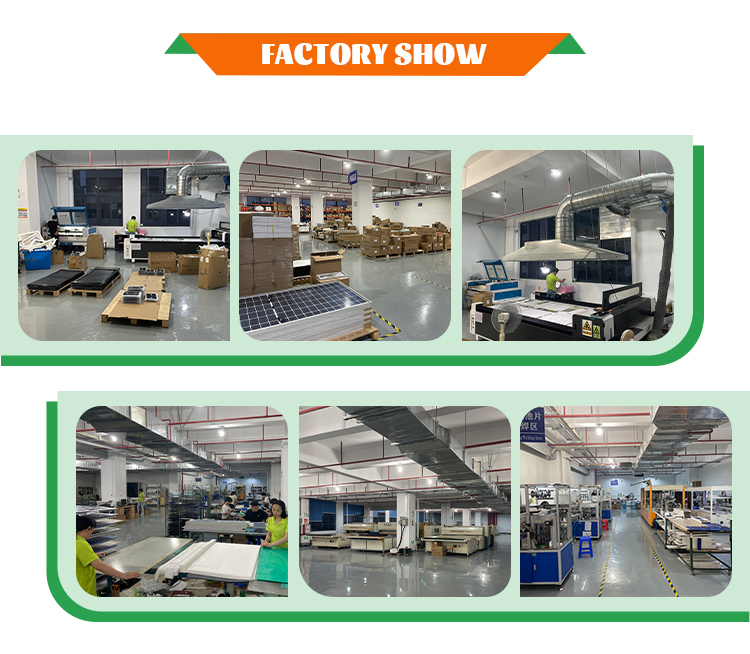

Factory Overview

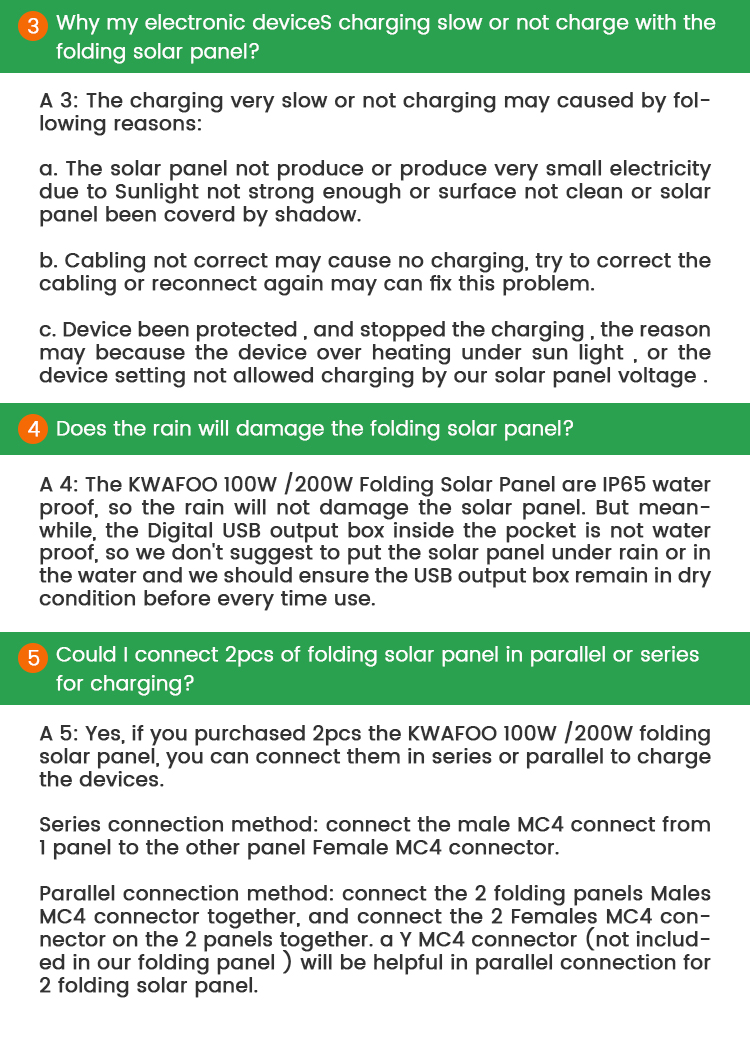

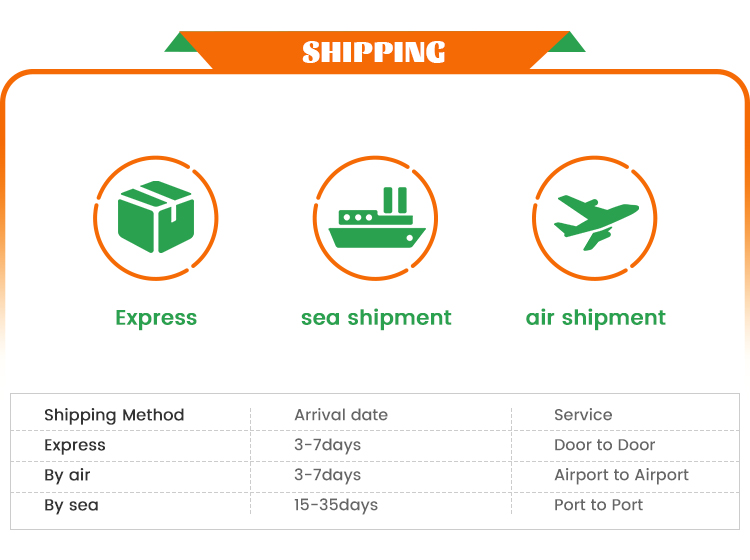

Global Delivery Logistics
Frequently Asked Questions
Q What type of solar cells are used in this folding solar panel?
This solar panel utilizes A-grade Monocrystalline solar cells, which deliver a high cell efficiency rate of up to 23% for reliable outdoor power generation.
Q What outputs are available for charging devices?

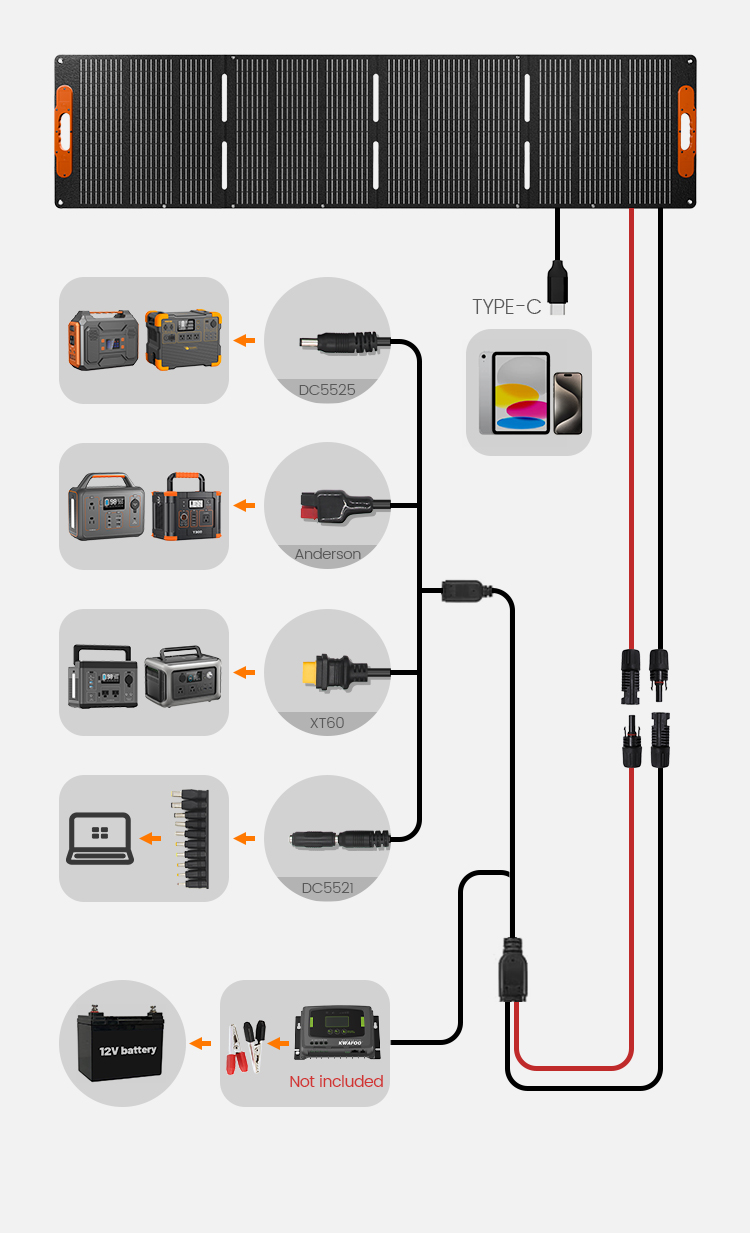

The panel is equipped with three output interfaces: DC 20V (via MC4 connector), two USB-A ports, and one USB-C port supporting Power Delivery (PD) up to 60W.
Q How portable is this solar panel when folded?

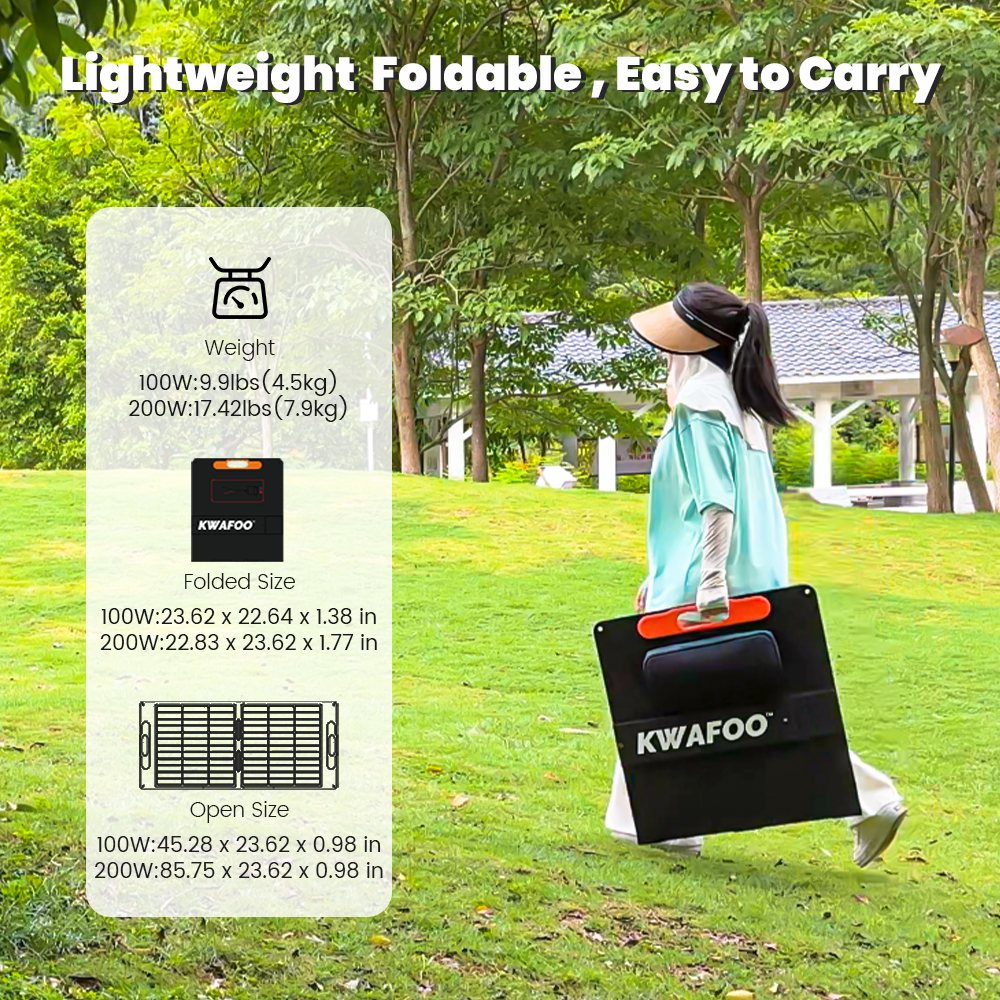

When folded, the dimensions are 580x600x45mm (22.83 x 23.62 x 1.77 inches) and it has a net weight of 8.5Kgs (17.42 Pounds), making it highly compact and convenient to transport.
Q What is the total peak output power of this unit?
The peak power output is 200W, achieved by combining four individual 50W solar panel sections integrated into a single folding design.
Q Can this panel charge multiple devices simultaneously?
Yes, you can utilize the DC, USB-A, and USB-C outputs at the same time to power different compatible devices depending on their specific voltage and current requirements.
