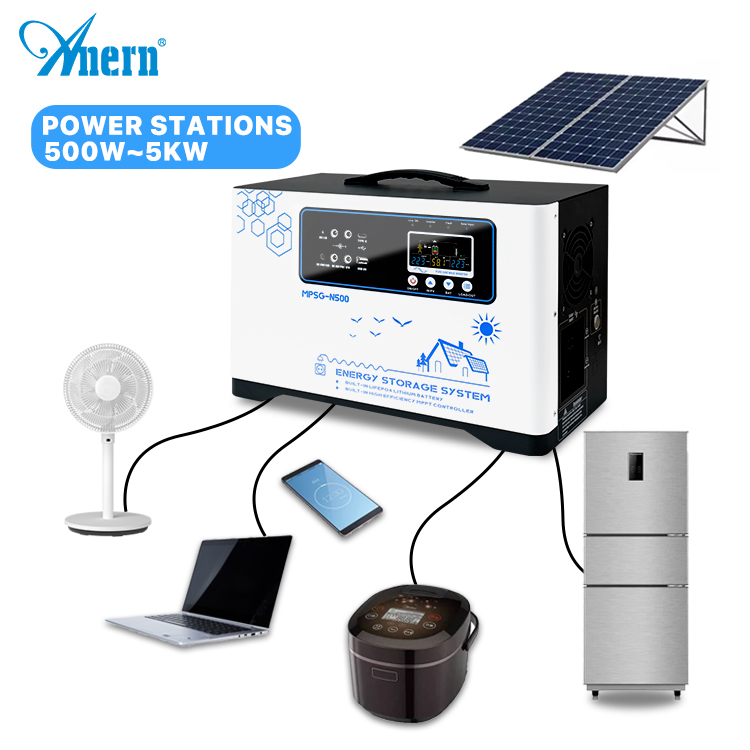

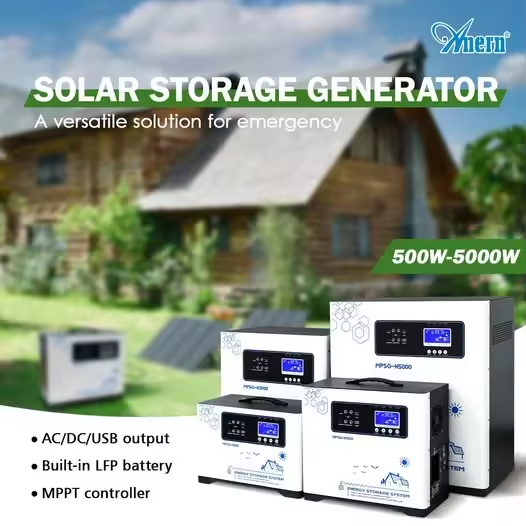

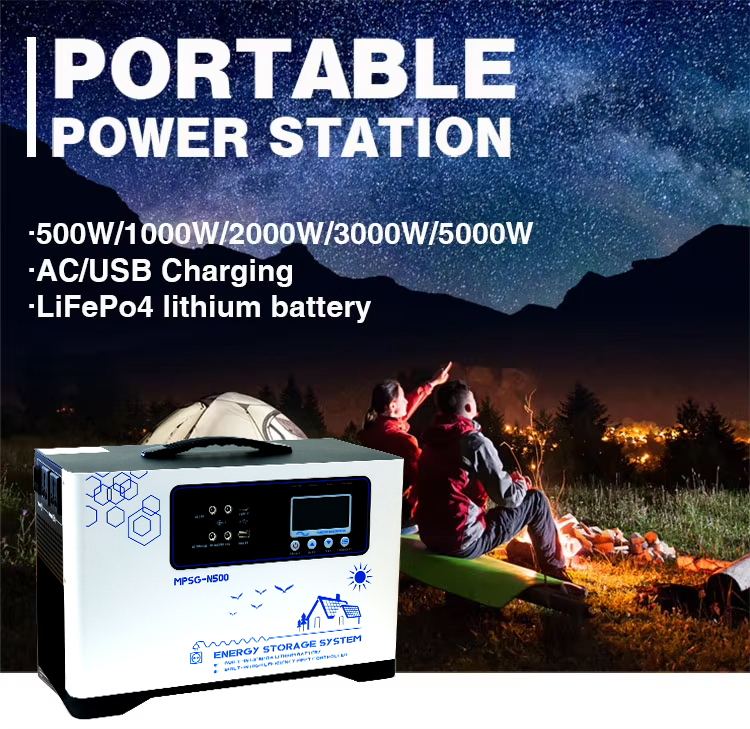

Portable Solar Power Station 500w 1000w 3000w 110V 220V Backup Emergency Lithium Battery 5000w Solar Generator For Home

Product Description

Key Features:

Excellent performance because of double CPU intelligent control technology;

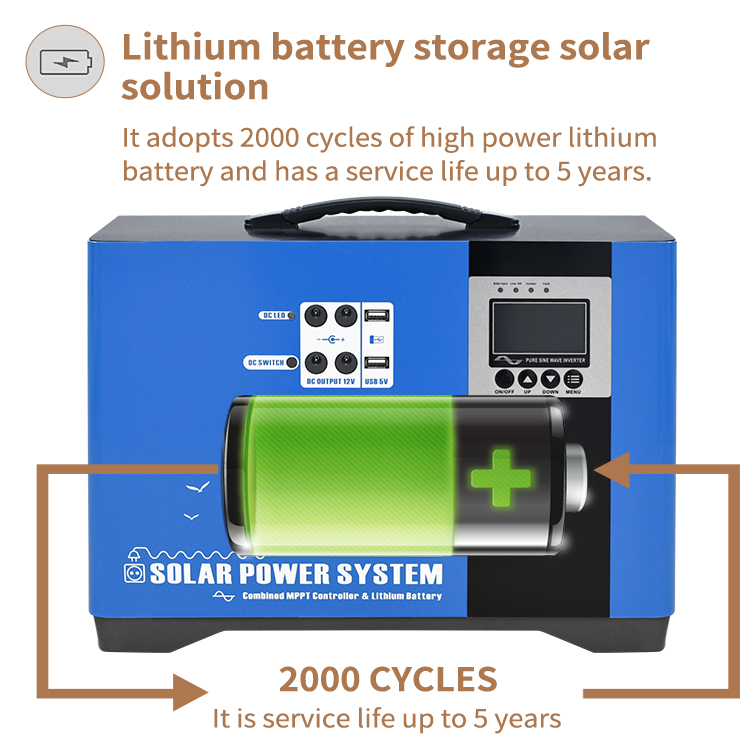

2000 cycles lithium battery and has a 5 years service life;
The mains supply mode/energy-saving mode/battery mode can be set for flexible;
Convenient and practical 5VDC-USB output port and 12VDC output port;
MPPT Controller greatly improving the charging efficiency more than 20%;
Overcharge protection and overdischarge protection for a longer battery life;
Safe and reliable with intelligent exhaust fan control;
Overall automatic protection and alarms including AC output overload protection, short circuit protection, etc;

Specification

Model	MPSG-N500	MPSG-N1000	MPSG-N2000	MPSG-N3000	MPSG-N5000
Battery Voltage	12.8V	25.6V	25.6V	25.6V	48V
Inverter
RATED POWER	500W	1000W	2000W	3000W	5000W
Input Voltage Range	110/220VAC ± 10%
Input Frequency	45-65Hz
Output Voltage	110/120/220/240VAC (optional)
Output Frequency	50/60Hz
Output Wave	Pure Sine Wave
Specification of Built-in Lithium Battery	600WH	1200WH	2500WH	3000WH	5000WH
Communication	RS485/WIFI (optional)
Solar Input
Max. PV Power	240W	480W	800W	1500W	3000W
Range of Charging Voltage	15-90VDC	30-90VDC	30-90VDC	30-130VDC	60-160VDC
Rated Charge Current	20A		30A	60A	60A
DC Output
5VDC USB Output	2 ports / MAX 2A
12VDC Output Ports	2 ports / MAX 2A
PHYSICAL
Heat Dissipation/Cooling	Temperature control by intelligent exhaust fan
Display	Digital LCD
Electricity Charging	Yes

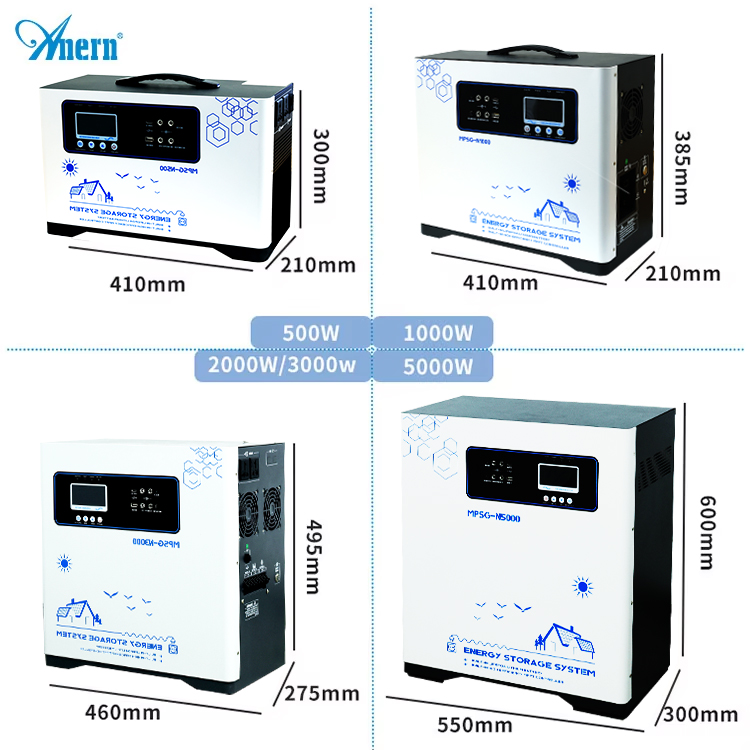

External Size: WDH (mm)	410210300mm	410210385mm	460275495mm	460275495mm	550300600mm
Package Size: WDH (mm)	458258348mm	458258433mm	495 × 290 × 640mm	495 × 290 × 640mm	585 × 315 × 760mm
G.W. (Gross Weight)	18kg	27kg	50kg	59kg	90kg

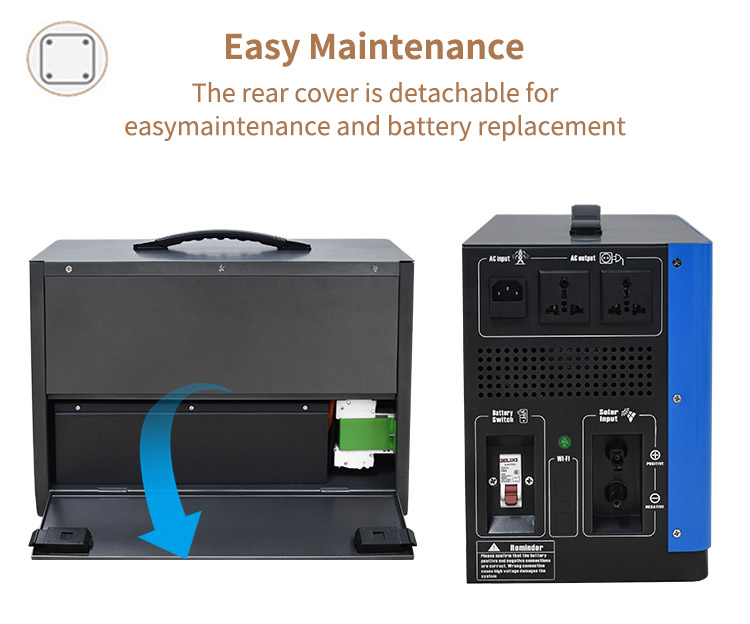

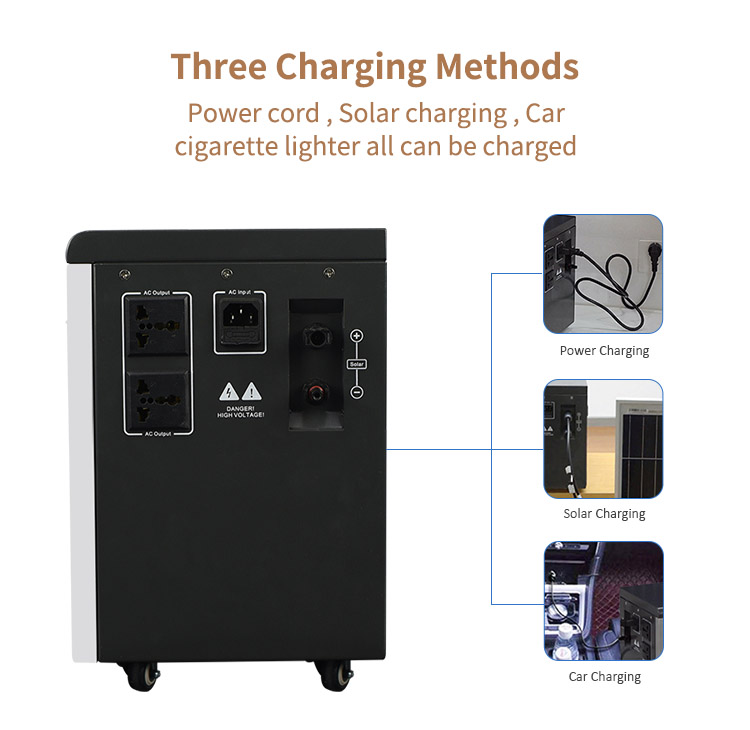

Product Details

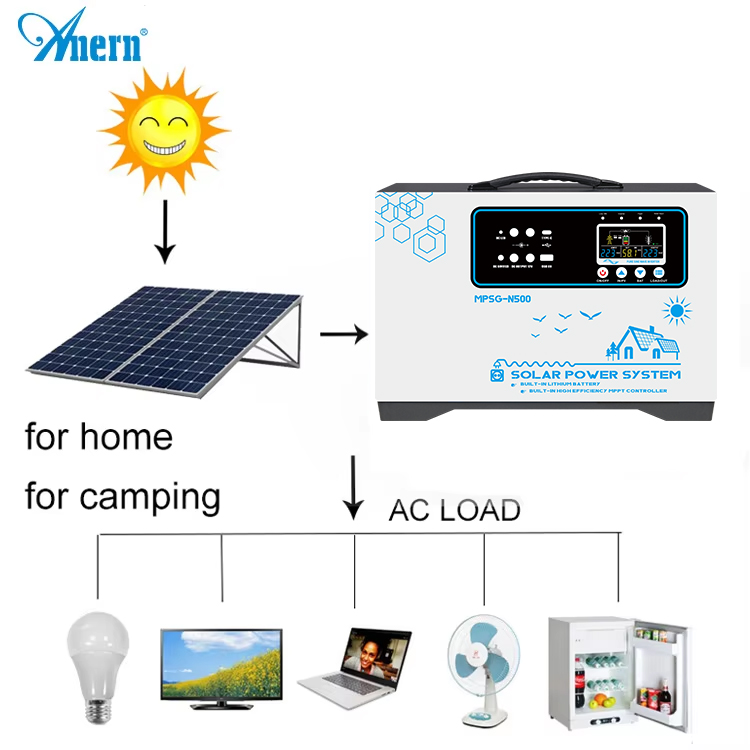

Application

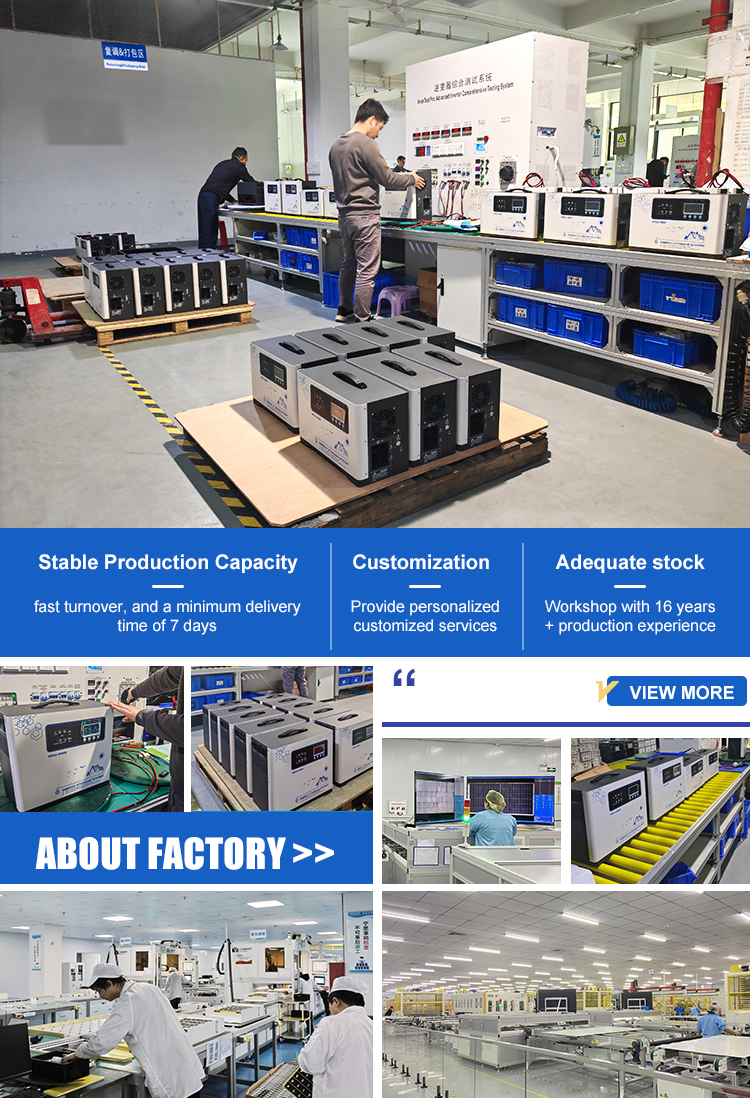

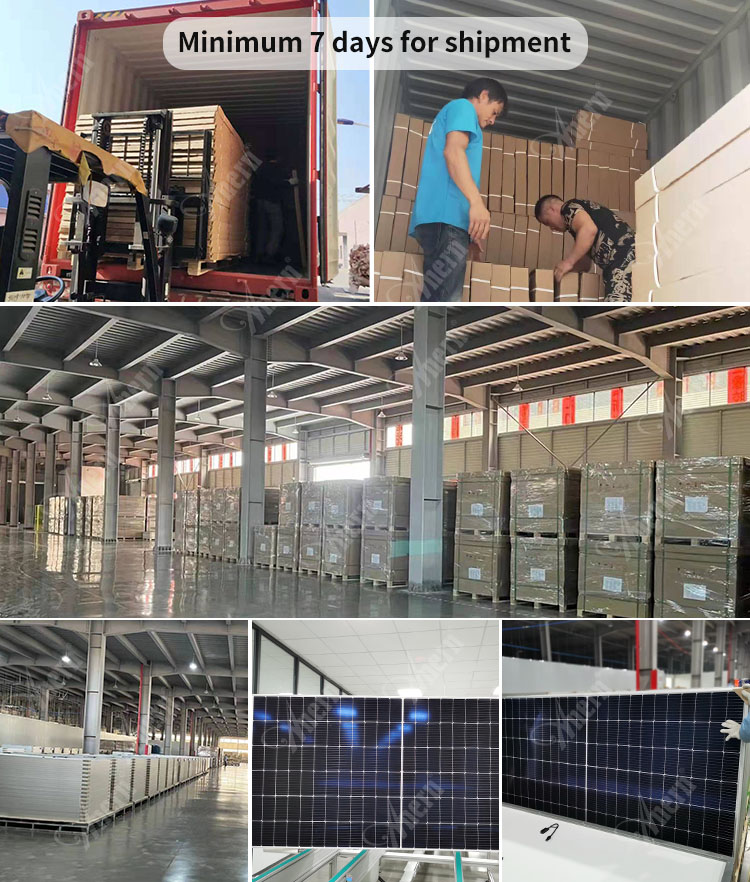

Factory Production

Frequently Asked Questions

Q1: What are the core advantages of double CPU intelligent control technology?

Double CPU intelligent control technology optimizes the performance and reliability of the inverter, ensuring more stable power output and efficient management of multiple working modes.

Q2: How long is the lifespan of the built-in lithium battery?

The high-performance lithium battery supports up to 2000 cycles and provides a long service life of 5 years under standard operational conditions.

Q3: What working modes can be configured on this solar generator?

You can easily set the system to mains supply mode, energy-saving mode, or battery mode depending on your local grid stability and energy needs.

Q4: How does the built-in MPPT controller improve solar charging?

The Maximum Power Point Tracking (MPPT) controller continuously tracks the solar panel's peak output, improving overall solar charging efficiency by more than 20% compared to traditional controllers.

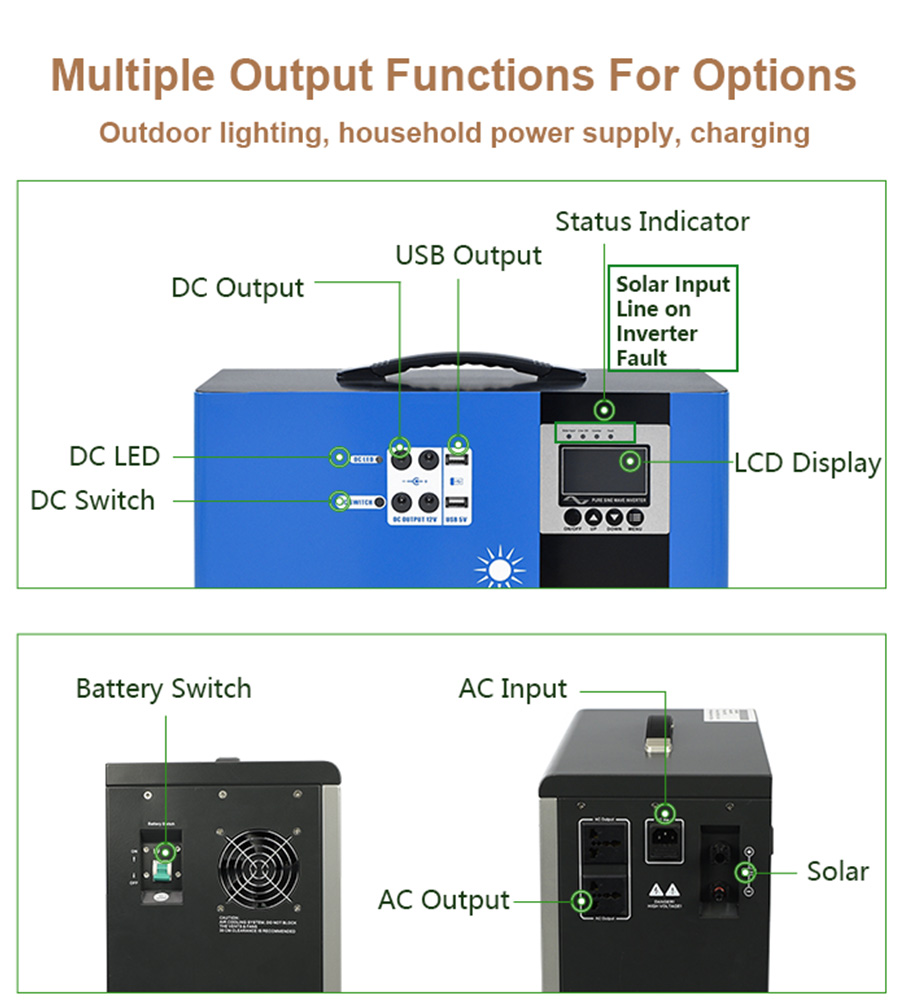

Q5: What types of output ports are available on these models?

All models come equipped with multiple AC output options (Pure Sine Wave), two 5VDC USB output ports (Max 2A), and two 12VDC output ports (Max 2A) for convenient connection to various devices.

Q6: What safety and protection mechanisms are built into the unit?

It features overall automatic protection systems, including overcharge and overdischarge protection, AC output overload protection, short circuit protection, and an intelligent exhaust fan for temperature-controlled heat dissipation.
