| System parameter | ||||
|---|---|---|---|---|

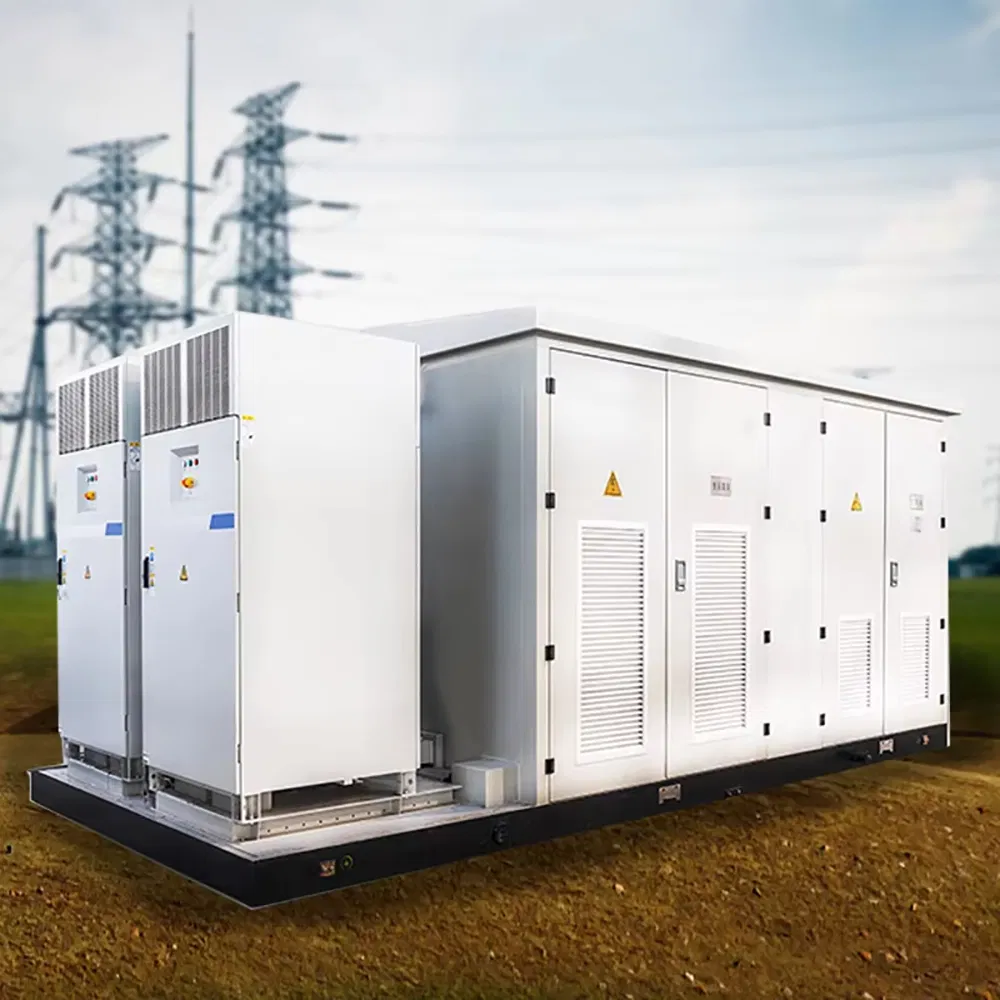

| Type | 100kW/232kWh Integrated Liquid-Cooling Ess | |||
| Dimensions (W*D*H) | 1300mm*1376mm*2092mm | |||
| Weight | ≤2800kg | |||
| IP level | IP54 (Outdoor) | |||
| Ambient temperature | -20ºC~50ºC | |||
| Noise | ≤60dB | |||
| Altitude | ≤3000m | |||
| Fire-fighting system | Perfluorohexanone | |||
| Communication | RS485/CAN2.0/Ethernet | |||
| AC parameter | ||||
| Rated voltage | AC400V,3L+N+PE | |||
| Rated power | 100kW | |||
| Grid voltage range | Grid voltage range | |||
| Charge/discharge conversion time | <100ms | |||
| Power factor | -0.99~ +0.99 | |||
| Battery parameter | ||||
| Battery type | LFP 3.2V/280Ah | |||
| Module model | 1P52S | |||
| Composition | 1P*52S*5S | |||
| Rated energy | 232kWh | |||
| Nominal voltage | 832V | |||
| Voltage range | 741V~949v | |||
We have over 12 years of experience in the battery industry, with a well-established supply chain and production expertise. By partnering directly with leading cell manufacturers, we ensure stable product supply and guaranteed quality.
We operate overseas warehouses in the United States, Europe, Canada, the UK, South Africa, and Southeast Asia, offering localized services. We also welcome regional distributors to collaborate deeply, contributing to the global green energy movement.
We offer cells, low-voltage battery packs, high-voltage battery packs, all-in-one systems, DIY kits, and customized services, providing a comprehensive one-stop solution to meet all energy storage needs.
We provide professional, all-in-one commercial & industrial energy storage system (ESS) solutions.
Tailored solutions from 30KW to 1MW to meet diverse project needs.
Our inverters support parallel connection: 50KW inverter can be paralleled up to 6 units (300KW); 100KW inverter can be paralleled up to 3 units (300KW/375KW).
Our 100KW ESS system delivers up to 125KW real output while being rated at 100KW - ensuring more efficient and stable operation.
Battery capacity is fully customizable, ranging from 61kWh to 2MWh, based on project requirements.

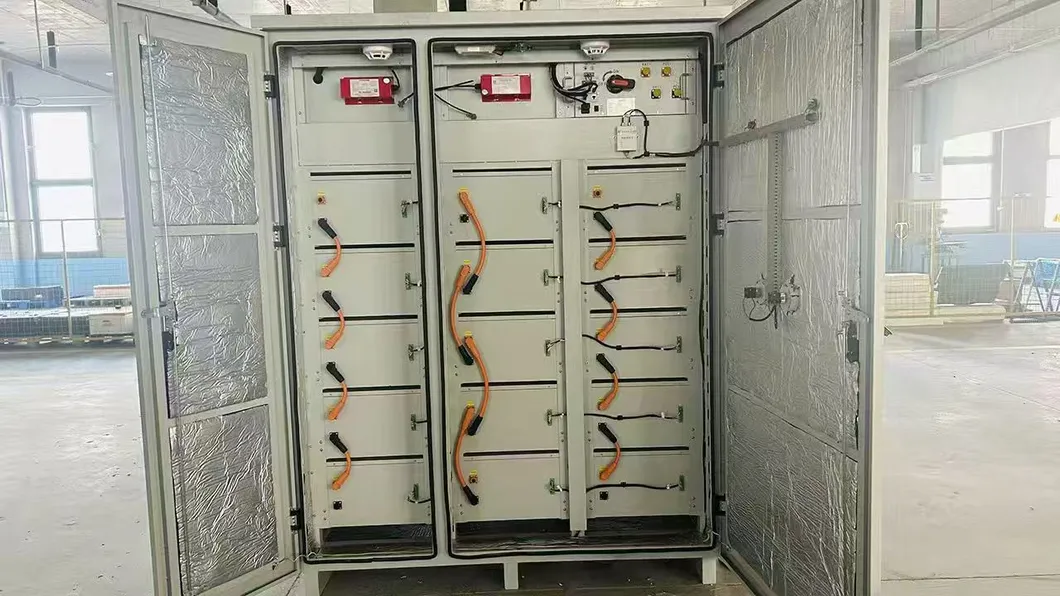

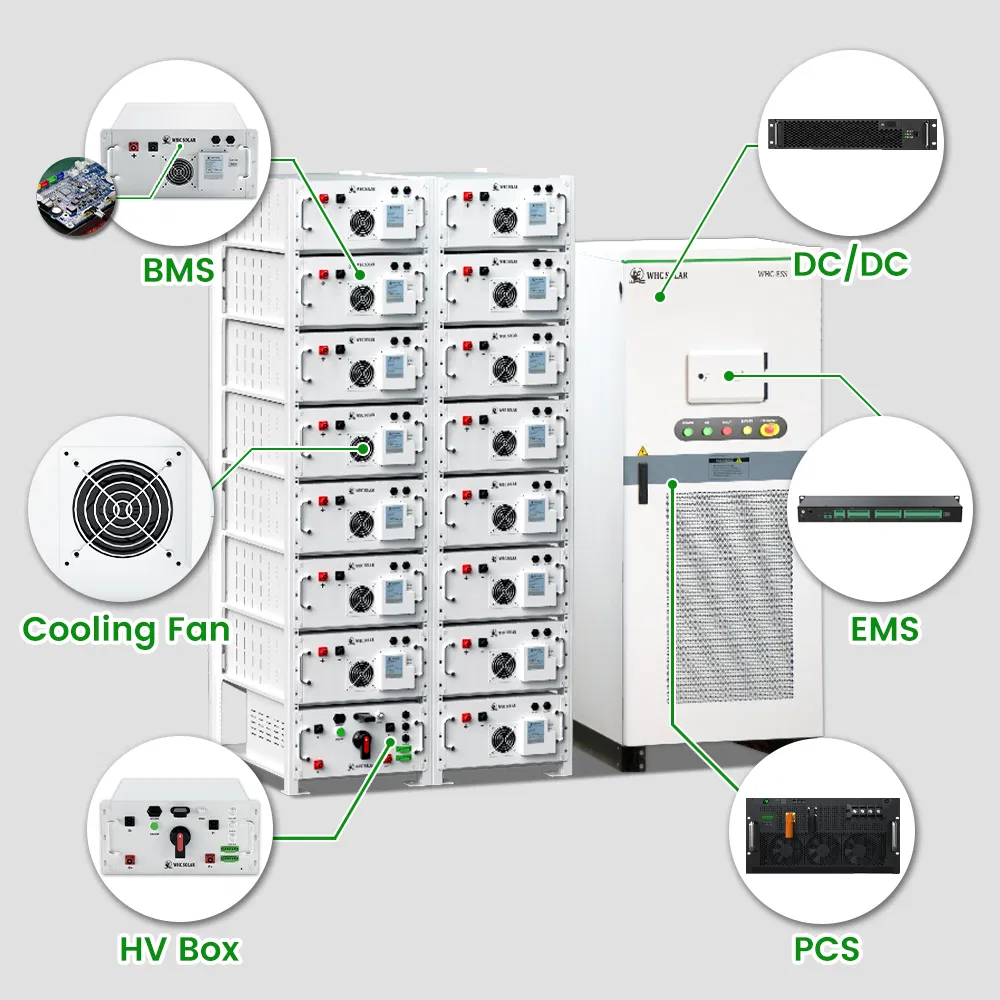

The system integrates high-voltage lithium battery packs, BMS, active battery balancing, PCS (inverter), MPPT, and EMS for smart energy management.
Using high-density LFP cells (≥160Wh/kg), our systems are compact, lightweight, and space-saving. Safe and reliable, with over 6,000 cycles at 80% DoD and a lifespan of more than 10 years.
Designed for hotels, schools, factories, churches, broadcasting stations, and large villas.
Features UPS-level automatic switching to ensure uninterrupted power for critical loads.
Backed by a team of experienced engineers for on-site installation, debugging, and technical support.
We have multiple overseas warehouses in Africa, with a total area of over 15,000 square meters. We support direct delivery of local spot goods, shorten the delivery cycle, and serve local agents. We also offer a localized after-sales team, with multiple professional engineers and salespeople stationed in major markets such as Nigeria to provide localized technical guidance and services. Currently, we have more than 300 agents all around the world, and our strategy is to expand it to 1000 in the future. Welcome wholesalers, distributors and retailers to contact us.
