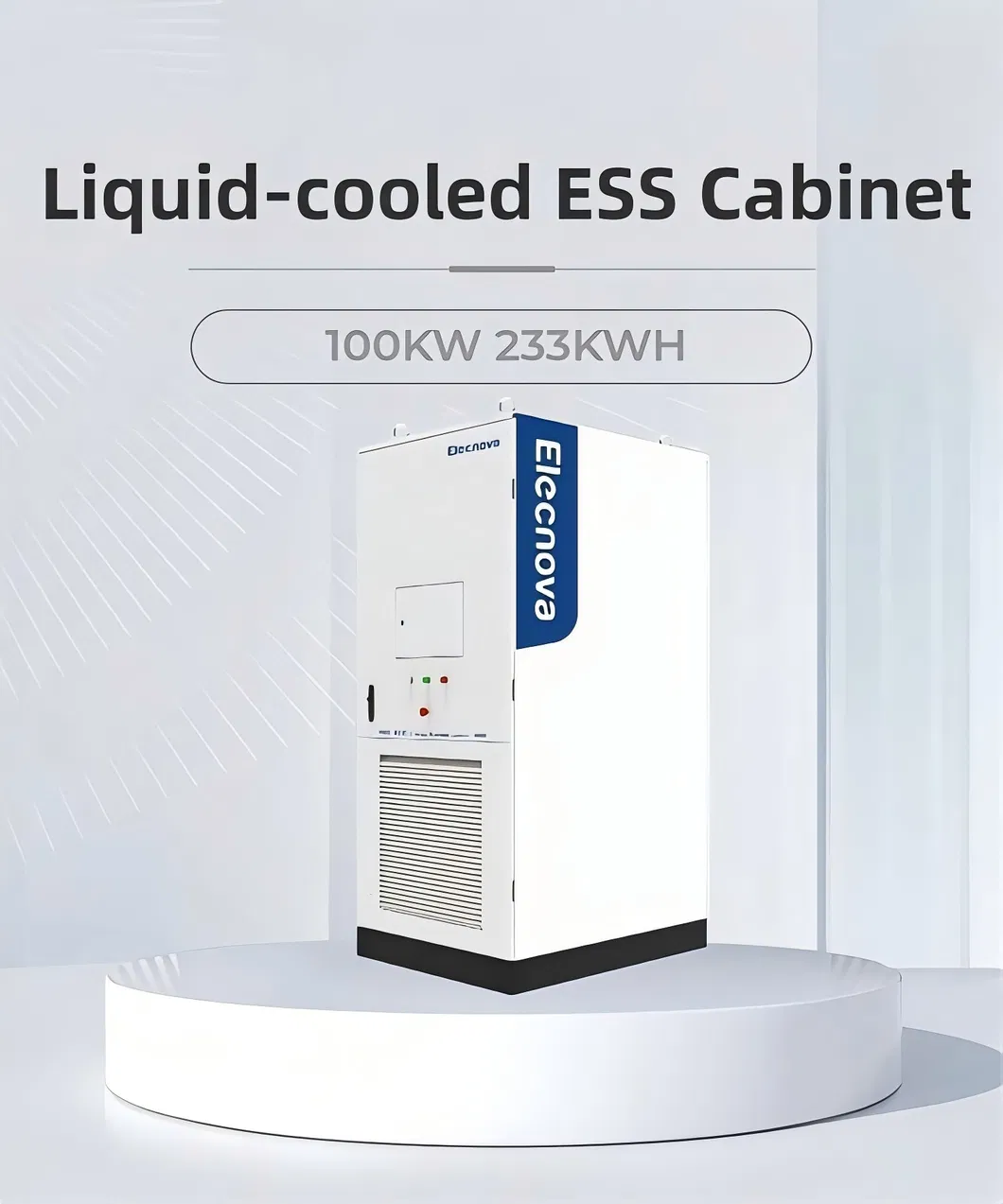

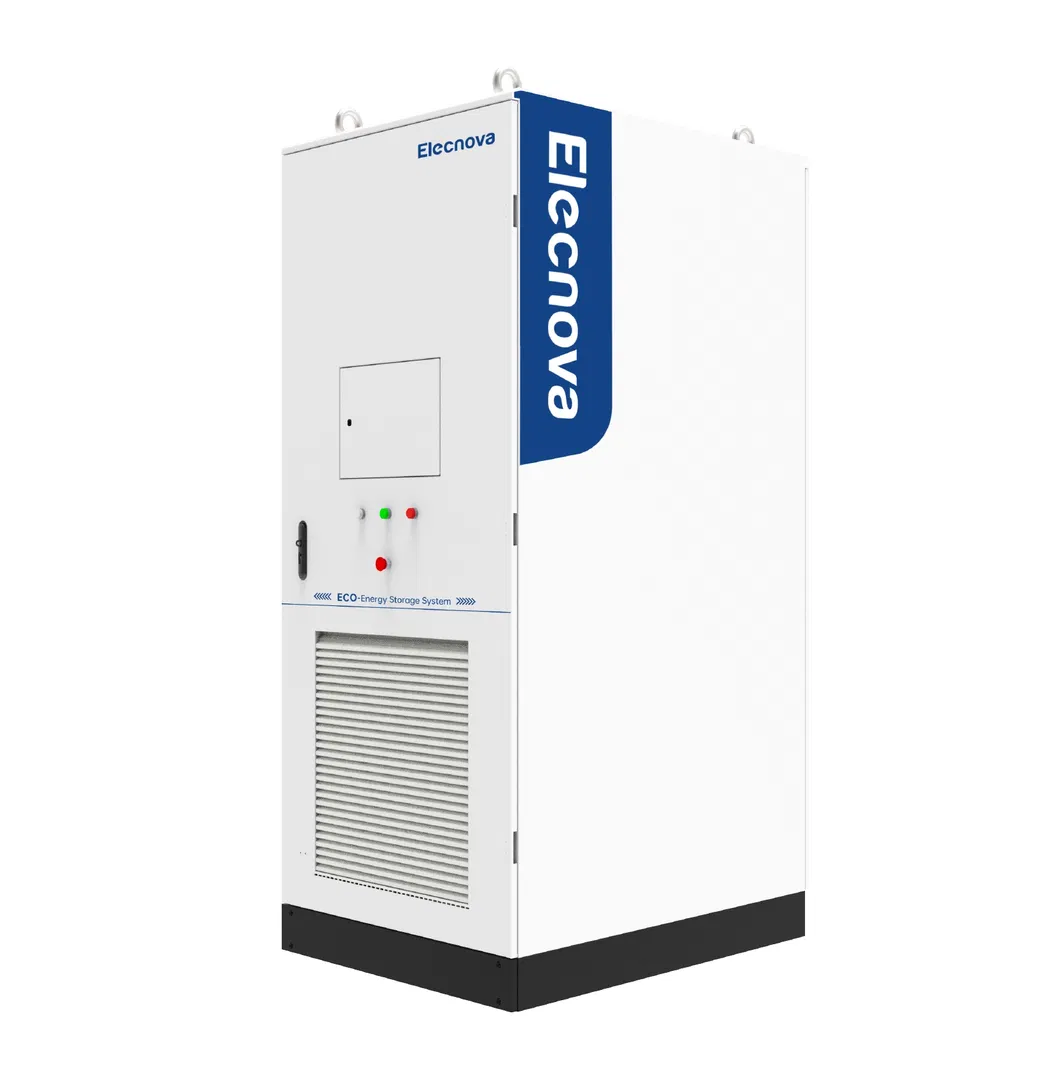

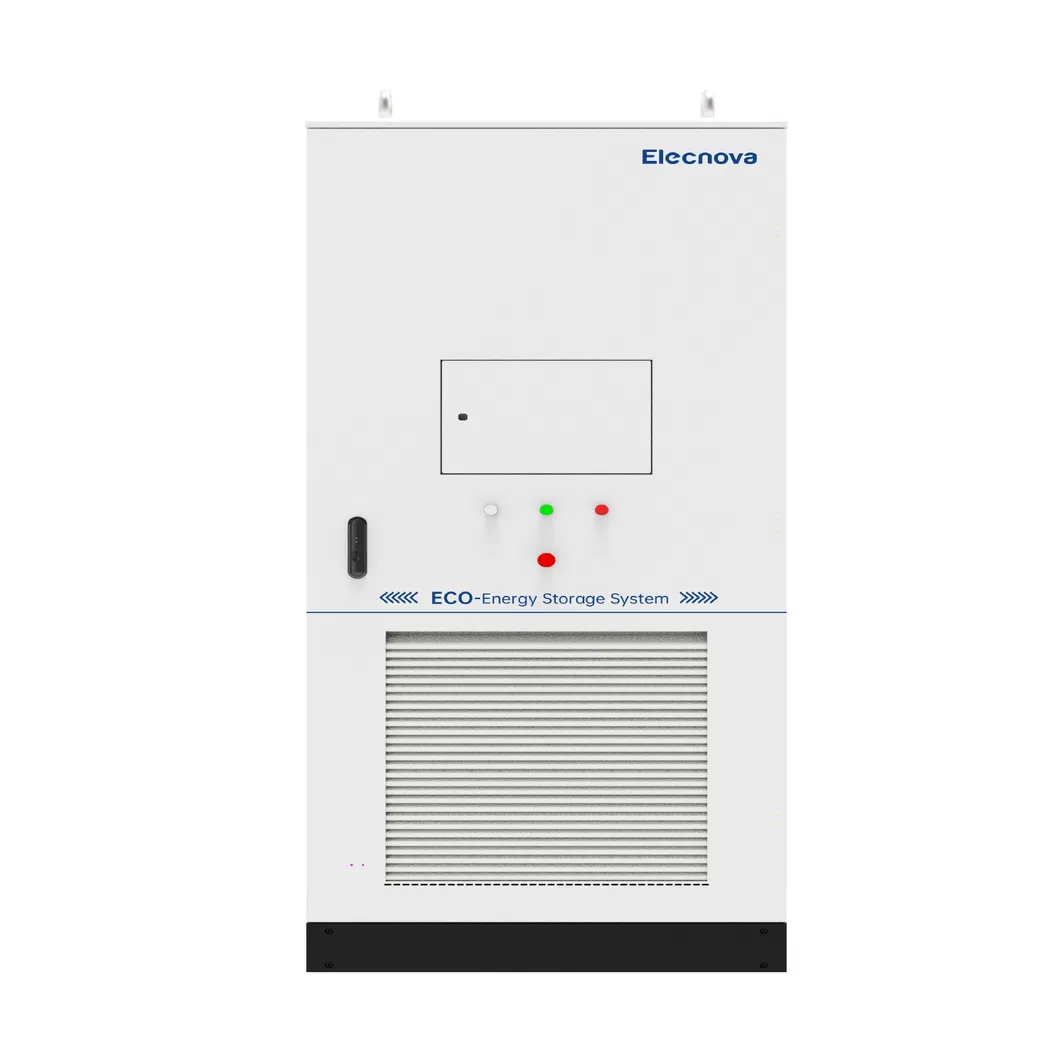

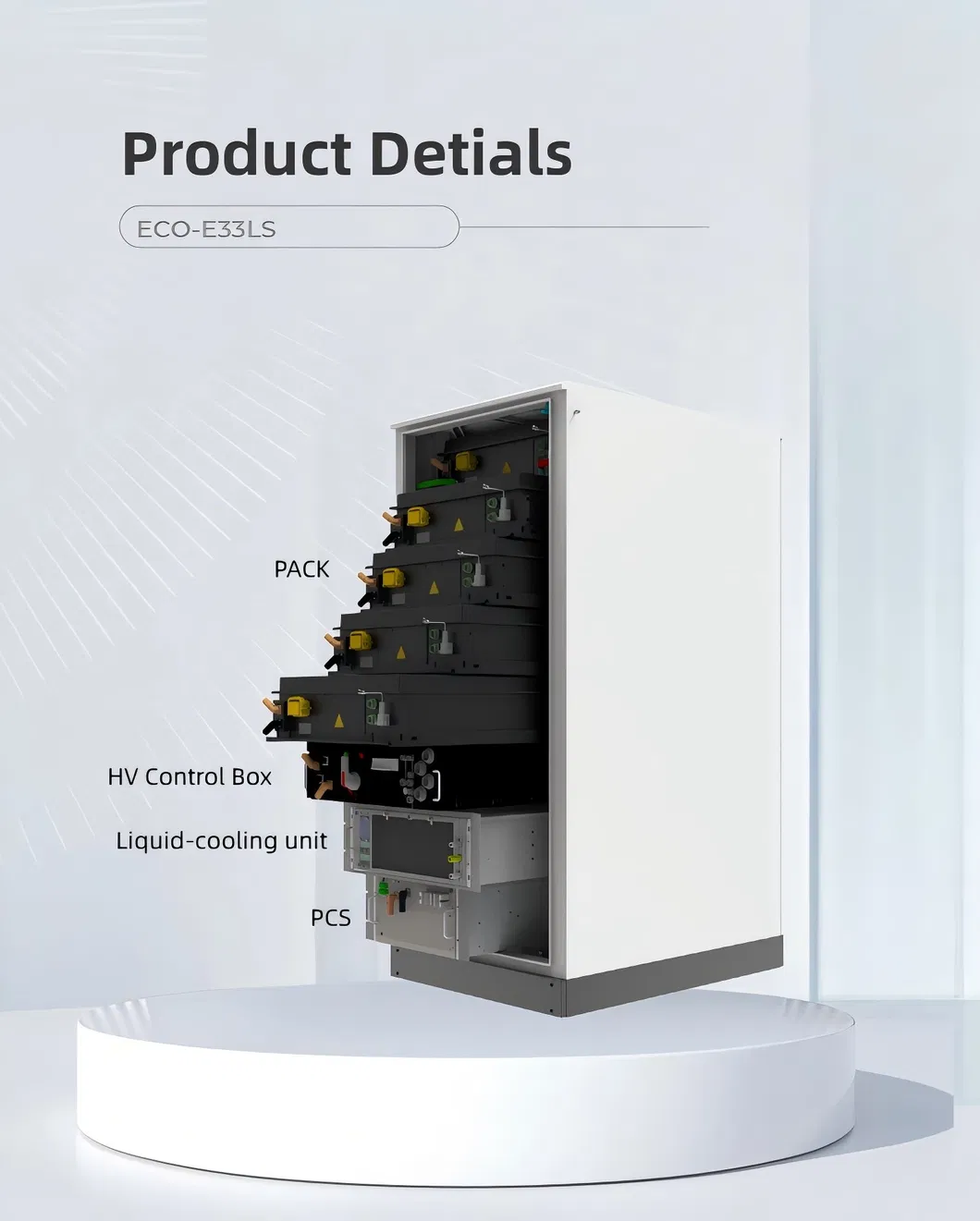

The 233KWH commercial & industrial energy storage system adopts advanced cabinet-level liquid cooling and temperature balancing strategy. The cell temperature difference is less than 3°C, which further improves the consistency of cell temperature and extends the battery life. The modular design makes the parallel solution more flexible and has higher energy density, which significantly improves the economy, safety and construction convenience of ESS projects.
Conversion efficiency: 99%
Protection: IP65, ms-level on-/off-grid switching.
Versatility: Suitable for C&I ESS, microgrid, and PV-plus ESS.

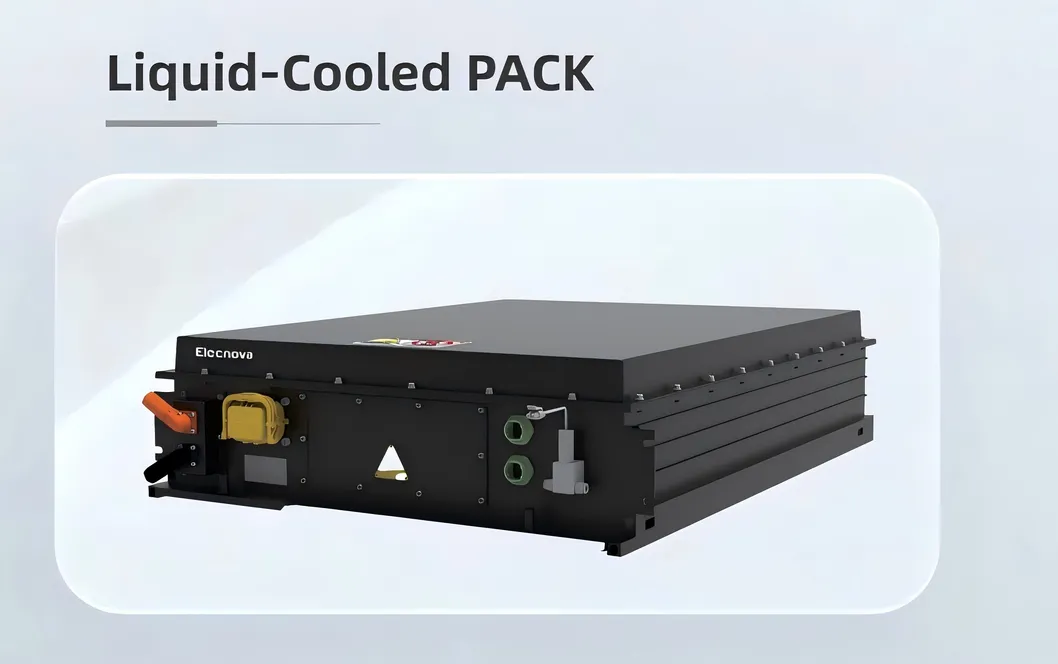

Thermal Management: Active liquid cooling system.
Cycle Life: Over 8,000 times cycle life.
Design Life: 10 years designated lifespan.
| DC Side | |
|---|---|
| Cell Type | LFP280Ah |
| Battery System | 232.96kWh/1P260S |
| Voltage Range | 728~936Vdc |
| Ingress Rating | IP65 |
| AC Side | |
| Rated Power | 100kW |
| Max. Power | 110kW |
| Nominal Voltage | 400Vac/3P+N+PE |
| General Data | |
| System Efficiency | ≥90% |
| Cycle Life | ≥8,000 times |
| Cooling | Active liquid cooling |
| Operating Temperature | -25ºC~55ºC |
| Dimensions (W*D*H) | 1,050*1,350*2,400 (mm) |
| Weight | 2,570kg |

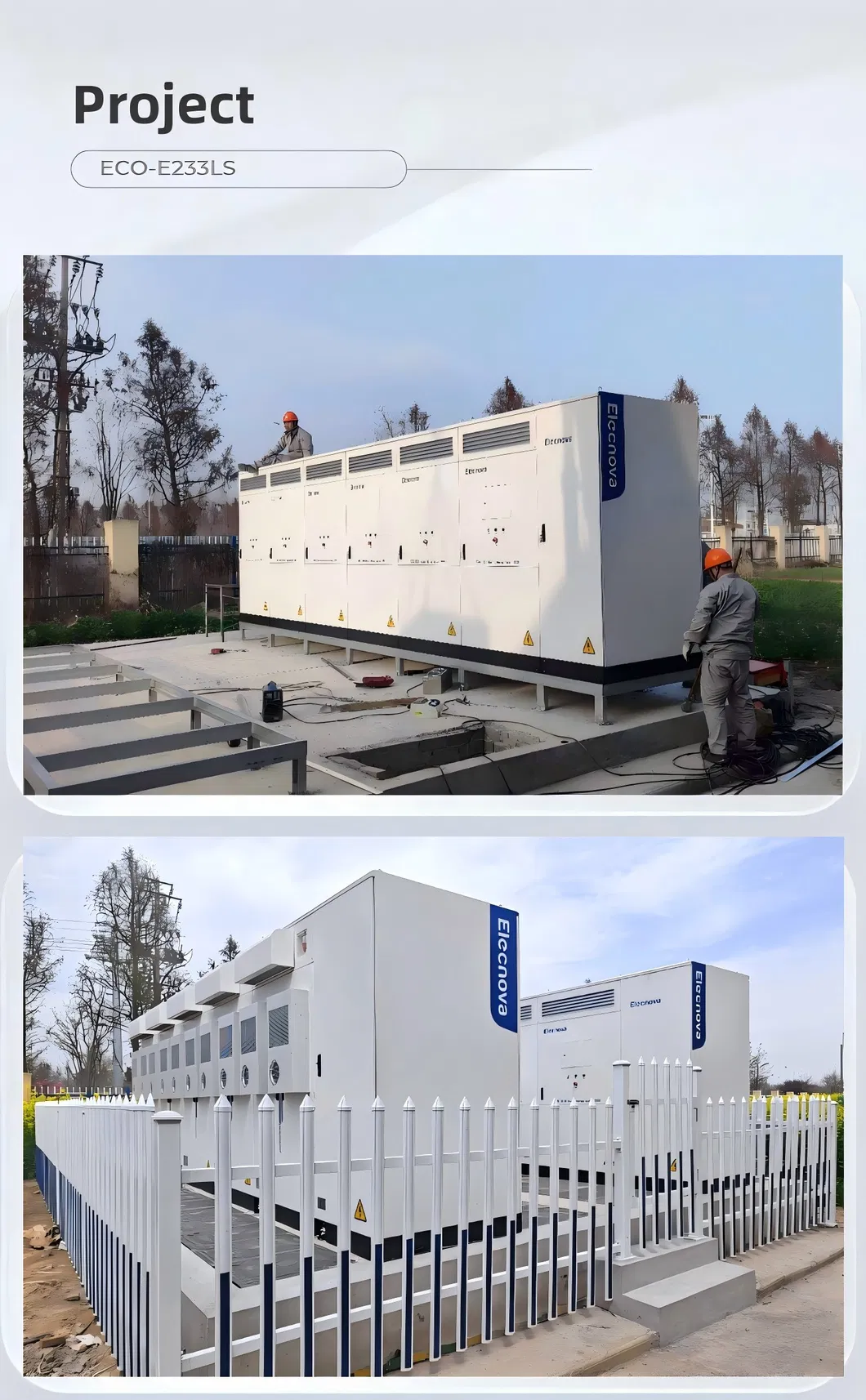

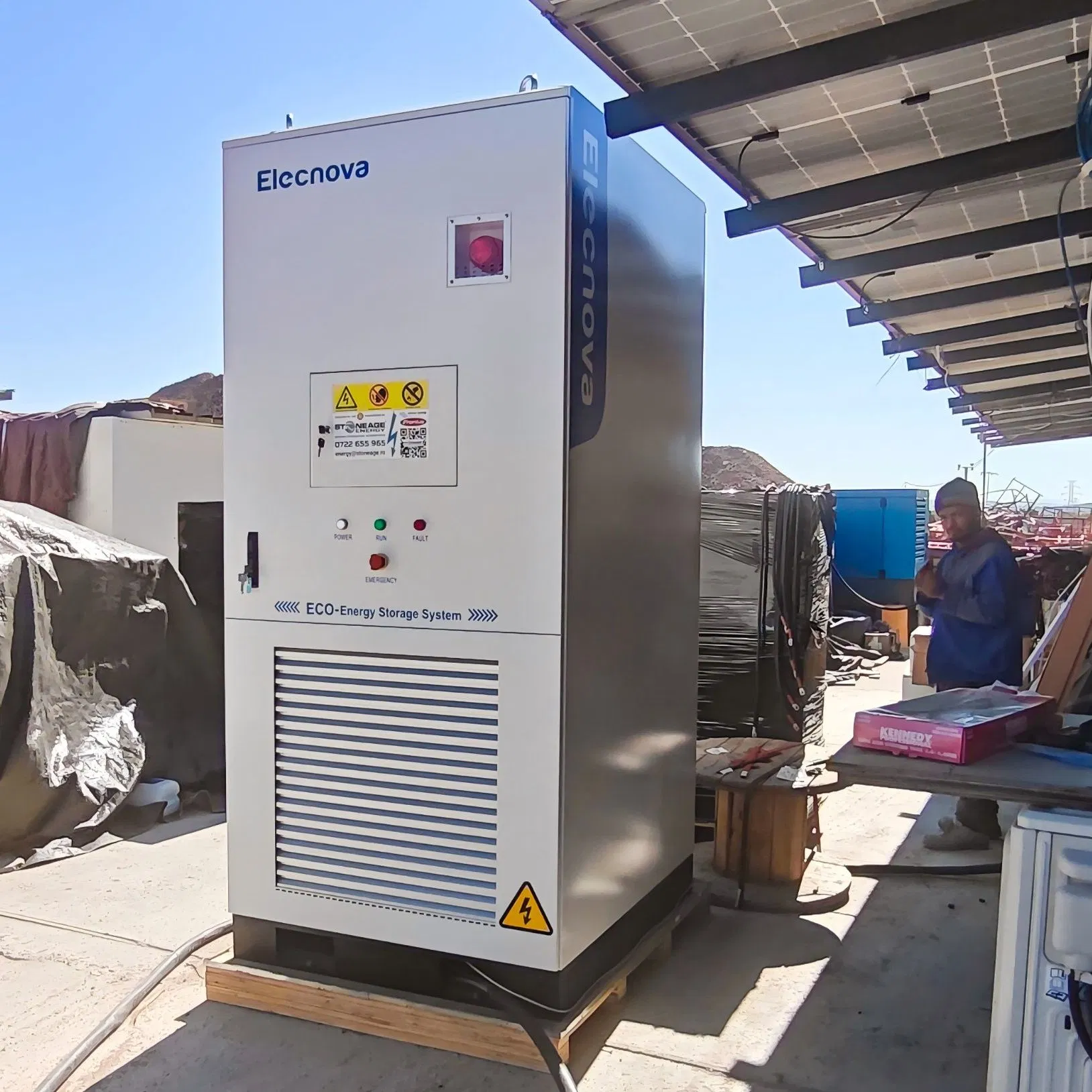

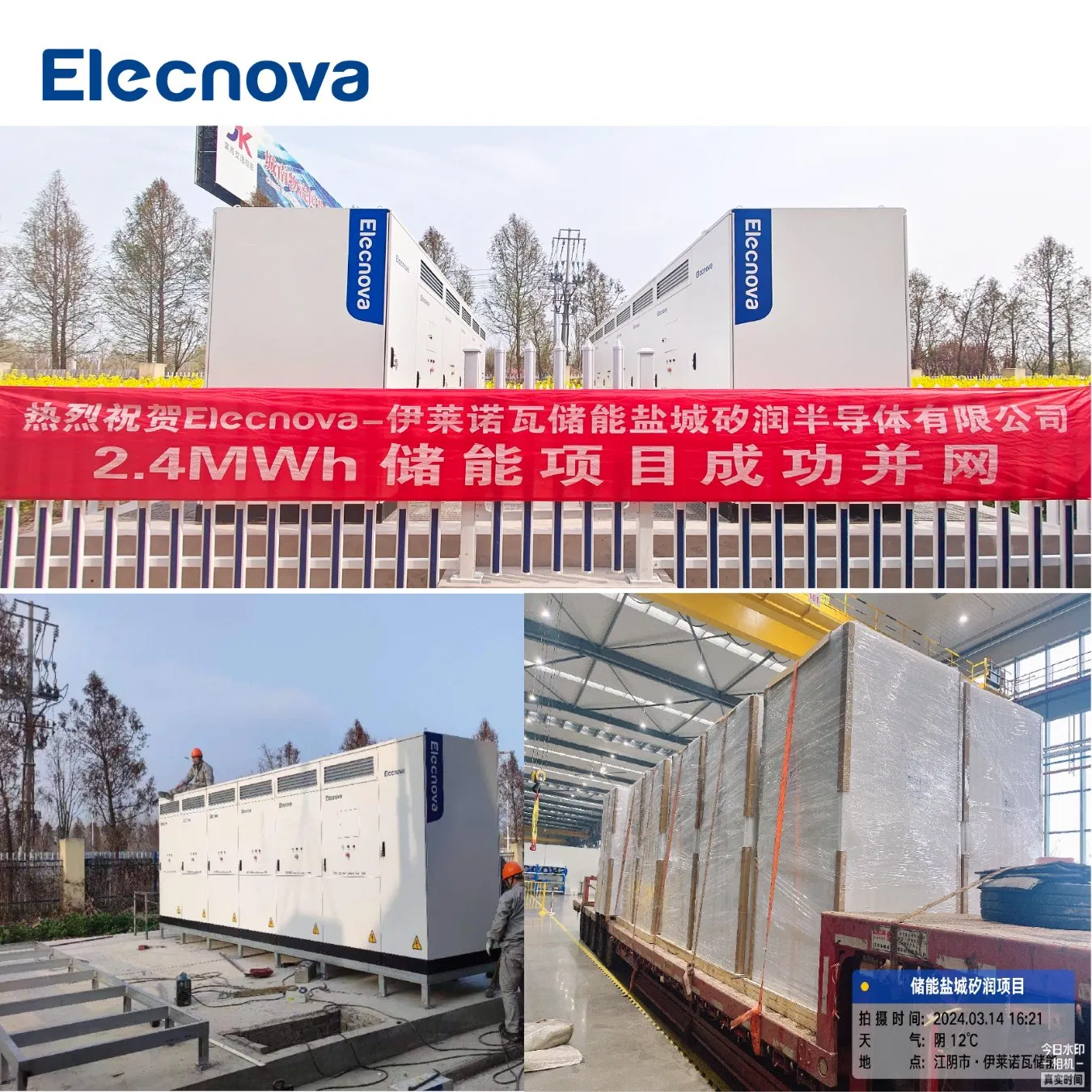

Energy storage projects successfully connected to the grid! These projects adopt advanced energy storage technology and equipment, featuring high efficiency, stability, and safety.
