5 Years Warranty All in One Solar Street Light with Motion Sensor and CCTV Camera

Still deciding? Get samples of $ !
Order Sample

Product Description

  • Overview
  • Product Description
  • Specification
  • FAQ
Basic Info.
Light Source LED Lamp
Lamp Body Material Aluminum
Light Type Solar
Color Temperature Pure White
Power ≥30W
Technics Casting Aluminum
Illumination Time 6h
Cell Type LiFePO4
Charging Time (H) 6
Usage Street
IP Rating IP66
Certification CE, RoHS
Voltage 12/24V
With Light Source With Light Source
Working Model 100%-75%-50%-100%
Feature Support 4G Lora
Sample Available
Luminous Efficacy 205lm/W
Mounting Height Max 15meter
PV Panel Mono 150wp
Battery 1152wh
Certificate IP Ik Lm79 Lm80 CE RoHS
Transport Package Carton
Specification 1500*420*150mm
Origin China
HS Code 9405410
Production Capacity 5000pieces/Month
Packaging & Delivery
Package Size 150.00cm * 45.00cm * 15.00cm
Package Gross Weight 20.000kg
Product Description
5 Years Warranty All in One Solar Street Light with Motion Sensor and CCTV Camera

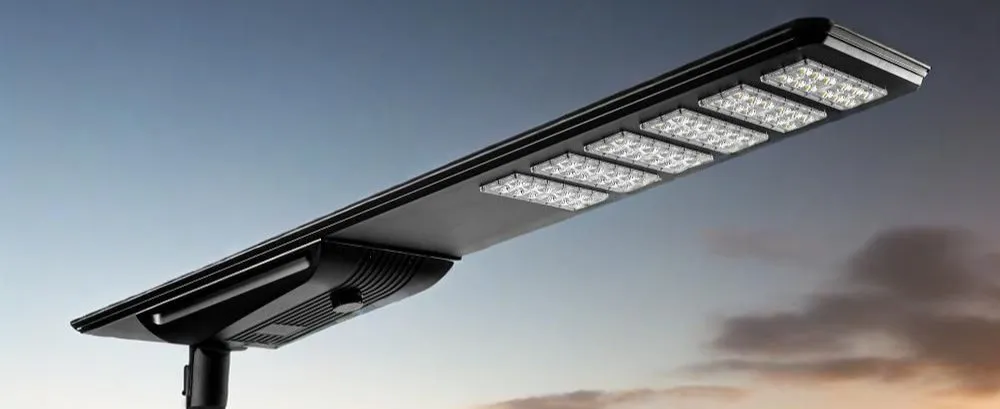

M25 SOLAR STREET LIGHT - MUNICIPAL PUBLIC LIGHTING

This street light features high brightness, energy saving, environmental protection, and easy installation. It has a waterproof rating of IP66 and has passed CE certification. It is suitable for urban and surban lighting, roads, parks, roadsides, factories, squares, etc. It has a warranty period of 3 to 5 years. Moreover, we can provide various styles to meet your needs.

5 Years Warranty All in One Solar Street Light with Motion Sensor and CCTV Camera

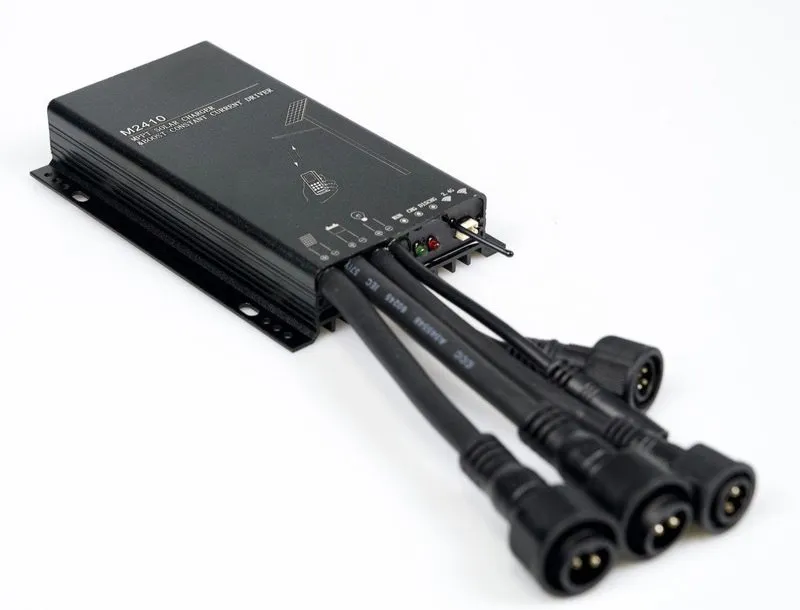

MPPT SOLAR CHARGER

MPPT (Maximum Power Point Tracking) technology. Boasting a tracking efficiency of over 99% and a remarkable 96% charging conversion efficiency, it ensures optimal power utilization from solar panels. With a maximum photovoltaic power of 260W/12V and 520W/24V, it suits various solar setups.

This MPPT charge - discharge controller is compatible with both 12V and 24V batteries, including lead - acid and lithium - ion types. It comes with a range of intelligent features. It has both human infrared and microwave sensing functions, with adjustable sensing delay times.

The operating parameters can be easily set via a remote control. With an extremely low standby current, it's highly energy - efficient, facilitating long - distance transportation and storage.

The multi - stage temperature - compensated constant - voltage charging for lead - acid batteries, 10 - period programmable load power/time control, and high - and low - temperature protection for battery charging and discharging, with adjustable working temperatures, add to its versatility.

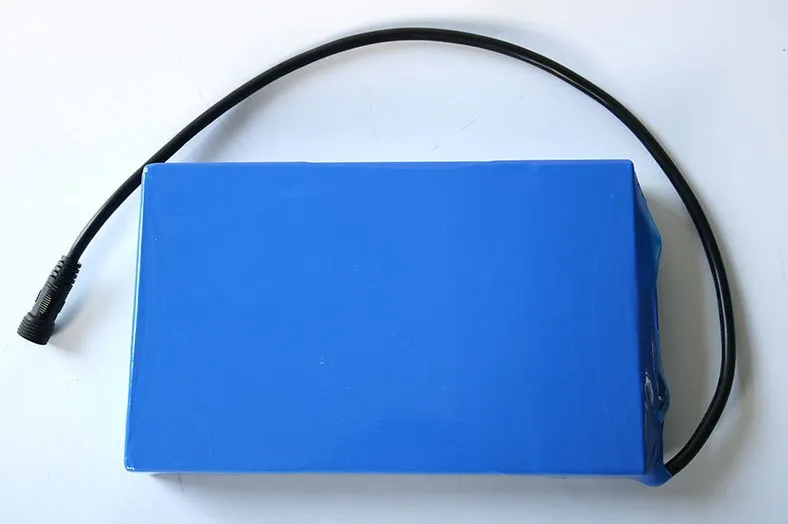

BMS rechargeable LFP battery

With the new technology of LiFePo4 battery, and be widely using in the solar lighting product, solar street lights, solar post lights, solar flood lights, solar bollard lights.

Multi-functions protection of the PCB, charge and discharge protected to make the performance working optimum status. Ensure the solar lights with best working status.

  • DOD cycles more than 2500 times
  • Lifespan 10years
  • Voltage 12V/24V
  • IP67 waterproof
5 Years Warranty All in One Solar Street Light with Motion Sensor and CCTV Camera
5 Years Warranty All in One Solar Street Light with Motion Sensor and CCTV Camera

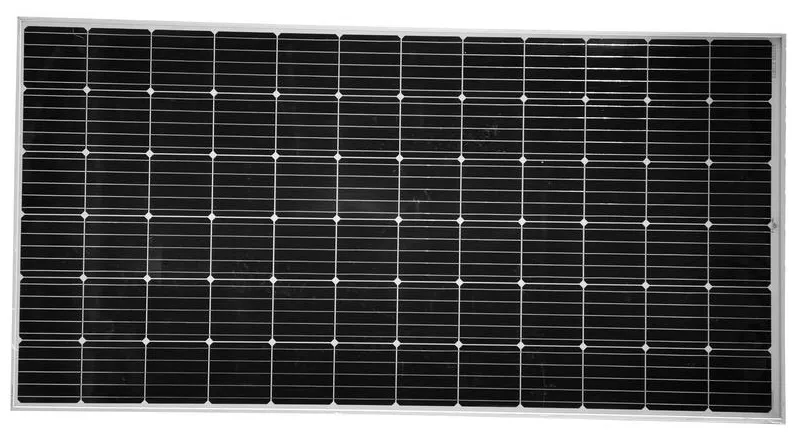

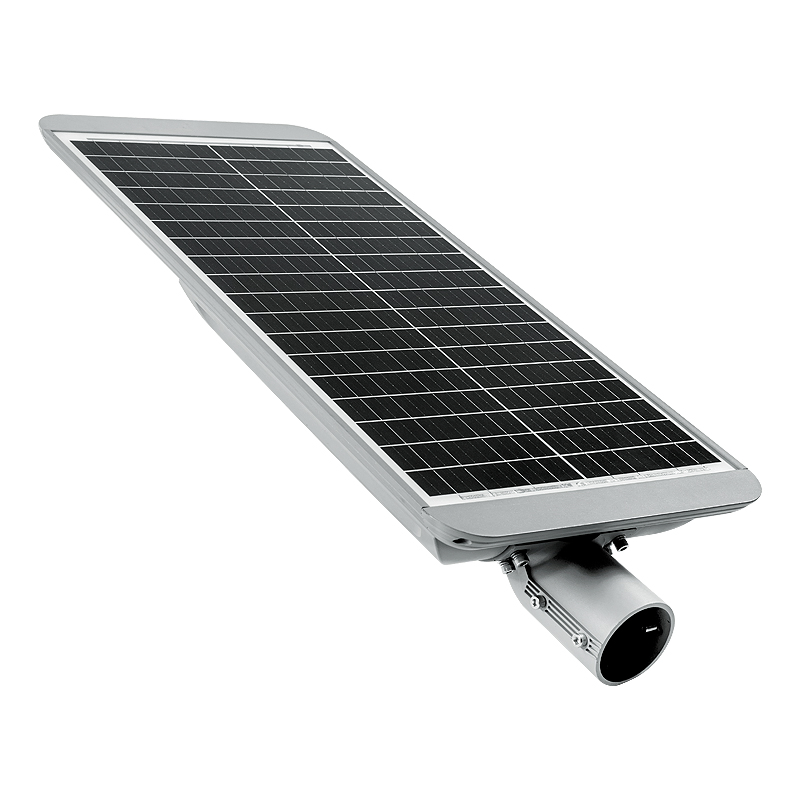

MONO PV PANEL

Mono crystalline PV panel, reach 25% convert efficiency, new technology of the cells, half cells 182mm, higher power, which make the dimension to tailor the solar lights very well.

Working life more than 25 years

5 Years Warranty All in One Solar Street Light with Motion Sensor and CCTV Camera

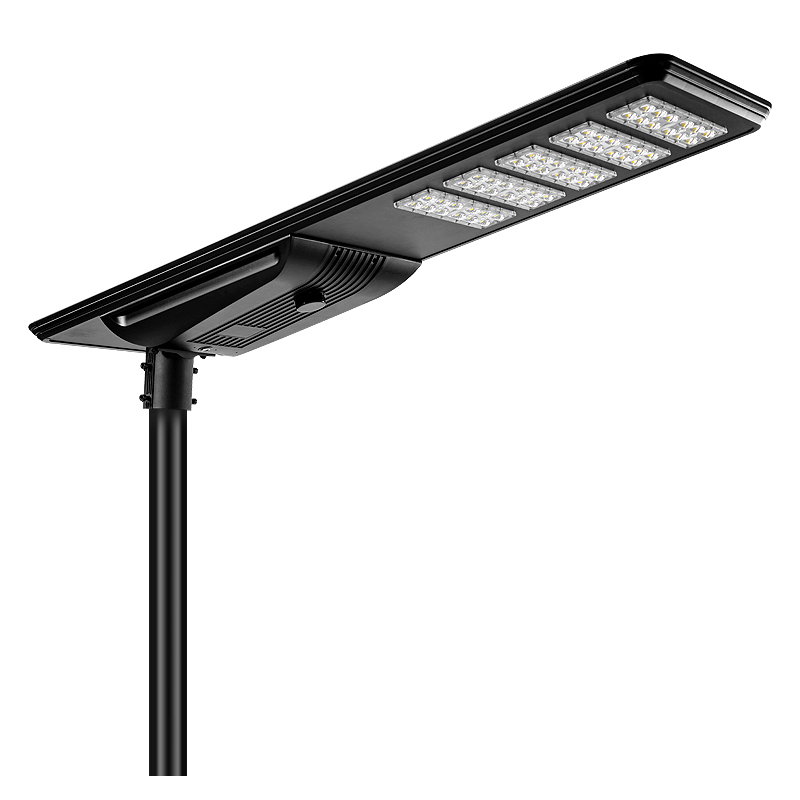

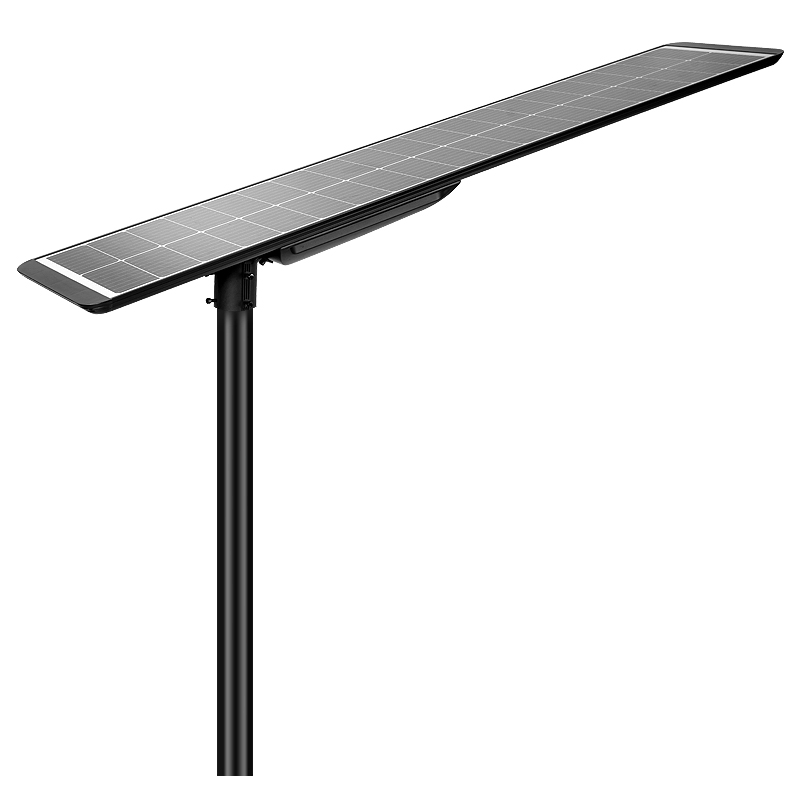

BLACK COLOR RAL 9004

Black color fixture solar lights are widely be used for different pole colors.

Mounting angle is adjustable, suitable for different lighting conditions.

Power of solar lights from 30W to 120W, mounting height from 4m to 14m height.

5 Years Warranty All in One Solar Street Light with Motion Sensor and CCTV Camera

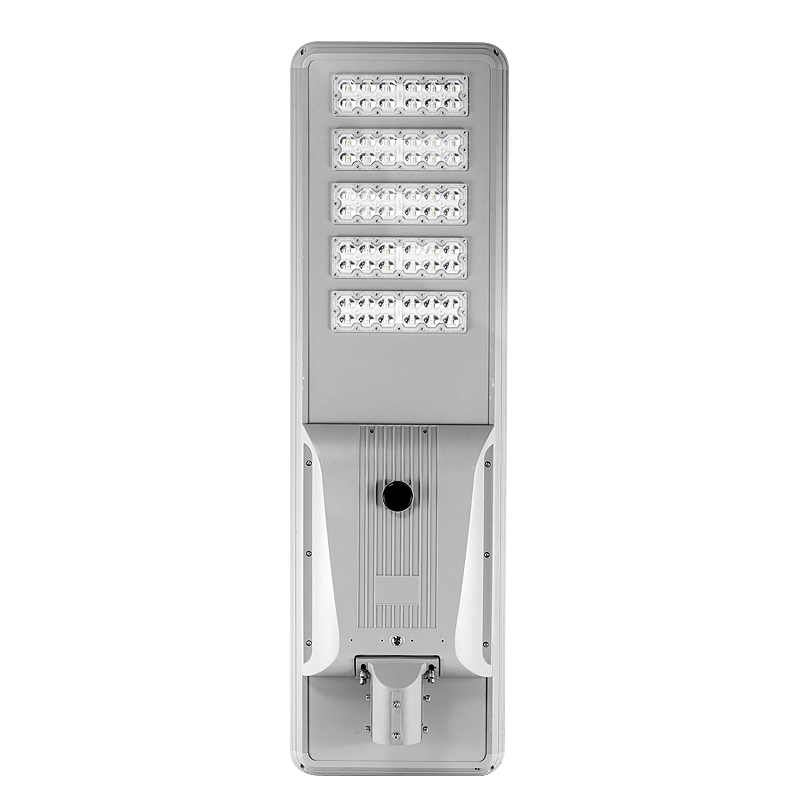

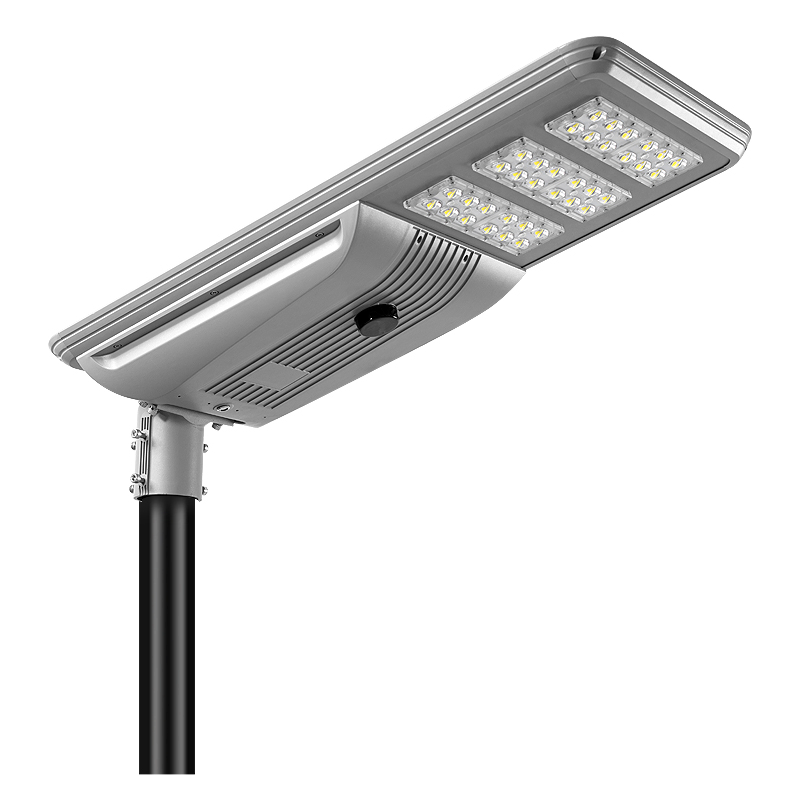

GREY COLOR RAL 9022

Grey color solar lights looked simplification, can be used for area lighting.

Spigot of the light is 82mm, suggest the 76mm to 80mm pipe mounting.

With motion sensor to save energy at deep night and friendly to the surrounds.

5 Years Warranty All in One Solar Street Light with Motion Sensor and CCTV Camera

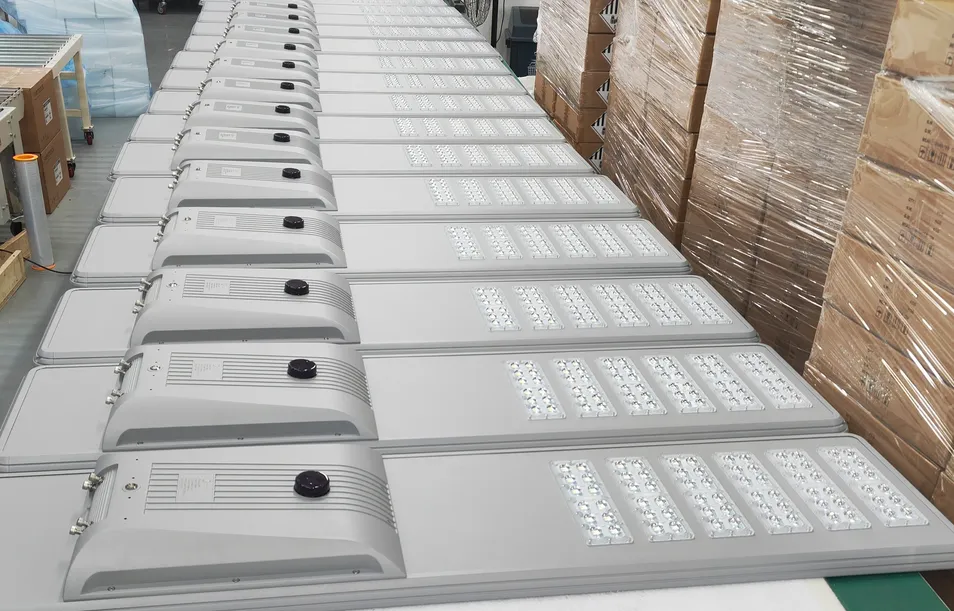

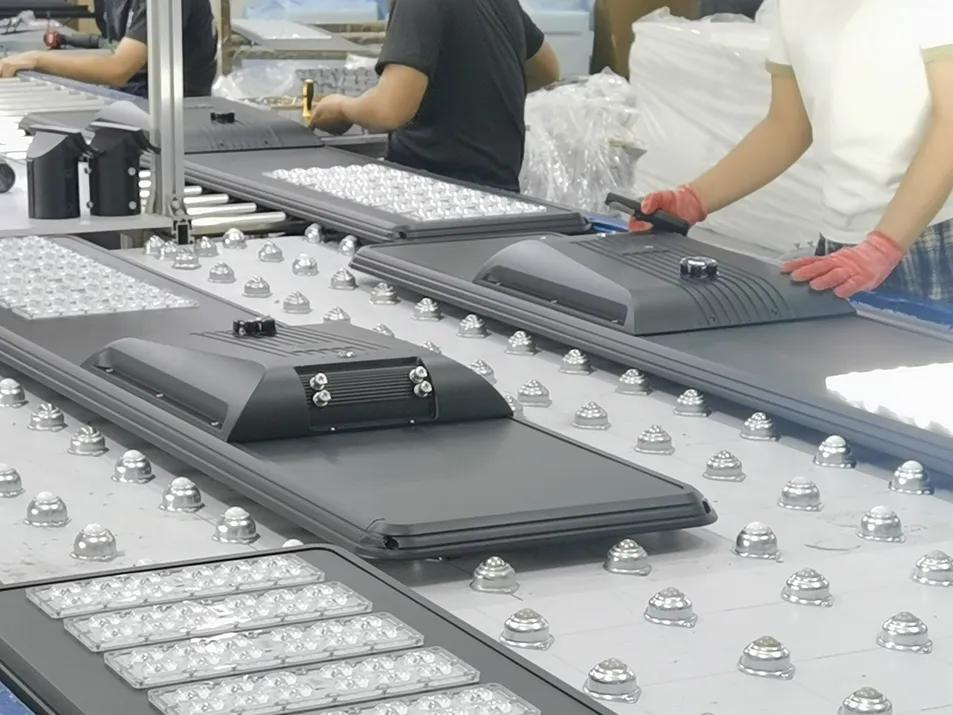

QUALITY PASSING

After the assembly, there is quality inspection.

Checking the functions, performance, CCT, programming, labeling, to ensure the solar lights working at optimization before sending to clients.

100% qualification, inspection one by one.

5 Years Warranty All in One Solar Street Light with Motion Sensor and CCTV Camera

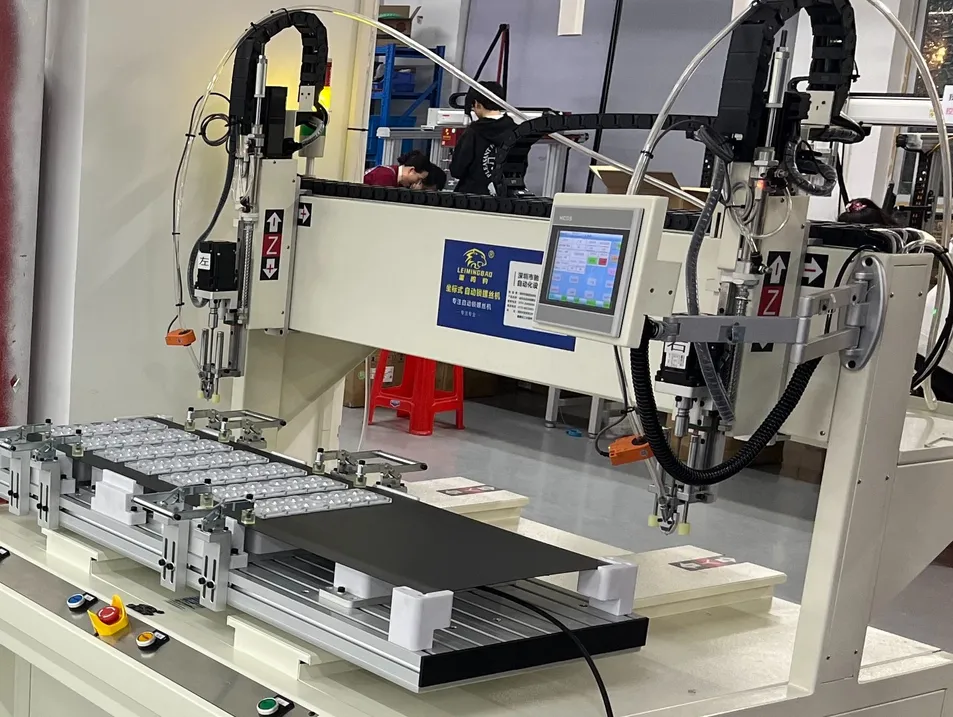

AUTO MACHINE

With the auto machine, which will help to reduce the labours, improving the working efficiency, to make sure the delivery time in accurate.

5 Years Warranty All in One Solar Street Light with Motion Sensor and CCTV Camera

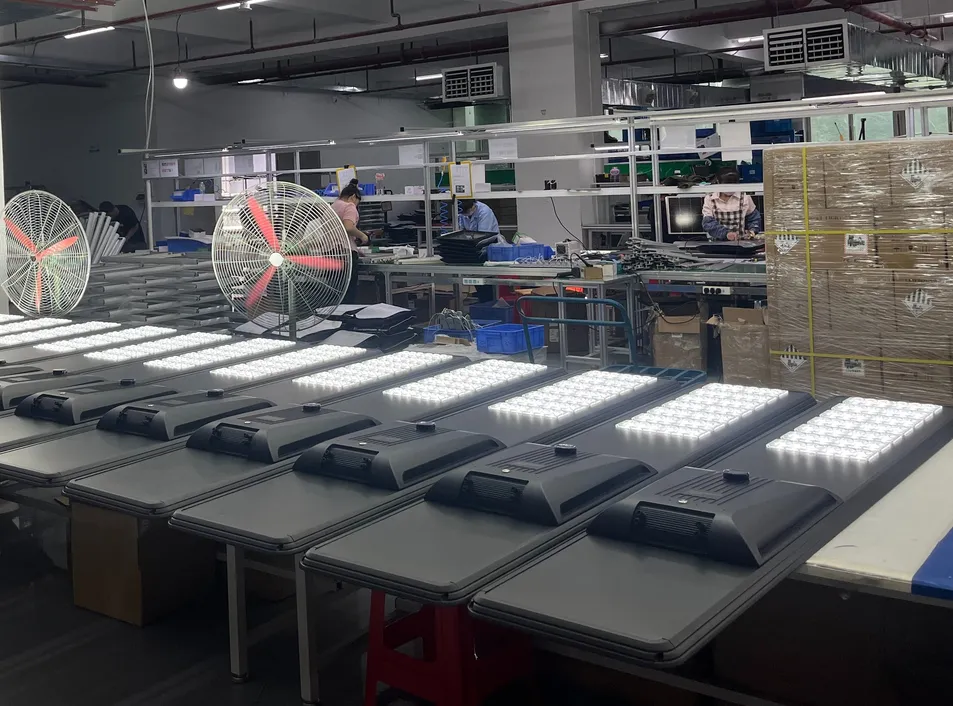

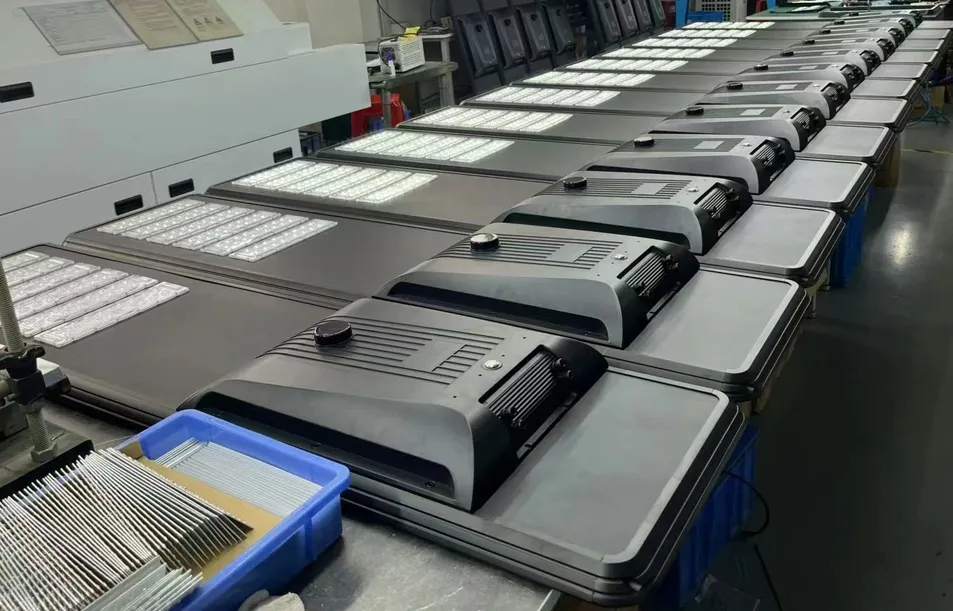

AGEING FOR M25 SOLAR STREET LIGHTS

M25 solar street lights will be ageing before the package.

After the standard ageing procedure done, which will help to know the working condition of the solar lighting product.

There will be charge and discharge by several cycles to make sure the solar lights well work in the future when arrived oversea markets.

5 Years Warranty All in One Solar Street Light with Motion Sensor and CCTV Camera

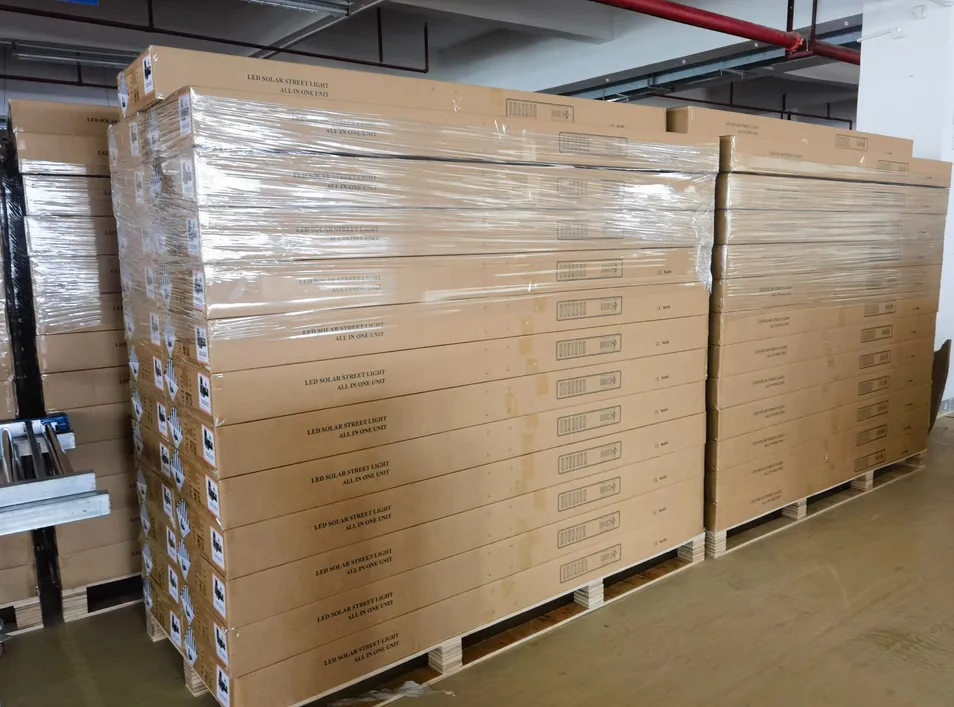

FULL PACKAGE FOR SOLAR LIGHTS

M25 Solar street lights will be full packaged and well protected, carton inside with EPE material, solar lights will be packed in EPE tailored frame.

Avoid the conflict and scratch during the transportation and moving when at the site installation.

5 Years Warranty All in One Solar Street Light with Motion Sensor and CCTV Camera
SOLAR LIGHTS IN ASIA

Fast growth of the economy in Asia, and civil infrastructure roading lighting is surging. Replace the traditional street lights by LED and Solar lighting is trend. Especially the solar lighting will save much of the electricity bill and no pollution to the environment.

5 Years Warranty All in One Solar Street Light with Motion Sensor and CCTV Camera
SOLAR LIGHTS IN CENTRAL AMERICA

Appreciating for the site installation photos from client, the M25 solar street lights working very well in Central and Southern America market. It stands the weather condition, and get out great performance.

5 Years Warranty All in One Solar Street Light with Motion Sensor and CCTV Camera
M25 SOLAR STREET LIGHTS IN AFRICA

Thanks for the photos sharing from the client in Africa. Solar radiation is strong in Africa, our solar street lights are very suitable and long endurance working. Strong lumens and high quality making it win the local market very nice.

Specification

This M25 solar street light features high brightness, energy saving, environmental protection, and easy installation. Regarding the different solar radiation at globe, customization of the tech spec is accepted.

Below is the general tech spec for reference.
MODEL M25-30-AIO M25-60-AIO M25-80-AIO M25-100-AIO M25-120-AIO
POWER 30W 60W 80W 100W 120W
LUMINOUS FLUX 5400LM 10800LM 14400LM 18000LM 21600LM
PV PANEL 60WP/MONO 90WP/MONO 110WP/MONO 140WP/MONO 160WP MONO
LFP BATTERY 320WH 3.2V 384WH 12.8V 576WH 12.8V 768WH 12.8V 960WH 12.8V
CONTROLLER MPPT MPPT MPPT MPPT MPPT
CHARGE TIME 5 HRS 5 HRS 5 HRS 6 HRS 6 HRS
DISCHARGE TIME 12 HRS 12 HRS 12 HRS 12 HRS 12 HRS
FAQ
Can you do the design for the road lighting?
Yes, our engineer can make the calculation for the roading and outdoor lighting.
How long can deliver when I paid?
LEAD time for our M25 solar street light is 15 days for qty 500pcs, 25days for qty 2000pcs.
What is your MOQ?
To considering the transportation cost, and battery light transportation limitation, we suggest the MOQ 1cbm.
What is the warranty for your solar lights?
Our solar lights have warranty 3 years as general, also 5 years is accepted, also extra long warranty can be negotiated.
Can we to be distributor for your solar street lights?
Yes, you are welcome to be our distributor in your area. We would like to discuss the opportunities with you.
