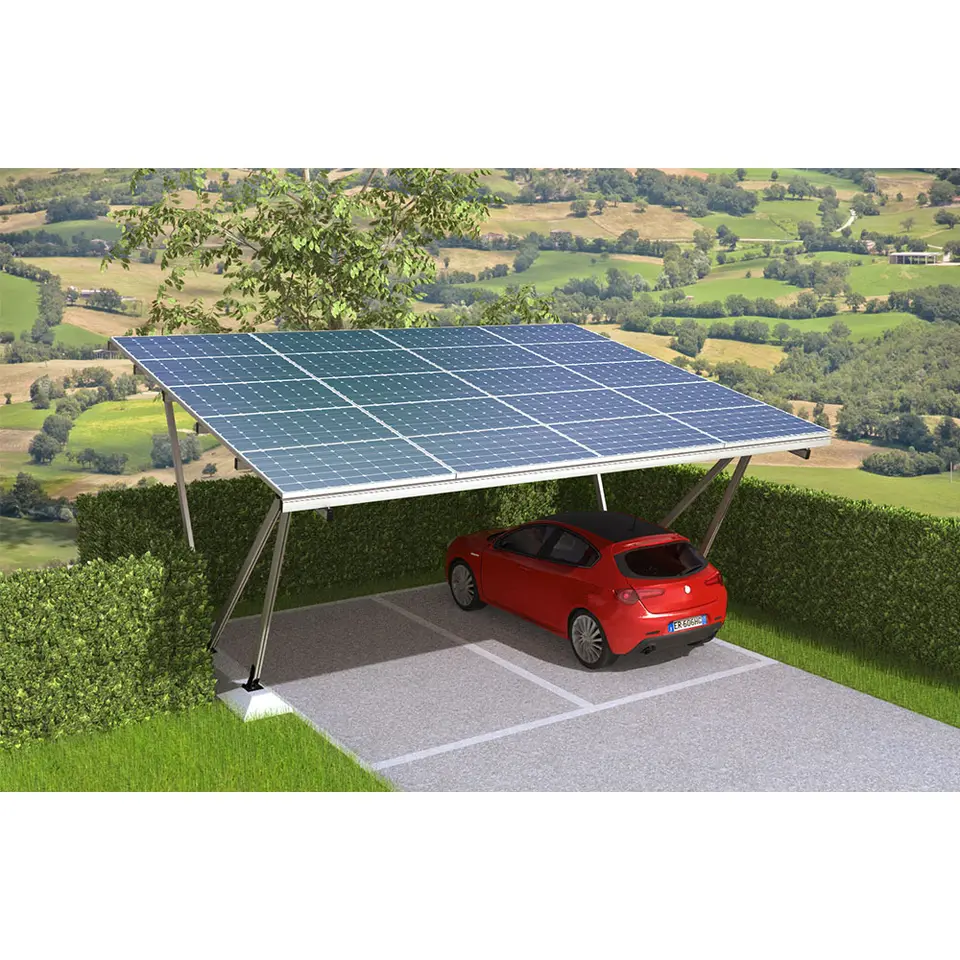

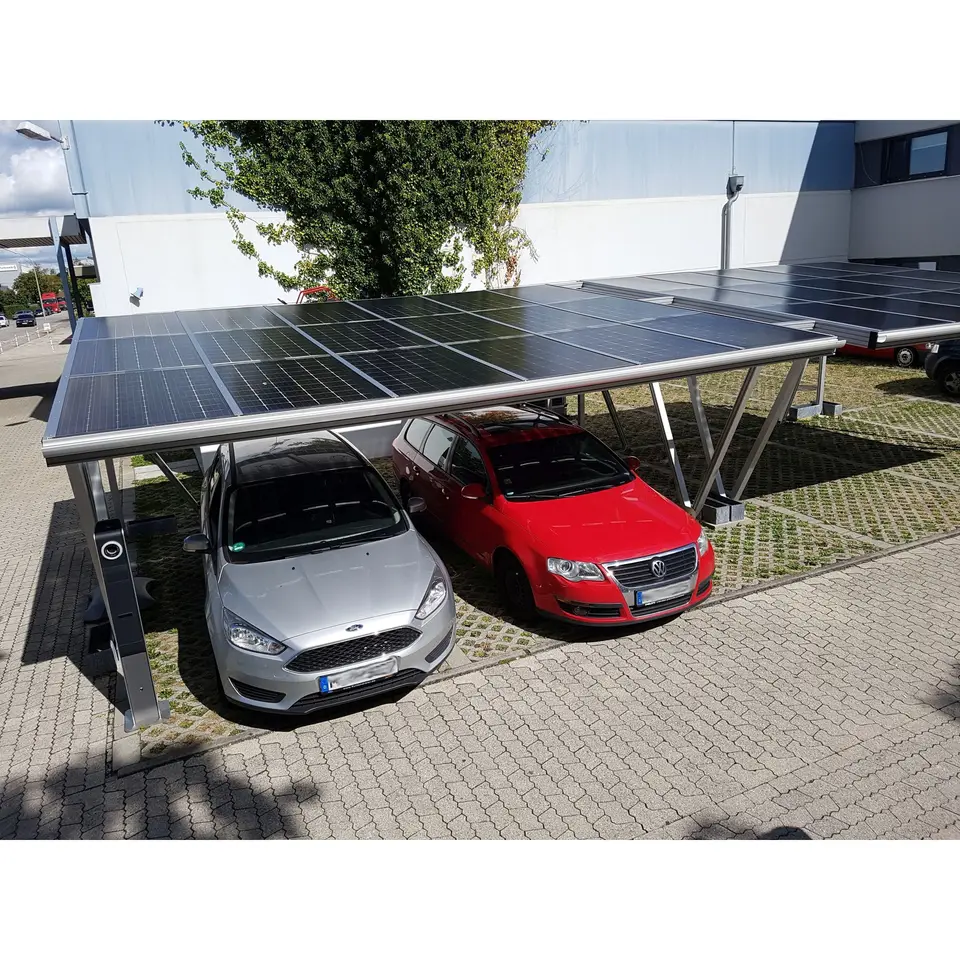

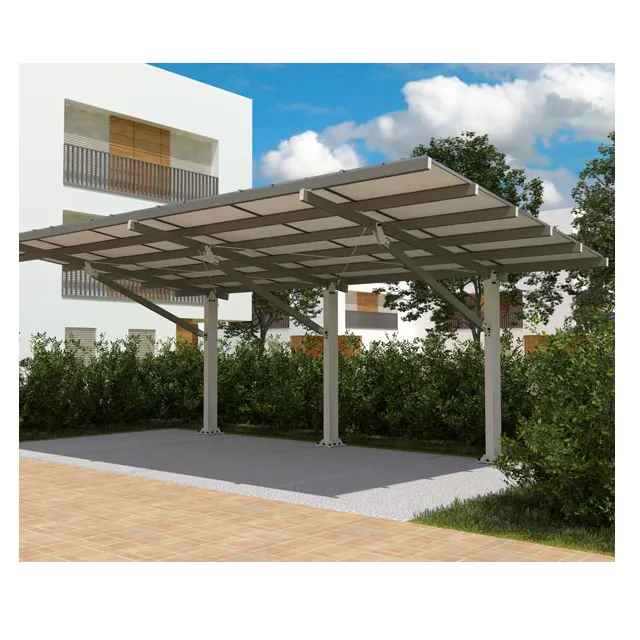

High Pre-assembled 5kw Aluminum Carport Shelter For House Solar Energy Bracket High Efficient Carport Rack Solar Parking Garage

Product Description

Products Description
Aluminum Solar Carport
The whole structure looks simple, generous and beautiful. The sheds are suitable for application in shopping malls, offices, hospitals, government locations, parks, etc. It not only meets the parking demand but also produces grid power, recovers costs, and generates profit.
The frame is composed of foundation bolts, posts, beams, rails, rail splice kits, and high-strength bolts. Main materials used: Al6005-T5 aluminum alloy and SUS304 stainless steel. The surface of the aluminum alloy is treated by anodic oxidation, making all components and accessories rust-proof.
TP-AC01

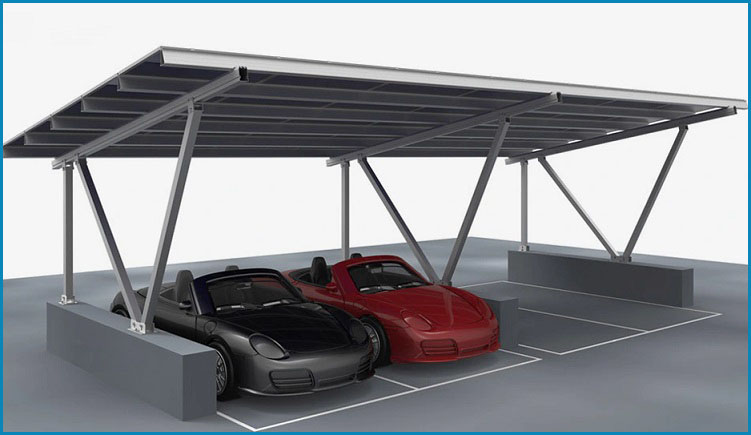

Aluminum Solar Carport TP-AC01 Design

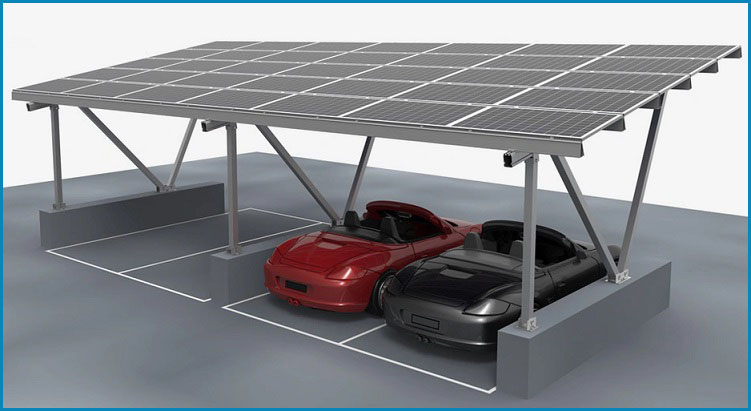

Aluminum Solar Carport TP-AC01 Installation
TP-AC02

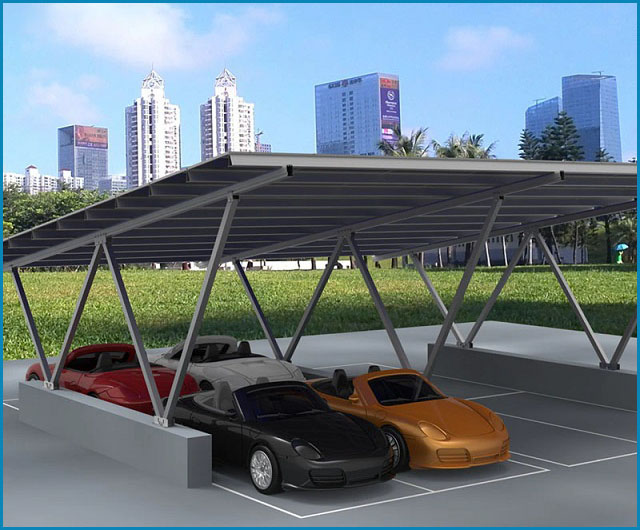

Aluminum Solar Carport TP-AC02 Design

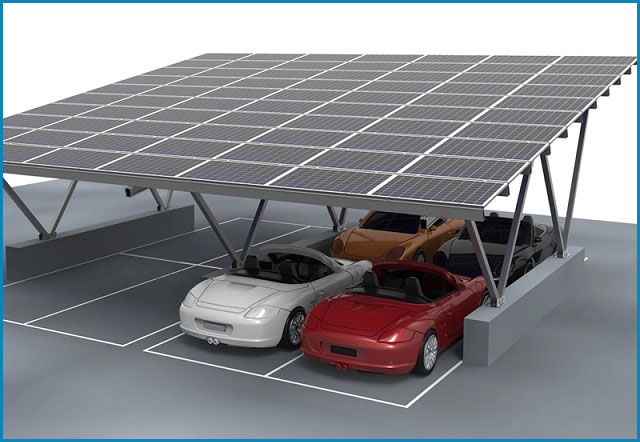

Aluminum Solar Carport TP-AC02 Details
Technical Parameter
Item Details
Install Site Open Field
Tilt Angle 3deg ~ 15deg
Max Wind Speed up to 60m/s
Snow Load up to 150cm
Standards AS/NZS 1170 & DIN 1055 & Other
Distance between two poles 5400mm or above
Solar Panel Framed or Frameless
Solar Panel Orientation Landscape, Portrait
Solar Panel Array Customized
Foundation Foundation bolt assembly in cement block
Main Material Aluminum alloy & SUS304
Color Natural
Anti-corrosive Anodized & Galvanized
Warranty 10 years warranty
Send inquiry, we will provide you with the suitable solution (including drawings, quotations, installation instructions, and production videos).

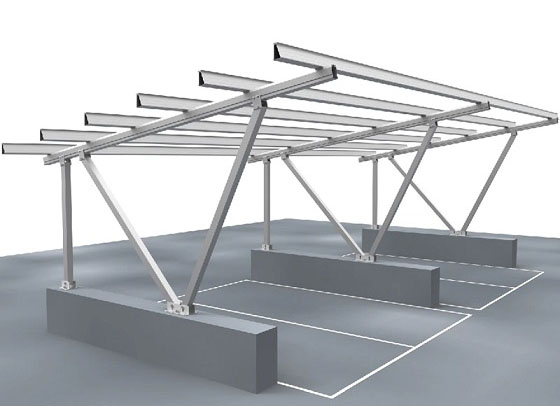

Technical Layout
Technical Specifications 1

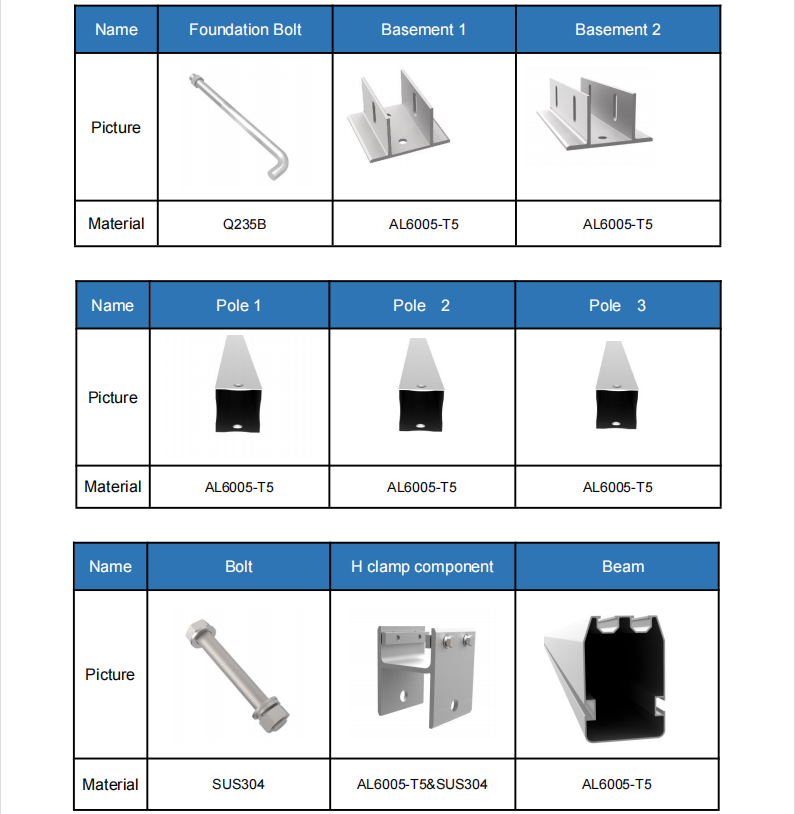

Technical Specifications 2

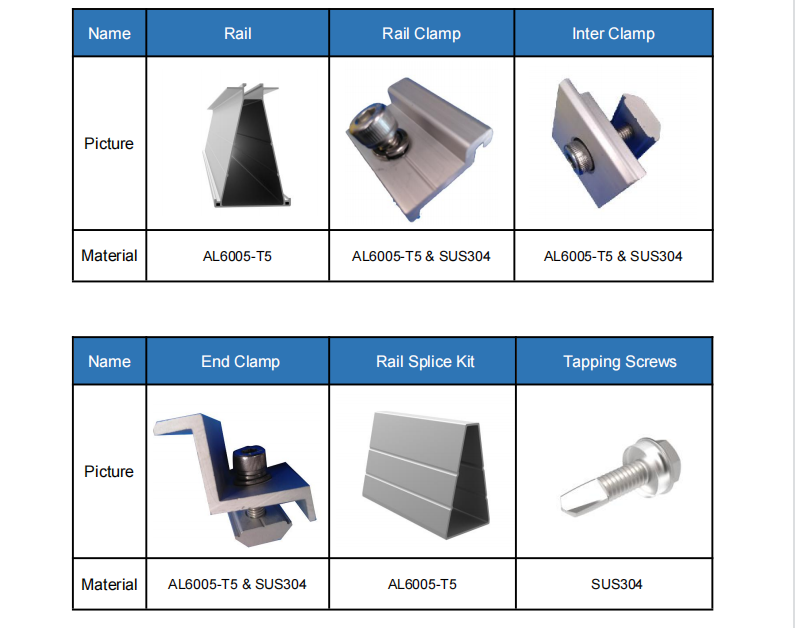

Technical Specifications 3
Technical Specifications 4

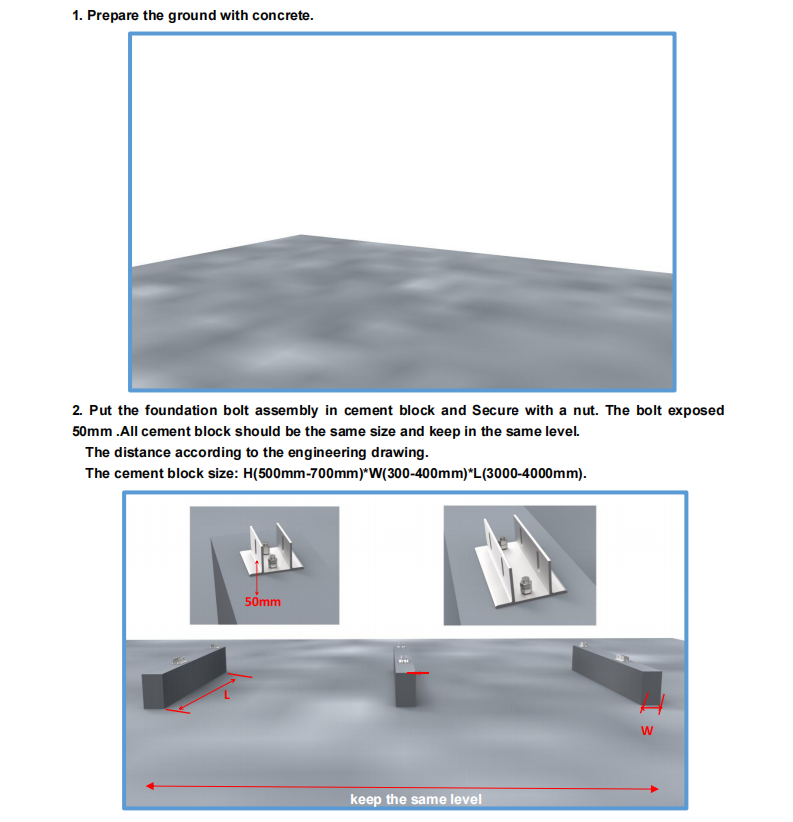

Component Diagram 1

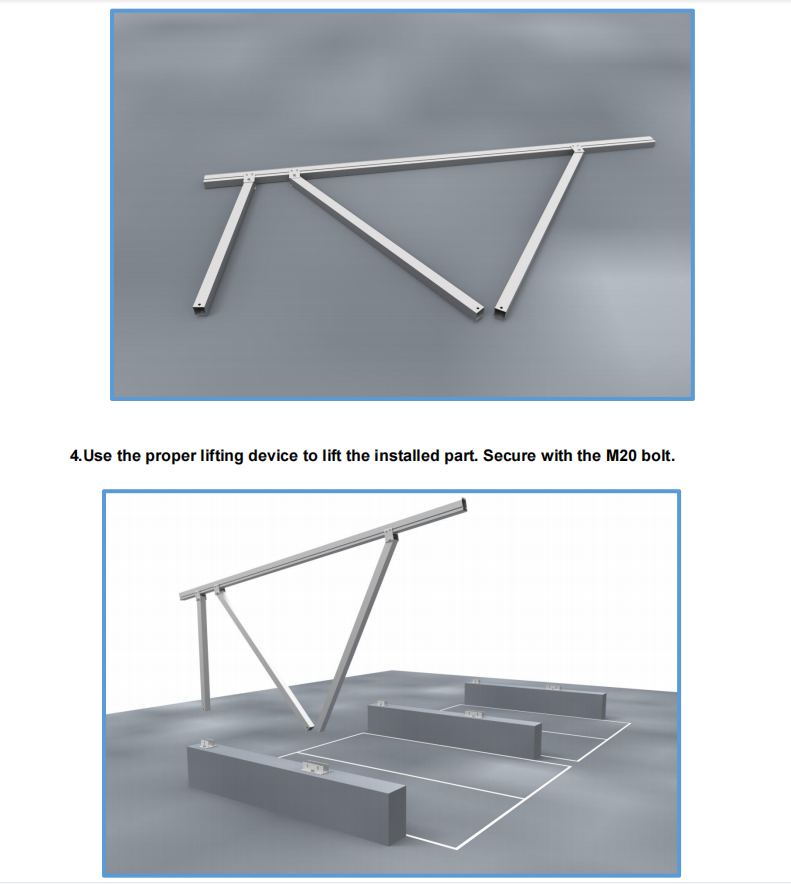

Component Diagram 2

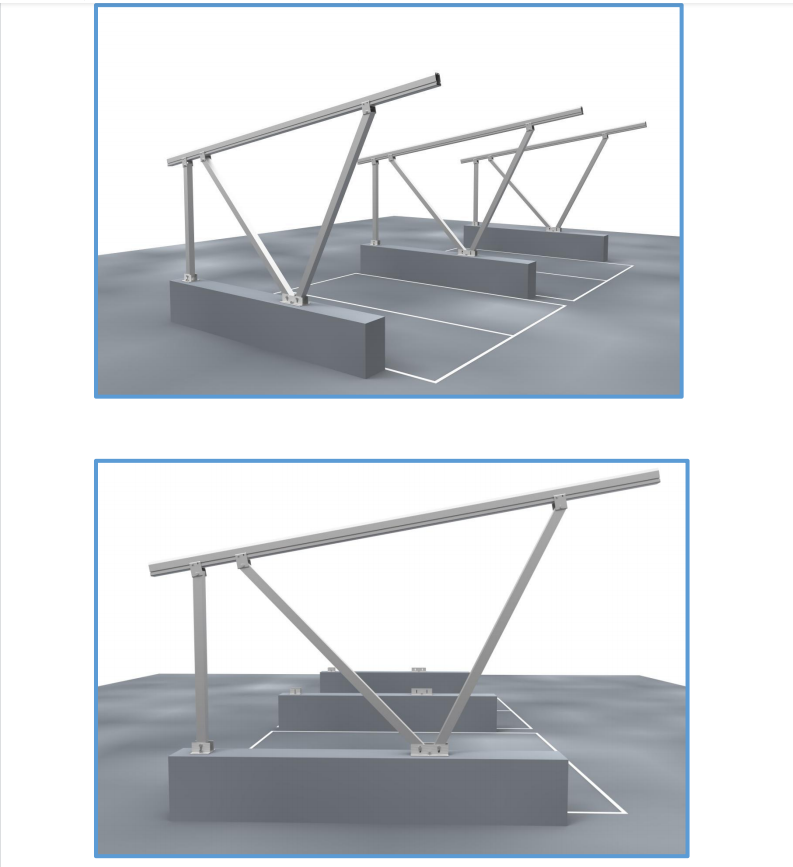

Component Diagram 3

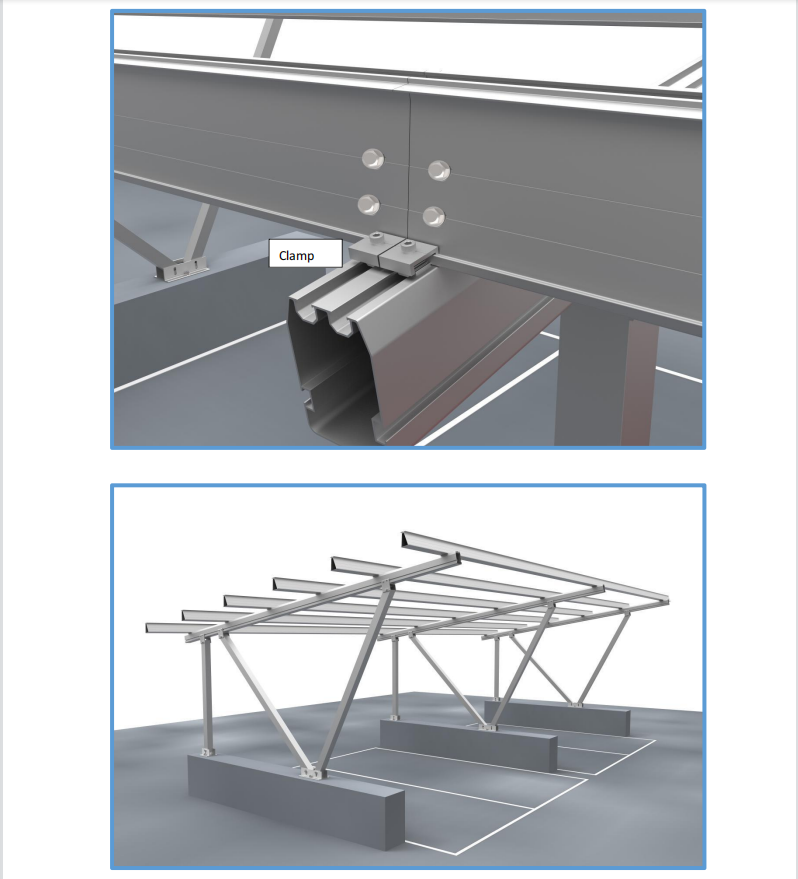

Component Diagram 4

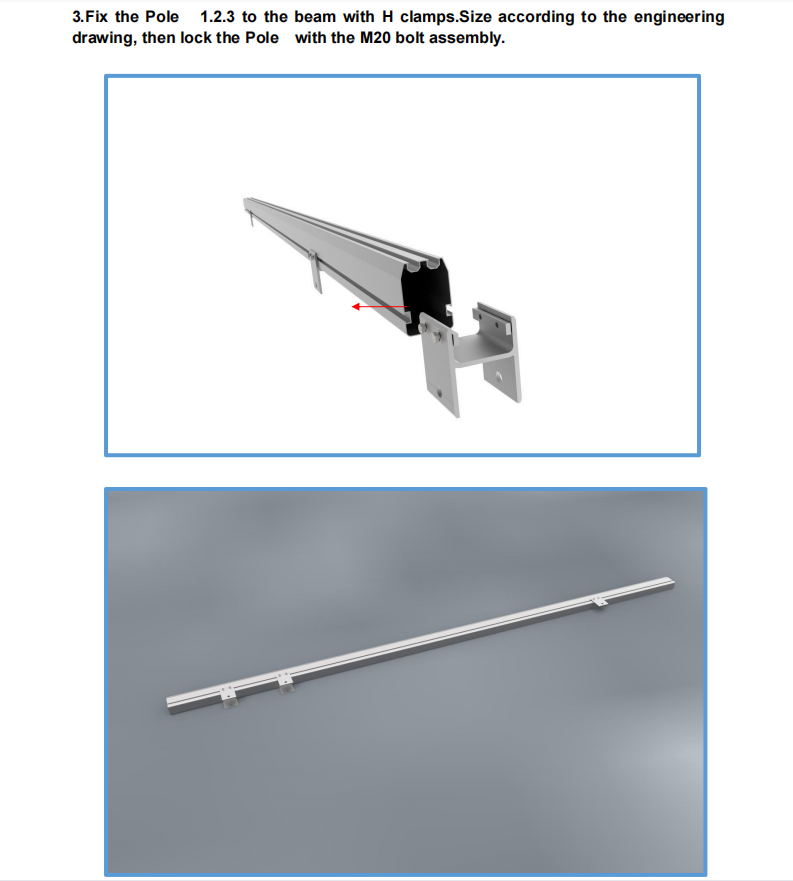

Hardware Details 1

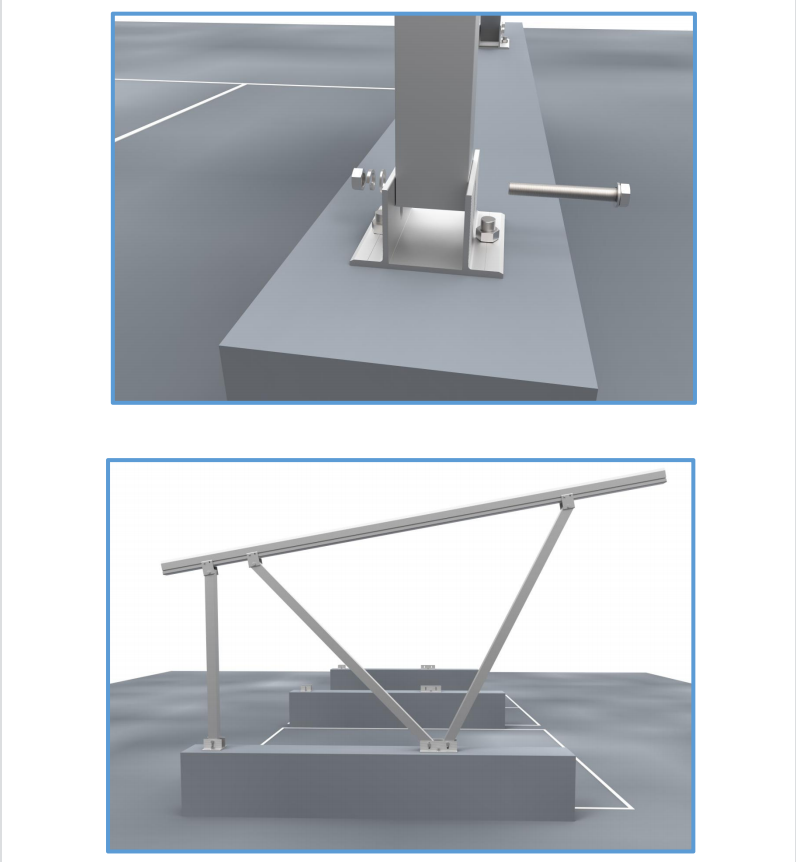

Hardware Details 2

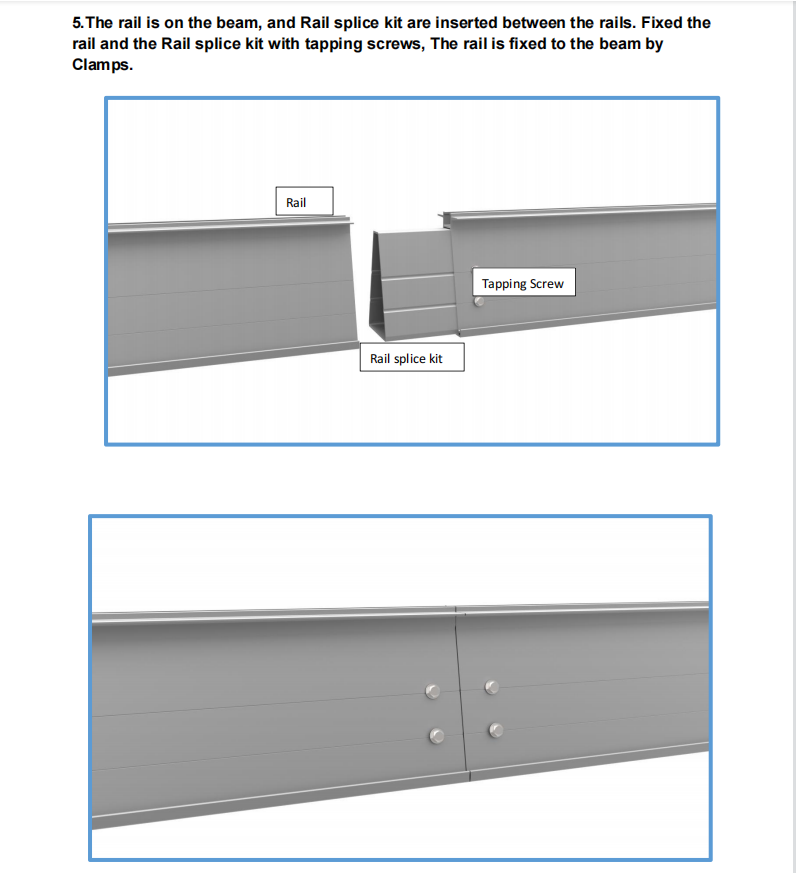

Hardware Details 3

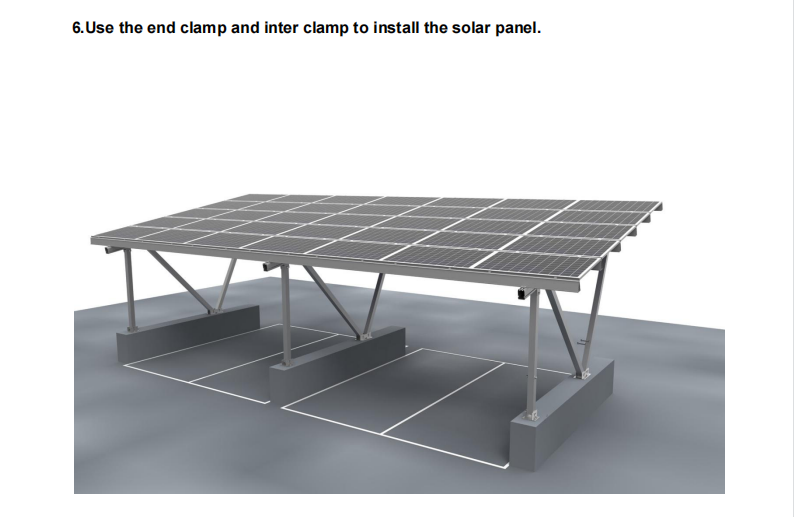

Hardware Details 4
Installation Case

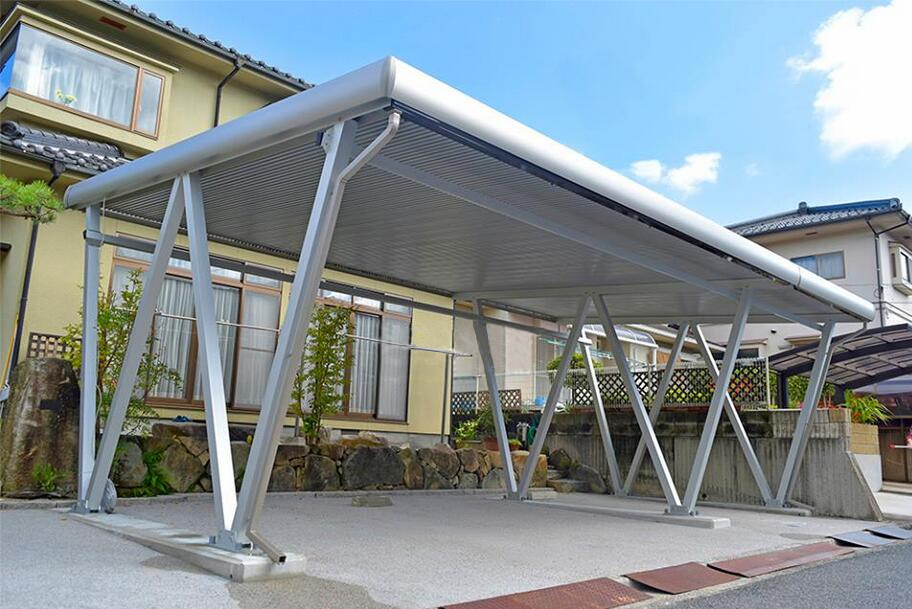

Installation Site View 1

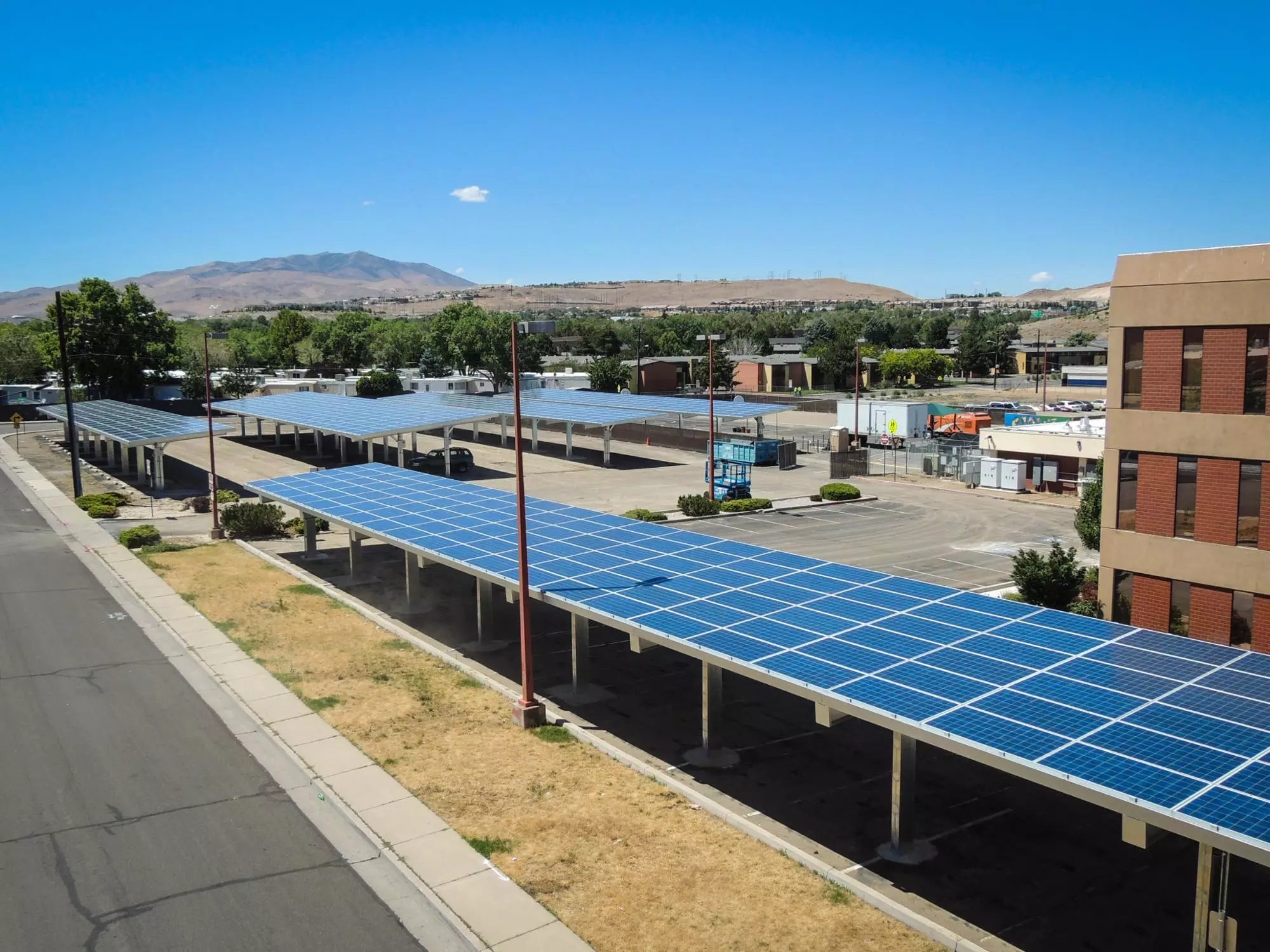

Installation Site View 2

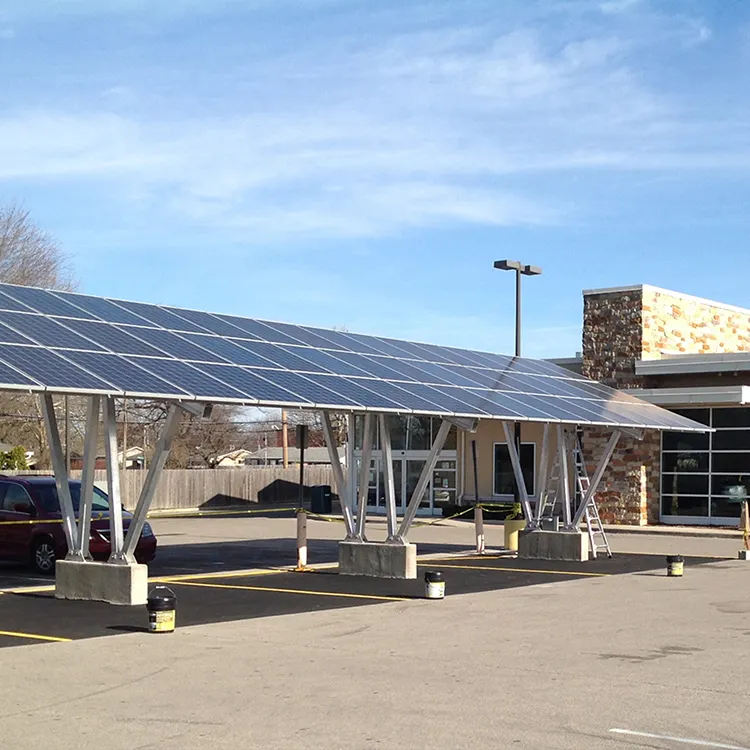

Installation Site View 3

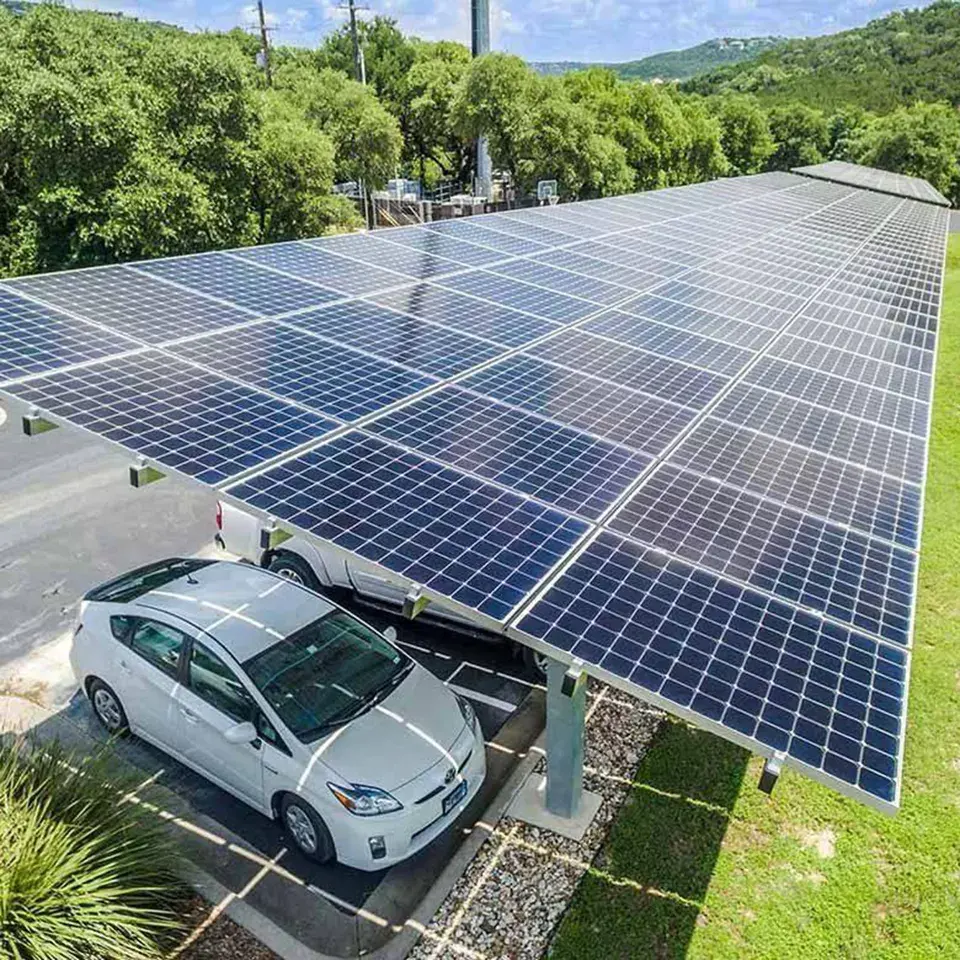

Installation Layout Design

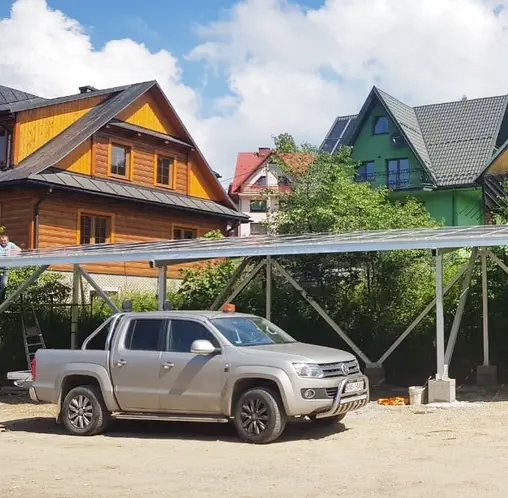

Finished Installation Project 1

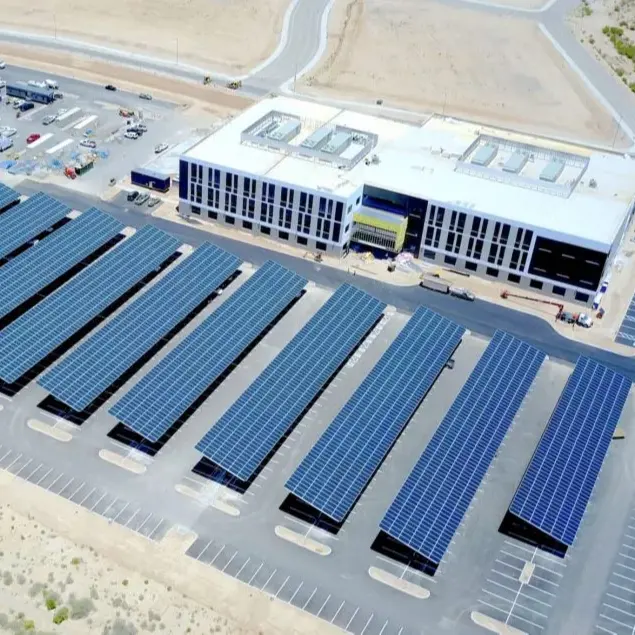

Finished Installation Project 2
Test Report & Photo
Test Method:
EN 573-3:2019; GB/T 7999-2015; EN 755-2:2013
ISO 6892-1:2019; EN 755-8:2008; EN 755-2:2013
ISO 6507-1:2018; EN 755-2:2013; ISO 6506-1:2014
For more details or other test reports, please contact us.
Test Quality Certificate

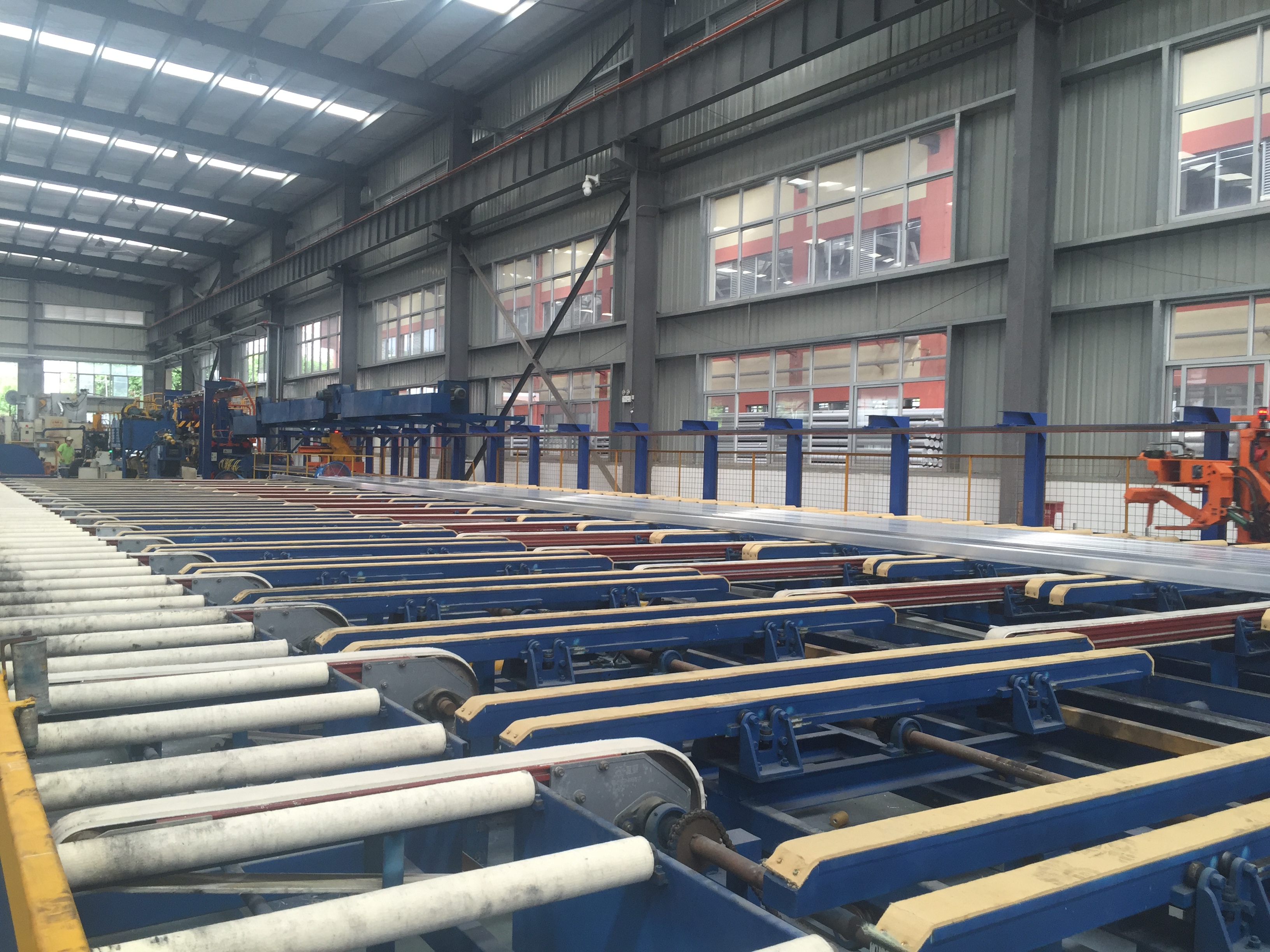

Strength Testing
Material Testing

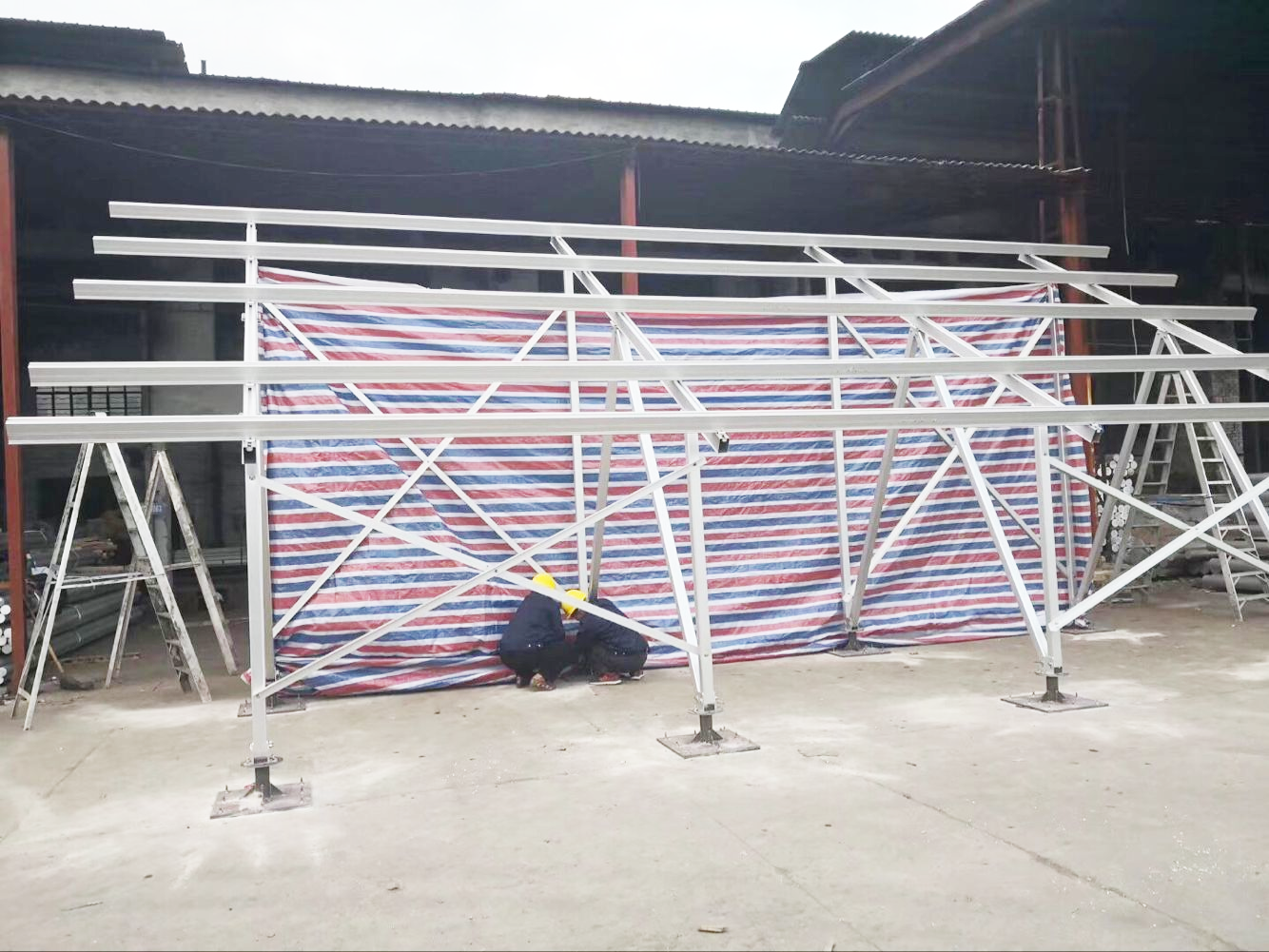

Test Analysis Graph

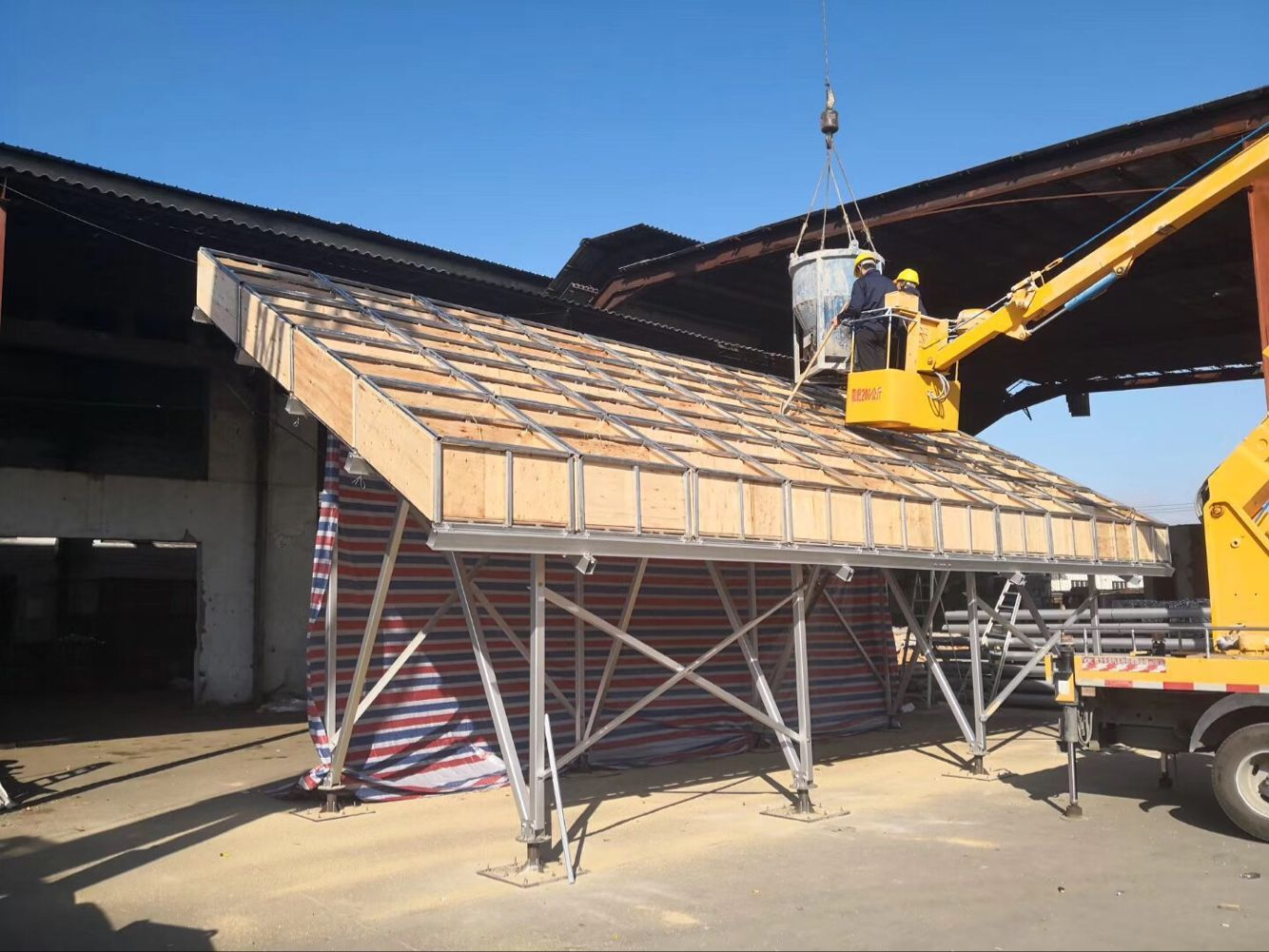

Testing Parameters
Packaging & Delivery

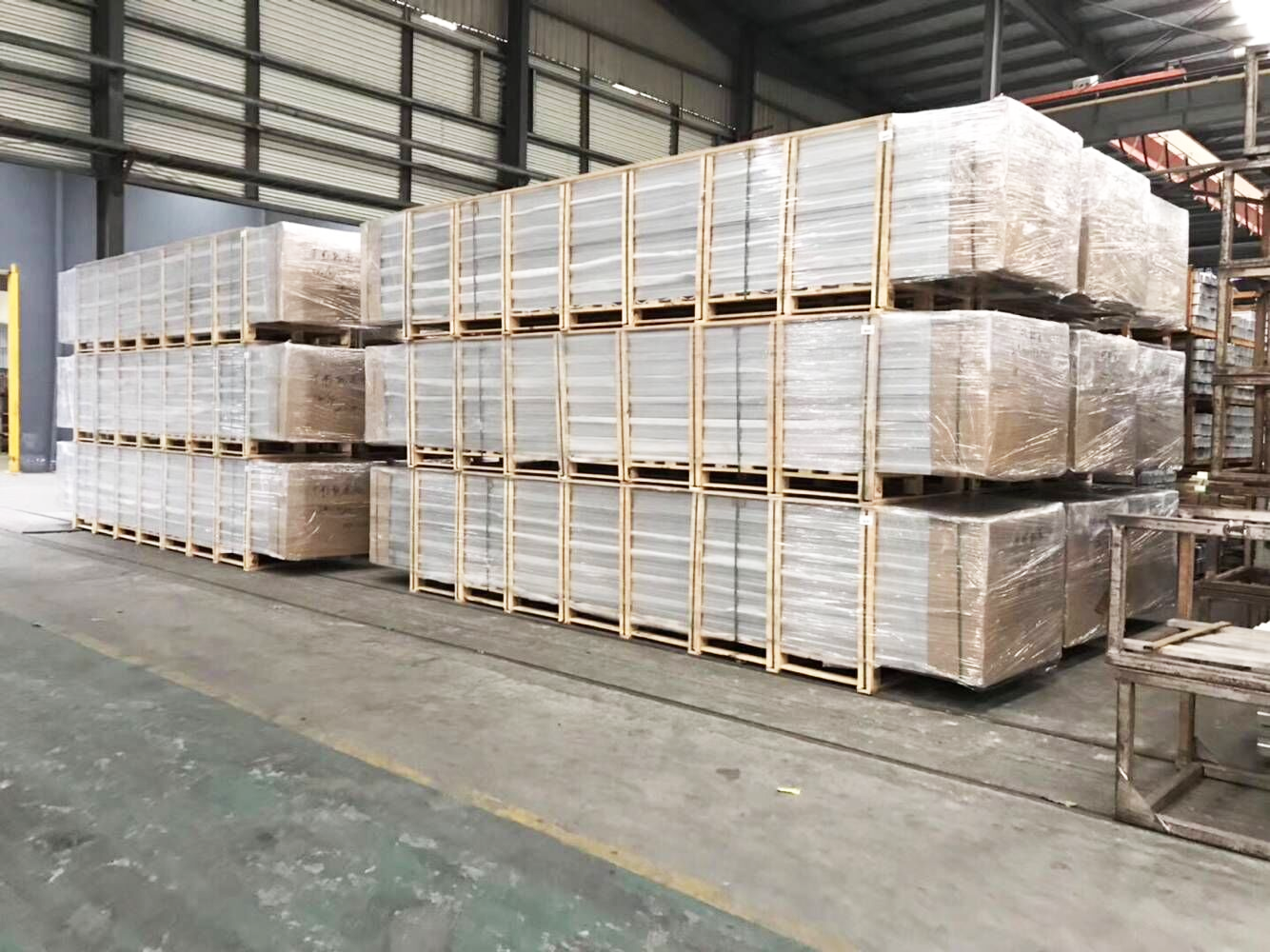

Packaging Box Dimension

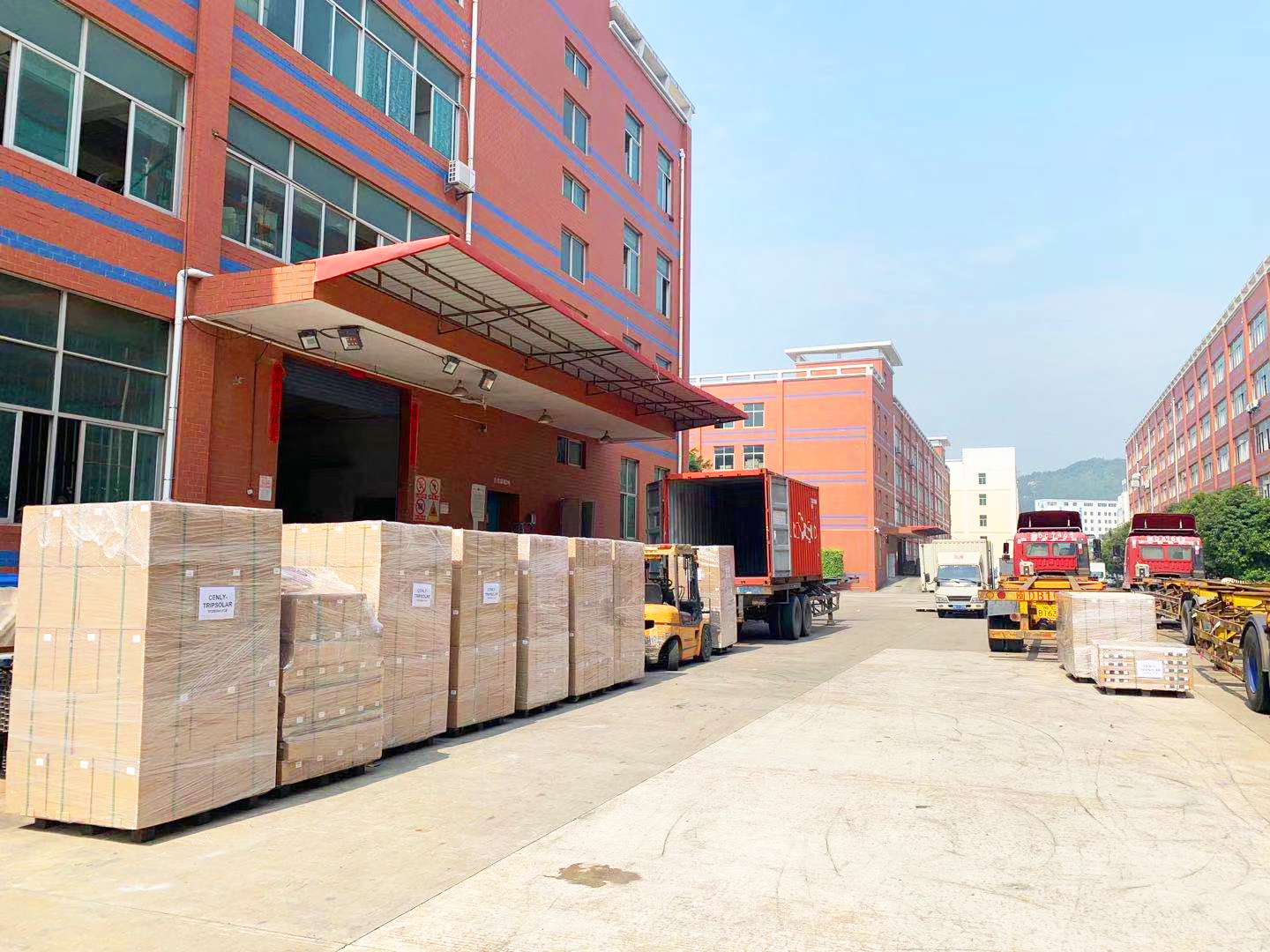

Packaged Materials ready for shipment
Structured Packing Style
Secure Pallet Loading
About Us

We are a high-tech enterprise in the solar PV field, specializing in solar PV products with advanced technology and excellent service. Our members devote themselves to research, design, manufacture, and sell steady, reliable, and cost-efficient solar PV mounting system solutions. As one of the largest PV solar products exporters in China, our pioneering products have been installed in more than 100 countries and regions since establishment.

Our Mission: To provide the best renewable energy solution for every energy customer worldwide and deliver total solutions, excellent quality, and customer satisfaction.

Our Vision: To become the preferred supplier of solar mounting systems (for residential & commercial scale projects) to solar installers both nationally and internationally.

Our Goal: To manufacture the best PV Mounting System in the industry, and to become a household name synonymous with superior quality, innovative excellence, system durability, and time effectiveness.

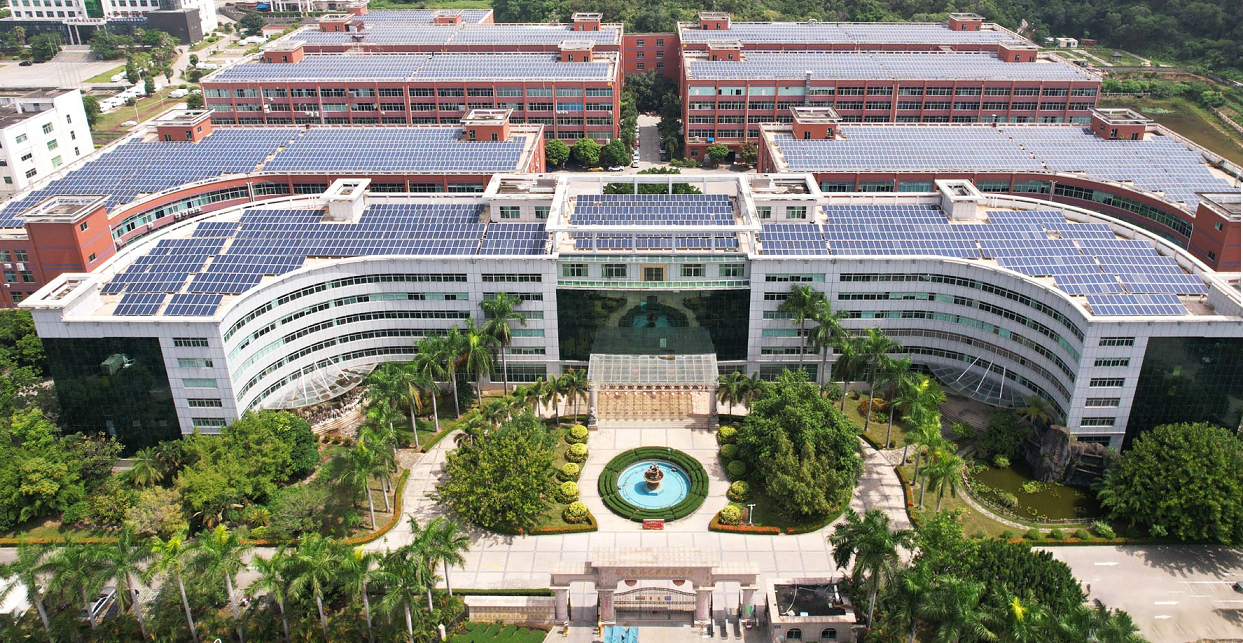

Design Phase
Production Facility
Inventory Warehousing
FAQ
Q: Why choose us?
We are a professional manufacturer, and we can provide the best product, competitive price, and excellent service.
Q: Is customization available?
Yes, customization is available according to your detailed drawings or requirements designed by our engineers.
Q: What about the delivery time?
It depends on your order quantity and requirements. Usually, it takes 7-15 working days.
Q: Can we visit the factory to inspect the goods for the order?
You are welcome to visit our factory to inspect product quality. We sincerely hope to establish a reliable business relationship.
Q: What is the warranty period for the solar carport structure?
Our aluminum solar carport mounting structures come with a 10-year warranty.
Q: Which installation compliance standards do the structures meet?
Our structures are designed and tested to comply with international standards including AS/NZS 1170, DIN 1055, and others.
