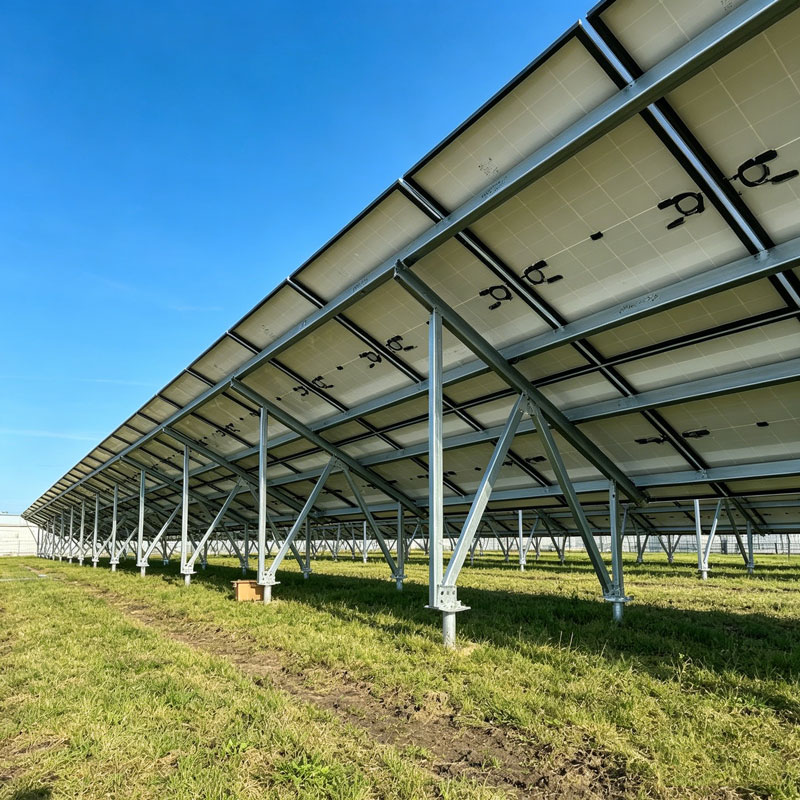

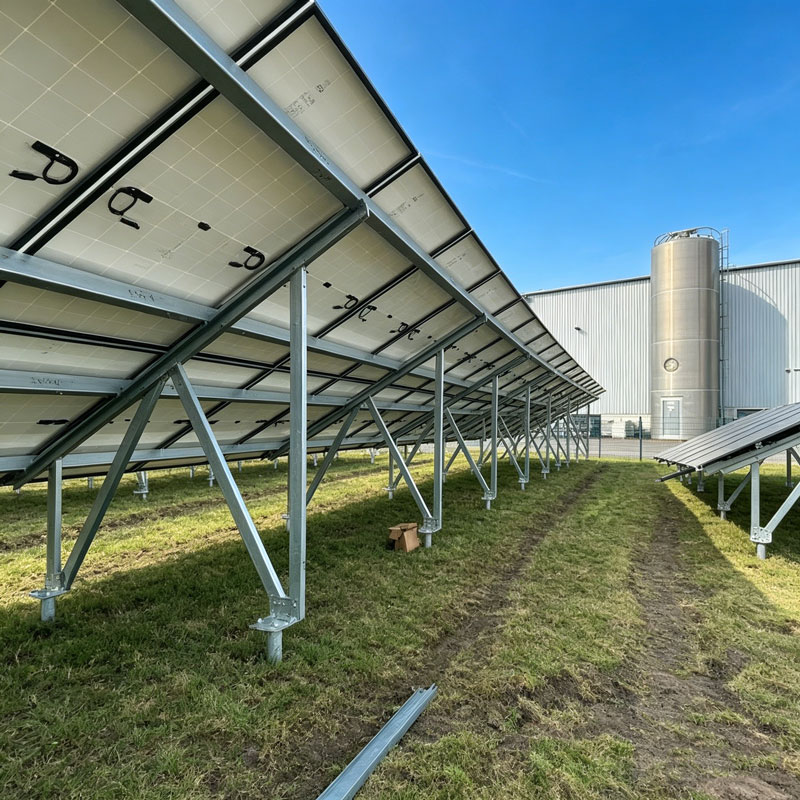

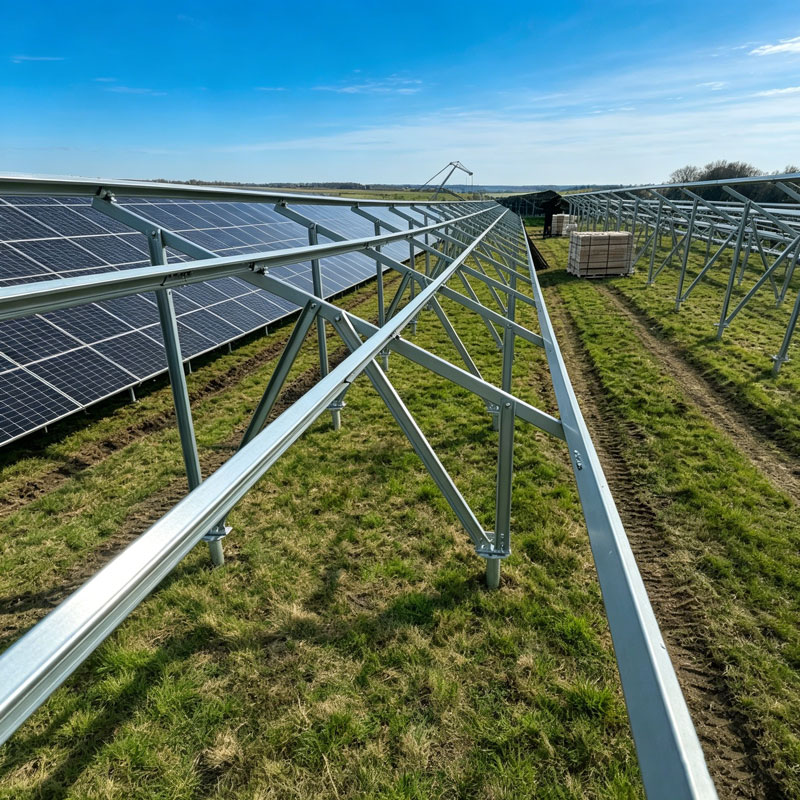

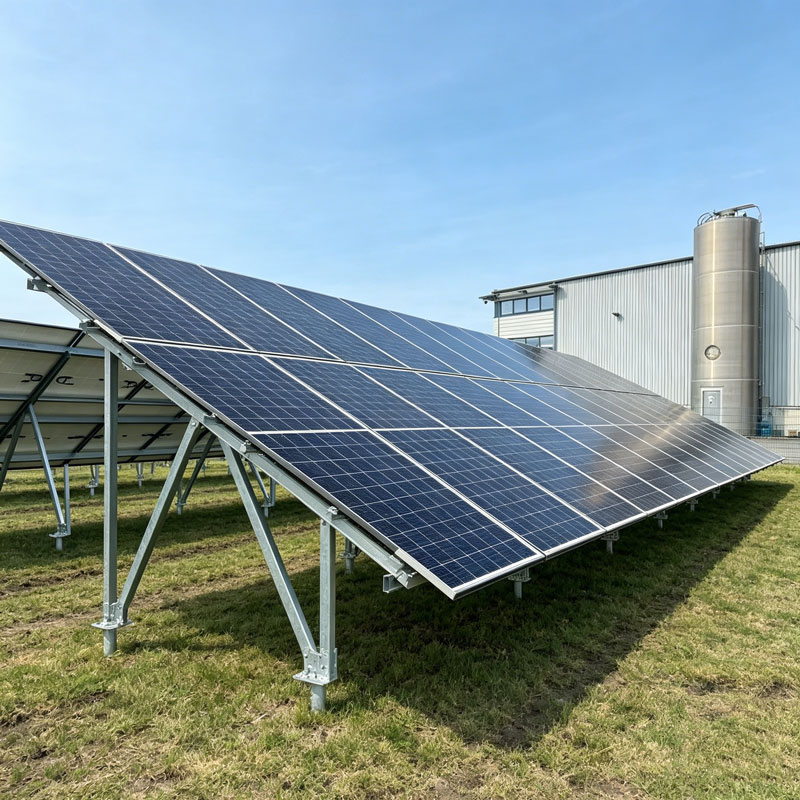

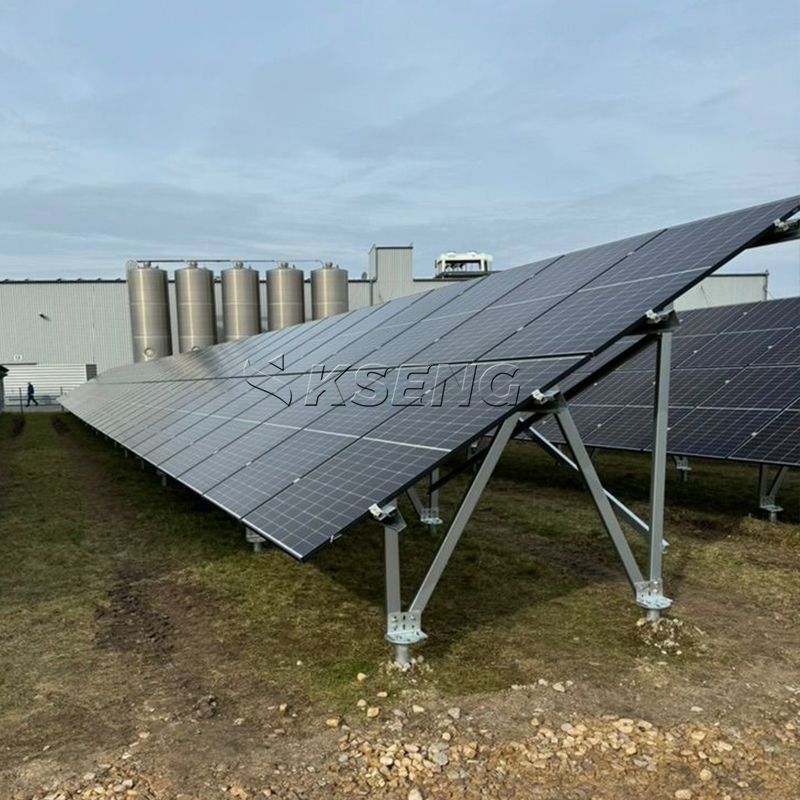

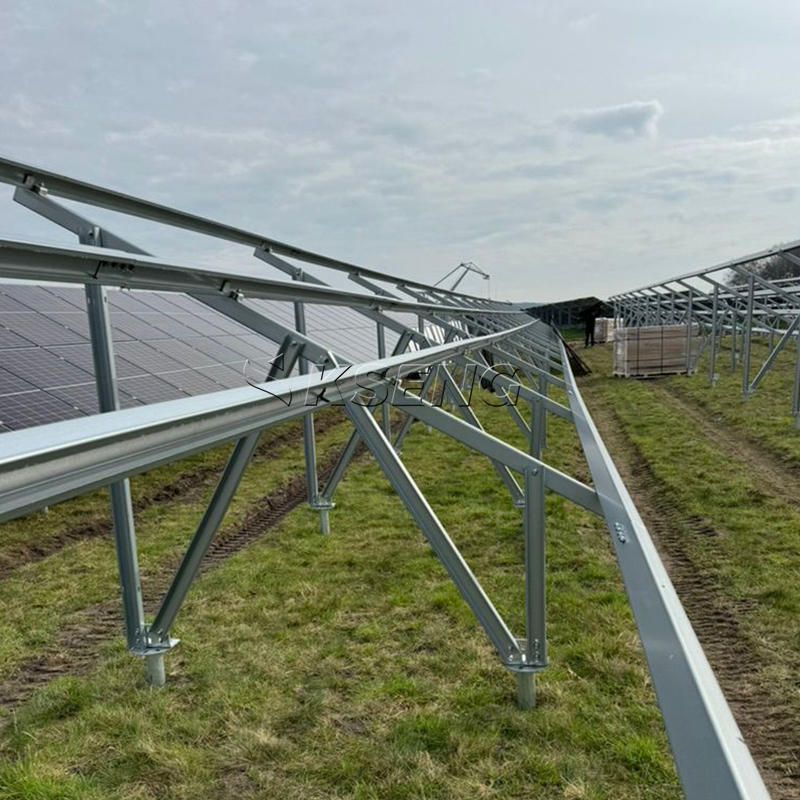

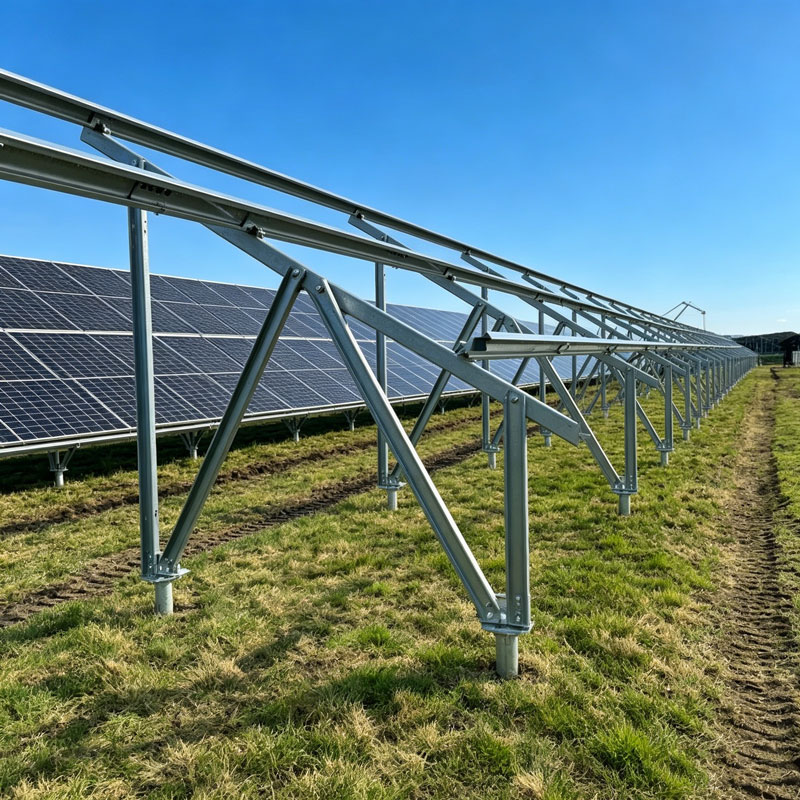

Solar Ground Racking Al-Mg-Zn Coated C Channel Steel Solar Panel Ground Mounting System with Screw Pile
| Product Name |
Solar Ground Mounting System |

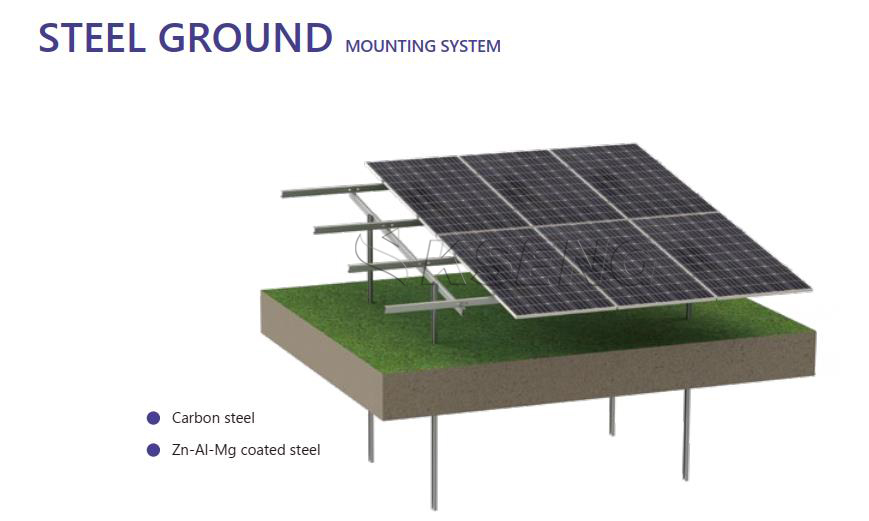

| Material |
Zn-Al-Mg coated steel or Q235B carbon steel |
| Foundation |
Screw or Concrete foundation |
| Standard |
AS/NZS 1170 JISC8955-2017 and other international standards |
| Warranty |
10 years warranty and 25 years service life |
| Max Wind Load |
Up to 60m/s |
| Snow Load |
Up to 1.4KN/M² |
| Applicable Module |
Framed Or Frameless |
| Module Orientation |
Portrait or Landscape |
1
Lightweight design for easy transportation, installation, and safe construction.
2
High corrosion resistance and excellent salt tolerance for harsh environments.
3
Maximum pre-assembly to significantly save construction time and labor costs.
4
Versatile foundation options: Ground screw, pile, or concrete.
5
Fully customized project solutions to meet specific site requirements.
What materials are used for the ground mounting system?
The system is constructed using high-quality Zn-Al-Mg coated steel or Q235B carbon steel, ensuring excellent durability and corrosion resistance.
What types of foundations are compatible with this system?
This solar mounting structure is versatile and can be installed using either ground screw piles or concrete foundations, depending on your site's soil conditions.
What is the maximum wind and snow load the system can handle?
The system is engineered to withstand extreme weather, with a maximum wind load of up to 60m/s and a snow load capacity of up to 1.4KN/M².
Does the system come with a warranty?
Yes, we provide a 10-year warranty on the structure, which is designed for a service life of over 25 years.
Are the mounting structures compatible with all solar panel types?
Yes, the system is designed to accommodate both framed and frameless solar modules in either portrait or landscape orientation.
How does the pre-assembly feature benefit my project?
Maximum pre-assembly at the factory ensures that the components arrive ready for quick setup, significantly reducing installation time and on-site labor costs.
