Adjustable Solar Panel Tilt Mount Brackets Support
✓ Suitable for all Solar Panels
✓ Suitable for On-Grid / Off-Grid Systems
✓ Mount on Roof, RV, Boat and Any Flat Surface
Product Overview
Solar Panel Tilt Mount Bracket

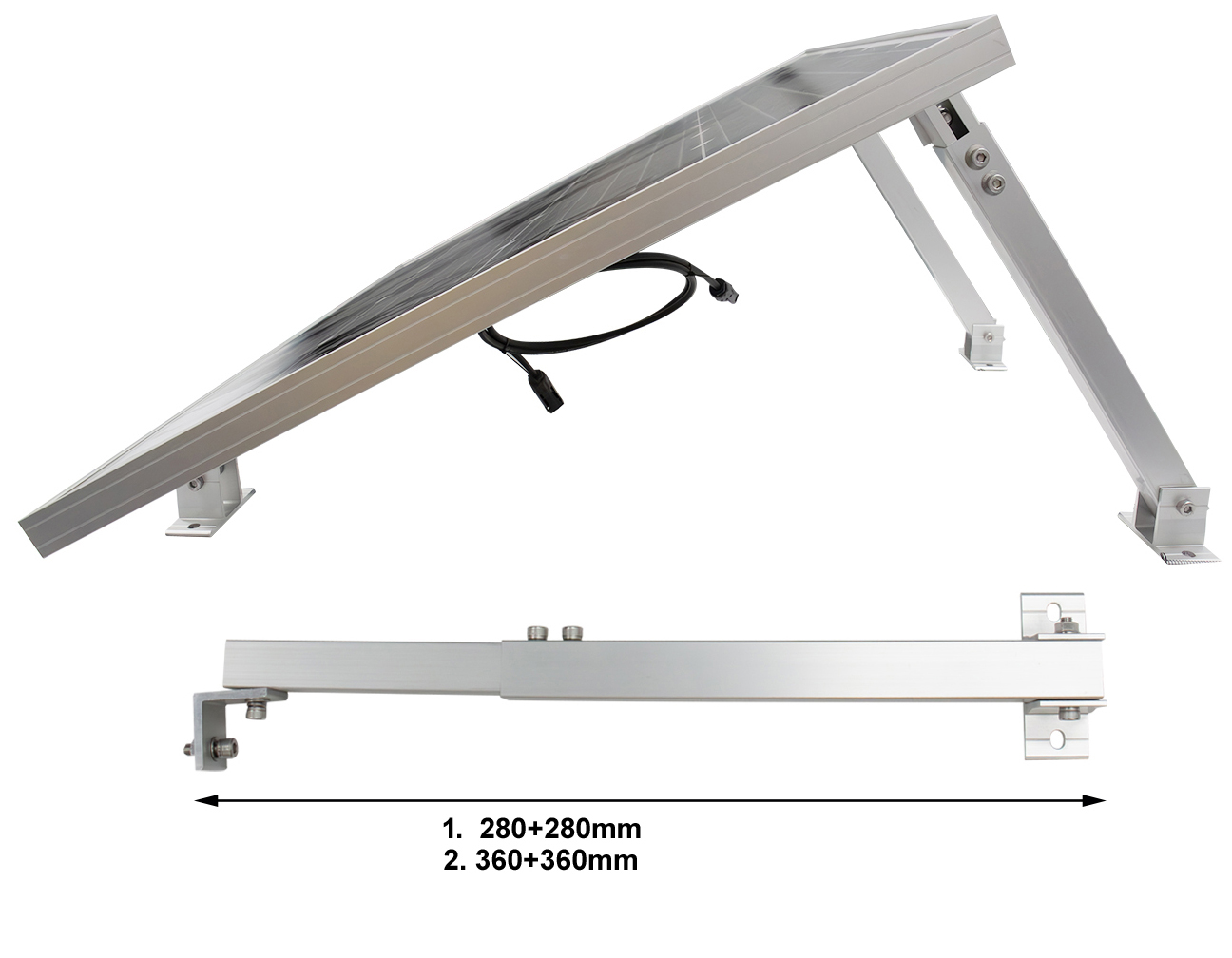

Solar Panel Tilt Mount Bracket Detail

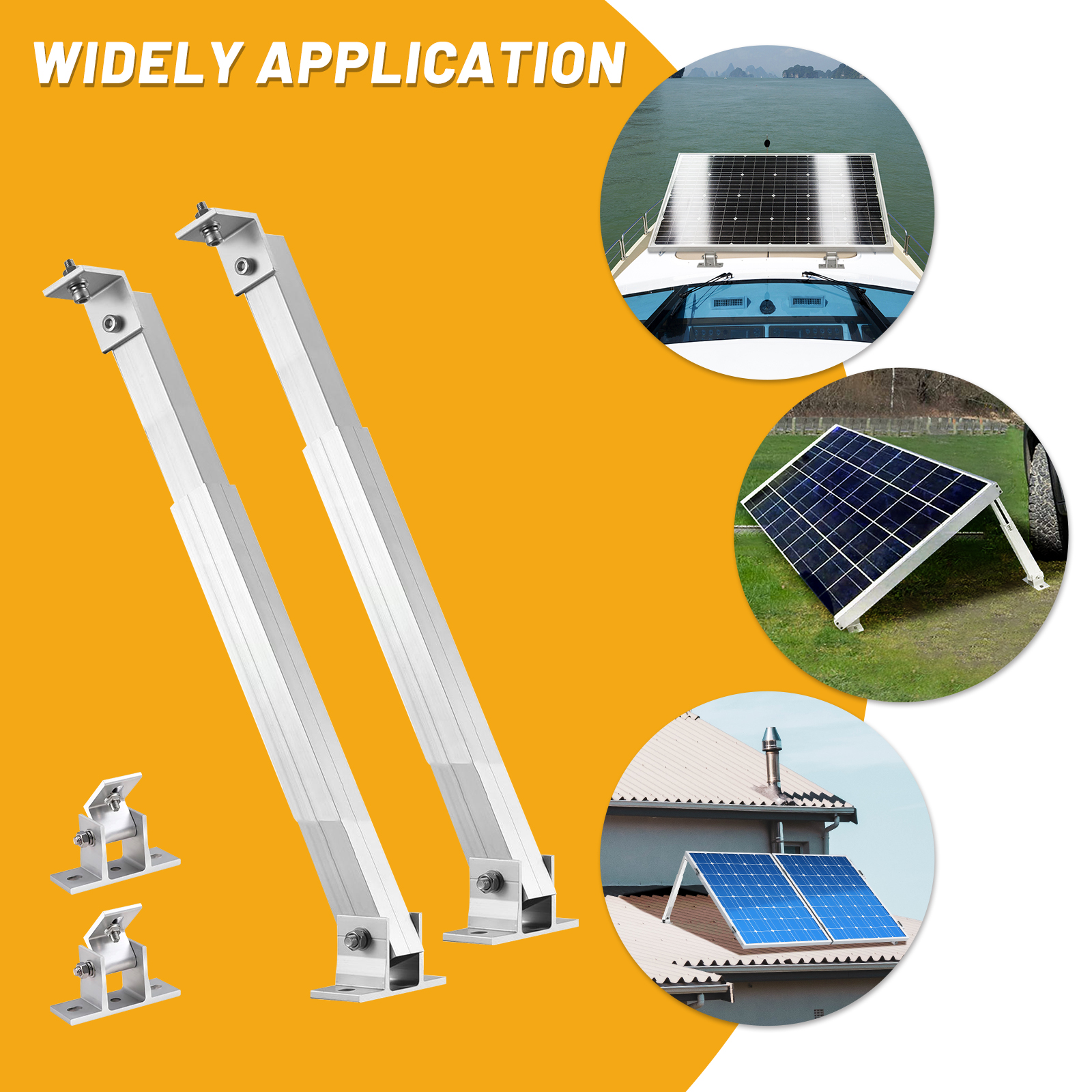

Solar Panel Tilt Mount Bracket Setup

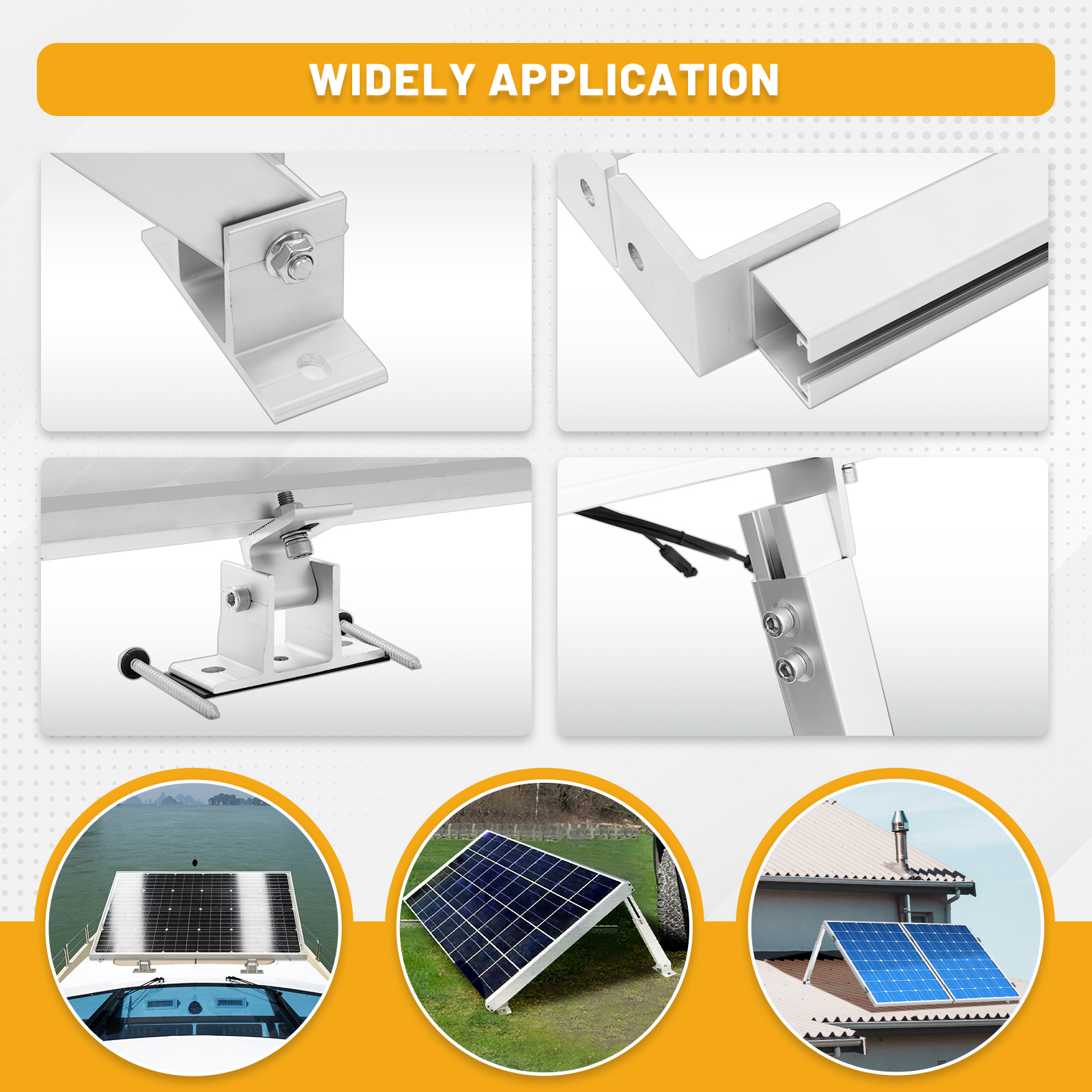

Bracket Structure

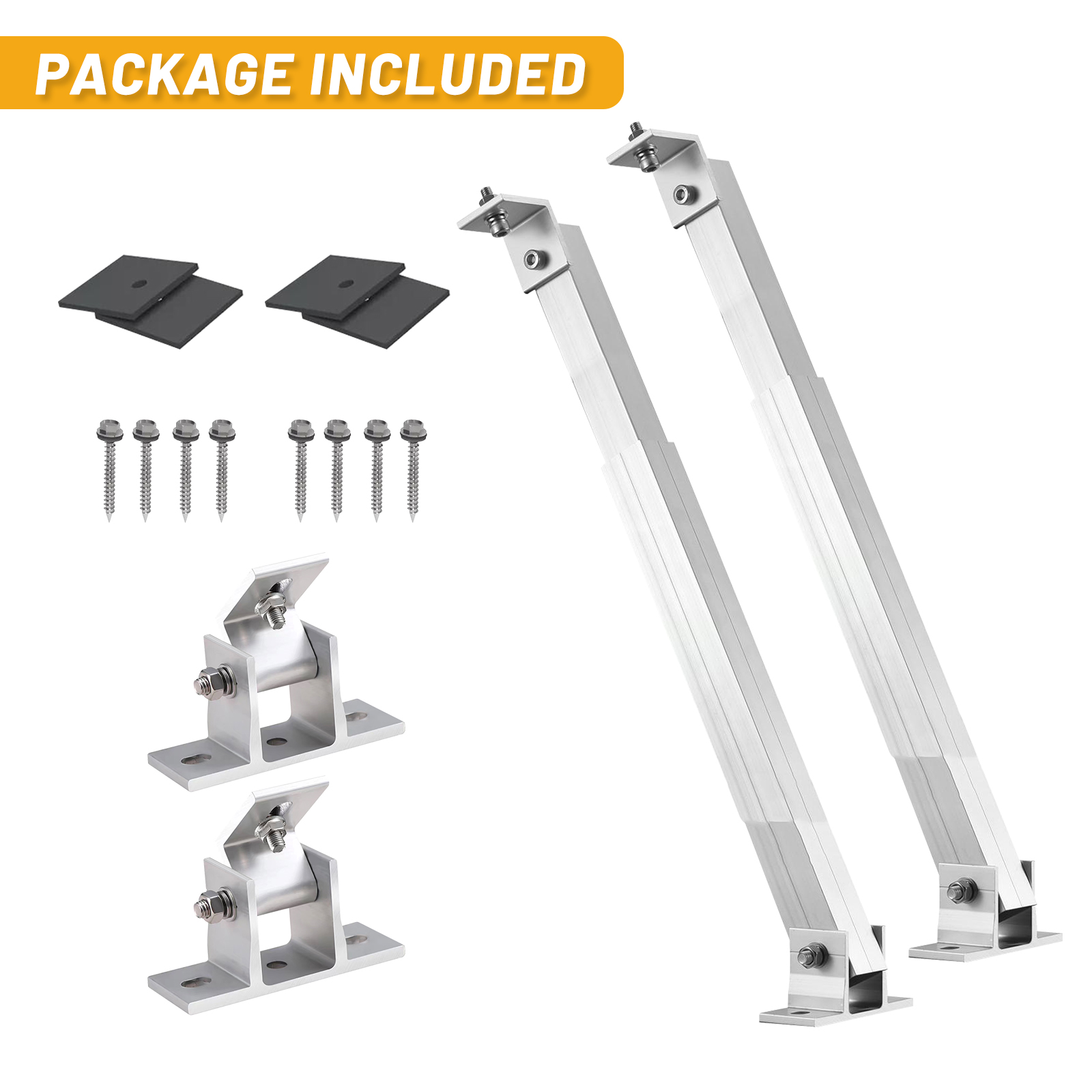

Bracket Components

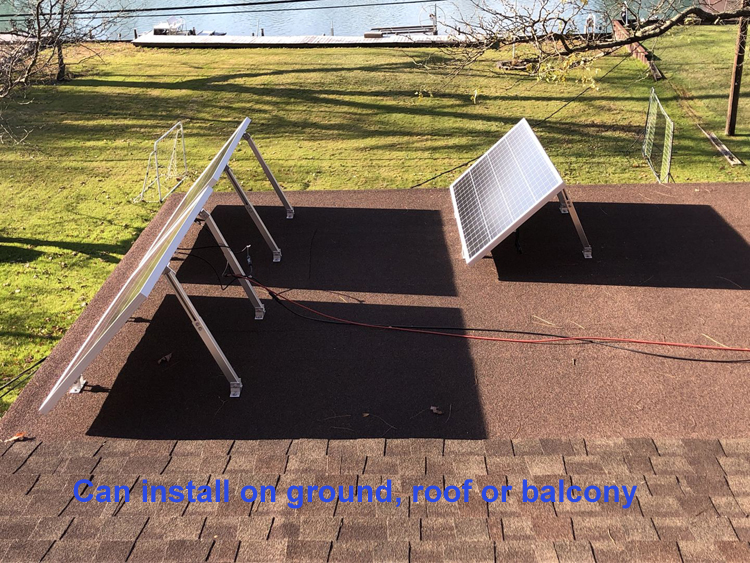

Installation Side View

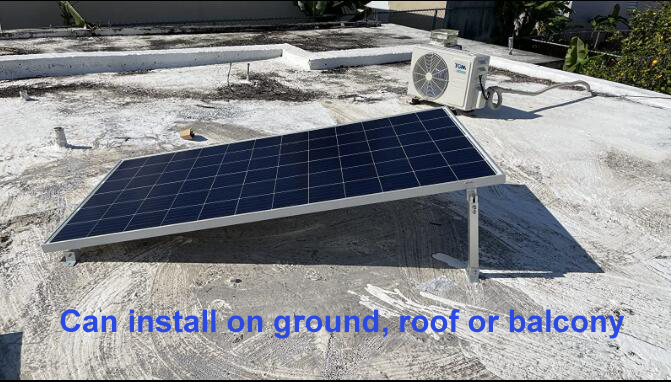

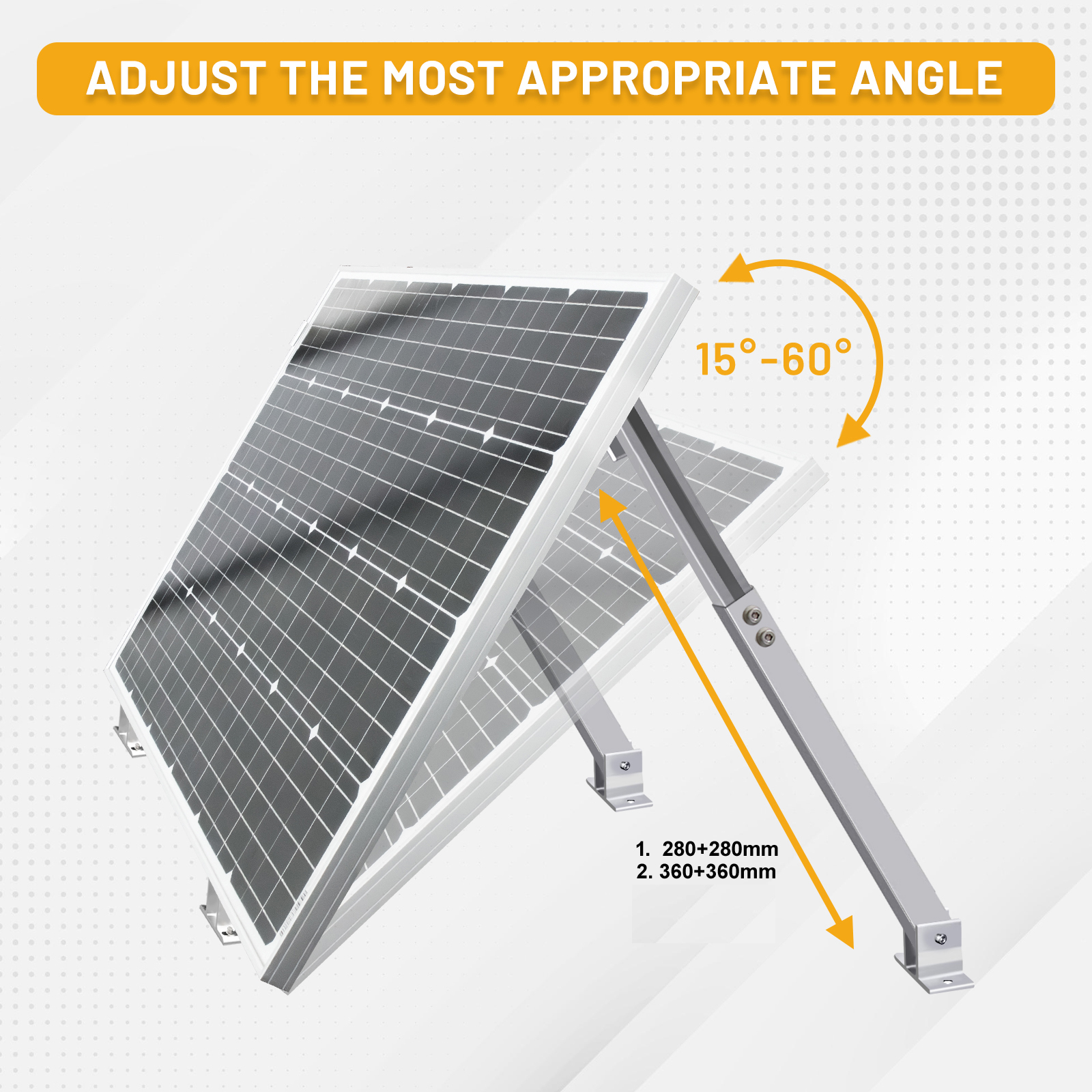

Angle Adjustment
Secure Mount Setup

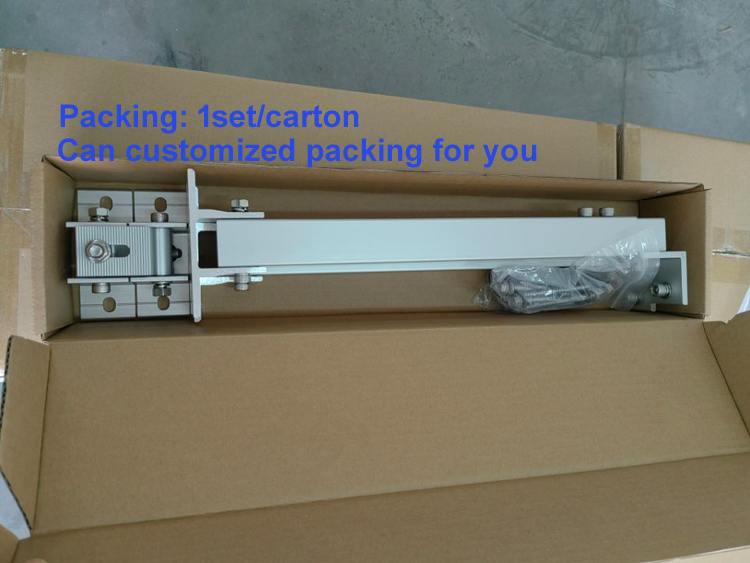

Mount Packaging

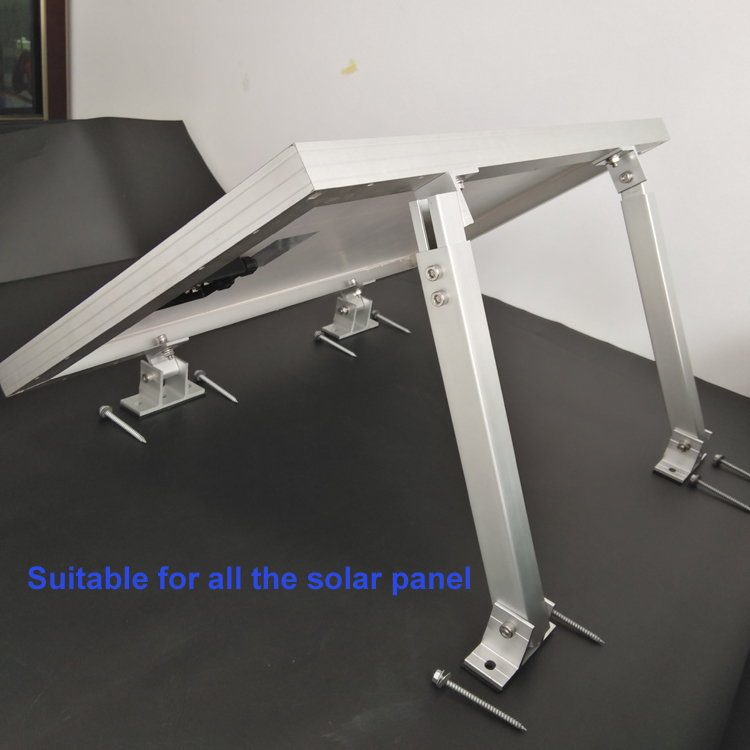

Mounting Angle View

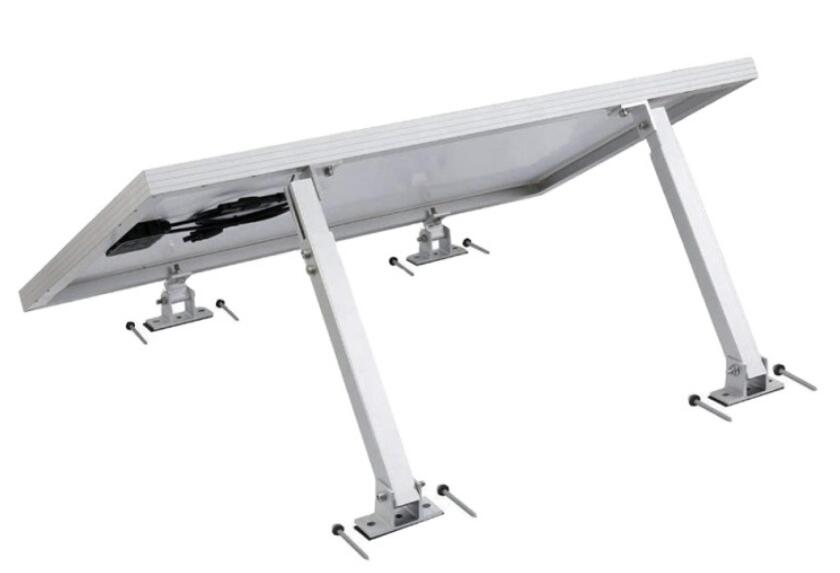

Mounting Hardware
Key Features
✦ Ideal for easy transportation and safe mounting
✦ Maximum tilt angles depend on the size of solar panels
✦ Used on flat surface or roof
✦ Ease of installation
✦ Light weight aluminum alloy material
Specifications
Item Value
Place of Origin China / Fujian
Model Number TP-AD
Wind Load 60M/S
Snow Load 1.4KN/m2
Warranty 10 years
Product Name adjustable solar panel brackets
Main Material Aluminum Alloy
Bolt Material SUS304 stainless steel
Surface Treatment Aluminum Anodized
Application Solar Panel Installation
Certificate CE
Tilt Angle 0-60 Degree
Color Silver
Service Life 25 YRS
Foundation Wood, concrete block or metal foundation

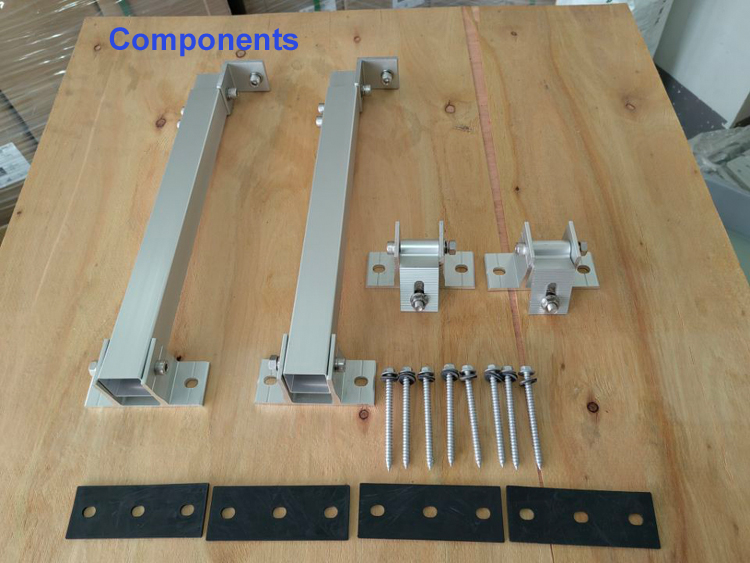

Components List
Standard Kit
What is Included?
▪ Self-drilling screws and custom mounting accessories
▪ The screw can be adjusted according to your requirement

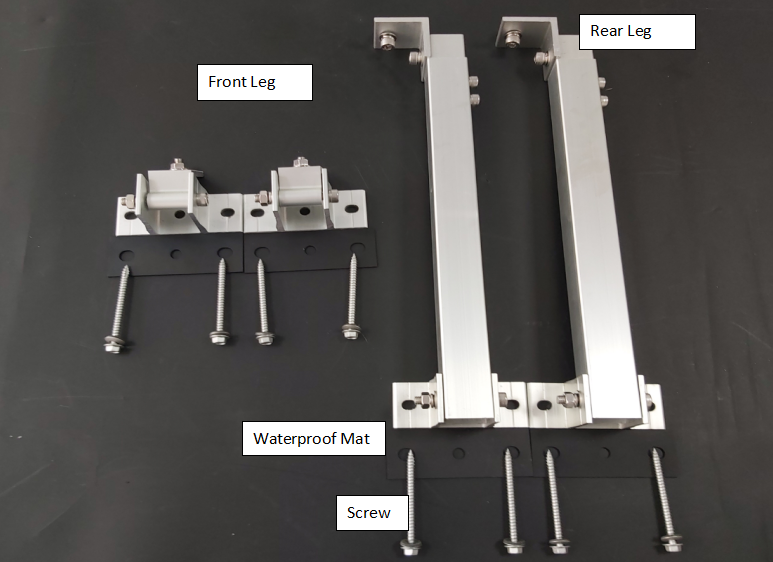

Components Diagram
Installation Details
Front Leg Connection
▪ Front leg to connect the solar panel with stainless steel M8 Bolt and flange nut, easy to install
▪ Use wood screw and EPDM rubber pads to install on flat surfaces

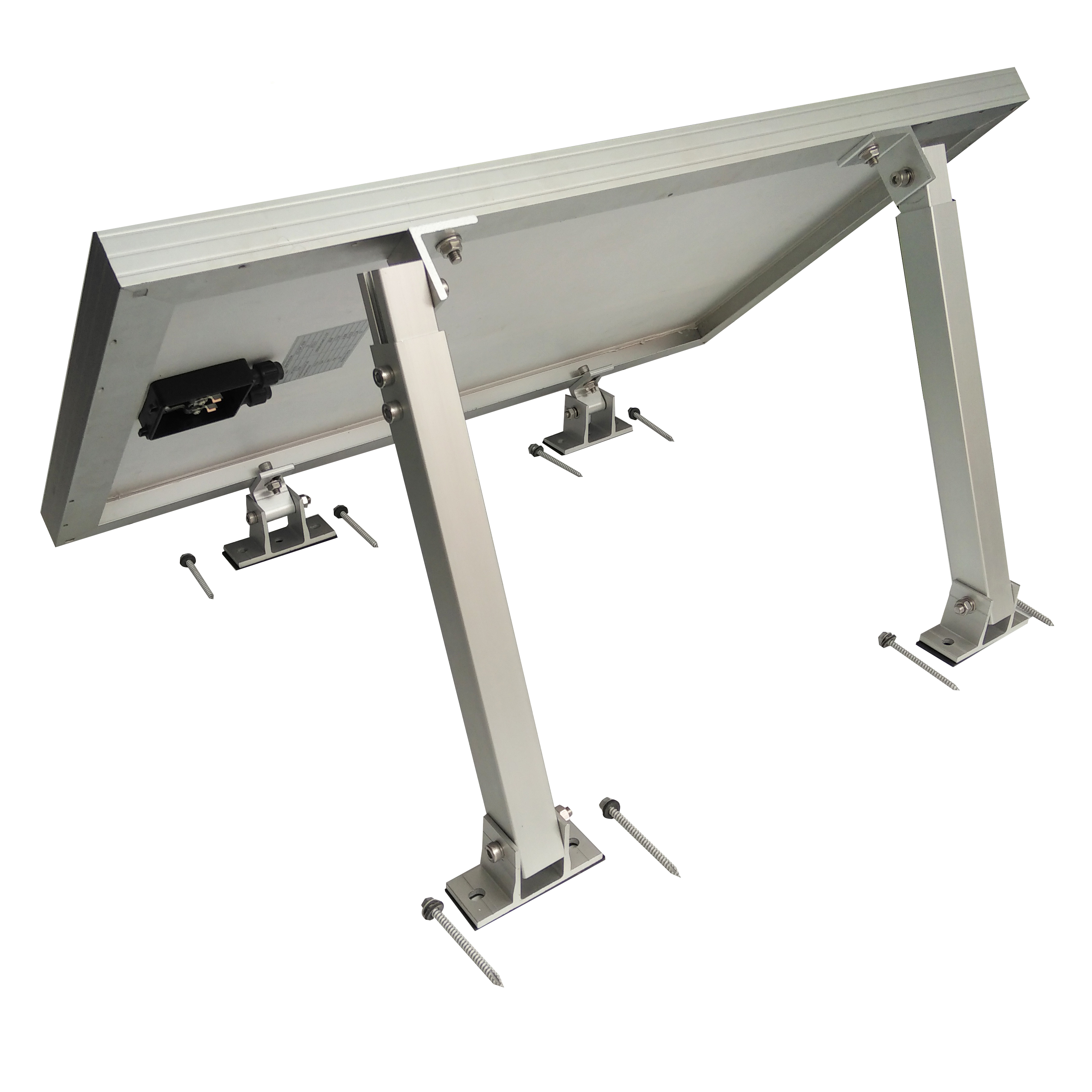

Front Leg Mounting
Rear Leg Mounting Angle
Rear Leg Connection
▪ Rear leg to connect the solar panel with stainless steel M8 Bolt and flange nut, easy to install
▪ Lengthen or shorten the long leg to adjust the angle that you need
Surface Installation
▪ Rear leg to install on flat surfaces with wood screw and EPDM rubber pads
▪ Lengthen or shorten the long leg to adjust the angle that you need
Rear Leg Surface installation
Mount on Roof, RV, Boat and Any Flat Surface
RV Application
Roof Installation Diagram
Packing & Delivery Details
✔ General packing: 1 set / box, with Bubble bag
✔ Carton size: 10 boxes / carton

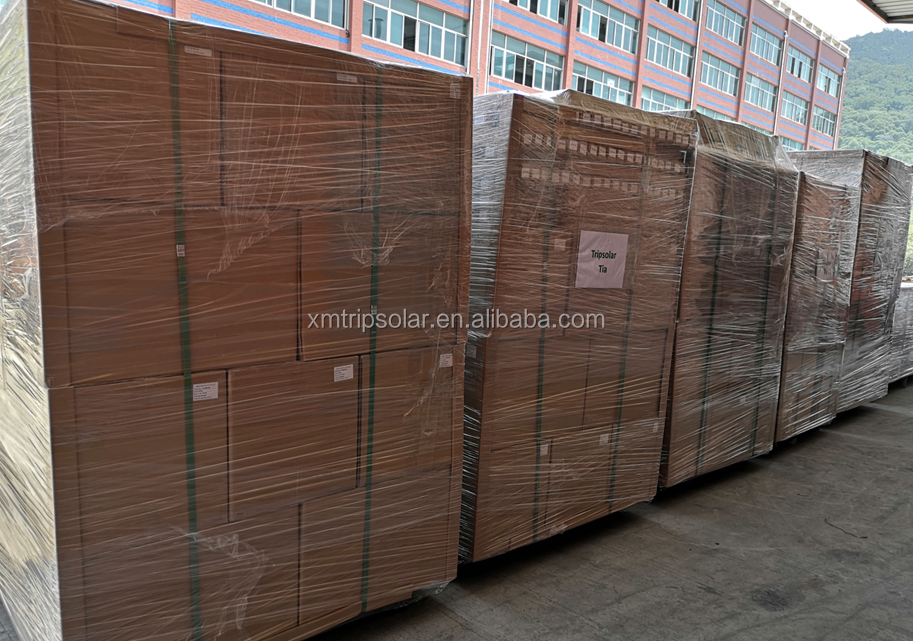

✔ Pallet size: 24 cartons / pallet with waterproof film and straps
✔ Customized packing solutions are available for special requirements
Mass Production

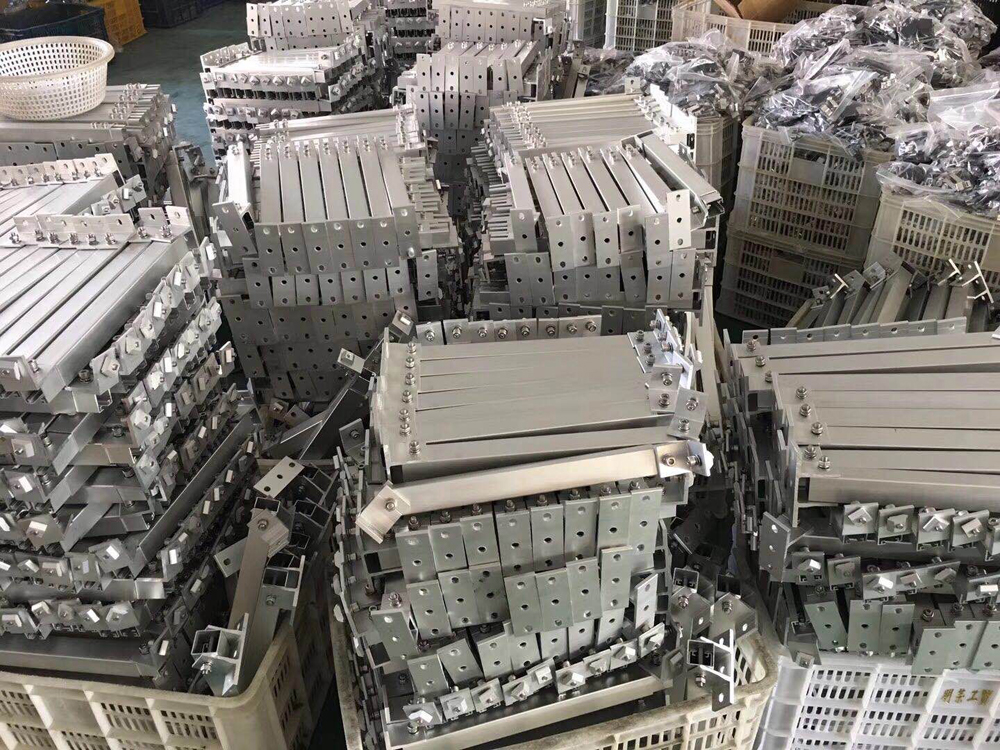

Factory Production Line

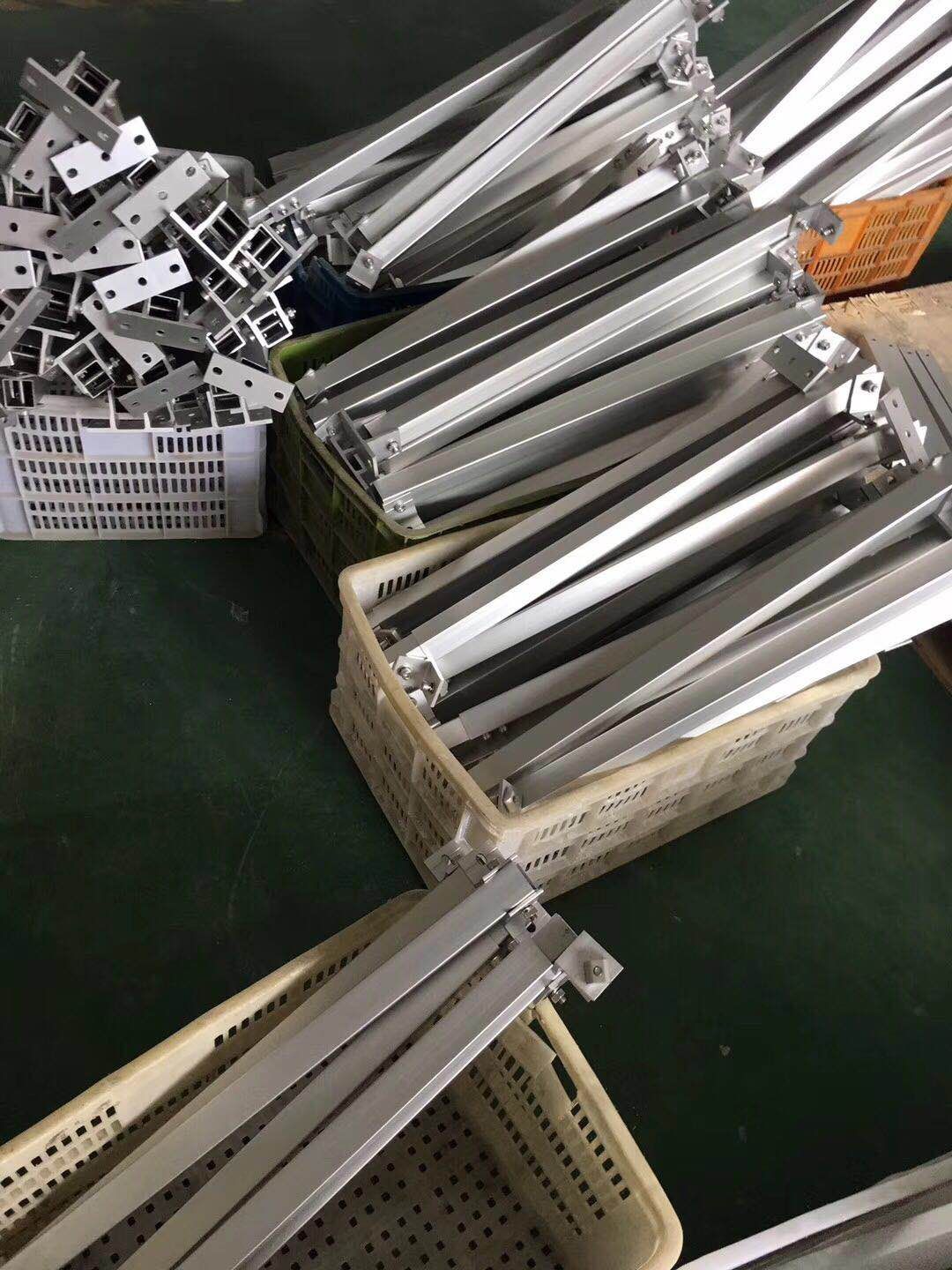

Mount Production
Related Products
TP-AMB01A
TP-AMB01A

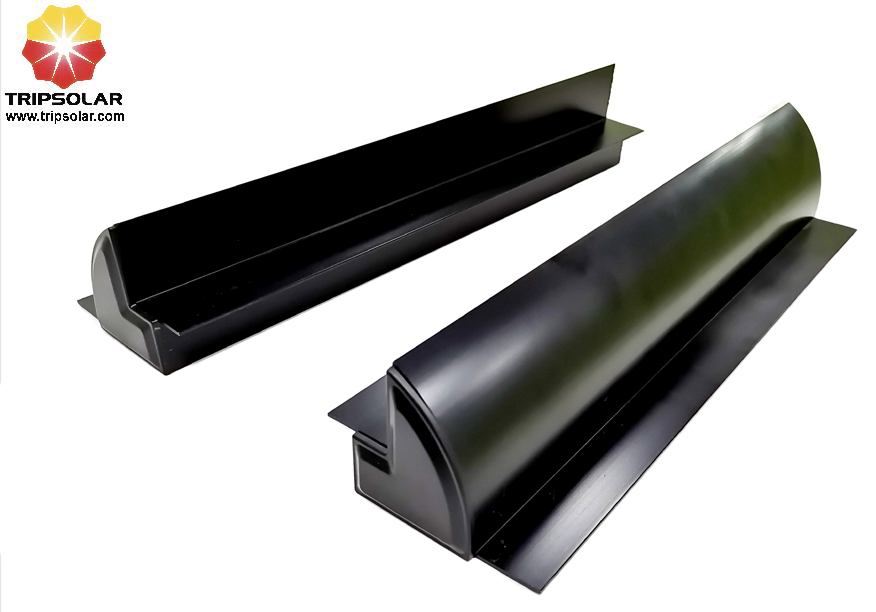

Aluminum mounting brackets
550mm / 670mm or customized
Natural or black
PC cover for the end

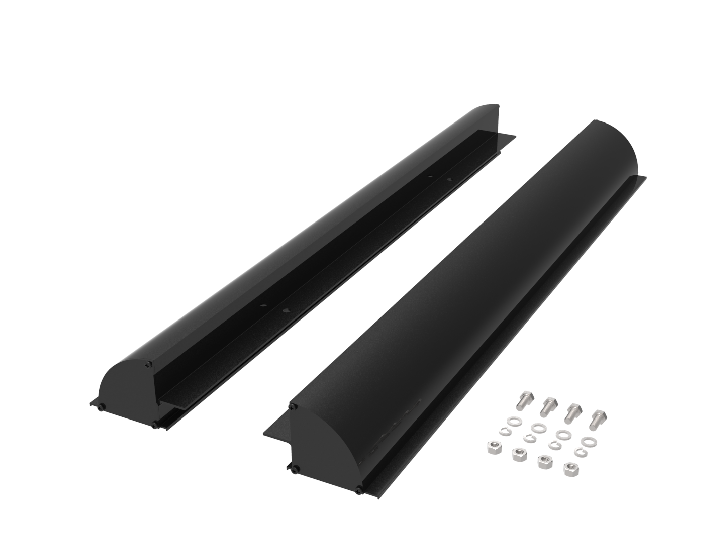

TP-AMB03
TP-AMB03
Aluminum mounting brackets
550mm / 670mm or customized
Natural or black
Aluminum cover for the end

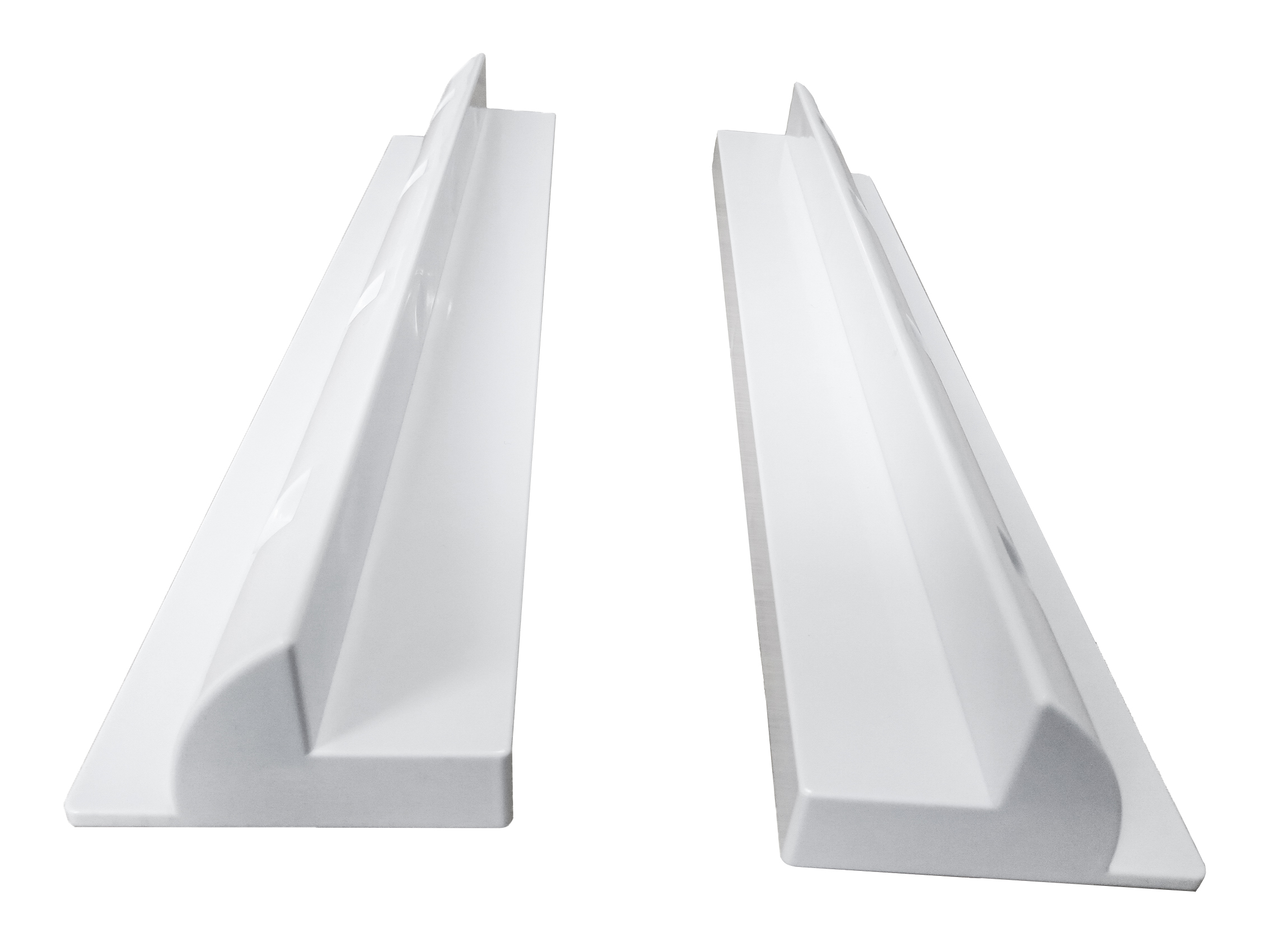

TP-ABS-010
TP-ABS-010
ABS Mounting brackets
550mm
Natural or black
TP-ABS-001
TP-ABS-001

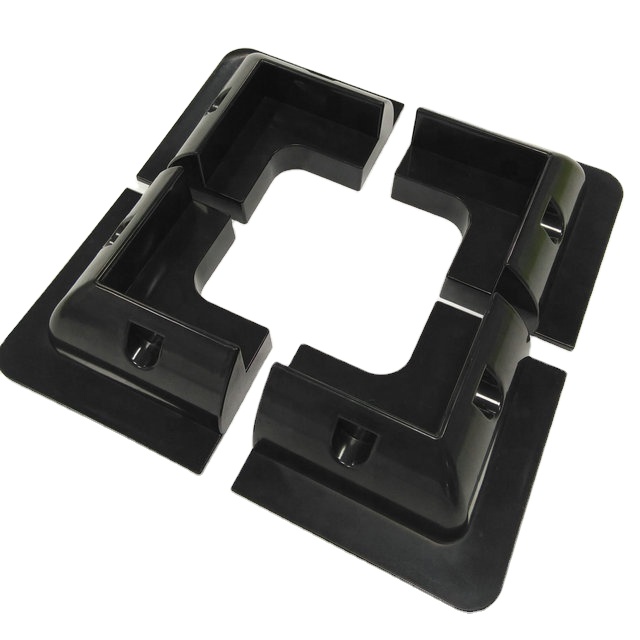

Solar Panel Corner Mounts
4pcs per set, Black
TP-TR02
TP-TR02

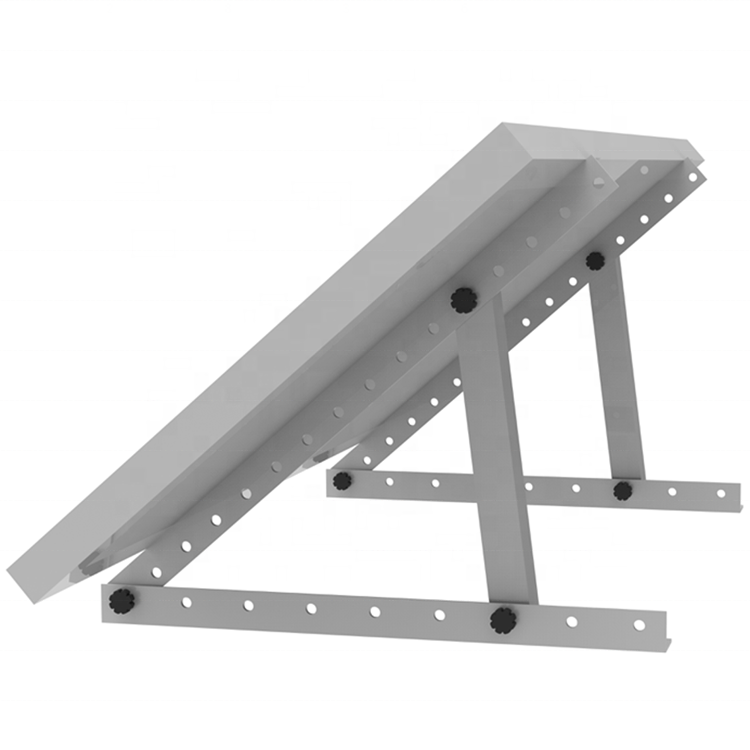

Triangle Mounting System
Suitable for 680mm solar panel
TP-AD02
TP-AD02

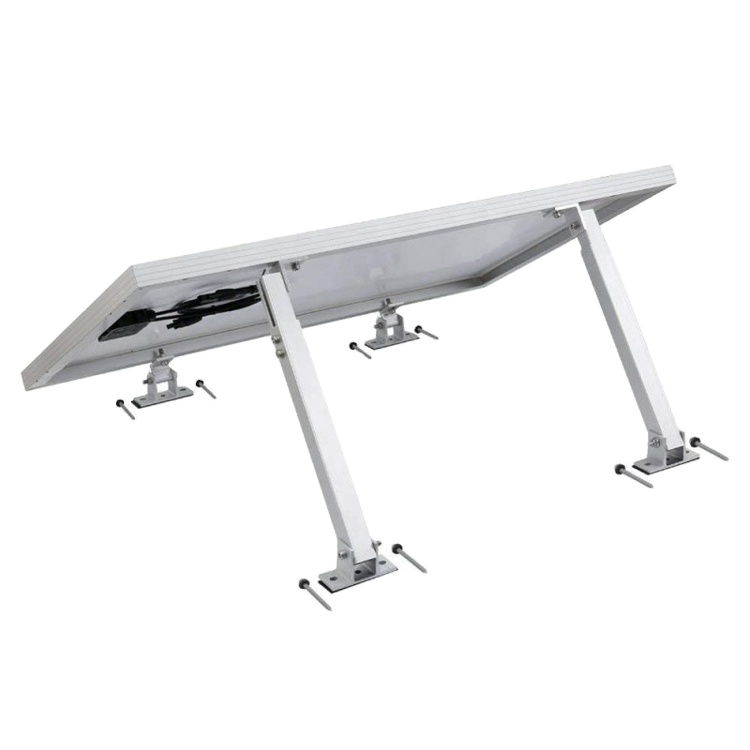

Adjustable Mounting System

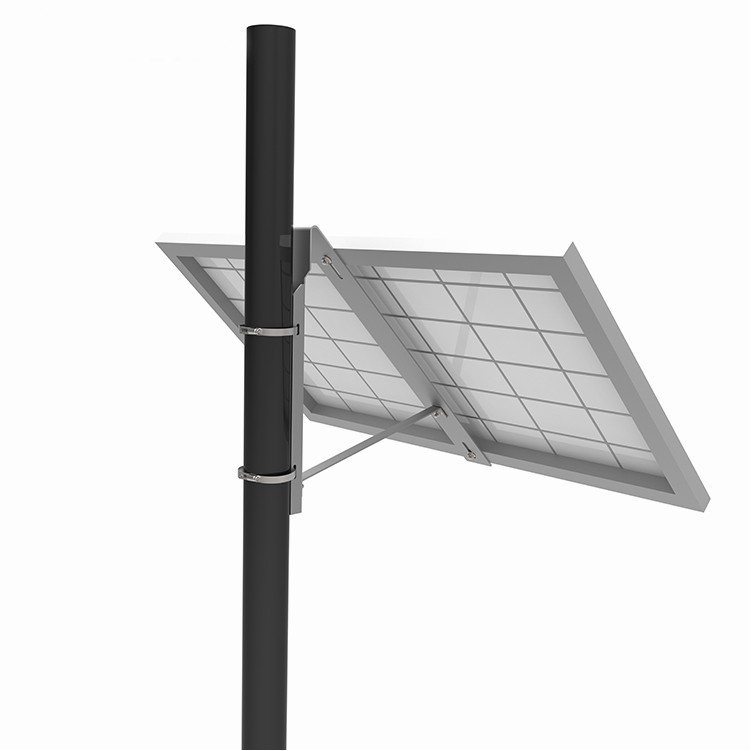

TP-P1#
TP-P1#
Side pole mounts

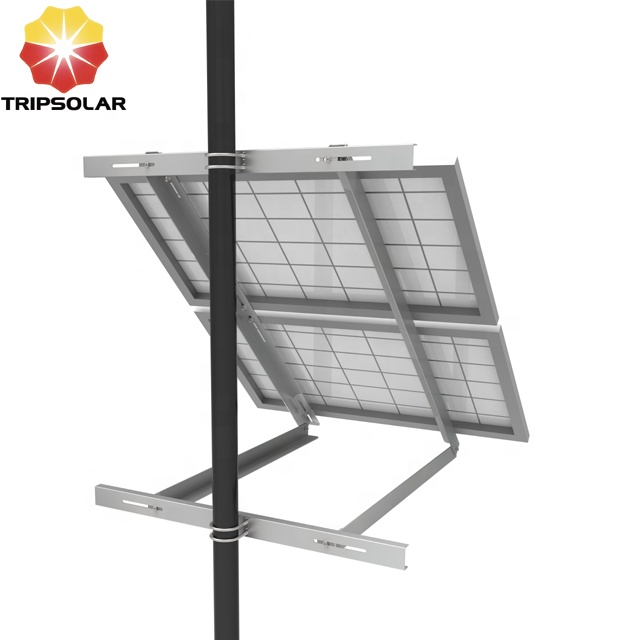

TP-P2#
TP-P2#
Side pole mount

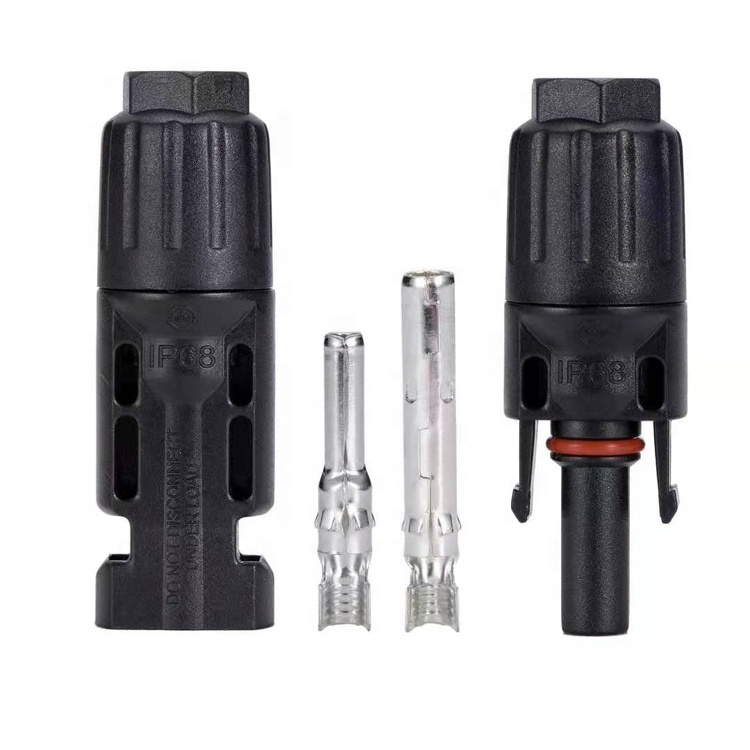

TP-MC-1
TP-MC-1
1000V DC(IEC), solar cable connector
Facilities & Factory View
Factory Facility 1
Factory Facility 2
Factory Facility 3
Factory Warehouse
Production Equipment
Testing Lab
Certificates and Showroom
Frequently Asked Questions
What materials are the adjustable solar panel brackets made of?
The main body is constructed of high-grade Anodized Aluminum Alloy, and the mounting bolts/flange nuts are made of durable SUS304 stainless steel for excellent corrosion resistance.
What wind and snow loads can these mounting brackets withstand?
These brackets are engineered to withstand a maximum wind load of 60M/S and a maximum snow load of 1.4KN/m², making them robust for diverse outdoor weather conditions.
Where can these solar panel brackets be installed?
They can be easily installed on roofs, RVs, boats, or any flat surface such as wood, concrete block, or metal foundations.
What is the range of the adjustable tilt angle?
The brackets support an adjustable tilt angle ranging from 0 to 60 degrees, allowing you to optimize solar capture efficiency depending on your location.
What is the warranty and expected service life of these brackets?
The brackets come with a 10-year warranty and offer an expected service life of up to 25 years under normal outdoor environments.
