Aluminium Mount Kit Panels Solar Panel Pv Brackets System Solar Mounting Bracket

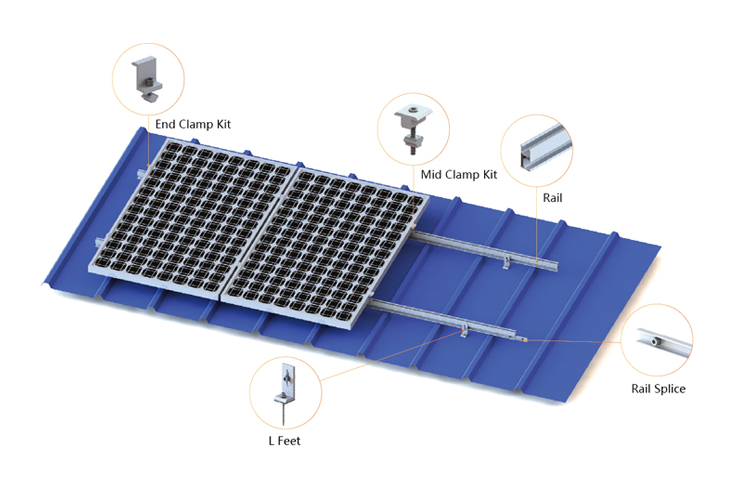

Metal Roof Mounting

Roof standing seam clamps mounting structure is widely applied for commercial and residential roof project. The system designed for pitch tin roof, which is very popular with customers, the wide range of different components make it possible to fasten almost all sorts of module.

Advantages

High solar module compatibility
Safety and reliability
Easy installation
Rust-resistance

Specification

Installation site	Tin roof
Applicable module	Framed or frameless panels
Material	Aluminum 6005-T5, SUS304
Wind Load	Up to 60m/s
Snow Load	1.4kn/m2
Tile Angle	Parallel to roof surface
Warranty	10 Years warranty and 25 years service life
Standards	AS/NZS 1170, JIS C8955:2017, GB50009-2012, DIN 1055, IBC 2006

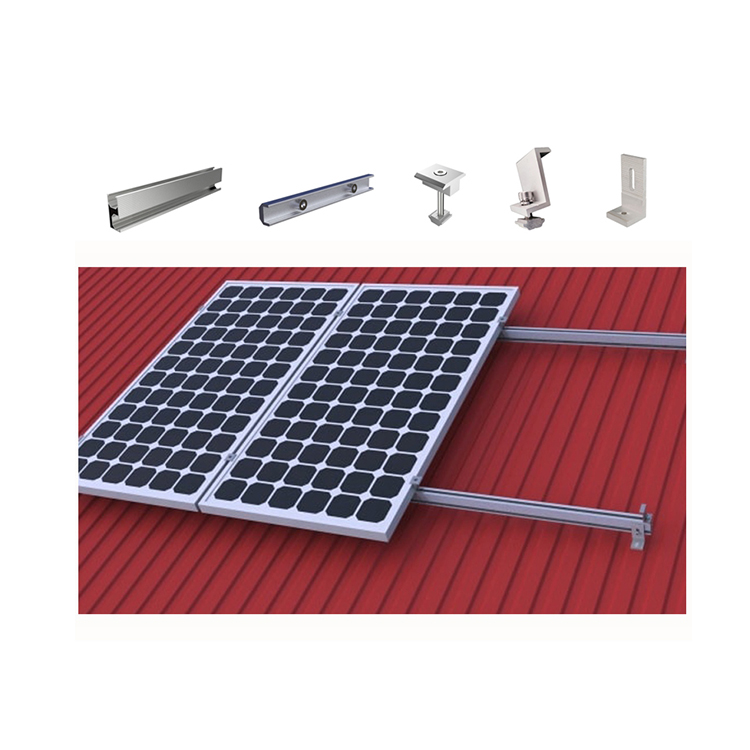

Installation Components

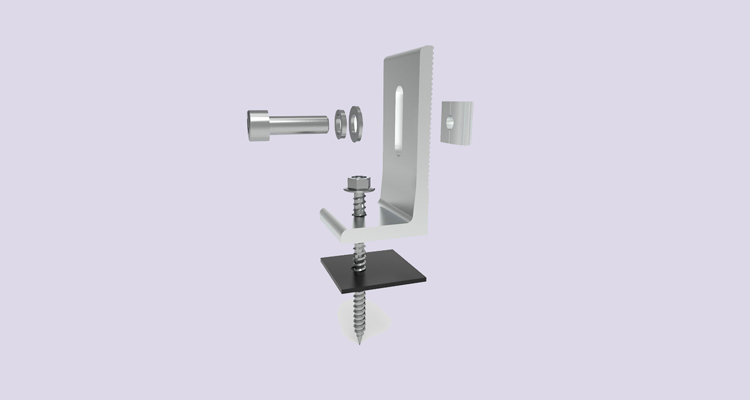

L Foot

Material: AL6005-T5, SUS 304
Function: Fix rails to rooftop

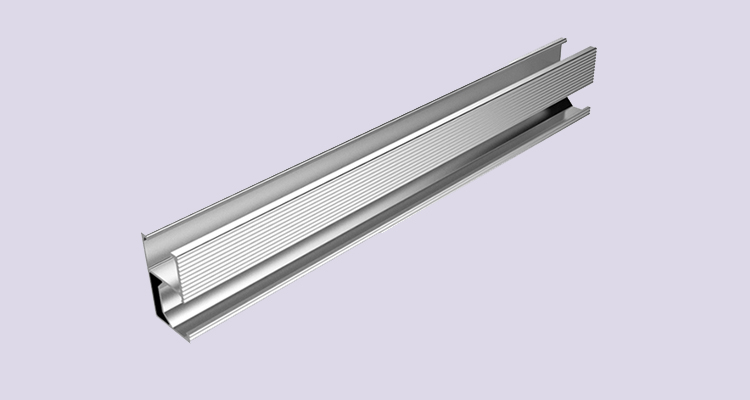

Aluminum Rail

Material: AL6005-T5
Function: Fix panels with clamps to rooftop

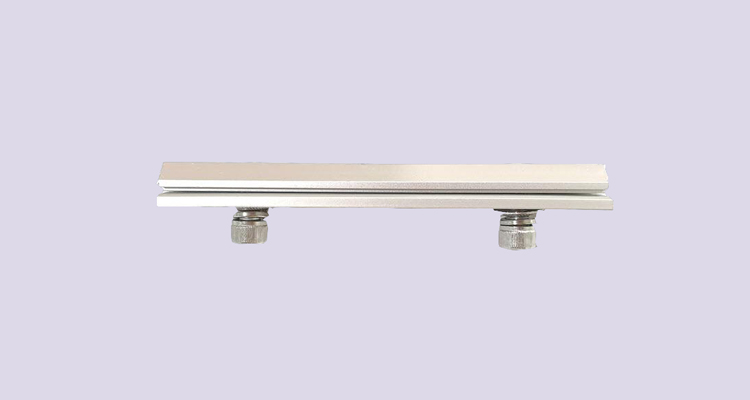

Rail Splice

Material: AL6005-T5, SUS304
Function: Connect rails

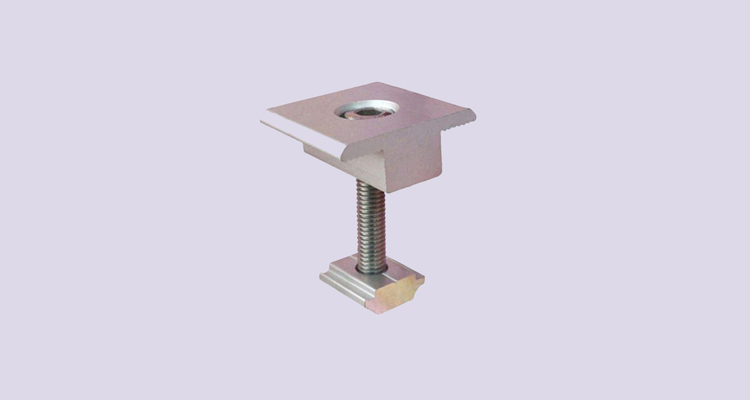

Mid Clamp

Material: AL6005-T5, SUS304
Function: Fix panels to rails in the mid of panels

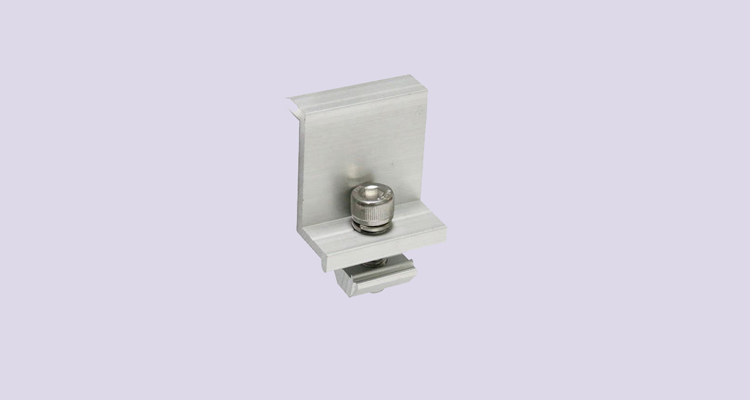

End Clamp

Material: AL6005-T5, SUS304
Function: Fix panels to rails at the end of panels

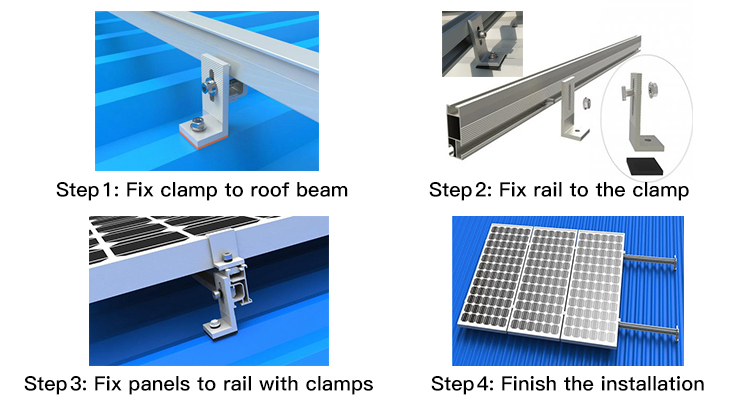

Installation Guide

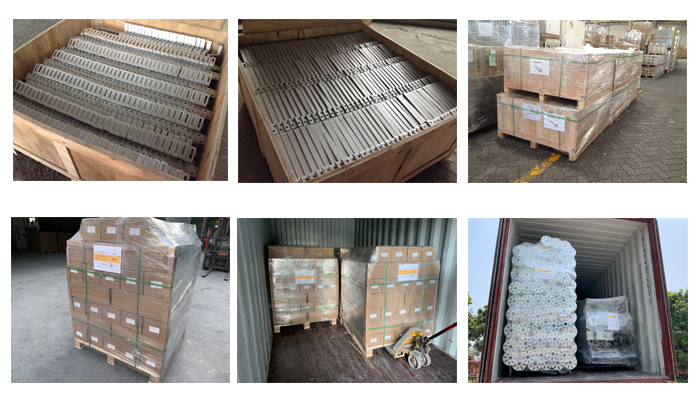

Packing & Delivery

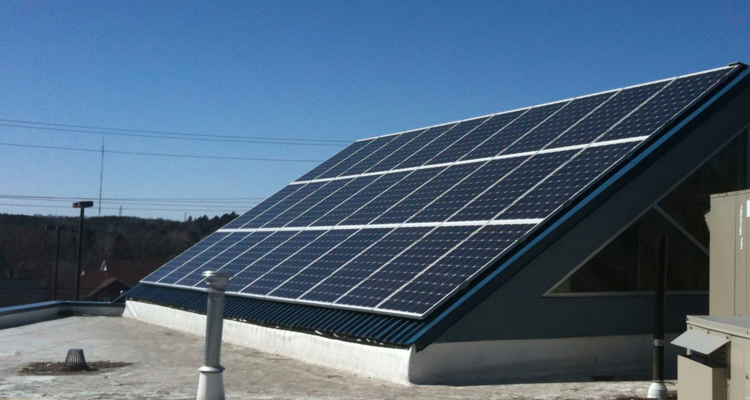

Projects

Exhibition

Certifications

Frequently Asked Questions

What types of metal roofs are compatible with this mounting system?

This structure is specifically designed for tin roofs and pitched roofs. With a wide range of different seam clamps and components, it can accommodate almost all types of panels.

What materials are the installation components made of?

The primary structural components are manufactured from high-quality Aluminum 6005-T5 and Stainless Steel (SUS304), providing excellent strength and rust resistance.

Are both framed and frameless solar panels supported?

Yes, this mounting system is designed to securely hold both framed and frameless modules in place.

What wind and snow load capacities does this system support?

The system is engineered to withstand extreme weather conditions, certified to handle wind loads up to 60m/s and snow loads up to 1.4kn/m2.

What is the warranty and expected service life of the mounting system?

The system comes with a 10-year warranty and is designed for an overall service life of up to 25 years.

Is this system easy to install on-site?

Yes. With pre-assembled components such as L Feet, rails, and mid/end clamps, the system allows for simple, fast, and cost-effective roof installation.
