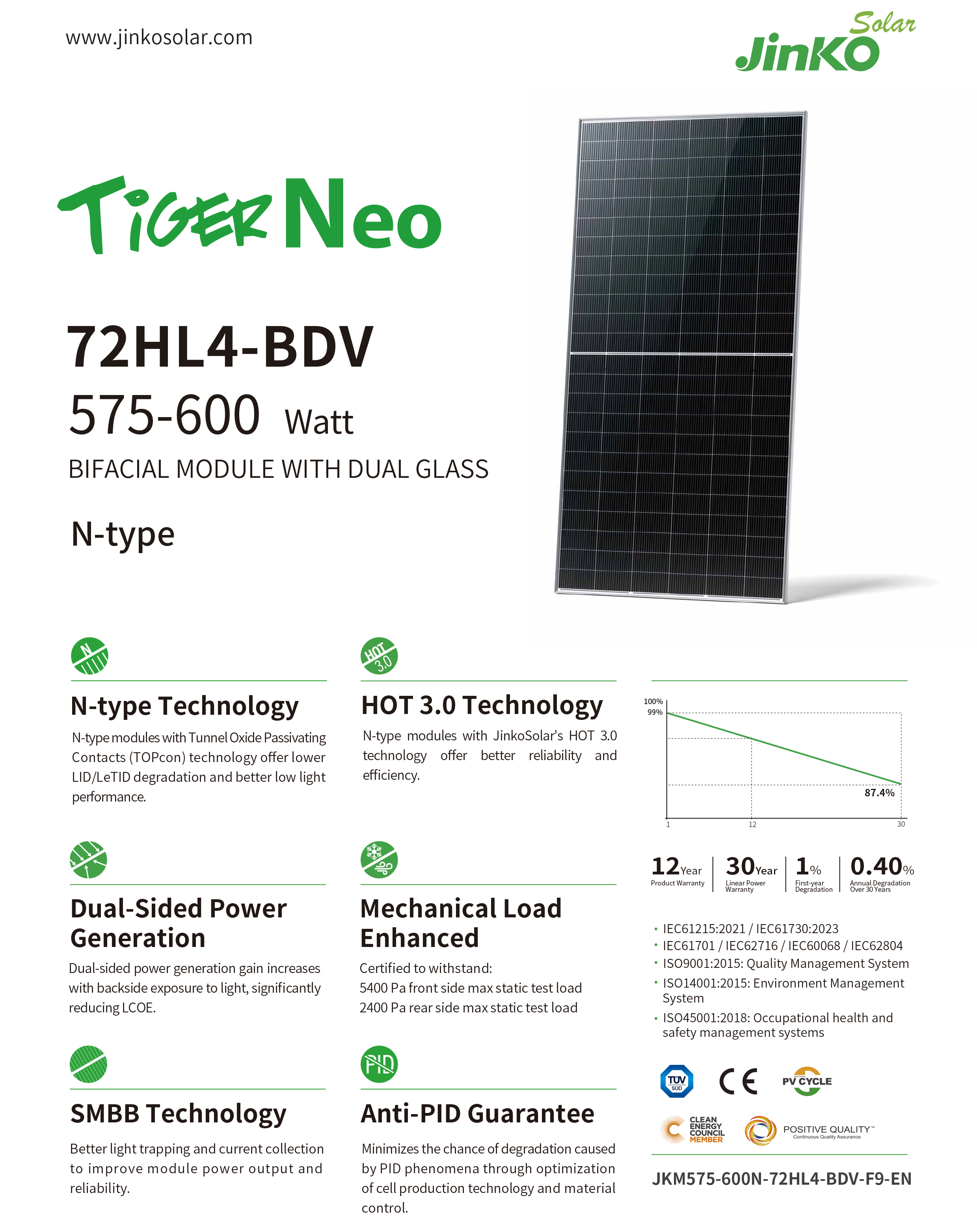

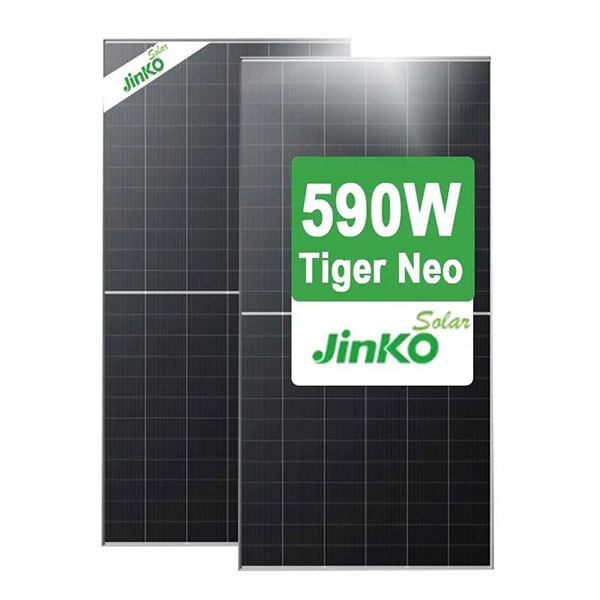

Best Selling Jinko Solar Panel 585W 590W 595W 600W 610W 620W N-type Solar Panels Bifacial By Jinko Manufacturer

Product Description

Product Description

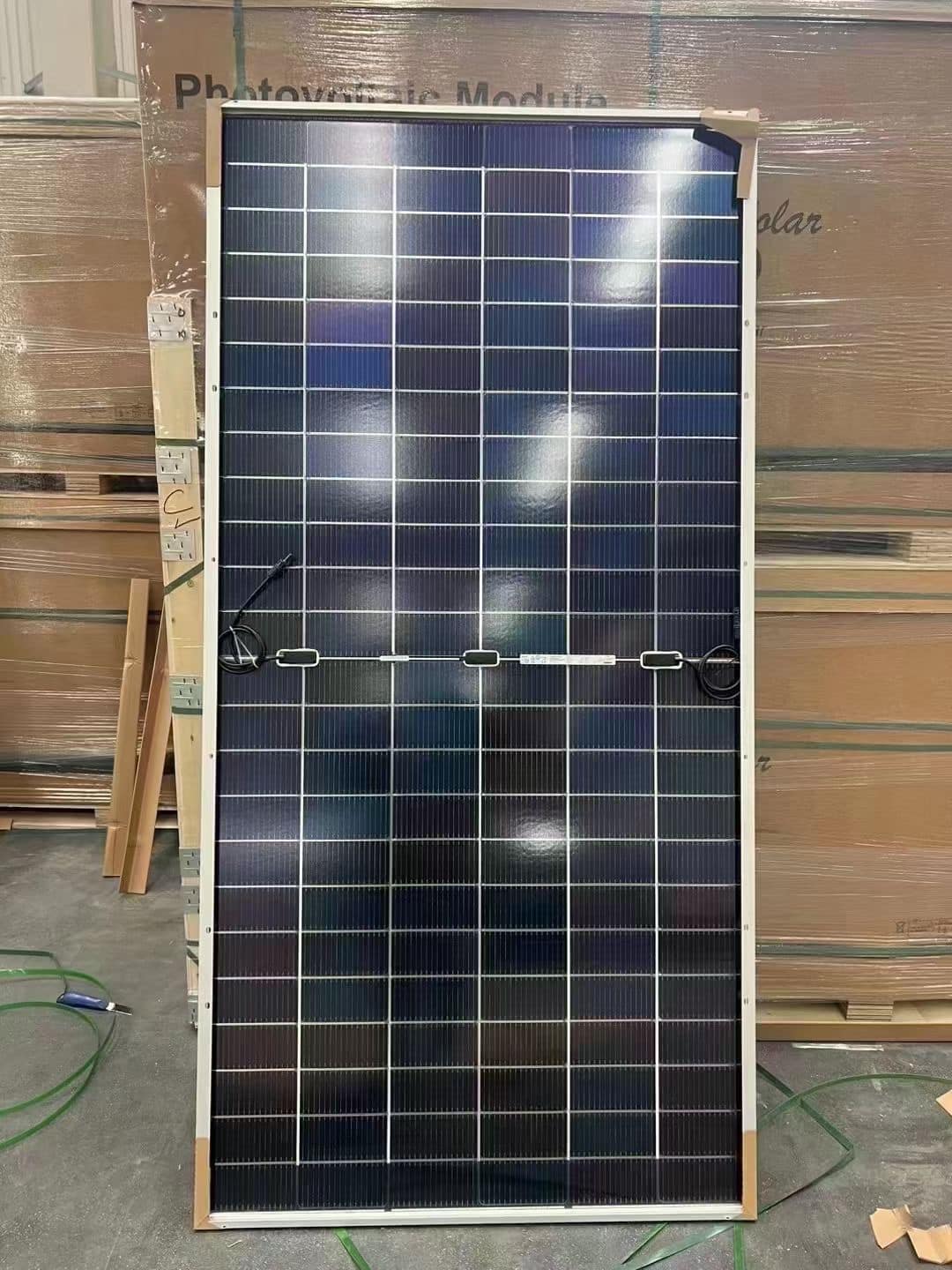

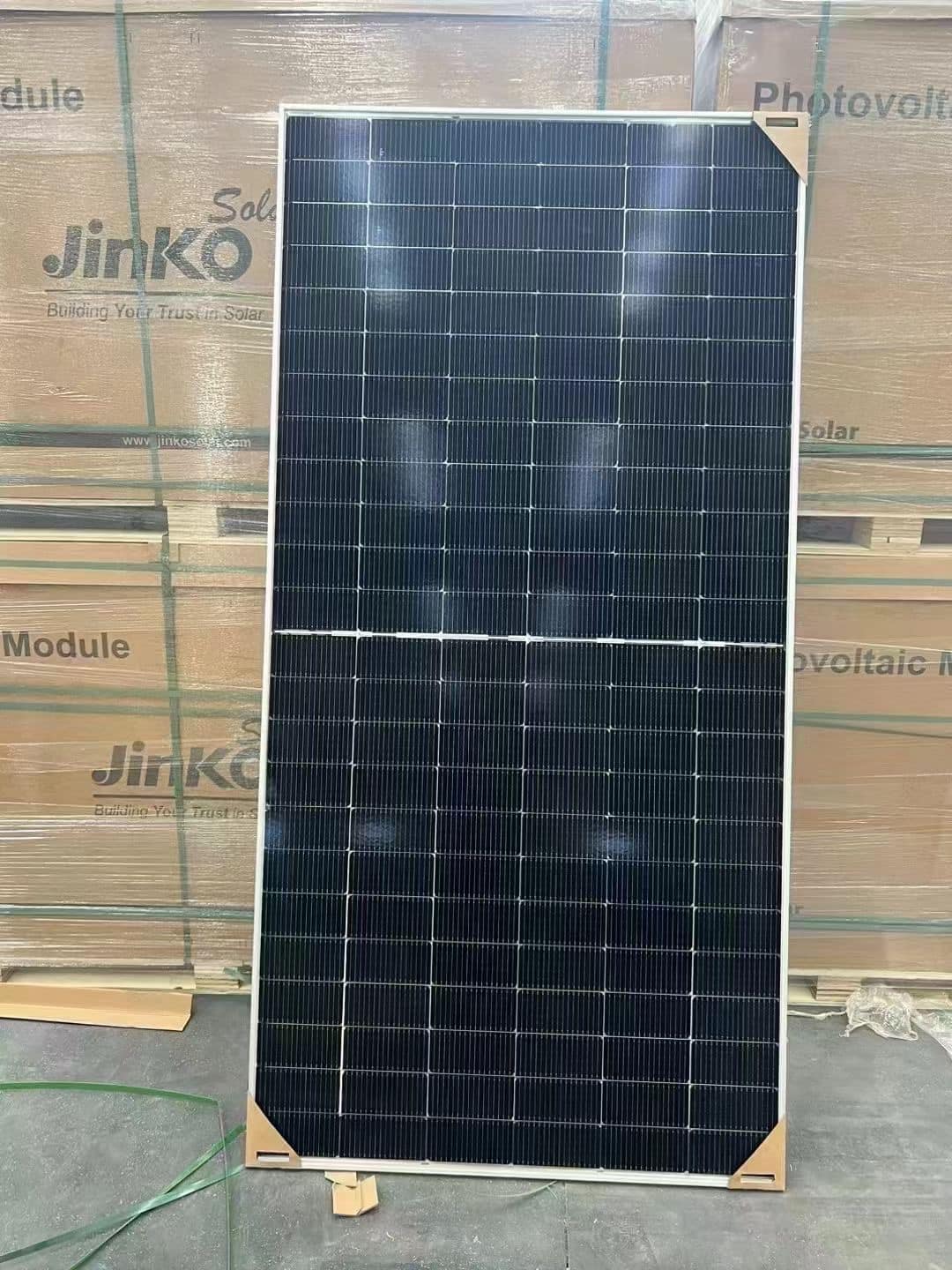

Solar Panel Product View
Mechanical Characteristics

Key structural features of the solar module design.

Parameter Specification Detail
Cell Type N type monocrystalline silicon cell
Number of Half Cell 144 Cells
Module Dimension 2278 × 1134 × 30mm
Module Weight 31.0kg
Front Glass 2.0 mm, Anti-reflection Coating
Back Glass 2.0 mm, Heat Strengthened Glass
Junction Box IP68 Rated
Output Cables TUV 1 × 4.0mm² (+): 400mm, (-): 200mm or Customized Length
Standard Test Conditions (STC) Performance

Electrical ratings across various modules under standard testing parameters.

Module Number JKM580N-72HL4-BDV JKM585N-72HL4-BDV JKM590N-72HL4-BDV JKM595N-72HL4-BDV JKM600N-72HL4-BDV
Maximum Power (Pmax) 580Wp 585Wp 590Wp 595Wp 600Wp
Optimum Operating Voltage (Vmp) 43.88V 44.02V 44.17V 44.31V 44.45V
Optimum Operating Current (Imp) 13.22A 13.29A 13.36A 13.43A 13.50A
Open-circuit Voltage (Voc) 52.50V 52.70V 52.90V 53.10V 53.30V
Short-circuit Current (Isc) 13.95A 14.01A 14.07A 14.13A 14.219A
Module Efficiency (%) 22.45% 22.65% 22.84% 23.03% 23.23%
Operating Temperature -40℃ ~ +70℃
Maximum System Voltage 1000/1500VDC (IEC)
Maximum Rated Fuse Current 30A
Output Power Tolerance 0 ~ +3%
Pmax Temperature Coefficient -0.29% / ℃
Voc Temperature Coefficient -0.25% / ℃
Isc Temperature Coefficient 0.045% / ℃
NOCT 45 ± 2 ℃
Technical Specifications Drawing
Module Characterization Curves
Dimensional Layout
Packing & Payment Terms

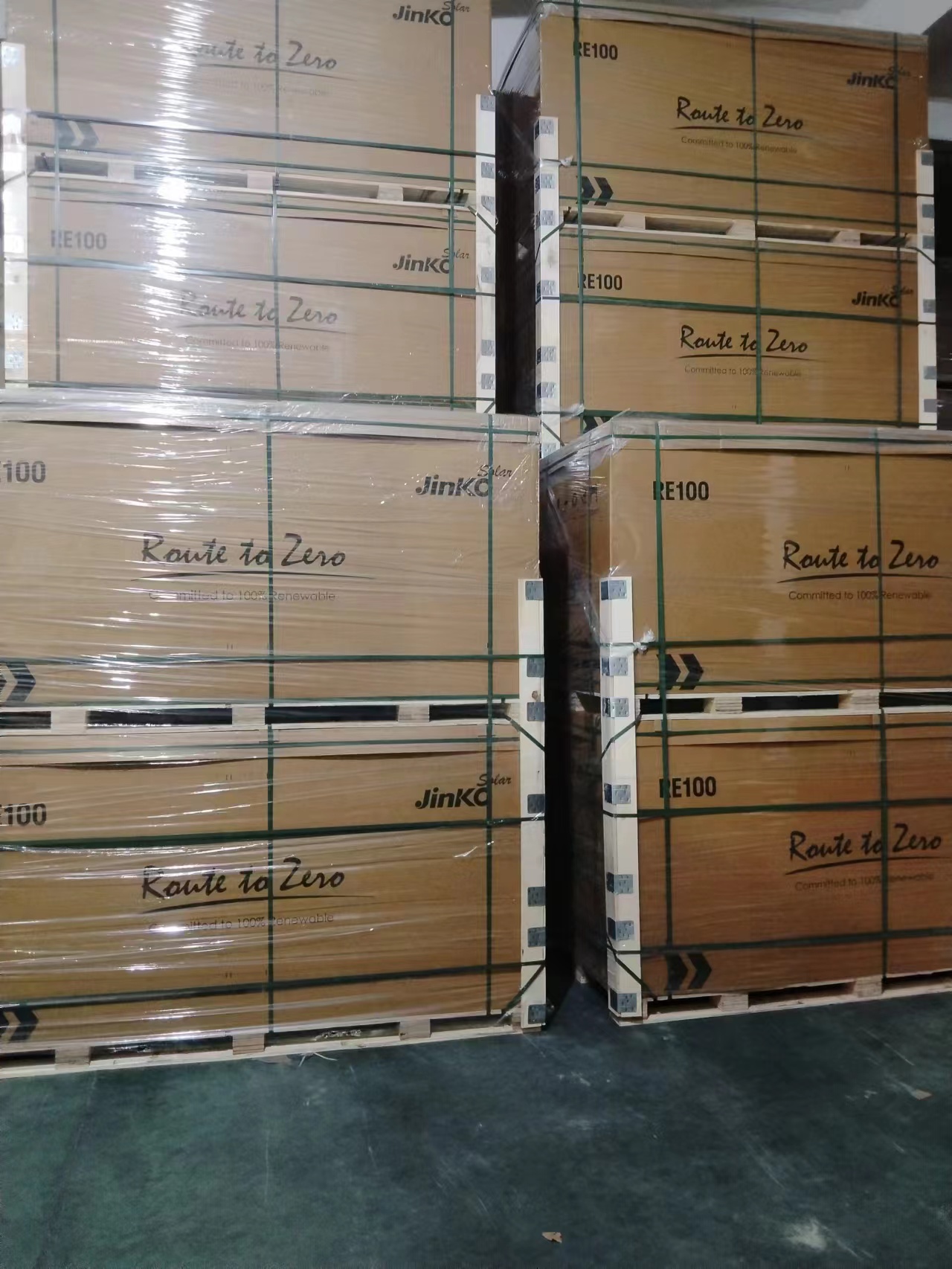

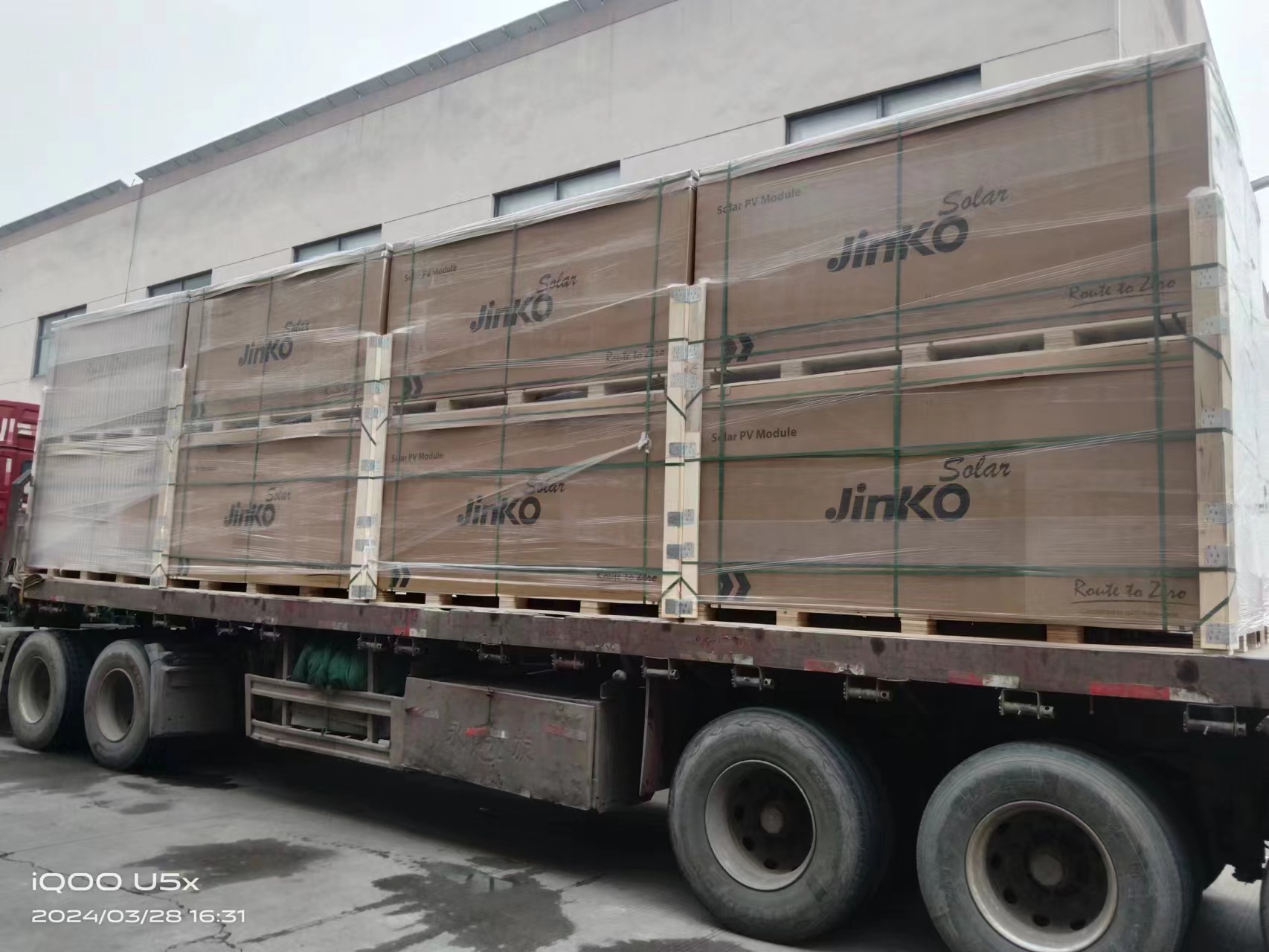

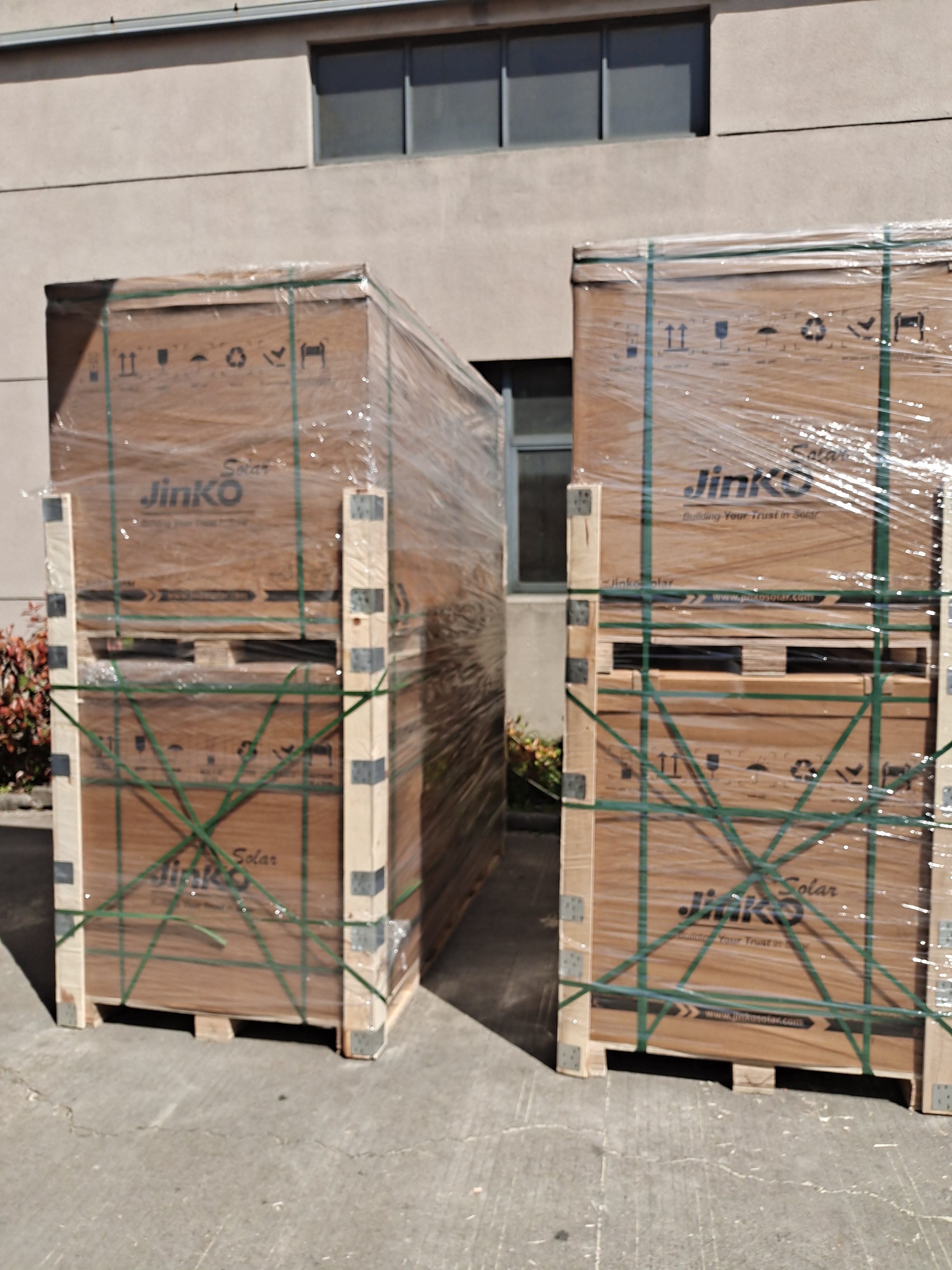

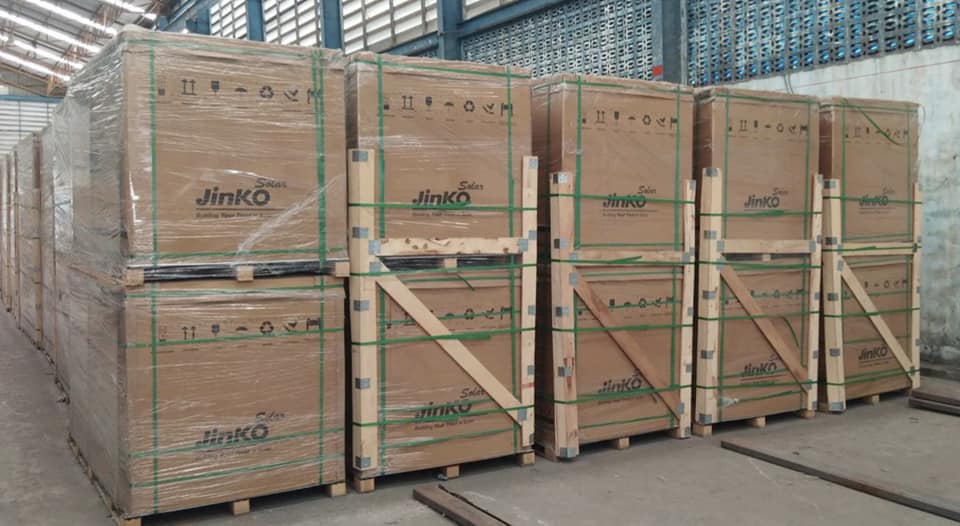

Module Packaging Process
Packaging Parameters Standard Capacity Configurations
Packaging Configuration 36pcs/pallets, 72pcs/stack, 720pcs/ 40'HQ Container
Order Quantity (Watts) Est. Delivery Time (days)
0 - 100,000 W 5 Days
100,001 - 1,000,000 W 7 Days
1,000,001 - 10,000,000 W 11 Days
Payment Method Trade Term Detail Requirements
T/T EXW 30% T/T in advance, balance paid before shipment
FOB
CNF 30% T/T in advance, balance paid against copy of B/L
CIF
Western Union All Terms Applicable for transaction amounts lower than 5,000 USD
Our Projects

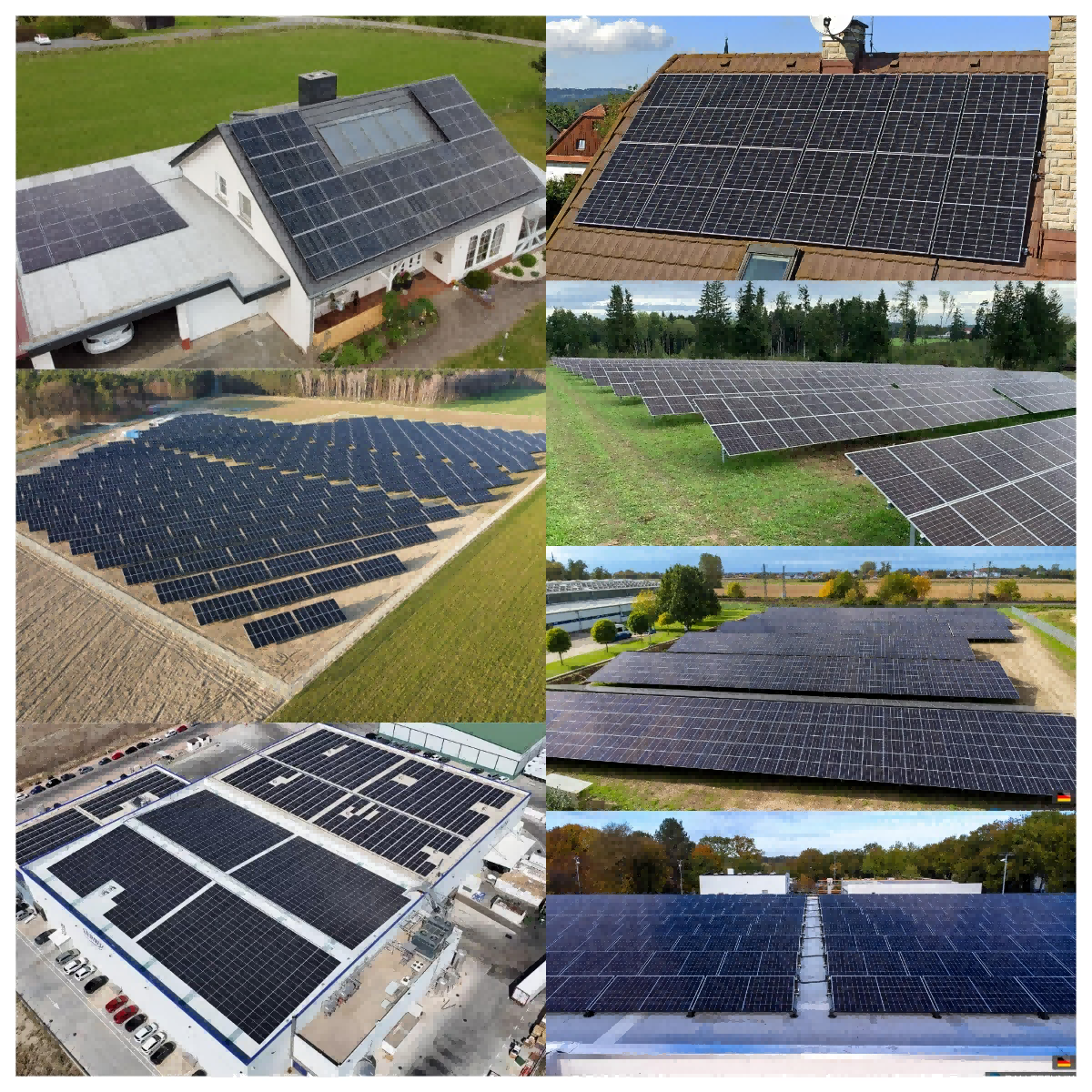

Solar Project Installations
Our Partners
Cooperative Business Partners
Frequently Asked Questions
What are the benefits of N-type Monocrystalline Silicon cells over traditional cells?
N-type monocrystalline silicon cells offer superior efficiency (up to 23.23% in our high-end modules), better temperature coefficients (-0.29%/℃), and lower degradation over time compared to traditional P-type alternatives, resulting in higher lifetime energy yield.
What is the default packaging design for container shipping?
The modules are packaged using a standardized configuration consisting of 36 pieces per pallet, 72 pieces per stack, and a total capacity of 720 pieces within a single 40'HQ shipping container to guarantee secure transit.
How long does it take for orders to be processed and shipped?
Delivery lead times depend on total order volume: orders up to 100kW take approximately 5 days, orders between 100kW and 1MW take 7 days, and larger orders up to 10MW take 11 days.
What payment methods and trade terms are supported?
We accept T/T payments under EXW, FOB, CNF, and CIF terms. For orders utilizing EXW/FOB, a 30% advance deposit is required with the balance paid before shipment. For CNF/CIF, the balance is payable against a copy of the B/L. Western Union is supported for orders below 5,000 USD.
What certifications and protection levels do these modules provide?
Our solar panels feature an IP68 rated junction box, standard TUV certified output cables, and dual-layer 2.0 mm anti-reflection and heat-strengthened glass structure to withstand demanding environmental conditions.
