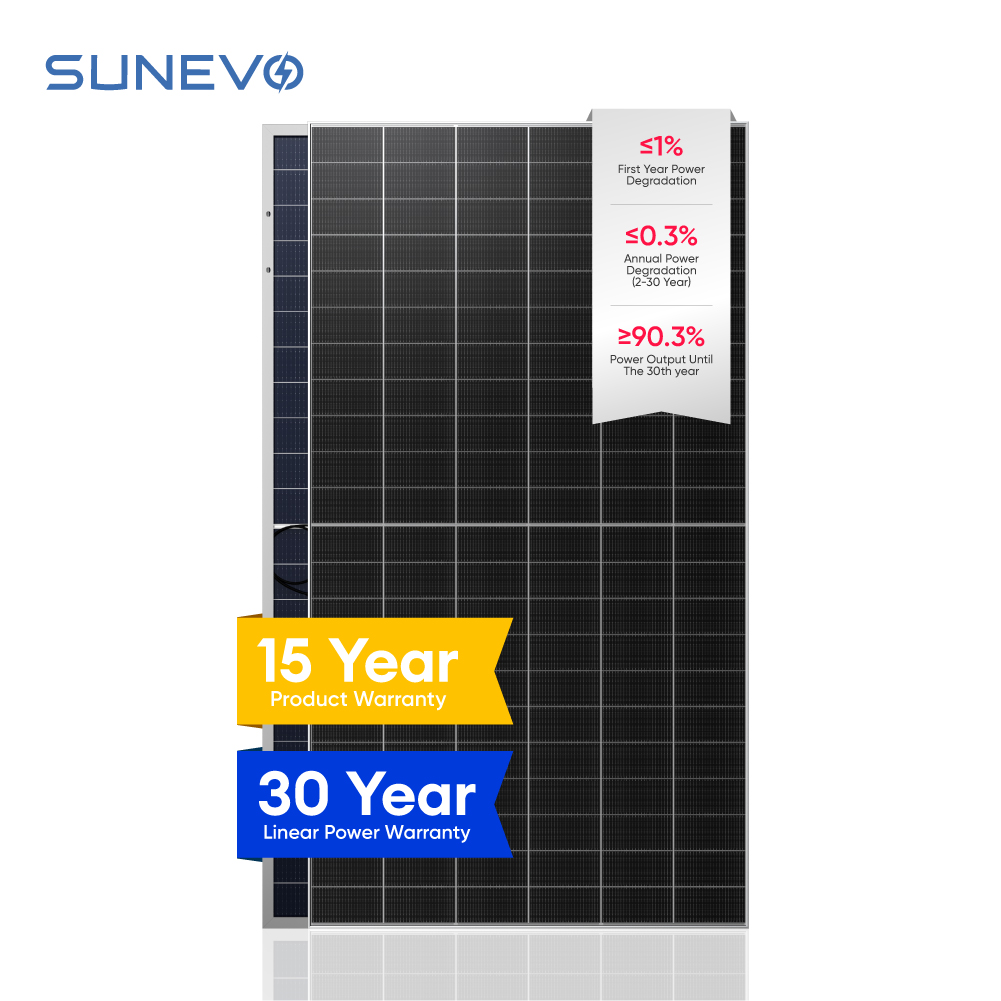

| SE6-66HBD | 745 | 750 | 755 | |||
|---|---|---|---|---|---|---|
| STC | NOCT | STC | NOCT | STC | NOCT | |
| Maximum Power (Pmax/W) | 745 | 568 | 750 | 572 | 755 | 576 |
| Maximum Power Voltage (Vmp/V) | 42.59 | 40.67 | 42.68 | 40.76 | 42.13 | 40.25 |
| Maximum Power Current (Imp/A) | 17.50 | 13.99 | 17.58 | 14.05 | 17.92 | 14.32 |
| Open Circuit Voltage (Voc/V) | 50.67 | 48.36 | 50.77 | 48.46 | 50.16 | 47.87 |
| Short Circuit Current (Isc/A) | 18.62 | 14.88 | 18.71 | 14.95 | 47.87 | 15.24 |
| Module Efficiency (%) | 24.00 | 24.10 | 24.30 | |||

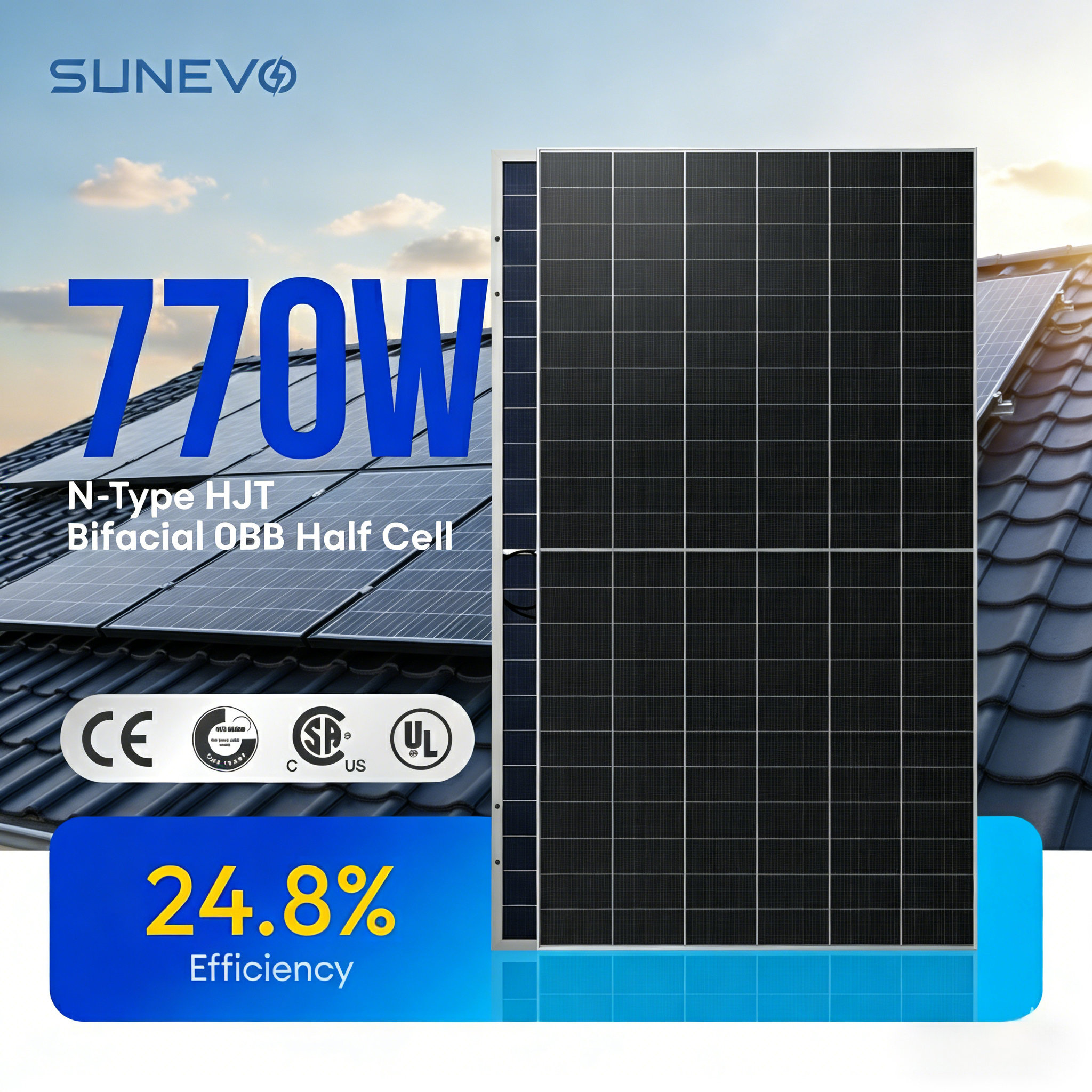

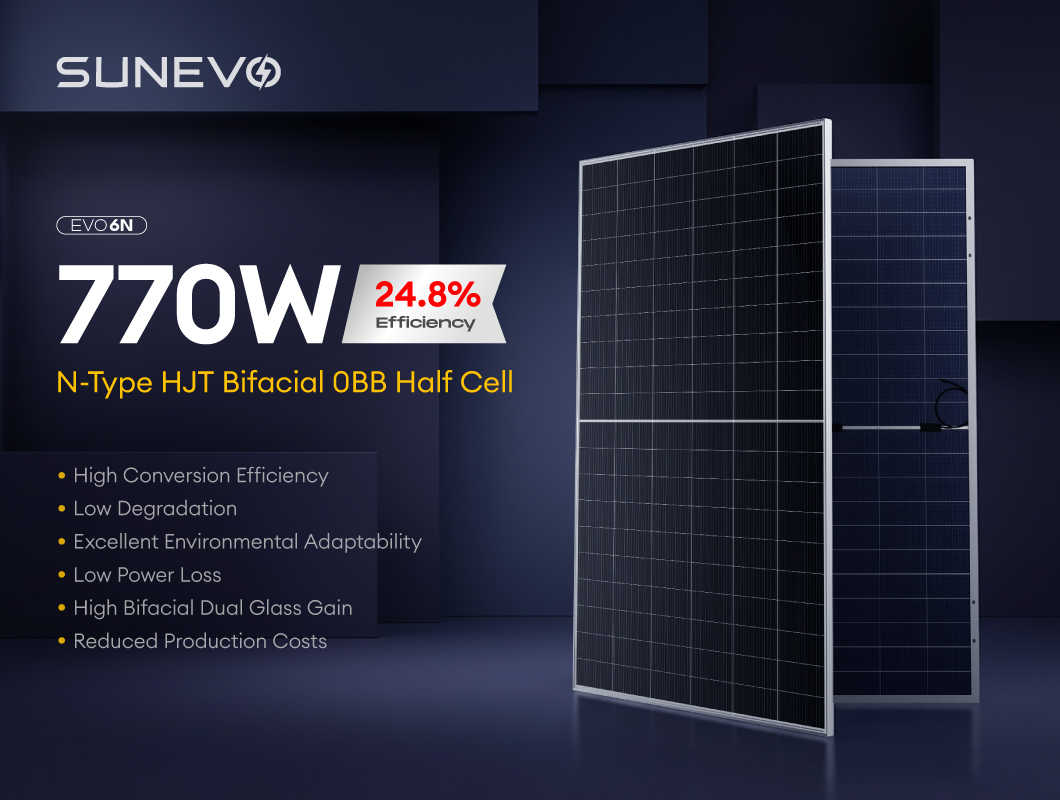

| SE6-66HBD | 760 | 765 | 770 | |||
|---|---|---|---|---|---|---|
| STC | NOCT | STC | NOCT | STC | NOCT | |
| Maximum Power (Pmax/W) | 760 | 580 | 765 | 584 | 770 | 587 |
| Maximum Power Voltage (Vmp/V) | 42.22 | 40.33 | 42.30 | 40.41 | 42.39 | 40.49 |
| Maximum Power Current (Imp/A) | 18.00 | 14.39 | 18.09 | 14.46 | 18.17 | 14.52 |
| Open Circuit Voltage (Voc/V) | 50.26 | 47.97 | 50.36 | 48.07 | 50.46 | 48.16 |
| Short Circuit Current (Isc/A) | 19.15 | 15.31 | 19.24 | 15.38 | 19.33 | 15.45 |
| Module Efficiency (%) | 24.50 | 24.60 | 24.80 | |||
| Maximum Power (Pmax/W) | 835 | 841 | 846 | 852 | 857 | 863 |
|---|---|---|---|---|---|---|
| Voltage at Pmax (Vmp/V) | 42.75 | 42.83 | 42.28 | 42.36 | 42.45 | 42.53 |
| Current at Pmax (Imp/A) | 19.55 | 19.64 | 20.03 | 20.12 | 20.21 | 20.30 |
| Open Circuit Voltage (Voc/V) | 50.85 | 50.95 | 50.33 | 50.43 | 50.53 | 50.64 |
| Short Circuit Current (Isc/A) | 20.88 | 20.98 | 21.38 | 21.48 | 21.58 | 21.68 |

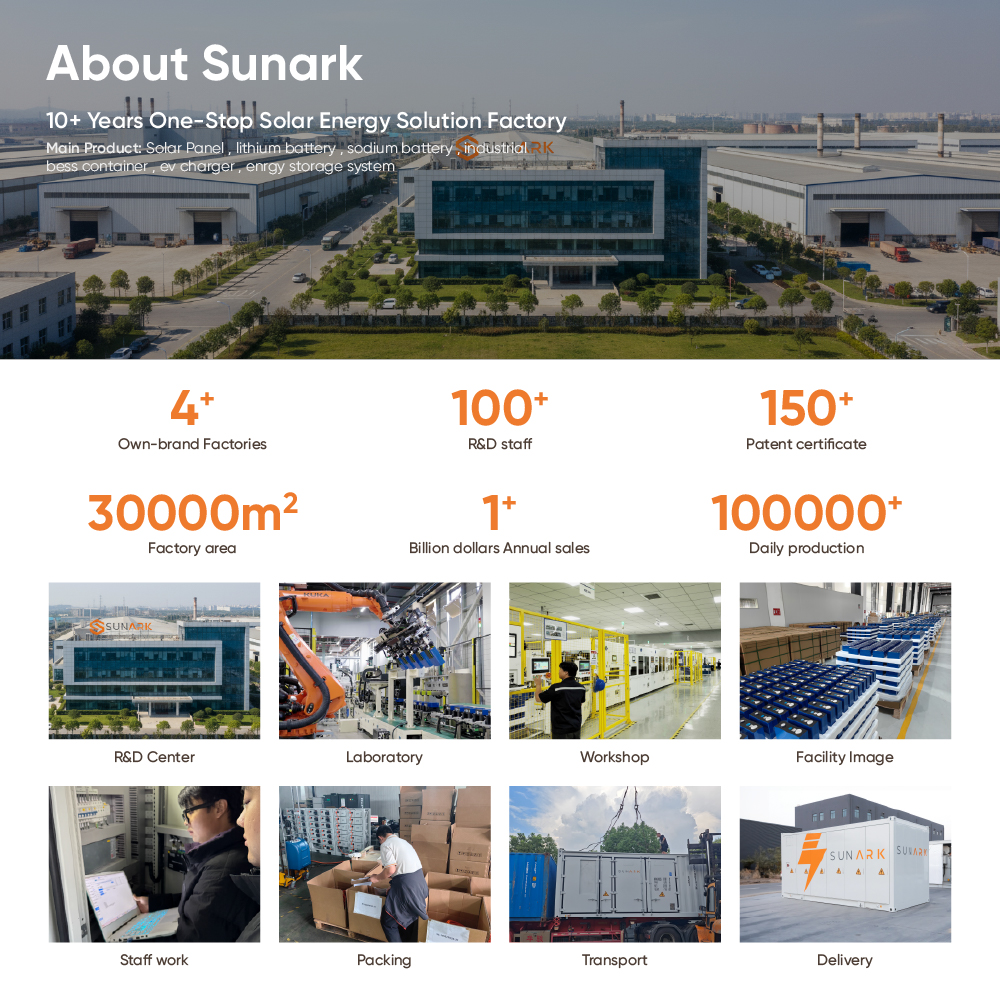

We are a leading global energy storage solution and service provider. The company specializes in residential, commercial and utility applications and delivers pre-eminent products and fit-for-purpose solutions. We have 20+ experience producing energy storage products and 90,000+ systems actively running in 80+ countries, enabling millions of people to enjoy reliable, accessible and clean energy. Till end of 2022, accumulatively, the company has manufactured 620MWh BESS and battery strings.
The company is a national high-tech enterprise with such innovative platforms as national enterprise technology center, CNAS accredited laboratory, postdoctoral workstation, academician workstation, Equipment and Electronics Research Institute and so on. We have core technology patents in new materials, new technologies and new structures of battery power supply, and has led and participated in the formulation of a number of international, national and industrial standards.
