BIPV Solar Mounting Structure System Waterproof Roof Mounting Bracket Support

Product Description

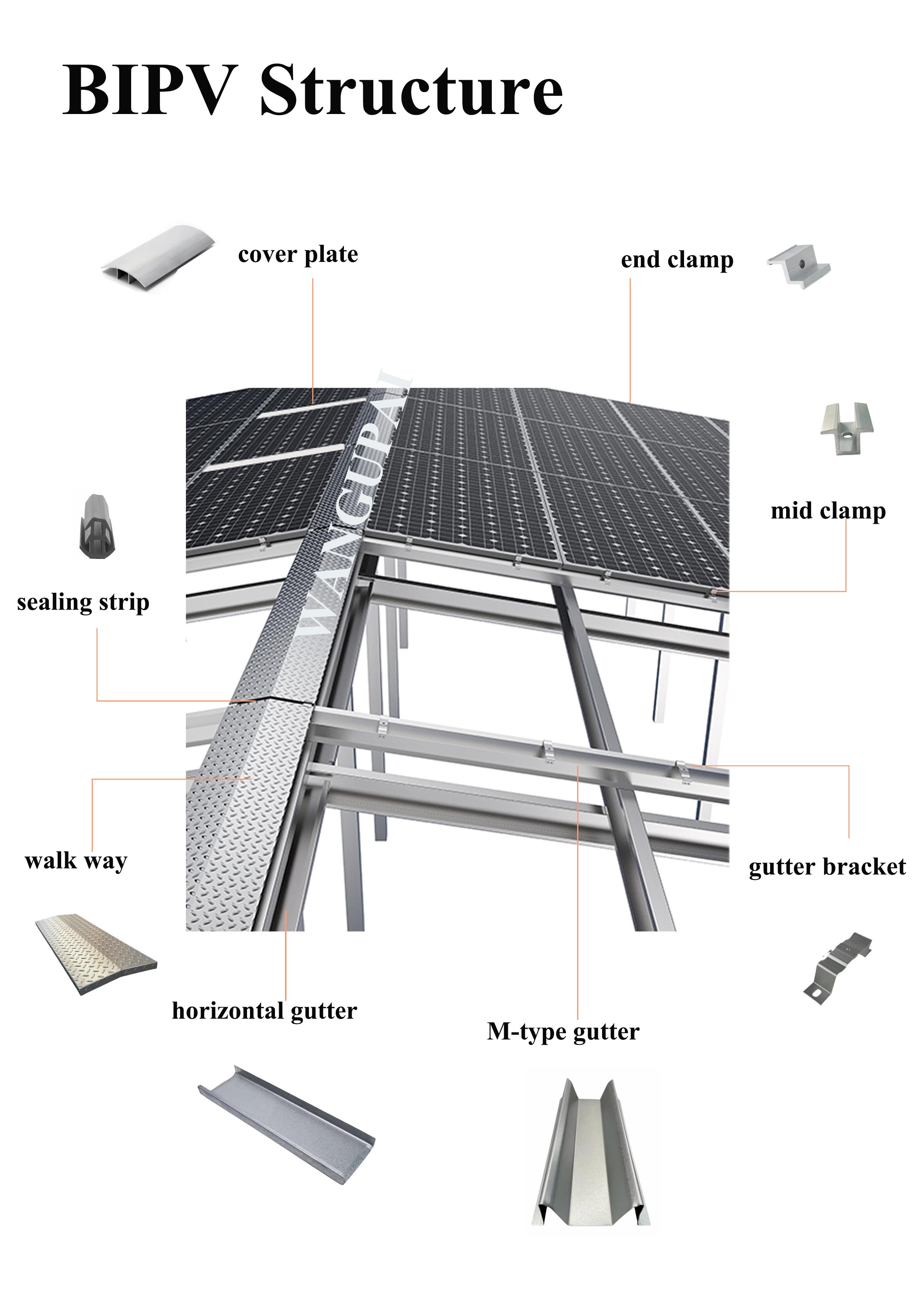

Item Name	Material	Thickness	Standard length	Custom Length	Custom specification

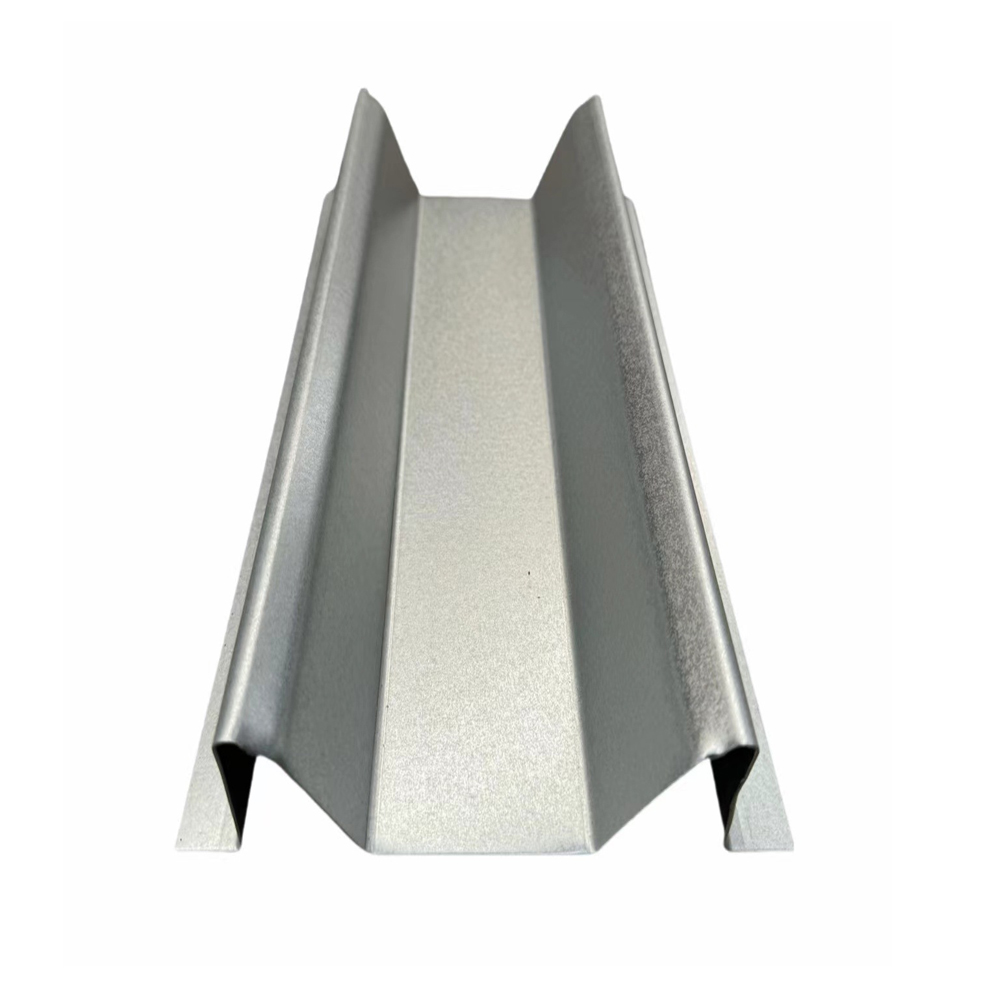

vertical M-type gutter	ZAM-275g	8mm/10mm	6000mm	√	√
horizontal gutter	ZAM-275g	6mm/8mm/10mm	6000mm	√	√

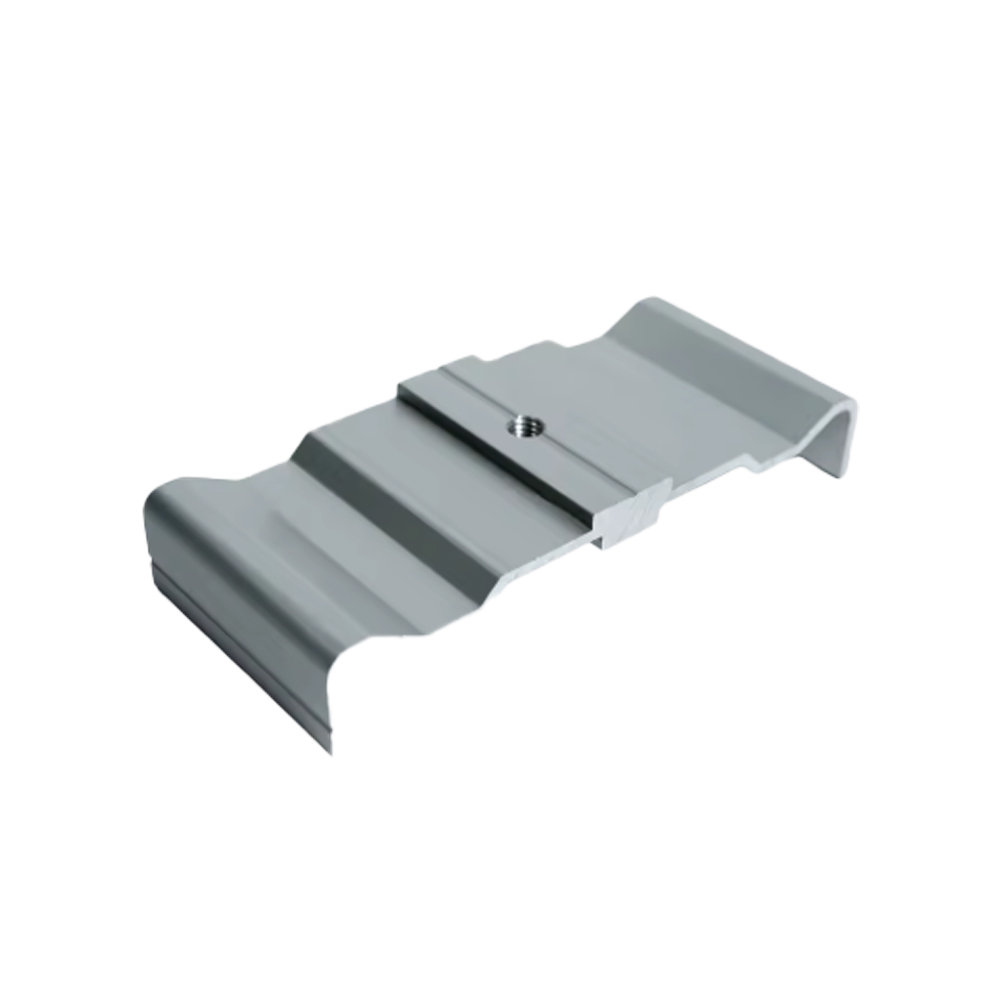

gutter bracket	AL6005-T5	2.6mm	135mm	√	√

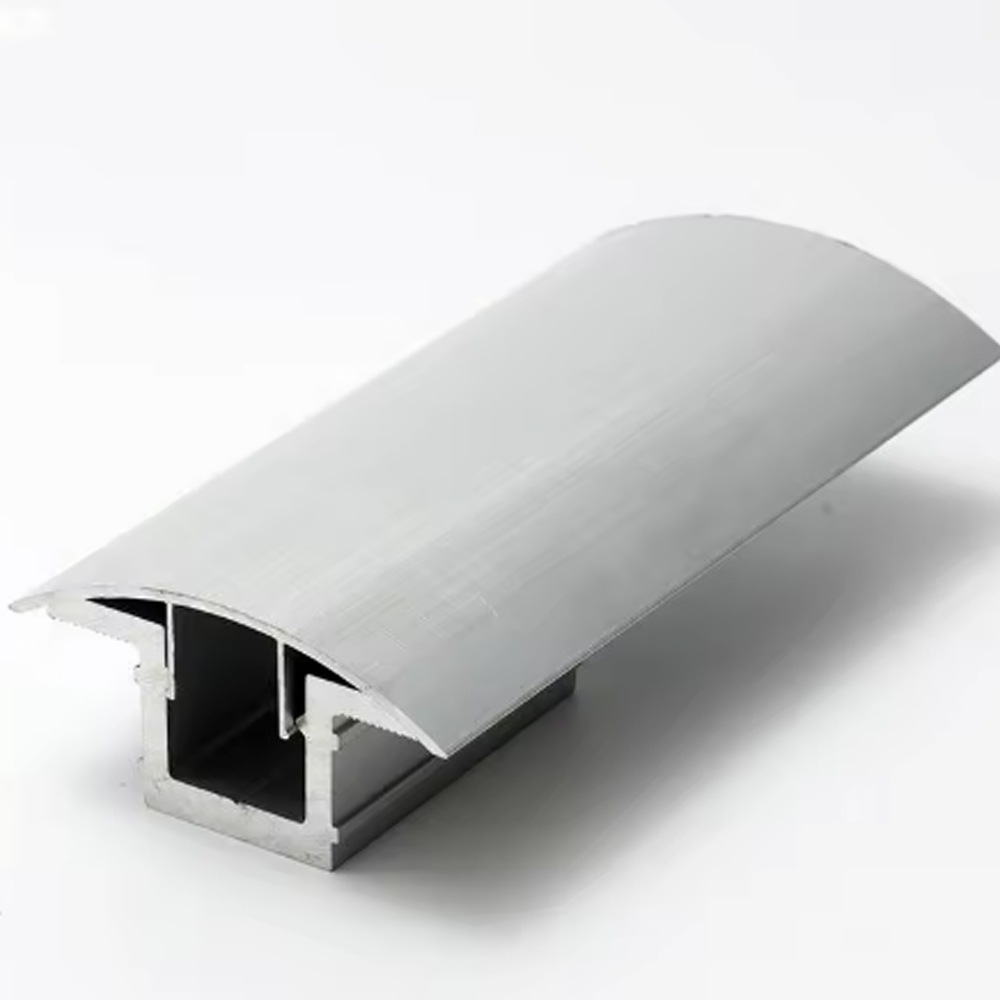

cover plate	AL6005-T5	1mm	6000mm	√	√

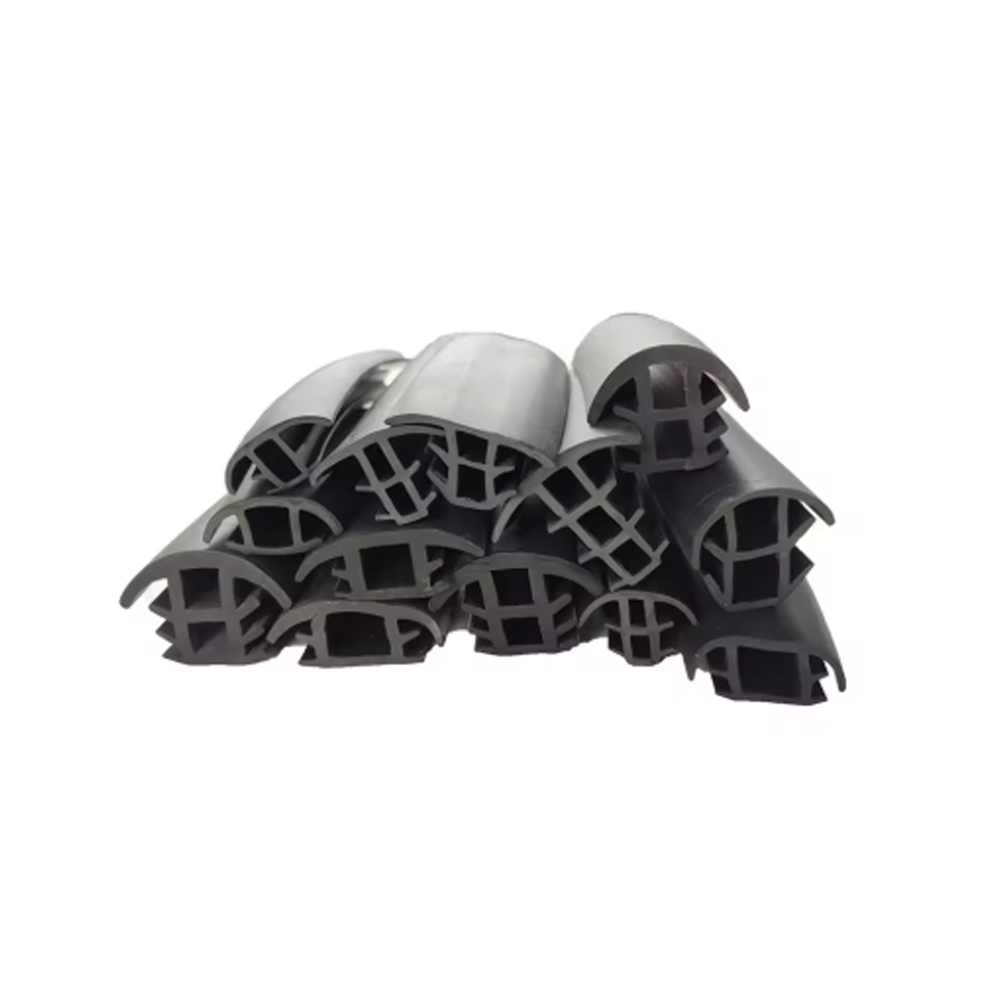

sealing strip	EPDM	-	6000mm	√	√
walk way	ZAM-275g	1mm	1200mm	√	√
end clamp	AL6005-T5	3mm/4mm	50mm	√	√
mid clamp	AL6005-T5	3mm/4mm	50mm	√	√

BIPV Solar Mounting Structure System Waterproof Roof Mounting Bracket Support

Our Services

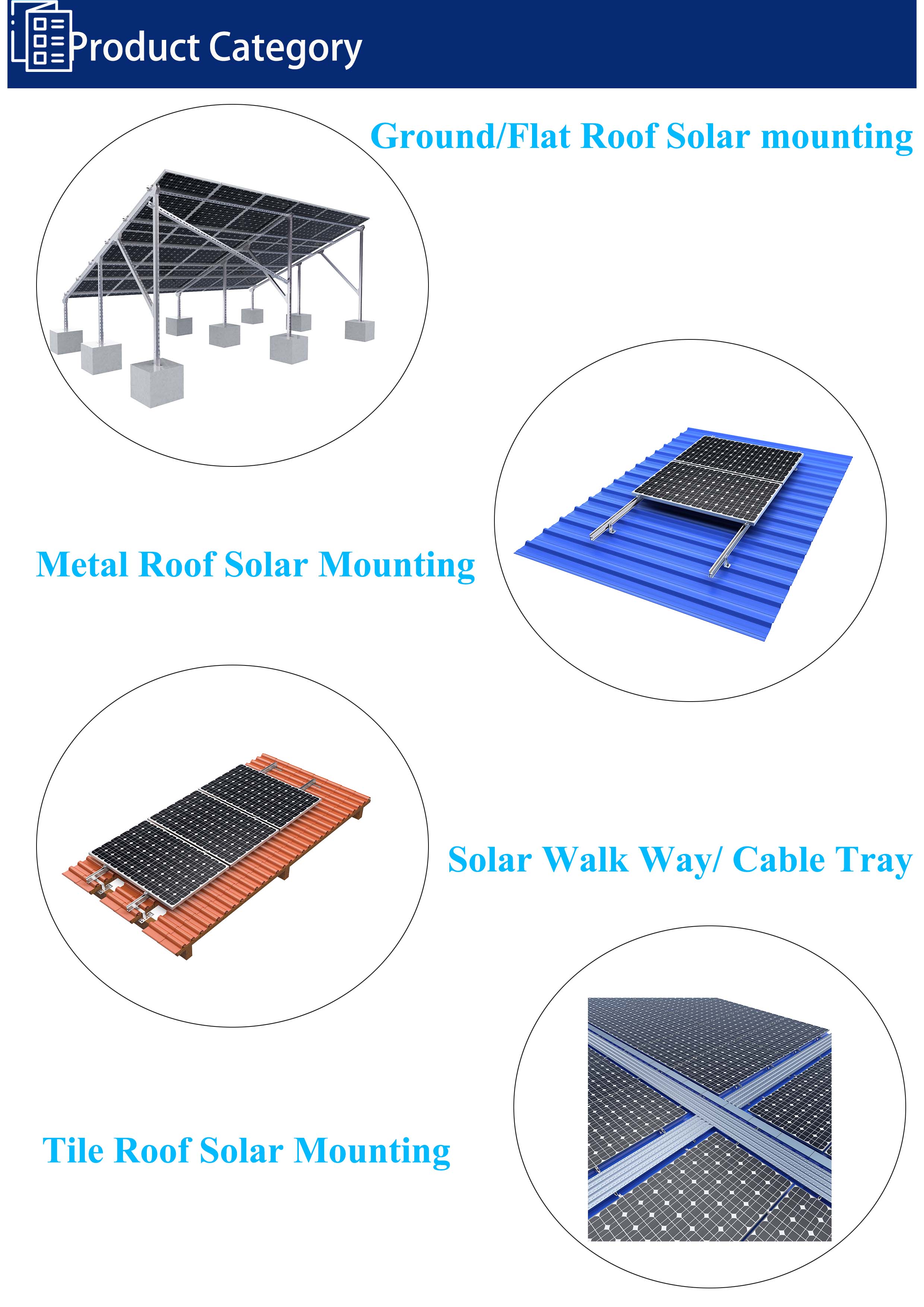

PV Mounting System

Packaging & Shipping

FAQ

Q:What materials are used for the BIPV solar mounting structure?

The structure utilizes high-strength ZAM-275g (Zinc-Aluminum-Magnesium coated steel) for gutters and walkways, premium AL6005-T5 aluminum alloy for brackets, plates, and clamps, and highly durable EPDM for sealing strips to ensure longevity and weather resistance.

Q:Are custom specifications and custom lengths supported for these mounting components?

Yes, both custom lengths and custom specifications are fully supported (indicated by √ in our specification tables). This allows us to manufacture components tailored to your exact roof size and architectural project requirements.

Q:How does the waterproofing gutter system perform on a BIPV roof?

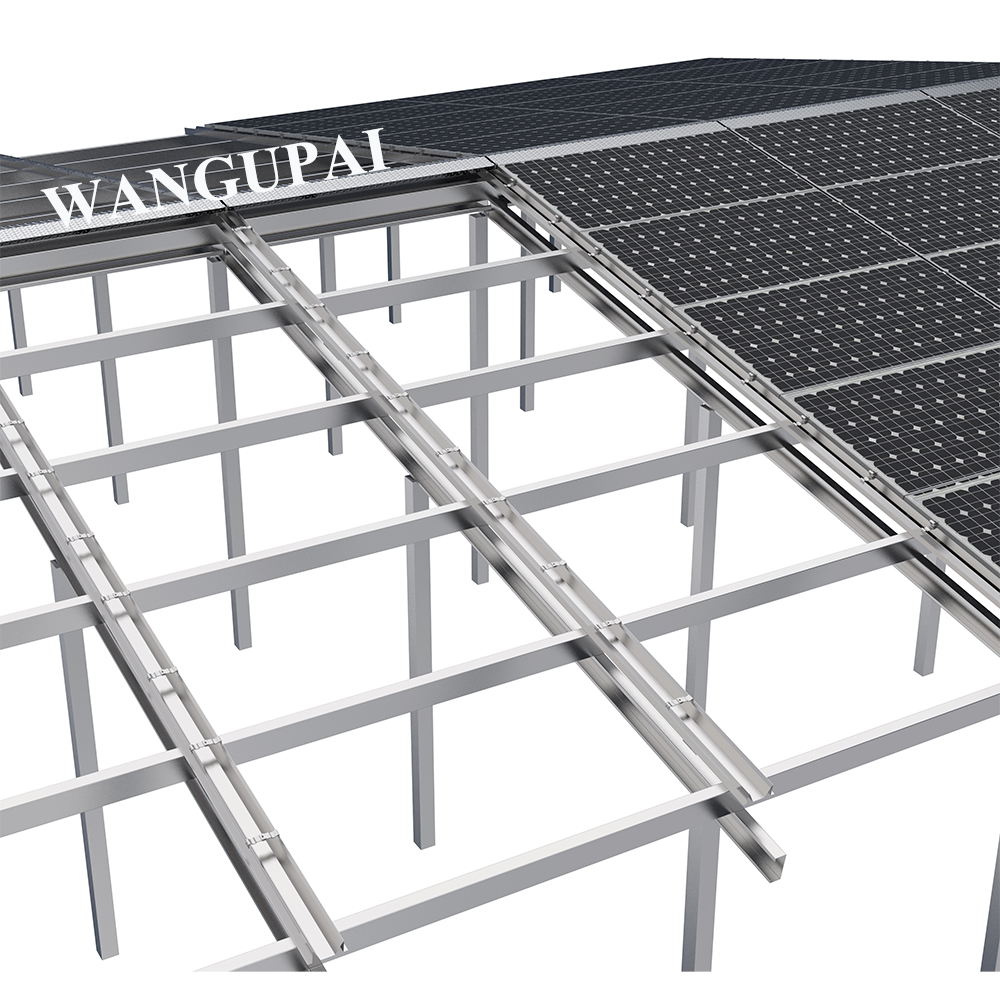

Our BIPV system features a highly engineered vertical M-type gutter and horizontal gutter structure combined with premium EPDM sealing strips. This setup guides rainwater effectively off the roof, preventing any water leakage into the building below.

Q:What are the thickness standards for the brackets and cover plates?

The standard thickness is 2.6mm for the gutter bracket and 1mm for the cover plate. These thickness dimensions are specifically selected to achieve the ideal balance between structural load-bearing strength and material efficiency.

Q:How are the mounting structure components packaged and shipped?

All products are packed using professional export packaging methods, securing gutters, brackets, and clamps to prevent movement and damage during long-distance international transit.
