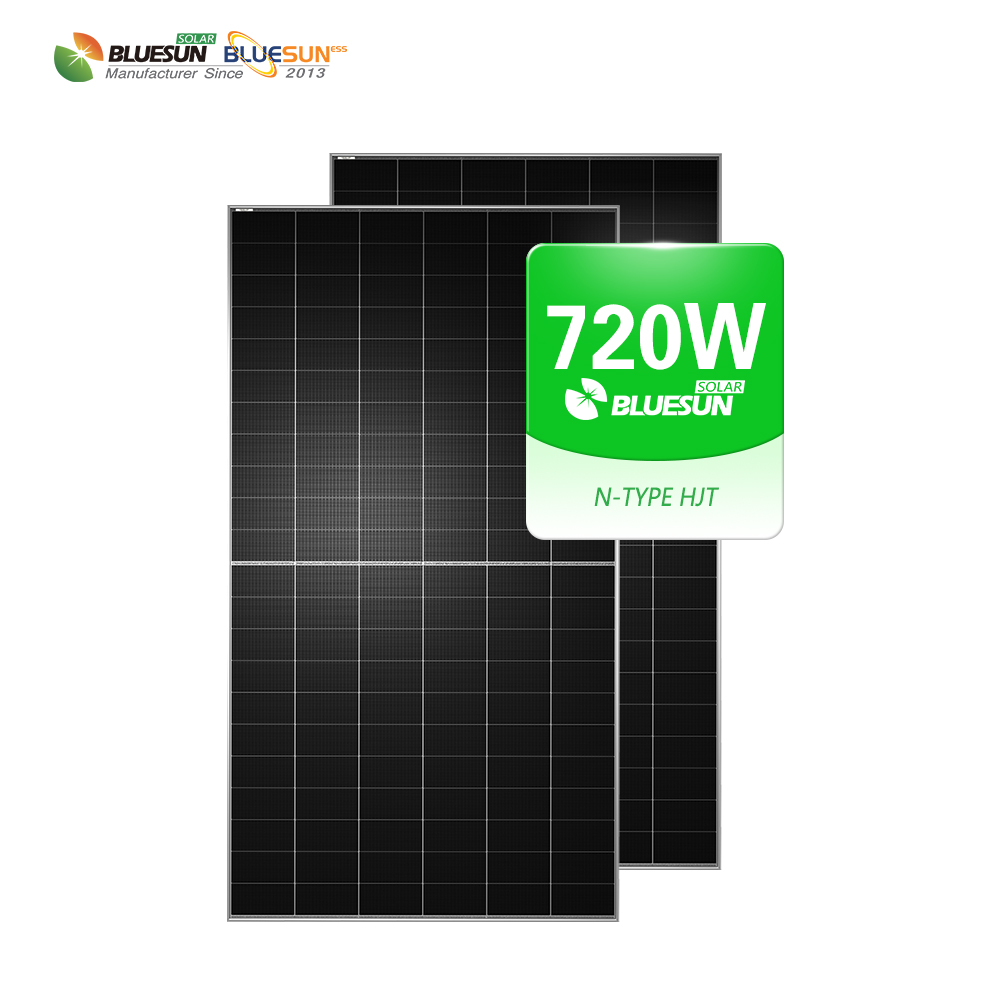

| Module Type | BSM710G12-66HNH | BSM715G12-66HNH | BSM720G12-66HNH | |||
|---|---|---|---|---|---|---|
| STC | NMOT | STC | NMOT | STC | NMOT | |
| Maximum Power (Pmax/W) | 710 | 542 | 715 | 546 | 720 | 550 |
| Operating Voltage (Vmp/V) | 40.9 | 38.2 | 41.1 | 38.4 | 41.3 | 38.6 |
| Operating Current (Imp/A) | 17.37 | 14.19 | 17.41 | 14.22 | 17.45 | 14.25 |
| Open-Circuit Voltage (Voc/V) | 48.6 | 46.1 | 48.8 | 46.3 | 49.0 | 46.5 |
| Short-Circuit Current (Isc/A) | 18.4 | 14.88 | 18.44 | 14.92 | 18.48 | 14.96 |
| Module Efficiency (%) | 22.86% | 23.02% | 23.18% | |||
* STC: Irradiance 1000W/m², Cell Temperature 25°C, Air Mass AM1.5
* NMOT: Irradiance at 800W/m², Ambient Temperature 20°C, Air Mass AM1.5, Wind Speed 1m/s
| Power Gain | 5% | 10% | 15% | 20% | 25% |
|---|---|---|---|---|---|
| Maximum Power (Pmax/W) | 730 | 765 | 799 | 834 | 869 |
| Open-Circuit Voltage (Voc/V) | 47.90 | 47.90 | 47.90 | 48.00 | 48.00 |
| Operating Voltage (Vmp/V) | 40.30 | 40.30 | 40.30 | 40.40 | 40.40 |
| Short-Circuit Current (Isc/A) | 18.84 | 19.56 | 20.25 | 20.98 | 21.69 |
| Operating Current (Imp/A) | 18.12 | 18.99 | 19.83 | 20.65 | 21.51 |
| Payment & Logistical Agreement | Detailed Terms | |
|---|---|---|
| T/T (Telegraphic Transfer) | EXW | 30% T/T in advance, balance paid before shipment. |
| FOB | ||
| CFR (C&F) | 30% T/T in advance, balance paid against copy of Bill of Lading (B/L). | |
| CIF | ||
| L/C (Letter of Credit) | L/C amount above 50,000 USD accepted at sight. | |
| Western Union | Accepted for transaction amounts lower than 5,000 USD. | |
| Delivery Lead Time | 7 ~ 10 days after receiving payment for one container. | |
