Durable LED Solar Street Light with Motion Sensor Technology

Customization: Available
Light Source: LED Lamp
Lamp Body Material: Aluminum

Product Description

Durable LED Solar Street Light with Motion Sensor Technology

Basic Info.

Model NO. GH-LFT-100W
Light Type Solar
Color Temperature Cool White
Power 100W
Technics Powder Coating Process
Illumination Time Fixed Duration Can Be Preset According to Needs
Cell Type Lithium Iron Phosphate Battery
Charging Time (H) 4-6 H
Usage Garden, Street, Road Lighting,Industrial Parks Roads,Highways
IP Rating IP66
Certification CE, RoHS, IEC60598, IEC62722, IEC62471, Lm79, Lm80, Ik08
Voltage 12.8V 75ah(968wh)
With Light Source With Light Source
Product Name Split Solar Street Lamp
Keywords Solar Street Lamp
Overall Light Efficacy 193.84lm/W
Overall Lumens 11631lm
Controller Intelligent Boost MPPT Controller
Lighting Method First 4h 100%, Middle 2h 50%, Last 6h 30%
Recommended Height 7-8 Meters
Pole Sleeve Interface 65mm
Battery Capacity (Ah) Lithium Iron Phosphate Battery, 12.8V, 30ah, 384wh
LED Beads 4-Core High-Efficiency SMD3030, 192PCS
Transport Package Standard Packaging or Customized
Specification 810*320*95mm
Production Capacity 50000 Pieces/Year

Packaging & Delivery

Package Size 89.00cm * 36.00cm * 14.00cm
Package Gross Weight 10.100kg

Product Description

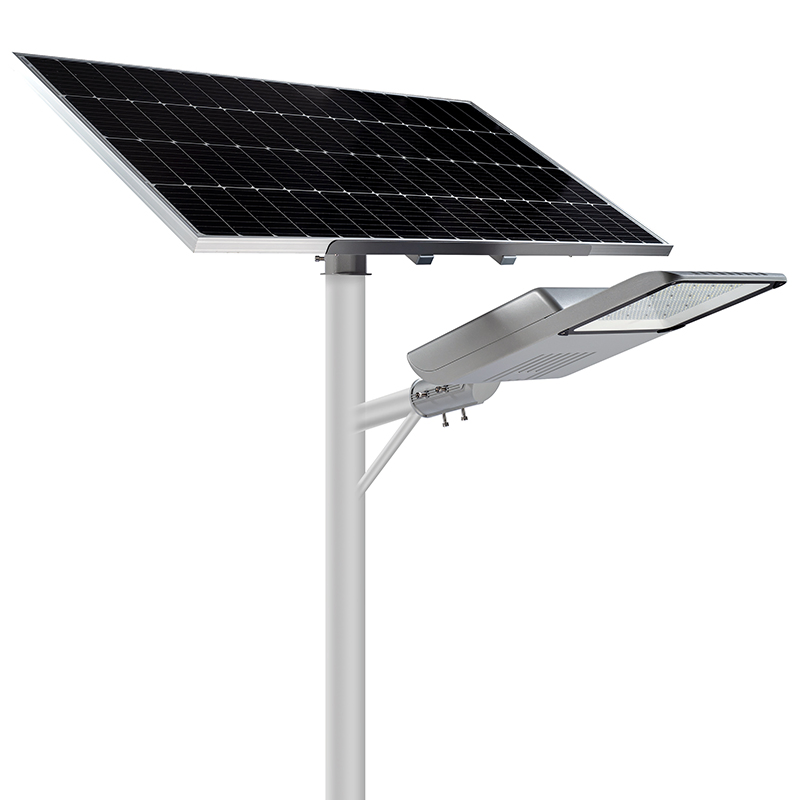

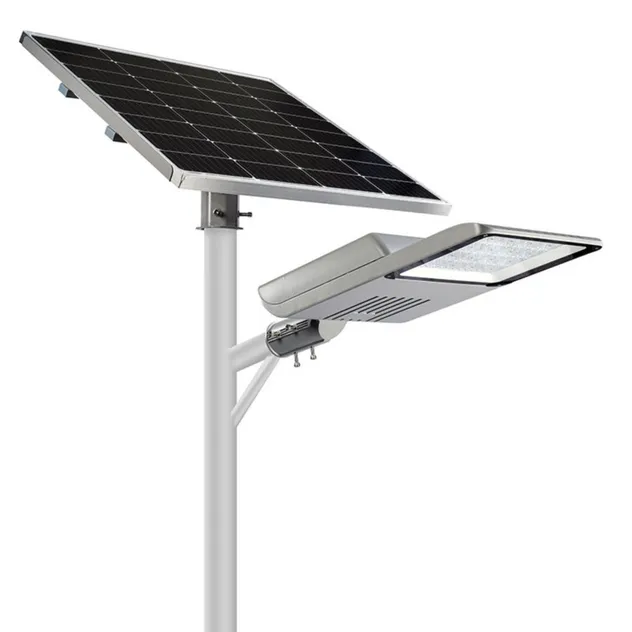

SPLIT SOLAR STREET LAMP

Unlock the power of independent solar lighting with our Split Solar Street Lamp, designed for versatile installation and maximum energy harvest.

Unlike standard integrated lights, this system features a separate solar panel design, allowing you to adjust the panel angle independently to capture the most sunlight, even in challenging locations. Built for commercial and municipal applications, it combines high-output LED technology with a robust LiFePO4 battery system to deliver bright, reliable illumination all night long.

Weatherproof and maintenance-friendly, this off-grid solution is the perfect choice for creating safe, well-lit environments while eliminating electricity costs.

Durable LED Solar Street Light with Motion Sensor Technology
Durable LED Solar Street Light with Motion Sensor Technology
Durable LED Solar Street Light with Motion Sensor Technology

KEY FEATURES & BENEFITS

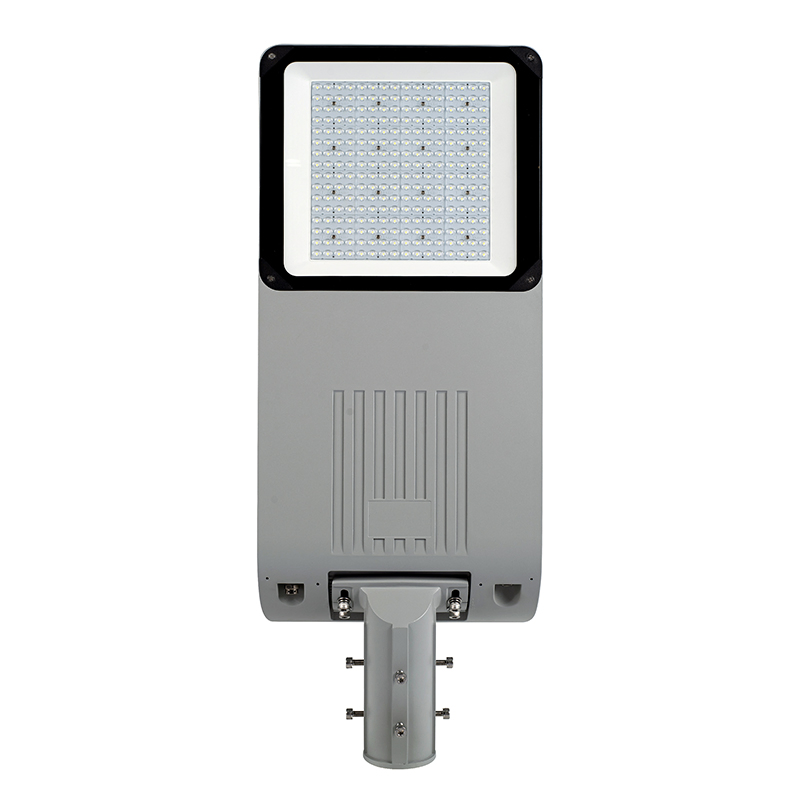

HIGH-PERFORMANCE LED ILLUMINATION

Engineered with premium LED chips and a high-transmission optical lens, this lamp delivers superior brightness and uniform light distribution. It effectively reduces glare and dark spots, ensuring optimal visibility and safety for drivers and pedestrians.

FLEXIBLE & HIGH-EFFICIENCY SOLAR CHARGING

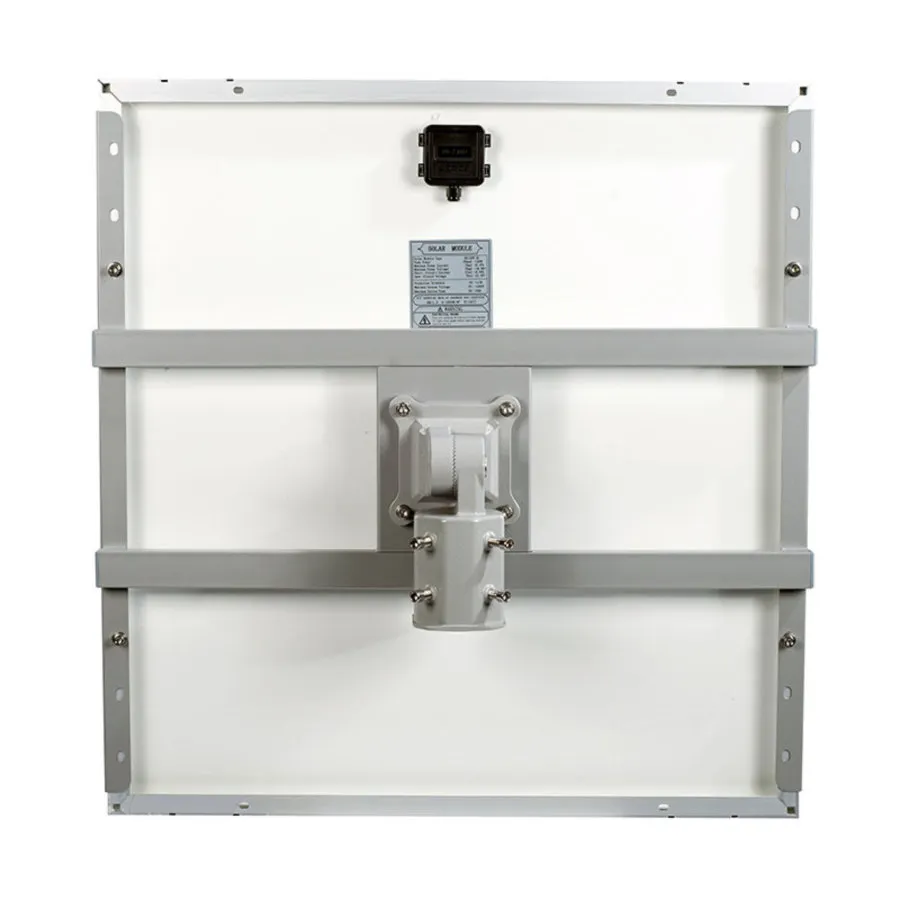

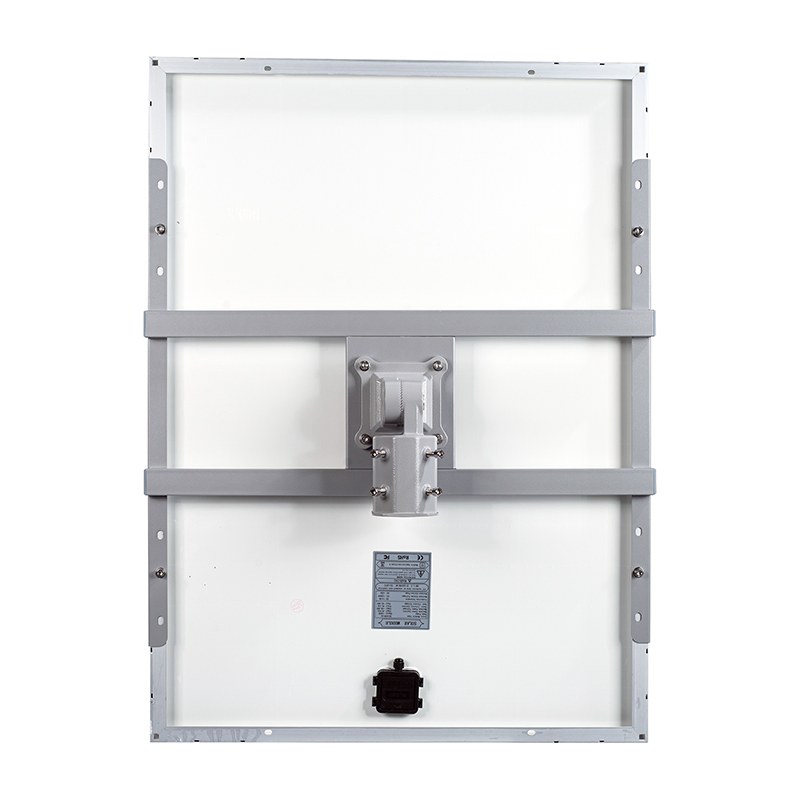

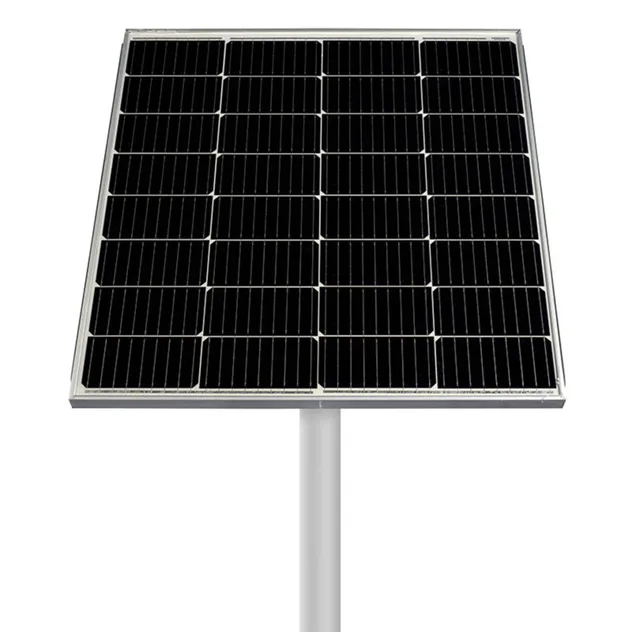

Featuring a high-quality Monocrystalline silicon solar panel, the split design allows for flexible positioning to face the sun directly. This ensures rapid charging and maximum power conversion, even on cloudy days or in high-latitude regions.

LONG-LIFE LIFEPO4 BATTERY SYSTEM

At the heart of the system is an advanced LiFePO4 (Lithium Iron Phosphate) battery, known for its exceptional lifespan and safety. It provides stable discharge performance and offers reliable backup power to keep the lights running through multiple rainy or cloudy days.

SMART ENERGY MANAGEMENT

Equipped with an intelligent MPPT controller, the system automatically optimizes power efficiency. It features smart lighting modes that adjust brightness levels throughout the night—delivering high intensity when needed and dimming during off-peak hours to conserve energy.

WEATHERPROOF & EASY MAINTENANCE

Built to withstand harsh outdoor elements, the rugged housing offers excellent protection against rain, dust, and corrosion. The user-friendly design includes a replaceable battery compartment and standard connectors, making installation and future maintenance hassle-free.

Specification

Dimensions 810*95*320mm
Overall Light Efficacy 193.84LM/W
Overall Lumens 11631LM
Controller Intelligent Boost MPPT Controller
Lighting Method First 4H 100%, Middle 2H 50%, Last 6H 30%
Protection Rating IP66
Discharge Time 3-5 Cloudy Days
Recommended Height 7-8 Meters
Pole Sleeve Interface 65mm
Durable LED Solar Street Light with Motion Sensor Technology
Durable LED Solar Street Light with Motion Sensor Technology

CORE APPLICATIONS & USAGE SCENARIOS

URBAN & RURAL ROADWAYS

A dependable solution for main roads, secondary streets, and rural paths where grid connection is difficult or expensive. It ensures consistent dusk-to-dawn lighting for community safety.

COMMERCIAL & PUBLIC SPACES

Ideal for illuminating parking lots, shopping centers, campuses, and parks. The sleek design and effective lighting enhance the aesthetics and security of public gathering areas.

INDUSTRIAL & PERIMETER SECURITY

Provides powerful floodlighting for factories, warehouses, and logistics centers. The split design is particularly effective in complex industrial environments where the solar panel needs to be mounted high or away from building shadows.

OFF-GRID & REMOTE PROJECTS

Perfect for construction sites, mining areas, farms, and temporary infrastructure. Since no trenching or cabling is required, it offers a "plug-and-play" lighting solution for locations without access to electricity.

Durable LED Solar Street Light with Motion Sensor Technology
Durable LED Solar Street Light with Motion Sensor Technology

Frequently Asked Questions

Q What are the core components of a solar street light?
The core components include photovoltaic panels (solar panels), lithium batteries (energy storage units), LED light sources, controllers (intelligent control core), light poles, and basic accessories. Each component has a clearly defined function: the photovoltaic panels collect solar energy and convert it into electrical energy; the controller manages the charging and discharging process; the lithium batteries store electrical energy; the LED light sources provide stable illumination.
Q What are the advantages of solar streetlights compared to ordinary mains-powered lights?
The core advantages are threefold: 1. Zero electricity cost with long-term savings; 2. Convenient and efficient installation without digging road surfaces to lay cables; 3. Green, environmentally friendly, and stable operation with low maintenance costs and strong power supply stability.
Q Can solar streetlights work normally on cloudy or rainy days?
Yes, they can work normally. The products are configured with polycrystalline silicon photovoltaic panels and high-capacity lithium batteries, which support continuous lighting for 2-3 cloudy or rainy days under standard configuration. High-end models can be customized to support more than 5-7 days.
Q Can the illumination duration and brightness of solar streetlights be adjusted?
Both can be adjusted: 1. Illumination Duration can be preset (e.g. 6, 8, 12 hours) or set to time control + microwave sensing; 2. Brightness can be adjusted in segments (e.g., high brightness for the first 4 hours, and half brightness for the remaining hours to conserve energy).
Q What is the lifespan of the core components?
Photovoltaic panels last 10-25 years; Lithium iron phosphate batteries last 3-8 years (≥2000 cycles); LED light sources last 5-10 years; and the waterproof controller lasts 5-8 years. The entire system operates stably for over 5 years.
Q Is solar street light installation complicated? Is a professional team required?
Installation is simple and convenient, requiring no professional electrician team. Ordinary construction workers can install it following three steps: complete foundation pouring, hoist the light pole, and secure the components. No cable laying or complicated wiring is required.
