Basic Info.
Model NO.RB-SOL-KH100W
Light SourceLED Lamp
Lamp Body MaterialAluminum Alloy
Light TypeSolar
Color TemperatureCool White
Power30W-400W
TechnicsElectroplating
Illumination Time10h
Cell TypeNi-MH Battery
Charging Time (H)8
UsageGarden, Street
IP RatingIP65
CertificationCE, RoHS
Voltage12/24V
With Light SourceWith Light Source
CCT3000K, 4000K, 5000K, 6000K
Power Factor(PF)>0.9
MaterialAluminium Alloy
LED Efficiency210lm/W
Fixture Efficiency>95%
Warranty Time3 Years Solar LED Street Light
IP RateIP66 Solar LED Street Lamp 300W
Light Luminous Flux21000lm
Transport Package1PC/Carton
SpecificationCE/ROHS
OriginChina
HS Code9405409000
Production Capacity40, 000PCS
Packaging & Delivery
Package Size180.00cm * 46.00cm * 15.00cm
Package Gross Weight21.000kg
Product Description
New design All in one Led Street Solar Security Lights with Motion Sensors
Energy Saving Best Price List Motion Sensor IP65 Integrate All In One Garden Outdoor Solar Street Light 20W/30W/40W/60W/80W/100W/150W/200W Factory direct sales Outdoor integrated all in one solar led street light led yard light Integrated All In One Solar Led Street Light outdoor waterproof Time Light Control Led yard road lights
| Model |
RB-SOL-KH30W |
RB-SOL-KH40W |
RB-SOL-KH60W |
RB-SOL-KH80W |
RB-SOL-KH100W |
RB-SOL-KH120W |
| Lamp body material |
Die casting+profile aluminum |
Die casting+profile aluminum |
Die casting+profile aluminum |
Die casting+profile aluminum |
Die casting+profile aluminum |
Die casting+profile aluminum |
| Power |
30W |
40W |
60W |
80W |
100W |
120W |
| Lens material |
Polycarbonate |
Polycarbonate |
Polycarbonate |
Polycarbonate |
Polycarbonate |
Polycarbonate |
| Solar panel |
18V/50W Mono |
18V/60W Mono |
18V/80W Mono |
18V/105W Mono |
18V/130W Mono |
18V/150W Mono |
| Battery capacity(mah) |
Lithium LifePO4 battery 3.2V 72AH(231WH) |
Lithium LifePO4 battery 3.2V 100AH(320Wh) |
Lithium LifePO4 battery 12.8V/30AH(384Wh) |
Lithium LifePO4 battery 12.8V/45AH(576Wh) |
Lithium LifePO4 battery 12.8V/60AH(768Wh) |
Lithium LifePO4 battery 12.8V/75AH(960Wh) |
| LED chips |
4 cores high efficiency smd 3030 96PCS |
4 cores high efficiency smd 3030 144PCS |
4 cores high efficiency smd 3030 192PCS |
4 cores high efficiency smd 3030 240PCS |
4 cores high efficiency smd 3030 280PCS |
4 cores high efficiency smd 3030 336PCS |
| Efficacy |
200LM/W |
| Solar panel conversion efficiency |
23.80% |
| Light Luminous Flux |
6050LM |
8030LM |
12000LM |
16000LM |
20000LM |
24000LM |
| Controller |
MPPT Controller |
| Beam angle |
105*158° / transmittance: >95% |
| Cloud platform system management |
Iot Control Management System (optional) |
| Lighting Method |
Intelligent control +Microwave induction + segmented time control |
| Products size |
408x773mm |
408x878mm |
408x1118mm |
408x1388mm |
408x1603mm |
408x2008mm |
| Discharge time |
3-5 rainy & cloudy days |
| IP Rank |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
| Pole Diameter |
81mm |
| Installation Height Recommended |
5-6M |
6-8M |
8-10M |
10-12M |
12-15M |
15-18M |

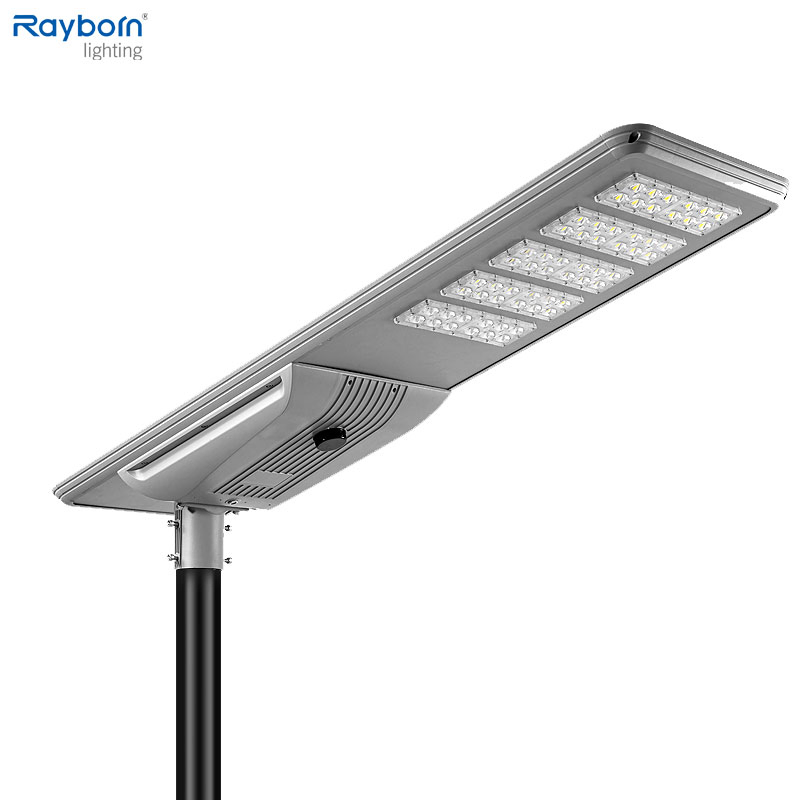

Outdoor LED Solar Street light Features

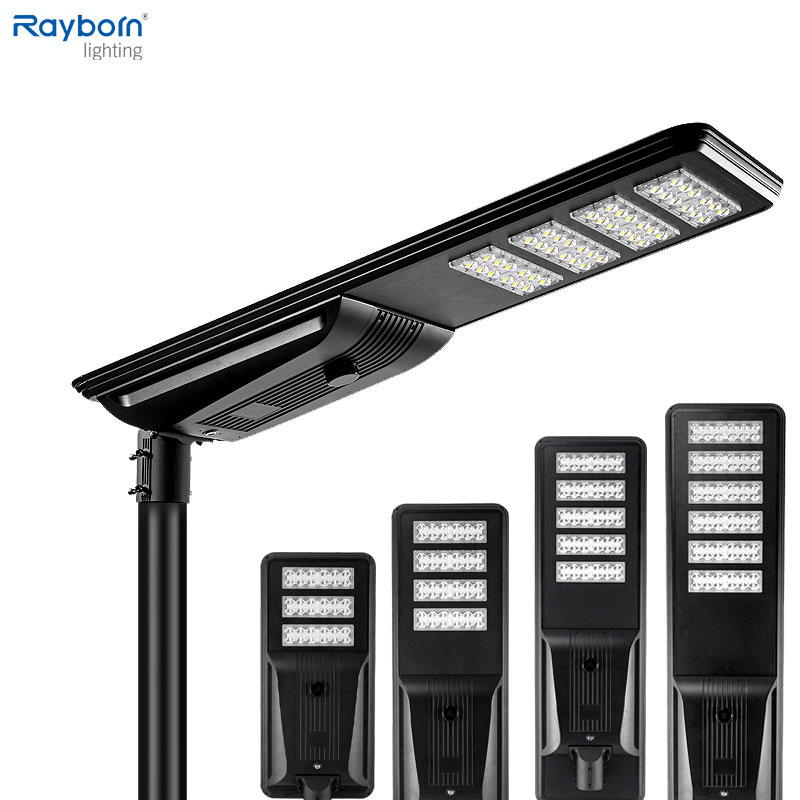

All in One Integrated Solar Street Light 40W-120W up to 24000LM

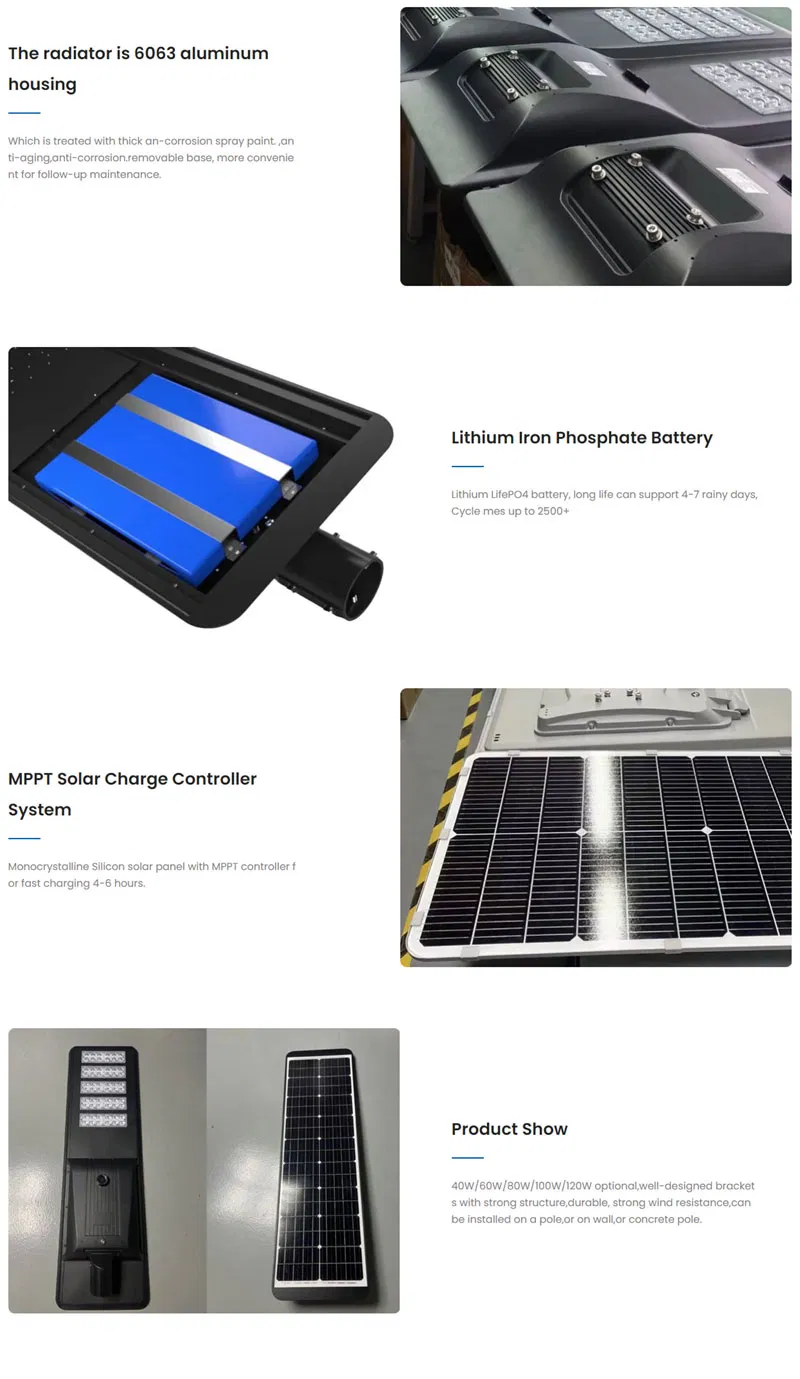

- The radiator is 6063 aluminum, which is treated with thick anti-corrosion spray paint.
- Removable battery, more convenient for follow-up maintenance.
- No additional wiring is required, which saves money; multiple mounting brackets can be pipe-mounted, arm-mounted, etc.
- Direct light design, high light transmittance PC lens, light transmittance above 90%, high whole lamp lights effect.
- Genuine imported chip lamp beads, high lights effect, low light decay, and high energy-saving efficiency.
- High thermal conductivity aluminum substrate and radiator, low temperature rise, good heat dissipation of the whole lamp, and longer life span.
- Assembly line operation, large-scale production, stable product performance, and more guaranteed quality.
Precautions
The installation of solar street lights should be carried out in sunny days, Integrated solar street light because it cannot be quickly charged after installation in rainy days, and-discharge is carried out at night, which affects the use effect.
Before installation, please select the direction of the light source according to the road body and the position of the light source to meet the maximum irradiation area of the road.
The angle of the battery board should be adjusted to the most suitable place. Generally, a 15° angle is recommended.
The installation location needs to avoid the shadow of obstacles such as houses, trees, etc, which will reduce the power generation efficiency of the solar panel and shorten its working time.

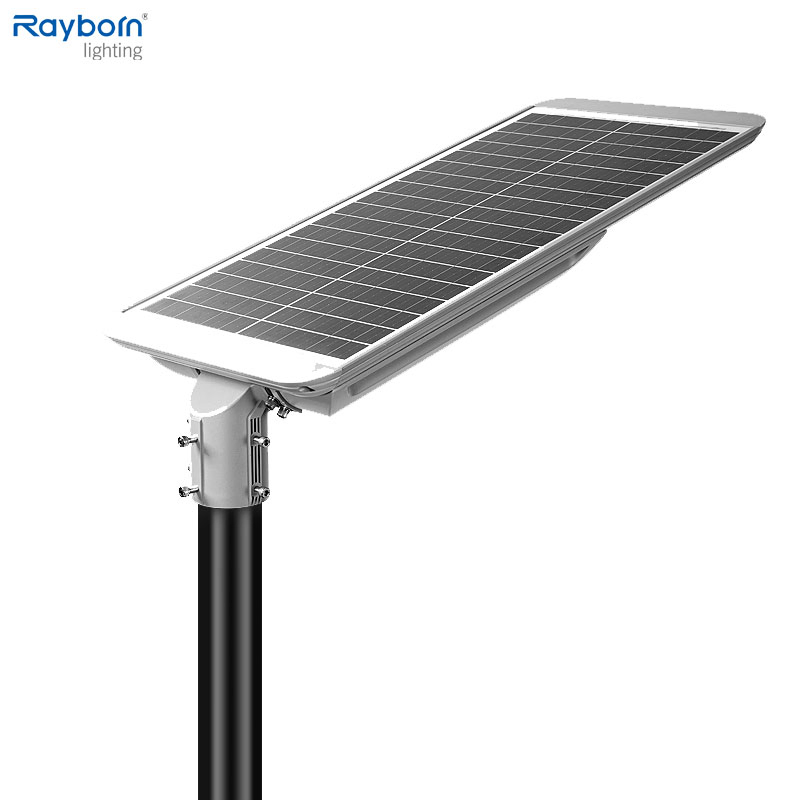

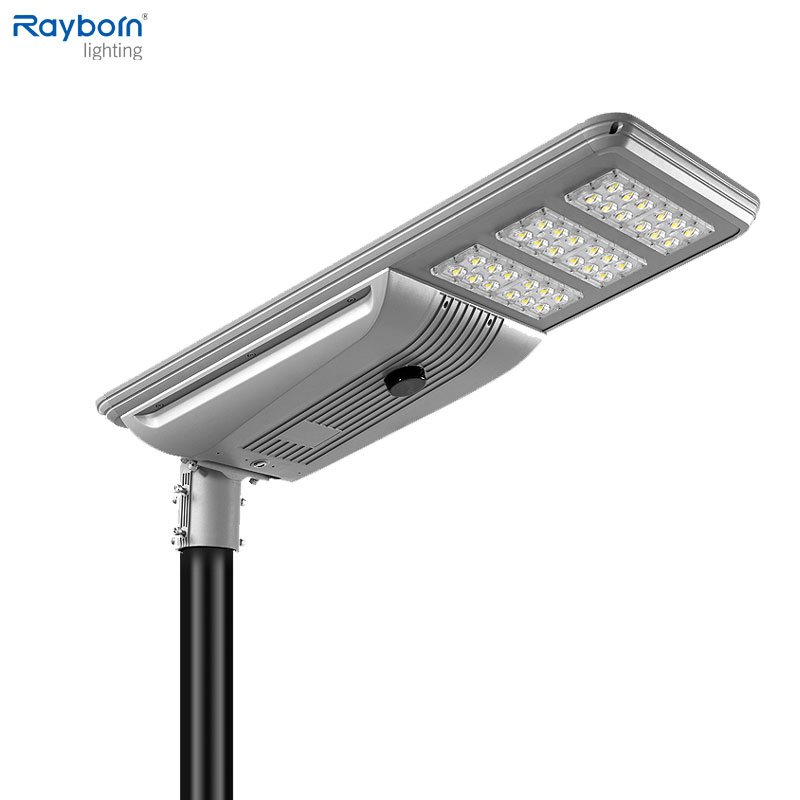

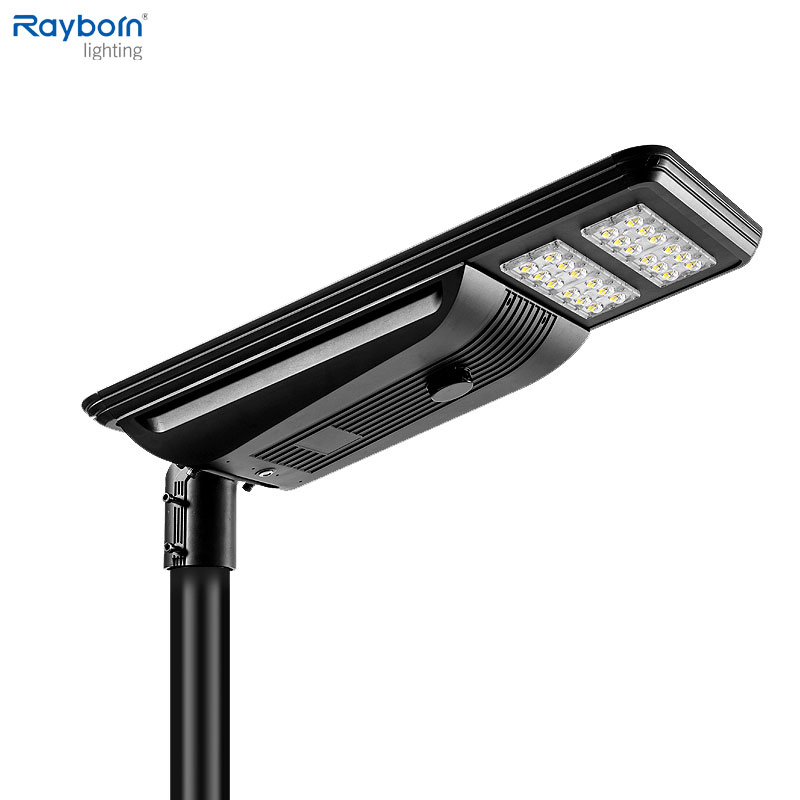

Detailed Photos
Outdoor Integrated All in One Solar Competitive Advantage:
- CE & RoHS IP66 approved, Quality Guaranteed
- Imported original chip, superior light source
- OEM & ODM welcome, independent R&D ability, patent design.
- Fast delivery, 3-15 workdays depends on order quantity after payment confirmed
- Reliable quality & credit, 3 years warranty and 50,000 hours lifespan

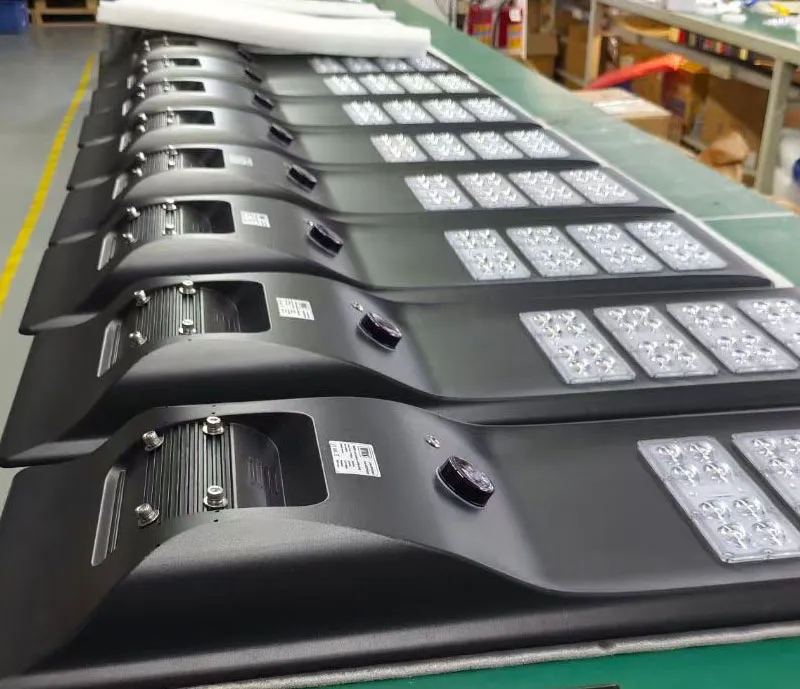

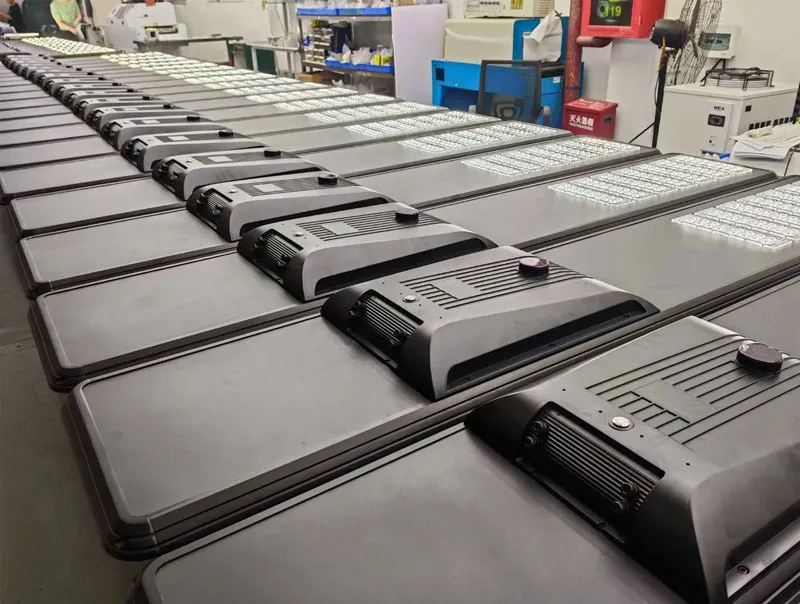

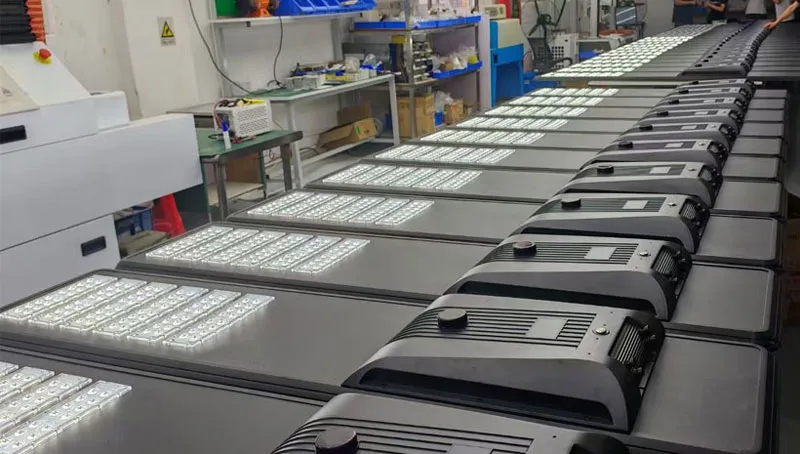

Test Aging
Outdoor Solar LED Street light 24hours AGING Tested:
Before shipping, all the LED streetlights will be over 24 hours aging tested, inspection department will test 100% products including light up test, power wattage test, high-voltage test, waterproof test, ground connection test and so on, defective rate is controlled less than 0.1%. Quality is ensured, you can be assured.

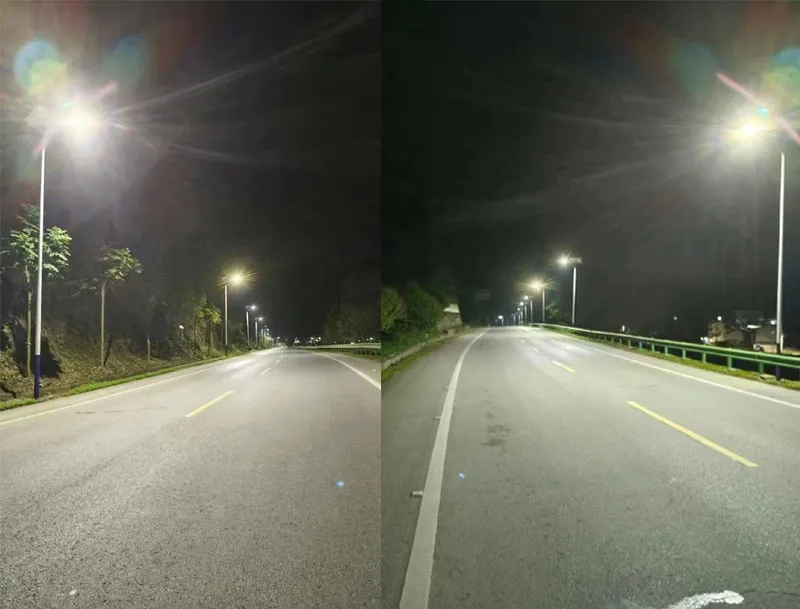

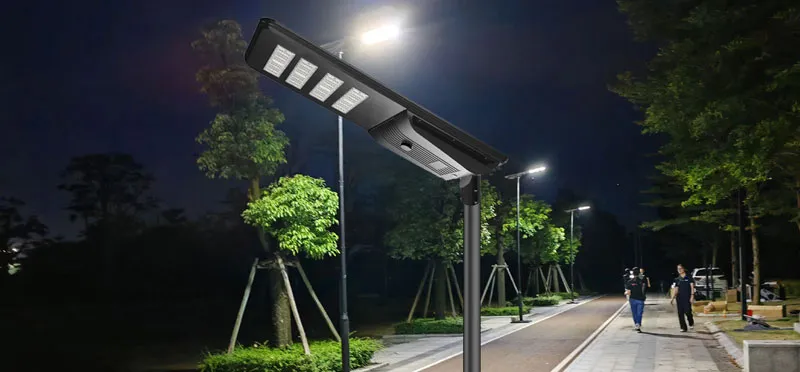

Applications
Outdoor Solar LED Street light Applications:
- Playground and stadium lighting.
- Parking lot and airport lighting.
- Highway and Railway tunnel lighting.
- Bridge and culvert lighting.
- Square, garden, and building lighting.
Payment Terms
- Payment: T/T, L/C at sight, Western Union, Paypal available
- Samples can be available within 5-7 working days; Order: 10-20Days
- Shipping freight is quoted under your requests
- Shipping port: Shenzhen, China
- Discounts are offered based on order quantities
FAQ
1. What is the general business process?
Answer: Send Inquiry → Specification Confirmation → Quotation → Sample List Confirm → Proforma Invoice → Payment Bank Slip → Sample Delivery → Sample Satisfactory → Bulk Order List → Proforma Invoice → 30% Deposit Payment in Advance → Production Ready → 70% Balance bank slip → Delivery → After Sale Service.
2. What is the warranty?
Answer: 3-5 years warranty is offered depending on different types of lights. If item fails due to quality problem during warranty, we can send new replacement with freight on ours immediately if urgently. Or we prefer to send replacement with next order.
3. What is the payment term?
Answer: For sample order, we can accept T/T, Paypal, West Union, 100% in advance. For bulk order, 30% deposit in advance by T/T, 70% balance before shipping. For very large order, L/C is negotiable.
4. Can I add my logo on the product label?
Answer: Yes, but order quantity is requested depending on different lights.
5. I don't know how many LED Street Lights should I use, can you advise?
Answer: Yes, we can offer our professional solution for you, IES file is available if you have the design team.
6. Do you have any MOQ limit for led light order?
Answer: Low MOQ, 1pc for sample checking is available.
