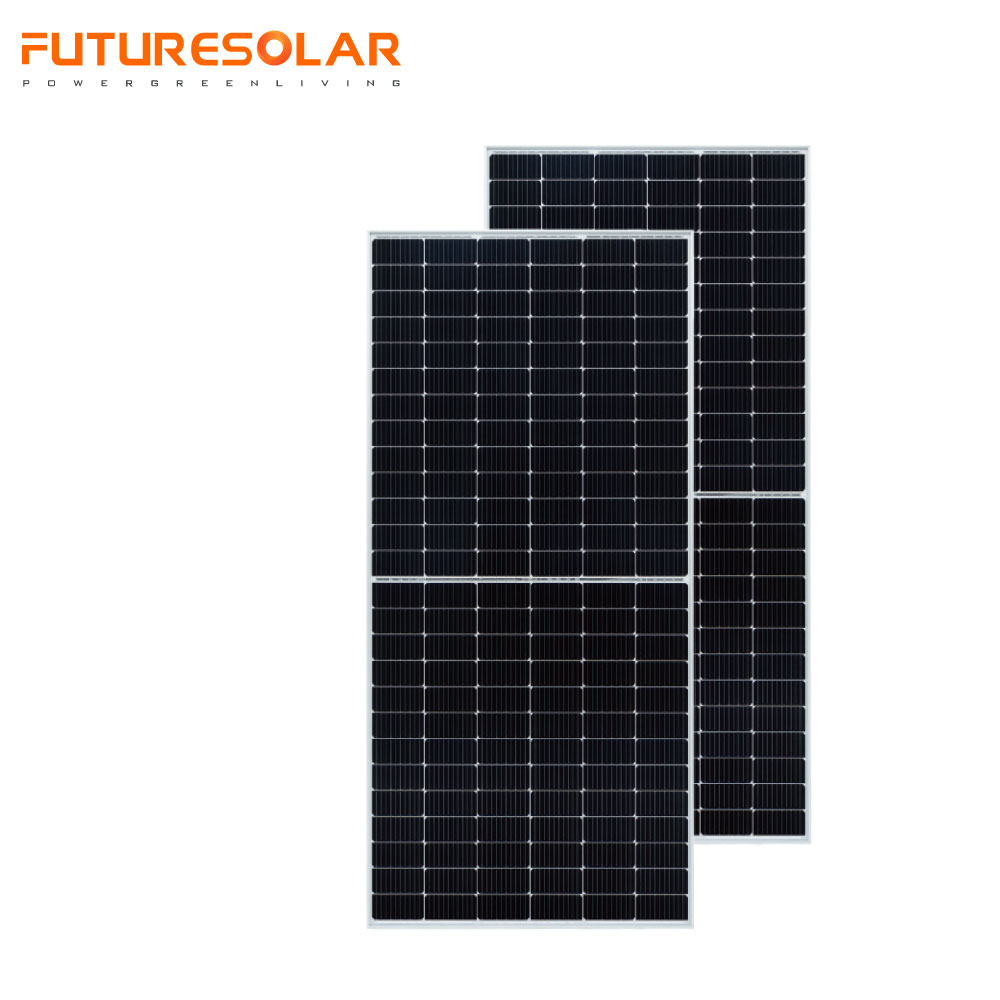

High efficiency 500w solar panel 570Wp 575Wp 580Wp 585Wp 590Wp solar panel cost 275w flexible solar panel
| Parameter | FSM570M-72H | FSM575M-72H | FSM580M-72H | FSM585M-72H | FSM590M-72H |
|---|---|---|---|---|---|
| Nominal Power | 570W | 575W | 580W | 585W | 590W |
| Maximum Power Voltage (Vmp) | 44V | 44.2V | 44.4V | 44.6V | 44.8V |
| Short-circuit Current (Isc) | 13.69A | 13.75A | 13.81A | 13.87A | 13.94A |
| Open-circuit Voltage (Voc) | 52.9V | 53.1V | 53.3V | 53.5V | 53.7V |
| Maximum Power Current (Imp) | 12.96A | 13.01A | 13.07A | 13.12A | 13.17A |
| Module Efficiency (%) | 20.3% | 20.5% | 20.7% | 20.9% | 21.0% |
| Power Tolerance | 0~+5W | ||||
| Maximum System Voltage | 1000V / 1500V DC (IEC) | ||||
| Operating Temperature | -40 ℃ to 85 ℃ | ||||
| Term Type | Method | Trade Terms | Payment Detail & Conditions |
|---|---|---|---|
| Payment Terms | T/T | EXW | 30% T/T in advance, paid the balance before shipment |
| FOB | |||
| CFR (C&F) | 30% T/T in advance, paid the balance against copy of B/L Not Suitable for Solar System Orders |
||
| CIF | |||
| DDP | |||
| L/C | L/C at sight | - | L/C amount above 50,000 USD, we can accept L/C at sight Not Suitable for Solar System Orders |
| West Union | West Union | - | Amount lower than 5,000 USD |
| Delivery Time | 7~10 days after receiving payment for one container | ||

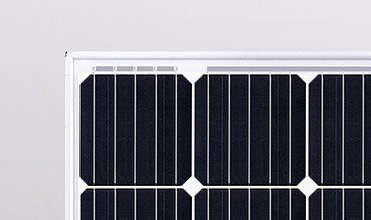

Antireflective glass increases the translucency of normal luminance by 2%, directly improving overall module efficiency by 2%. It also features a self-cleaning function and a service life of up to 25 to 30 years.

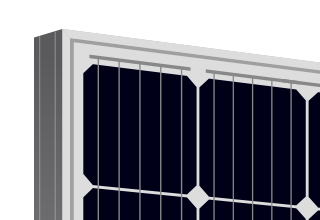

You can choose between silver and black frames. The frames feature a conventional layout with a serrated-clip design to boost tensile strength, and a seal-lip design for glue injection, which helps boost bearing capability and extend service life.

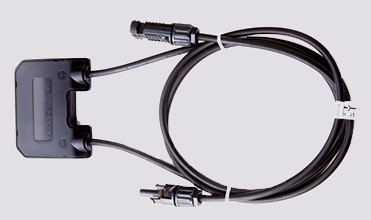

The junction box features an IP67 protection rating for robust dust and water resistance. It utilizes quality diodes to ensure module running safety, optimizes heat dissipation, and guarantees a long service life.
We accept T/T (with terms including EXW, FOB, CFR, CIF, DDP), L/C at sight (for order amounts above 50,000 USD), and West Union (for amounts lower than 5,000 USD). Note that L/C and certain T/T terms are not suitable for full solar system orders.
The typical delivery time is 7 to 10 days after we receive your payment for one full container order.

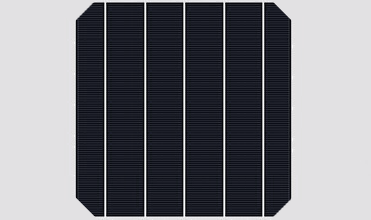

Yes, our high-efficiency PV cells feature built-in anti-PID properties. In addition, color sorting is conducted during production to ensure consistent module appearance.
