Distributed air-cooled outdoor cabinet is an energy storage system used in industry and commerce widely. It can store electricity converted from solar energy, wind energy and other renewable energy sources. It adopts air/liquid cooling technology, which is cost-effective and easy to maintain and repair.
Product Parameters
| INTELLIGENT ENERGY STORAGE SYSTEM |
| Model |
ATESSOT50-100KWH |
ATESSOT100-200KWH |
| System Data |
| Dimension (WxDxH) | 1500x1100x2080 mm | 1760x1100x2080 mm |
| Weight (incl. battery) | 1.25 t | 2.05 t |
| Degree of protection | IP54 | IP54 |
| Rated power | 30/50 KW | 80/100 KW |
| DC-side voltage | 560~850 V | 615~900 V |
| System capacity | 100.352 KWH (MAX) | 200.7 KWH |
| Battery type | Lithium iron phosphate |
| Cooling | Air conditioning air cooling |
| Designed life | More than 10 years |
| Battery Pack Data |
| Module capacity | 14.336 KWH |
| Rated voltage | 51.2 V |
| Cycle times | ≥6000 @25ºC |
| Certification | IEC62619, IEC61000, UN38.3, MSDS |
Product Performance Advantages
Option A
Battery pack capacity: 14.336 KWH
System capacity: 100.352 KWH
AC power: 30/50 KW

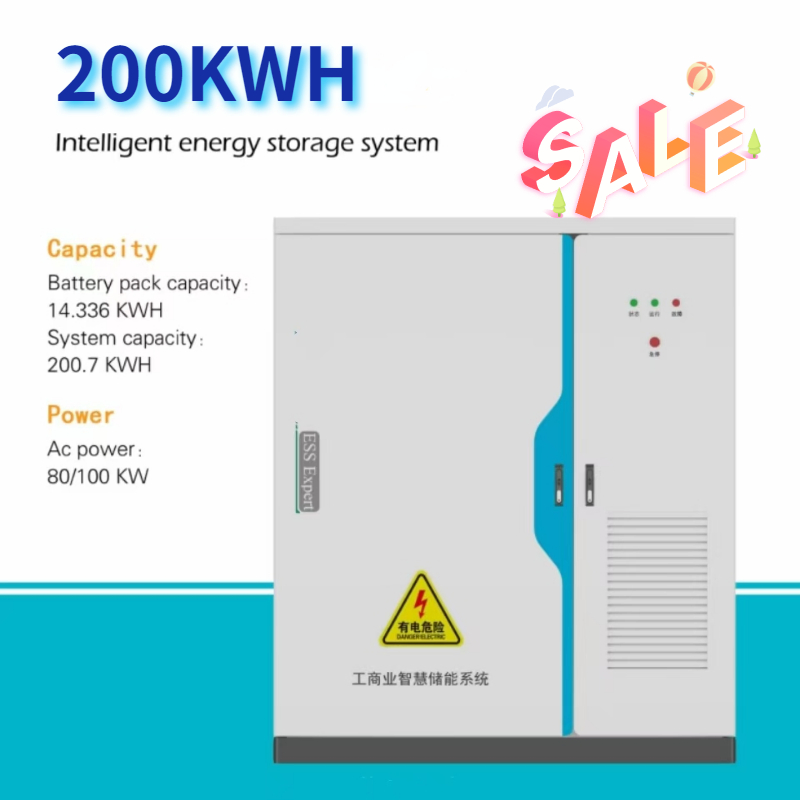

Option B
Battery pack capacity: 14.336 KWH
System capacity: 200.7 KWH
AC power: 80/100 KW
Key Advantages
- Building block design for modular expansion
- Flexible arrangement for various sites
- Hierarchical management of battery system
- Real-time monitoring & smoke/temp detection
- Double-layer insulation design
- Multiple intelligent security systems
- Multi-point real time monitoring of BMS and EMS
- Professional design team support

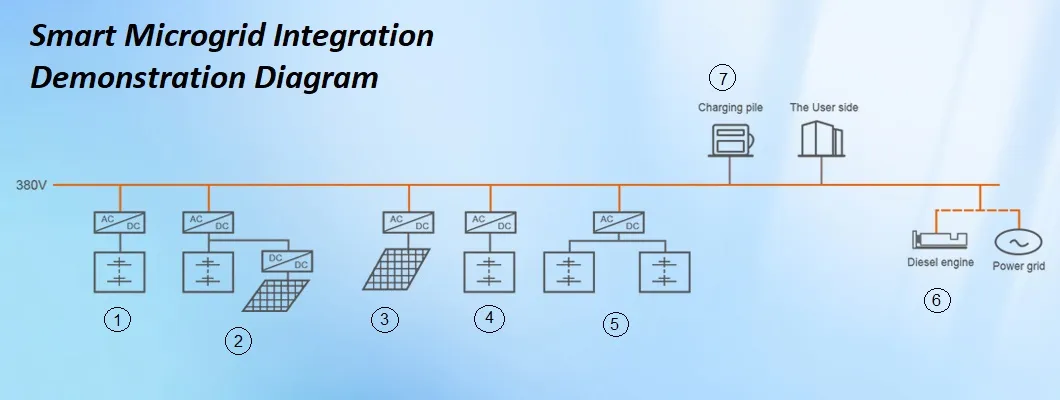

System Integration Display
1. Energy storage outdoor integrated cabinet: 100KW/232.96KWH (Liquid Cooling)
2. Outdoor Integrated Storage Cabinet: 100KW/200KWH (Air Cooling)
3. Solar photovoltaic grid-connected power generation system: 50KW
4. Outdoor Integrated Storage Cabinet: 100KW/200KWH (Air Cooling)
5. Container Energy Storage System: 250KW/460.8KWH (Air Cooling)
6. Diesel generator sets: 400KW
7. Charging pile module: 2*40KW + 6*5KW

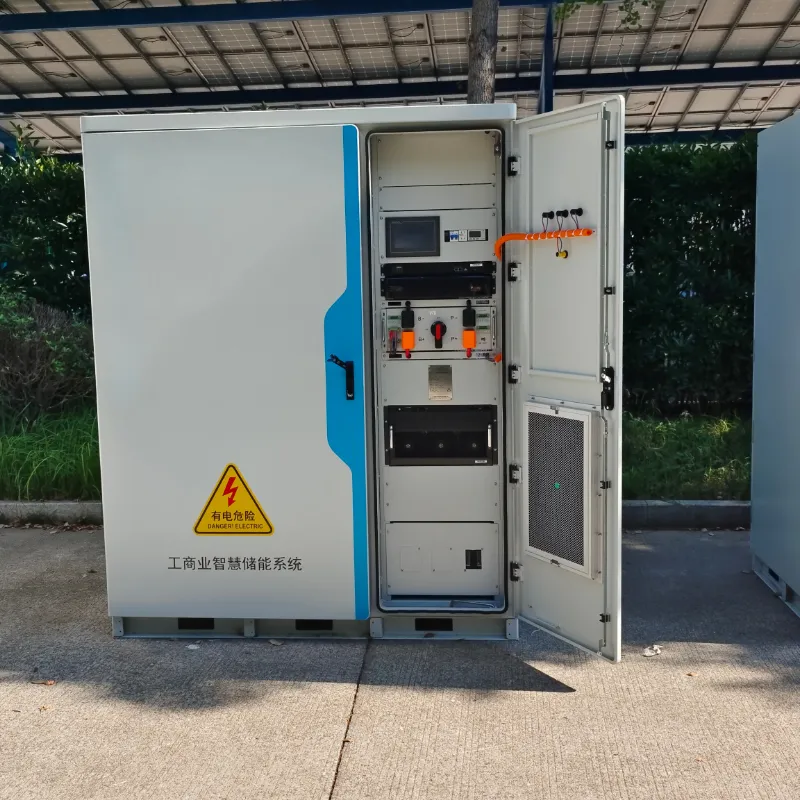

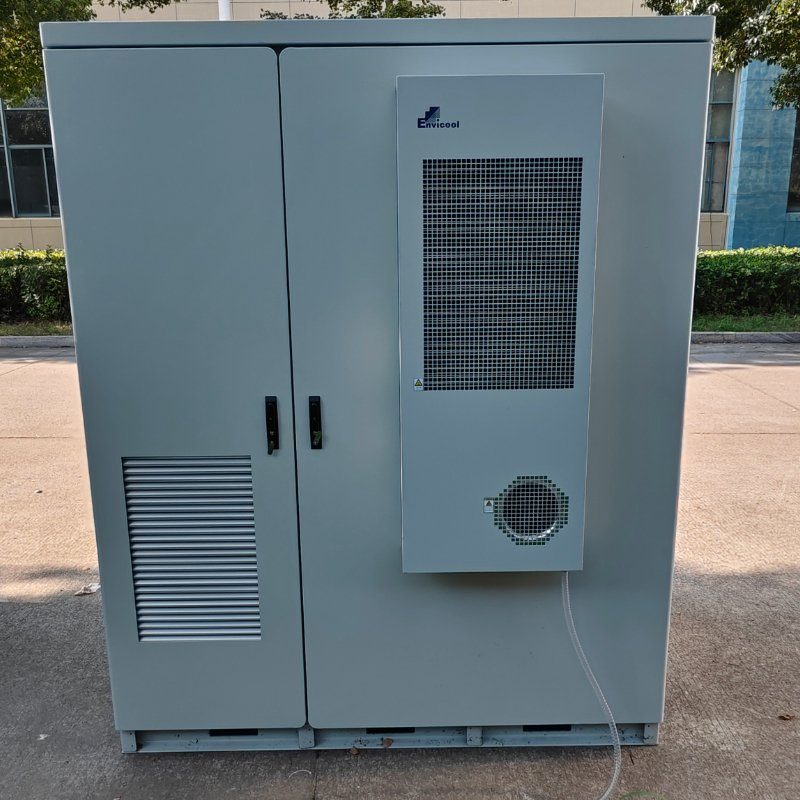

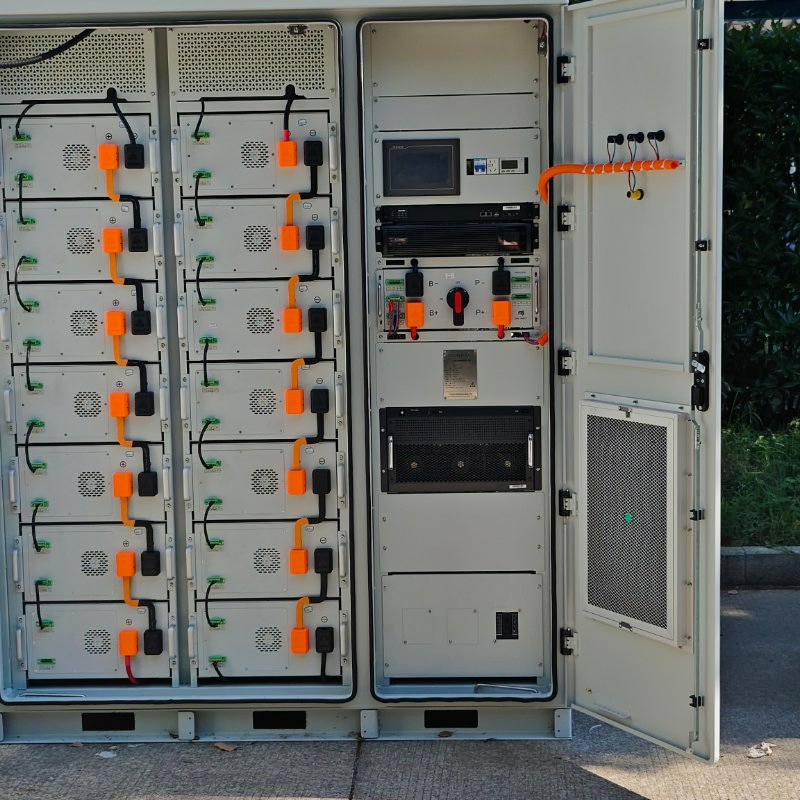

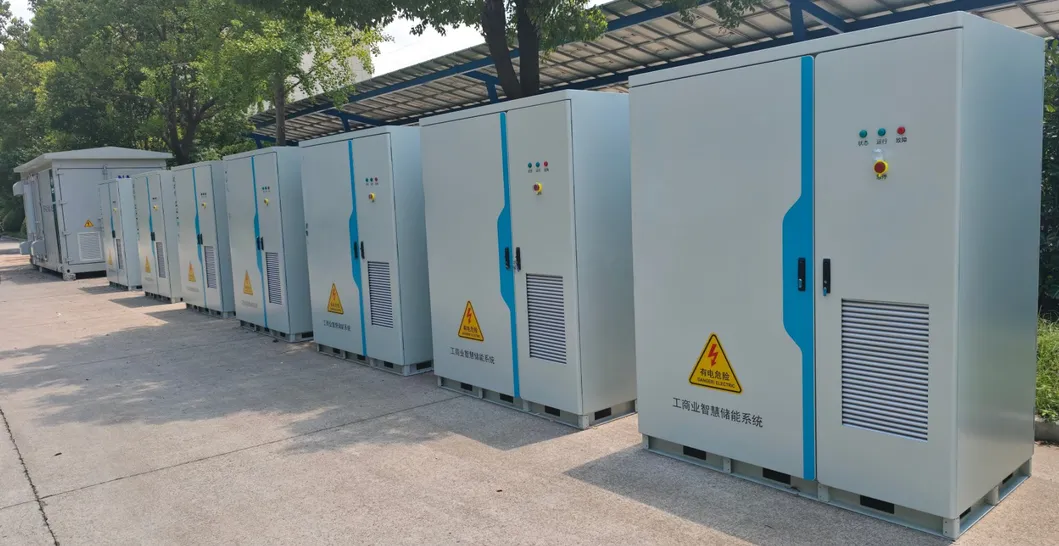

Detailed Photos
Packaging & Shipping

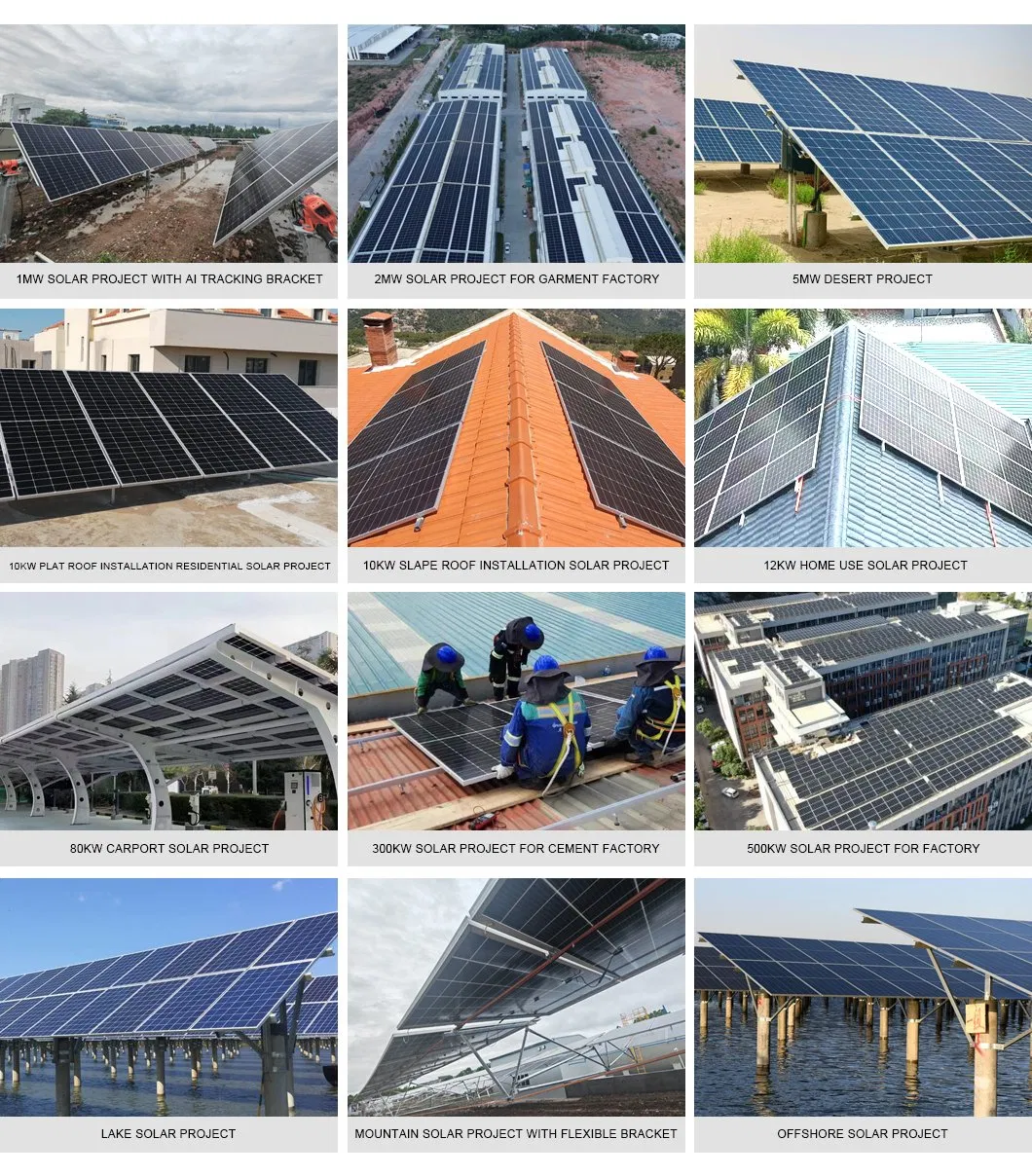

Global Project Cases
Certifications
Frequently Asked Questions
What is the lifespan of this energy storage system?
The system is designed for a service life of more than 10 years, with high-quality Lithium Iron Phosphate cells ensuring over 6000 cycles at 25ºC.
Is the cabinet suitable for harsh outdoor environments?
Yes, the cabinet features an IP54 protection rating and a double-layer insulation design, operating effectively in temperatures ranging from -25°C to +50°C.
What cooling technologies are available?
We offer both Air Cooling and Liquid Cooling technologies depending on your specific industrial or commercial requirements.
Can the system capacity be customized?
Absolutely. Thanks to our building block (modular) design, the system capacity can be flexibly arranged to meet needs ranging from 100kWh to 200kWh and beyond.
How is the safety of the battery managed?
The system includes a multiple intelligent security system with hierarchical battery management, real-time smoke and temperature monitoring, and integrated BMS/EMS control.
What certifications do your products hold?
Our products are fully certified with IEC62619, IEC61000, UN38.3, and MSDS for international safety and transportation standards.
