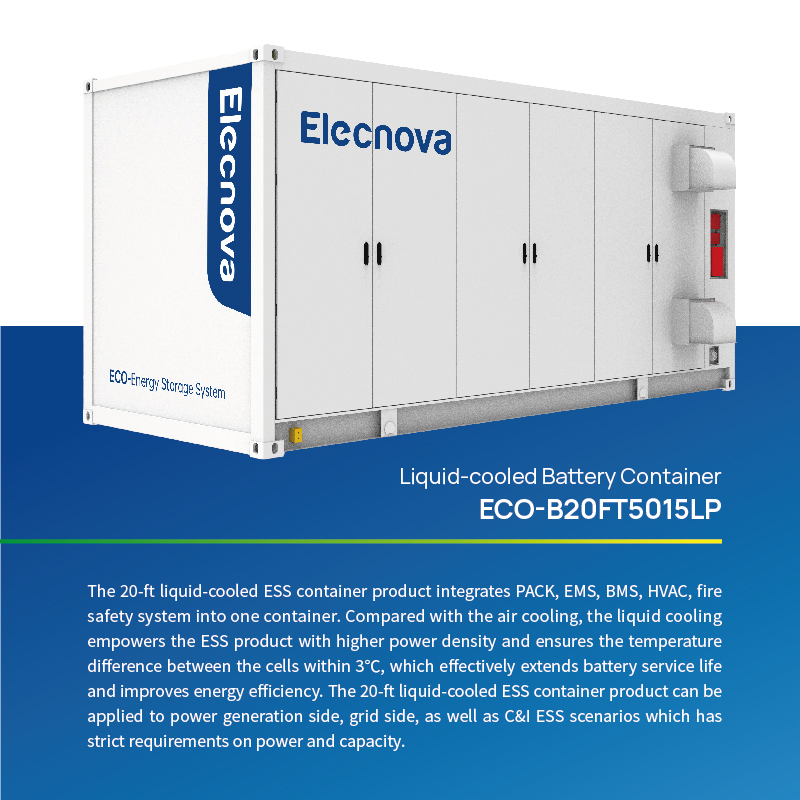

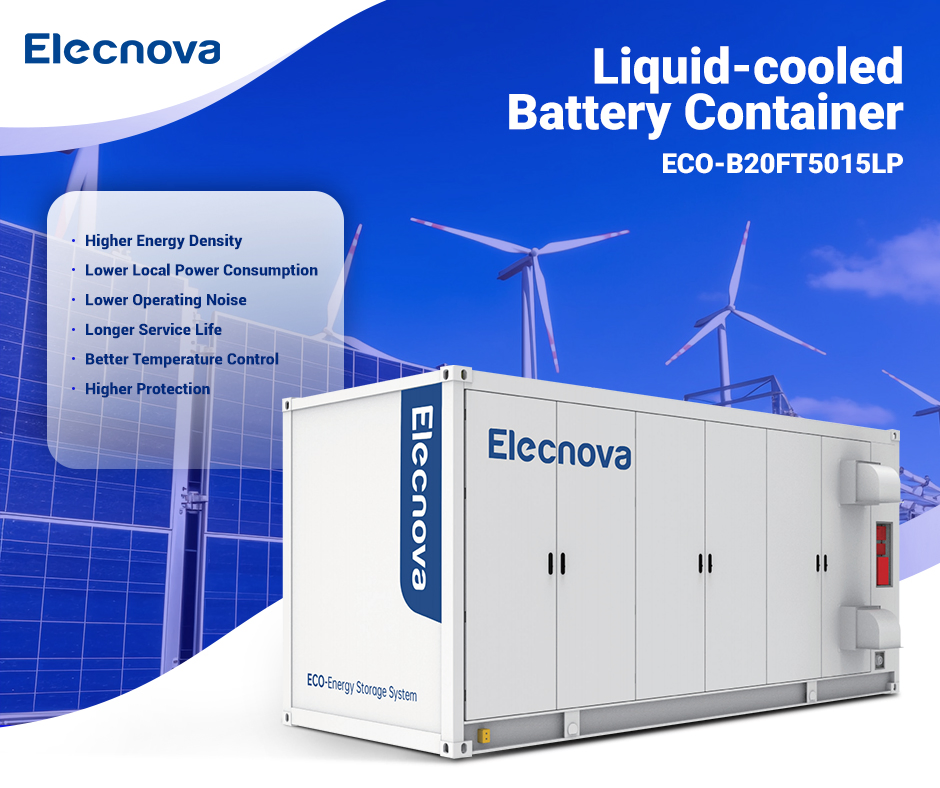

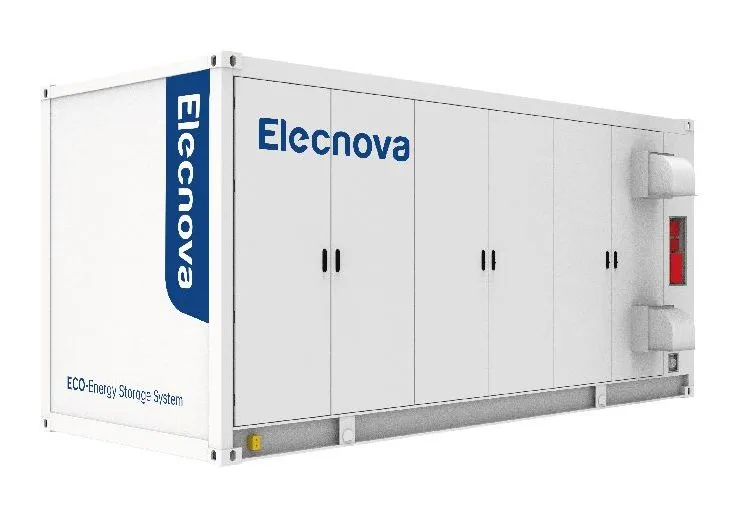

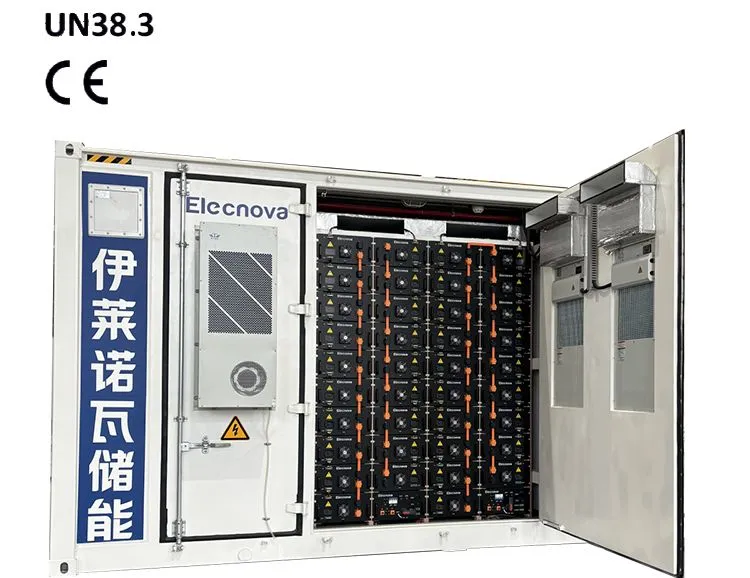

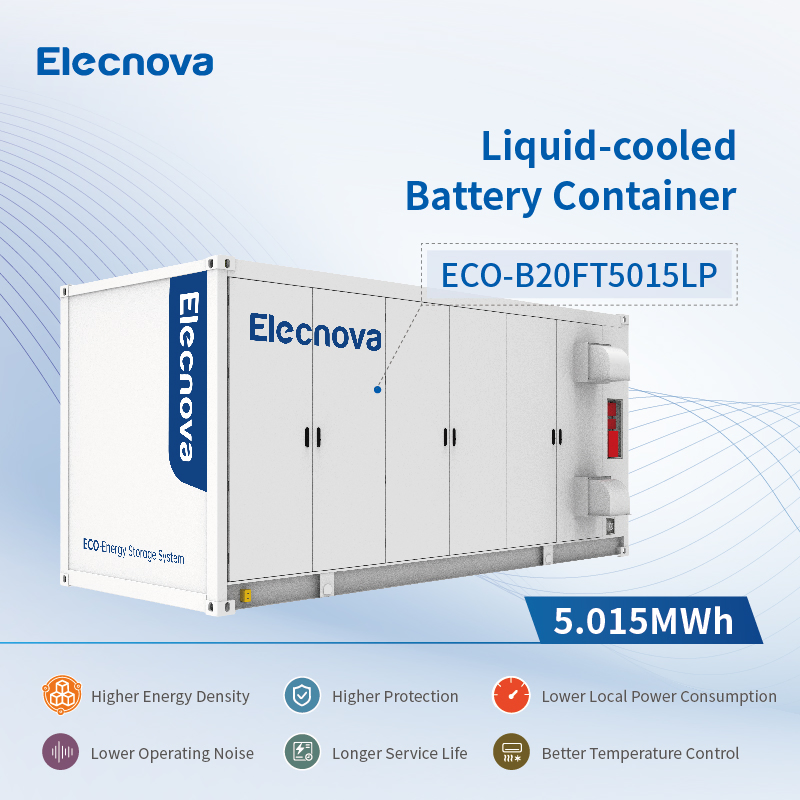

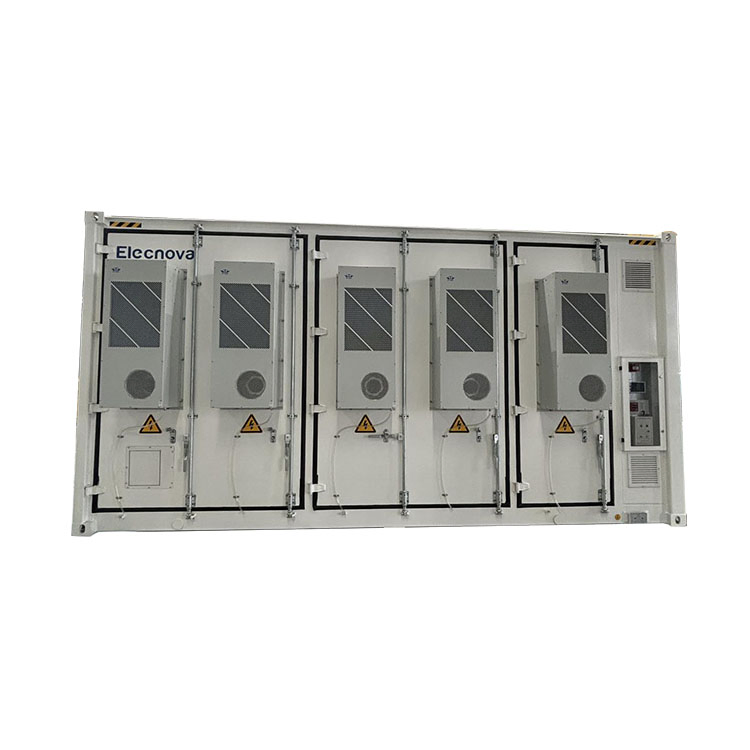

The 20-ft liquid-cooled ESS container product integrates PACK, EMS, BMS, HVAC, and fire safety systems into one unified container. Compared with traditional air cooling, liquid cooling empowers the ESS product with higher power density and ensures the temperature difference between cells stays within 3ºC, which effectively extends battery service life and improves energy efficiency.
This system is ideal for power generation side, grid side, and C&I ESS scenarios with strict power and capacity requirements.

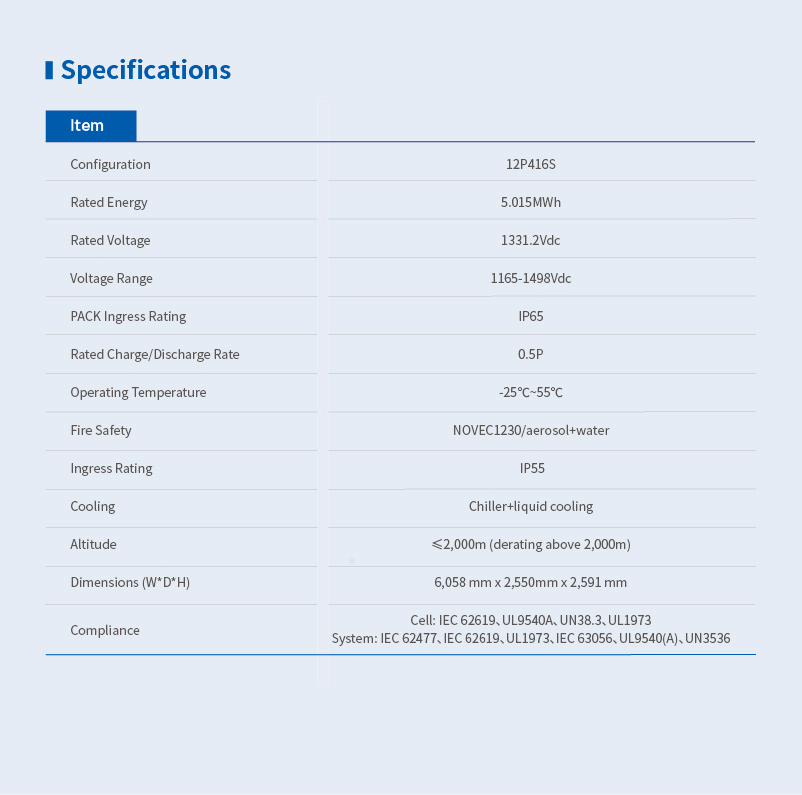

| Item | Specification |
|---|---|
| Cell type | LFP314Ah |
| Configuration | 12P416S |
| Rated Energy | 5.015MWh |
| Rated Voltage | 1331.2Vdc |
| Voltage Range | 1165-1498Vdc |
| Rated Charge/Discharge | 0.5P |
| Operating Temp | -25ºC~55ºC |
| Fire Safety | Aerosol + Water |
| Cooling | Chiller + Liquid Cooling |
| Compliance | UN38.3, IEC62477, IEC61000, IEC62619, UL9540A |

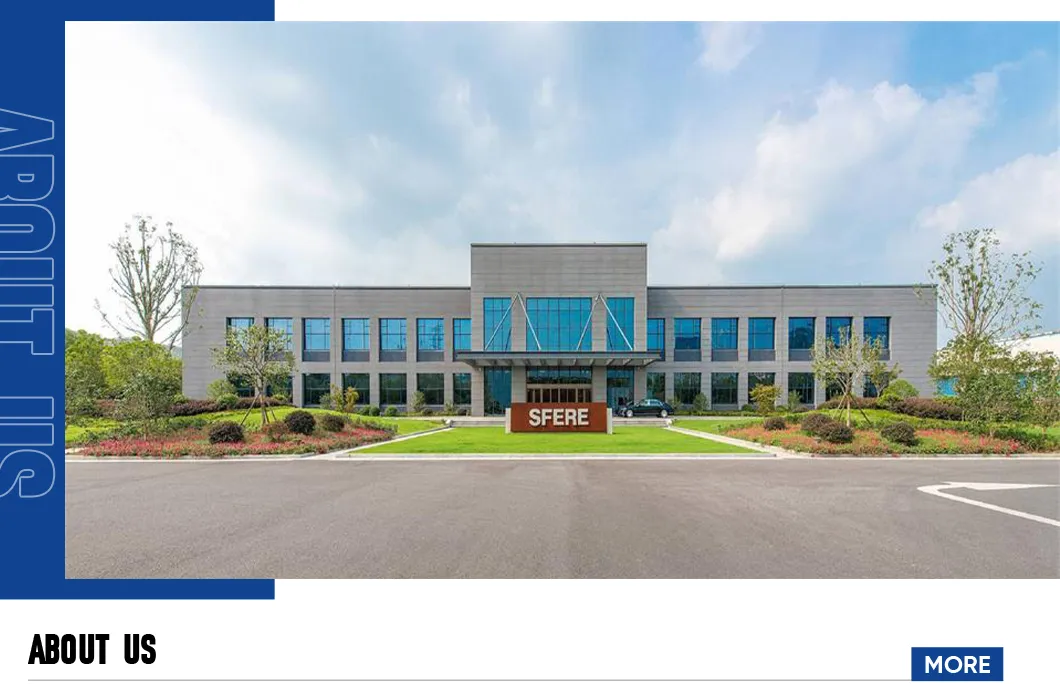

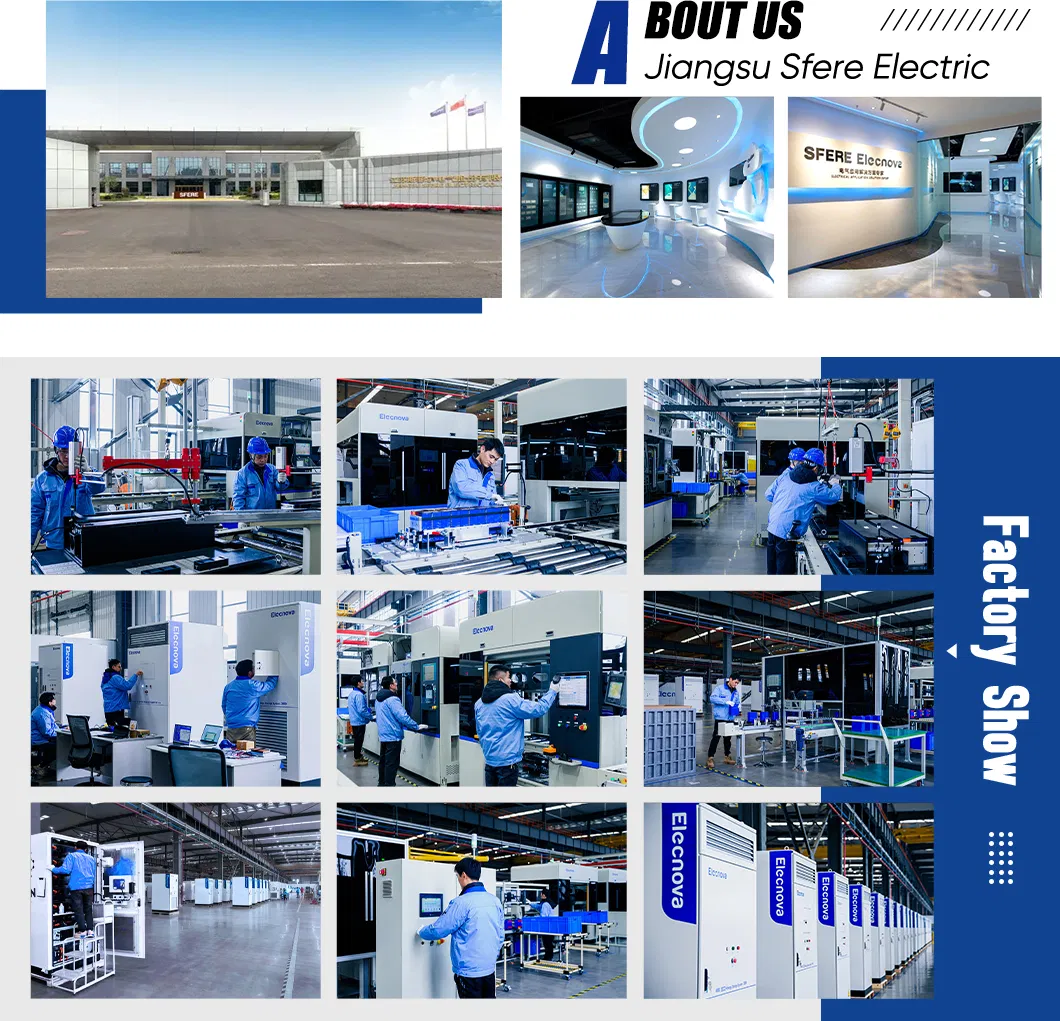

Our organization integrates R&D, manufacturing, sales, and service, maintaining a complete product ecosystem from smart terminal components to IoT platforms. Our solutions empower users with digital energy management, providing reliable data for energy saving, consumption reduction, and refined safety management.
With extensive technical capability, we offer power monitoring systems, power quality mitigation products, and advanced energy storage systems (ESS). We have been recognized with numerous patents and software copyrights, focusing on quality as the cornerstone of our operations.
