Industrial Container Lithium System Power Supply Solar Renewable Battery Energy Storage with CE

Customization: Available
Warranty: 10 Years
Cycle Life: >6000 Cycles

Product Description

Basic Info.
Model NO.
ESS-1MWH
Mount Racket
Aluminum Alloy, Hot DIP Galvanized Steel etc
Solar Panel
Mono 550W-700W
Monitoring
WiFi/GPRS Device etc
Model No.
1MW 3MW 5MW Solar Power Storage off Grid Batteries
BMS System
Customized
Battery Type
Lithium Ion Battery Cell
OEM/ODM
Acceptable
Rated Output Voltage
315VAC/400VAC
Output Wiring
Three-Phase Four-Wire/ Three-Phase Five-Wire
LCD Display
Yes
Condition
New
Certification
API, ISO, CB, CE, TUV
Application
Industrial, Commercial
Specification
Normal, 20FT /40FT 12192mm(L)*2438mm(W)*2591mm(H)
After-sales Service
Yes
Transport Package
Container
Origin
China
HS Code
8543709990
Production Capacity
10 Set/Sets Per Month
Product Description
The battery energy storage system (BESS) containers are based on a modular design. They can be configured to match the required power and capacity requirements of client's application.

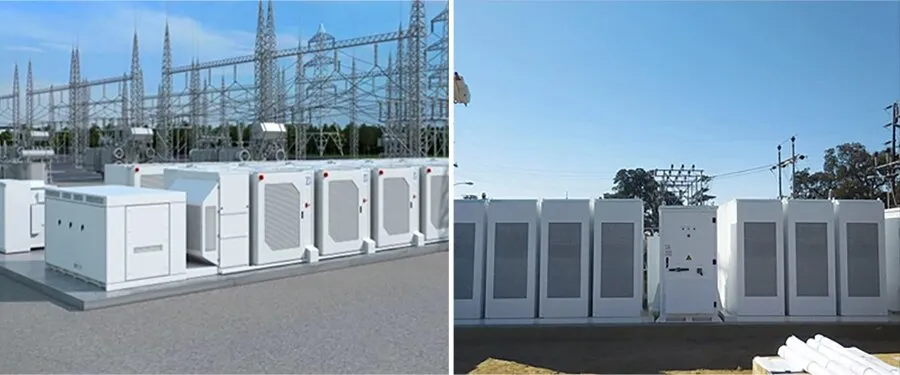

Industrial Container Lithium System Power Supply Solar Renewable Battery Energy Storage with CE

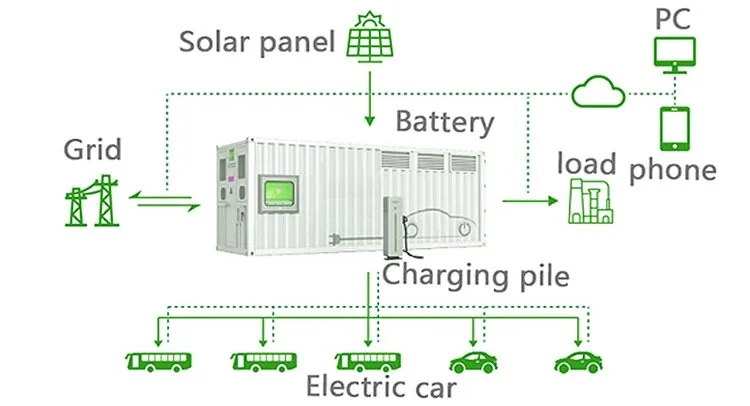

Product Description for Energy Storage System
Industrial Container Lithium System Power Supply Solar Renewable Battery Energy Storage with CE Industrial Container Lithium System Power Supply Solar Renewable Battery Energy Storage with CE
Features of Energy Storage Container Energy Storage System

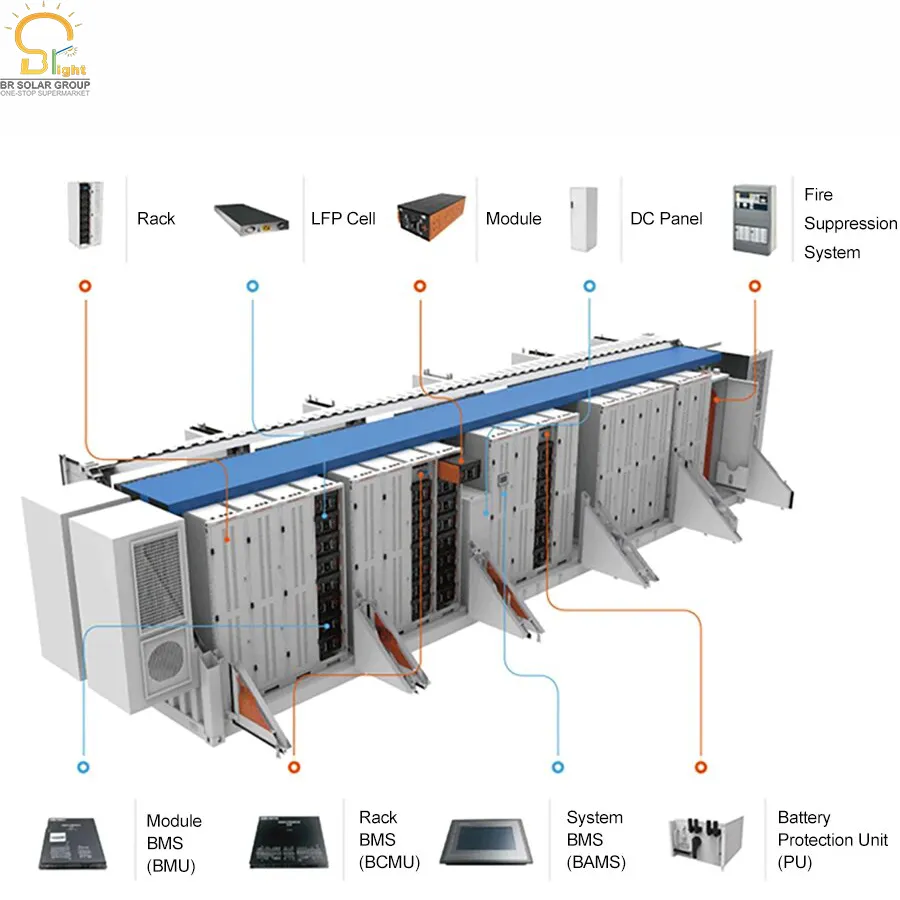

High degree of system integration, integrated battery management system, PCS, temperature control system, fire control system, access control system, data monitoring system, AC and DC power distribution, lighting system, etc.
Customizable design to meet different customer needs.
Third-level BMS system architecture, safe and reliable.
The charging mode includes pre-charging, constant-current charging, uniform charging and floating charging.
The energy storage system has perfect functions of communication, monitoring, management, control, early warning and protection. It operates continuously and safely for a long time. It can detect the running state of the system through the upper computer. It has abundant data analysis ability and emergency power supply function.

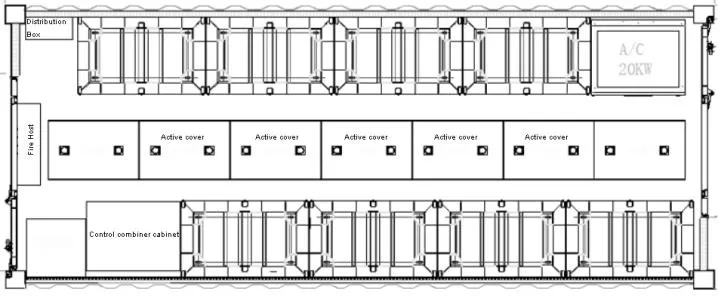

20ft Energy Storage Integrated Warehouse

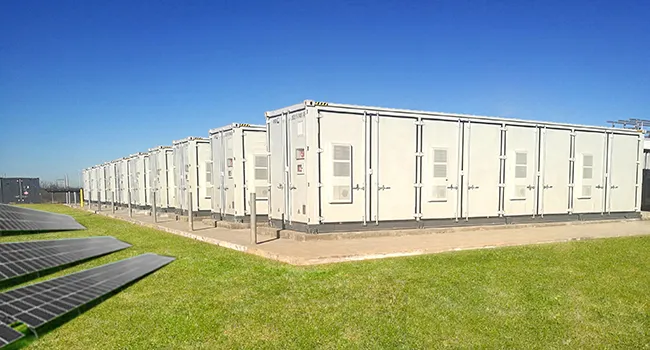

Industrial Container Lithium System Power Supply Solar Renewable Battery Energy Storage with CE
NO. Name 1000V
1 Container Size 6058mm(L)×2438mm(W)×2896mm(H)
2 Charge and Discharge Rate 0.5C 1C
3 Battery Cluster 38240 Battery Cluster*8 76120 Battery Cluster*14
4 Nominal Voltage 729.6V 691.2V
5 Rated charge and discharge power 630kW*1 500kW*2
6 Maximum stored power 1400kWh 1161kWh

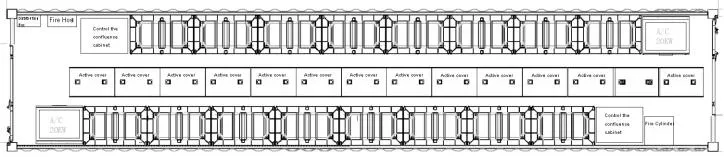

40ft Energy Storage Integrated Warehouse

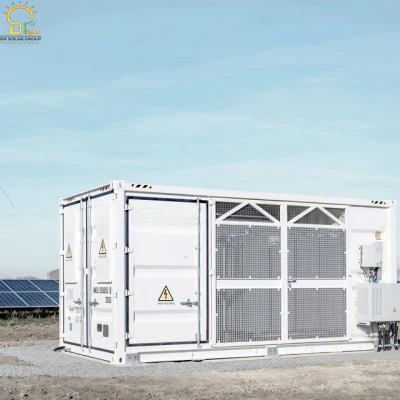

Industrial Container Lithium System Power Supply Solar Renewable Battery Energy Storage with CE
NO. Name 1000V 1500V
1 Container Size 12192mm(L)×2438mm(W)×2896mm(H)
2 Charge and discharge rate 0.5C 1C 0.5C 1C
3 Battery Cluster 38240 Battery Cluster*16 76120 Battery Cluster*28 38240 High Voltage Version Battery Cluster*8 76120 High voltage Version Battery Cluster*16
4 Nominal Voltage 729.6V 691.2V 1305.6V 1305.6V
5 Rated charge and discharge power 630kW*2 500kW*4 1250kW*1 1250kW*2
6 Maximum Stored Power 2800kWh 2322kWh 2506kWH 2506kWH
Product Parameters for 1MW/2.5MWH Energy Storage System for your reference: Customized service is available
1MW/2.5MWH Energy Storage System
Rated output power 1000KW
Rated capacity 2500KWH
AC Phases Three-phase Four-wire
Grid discharge mode Rated voltage 380V
Voltage range 380±15%V
Rated frequency 50Hz
Frequency range 47.5~51.5Hz
Total current waveform distortion rate (THD) <5%
Output power factor ≥0.99
Isolated network operation mode Rated voltage 380V
Voltage accuracy <±3%
Output voltage distortion <5%
Rated output frequency 50±2%Hz
Voltage transition range <10%
Can withstand three-phase load imbalance 100%
Grid-connected charging operation mode Rated voltage 400V
Voltage range is allowed 380±15%V
Frequency range 47.5~51.5HZ
Power factor ≥0.99 (absolute value)
Noise <70dB
IP GRADE IP54
External communication Ethernet
Dimension 12192mm(L)*2438mm(W)*2591mm(H)
Weight 22 Ton

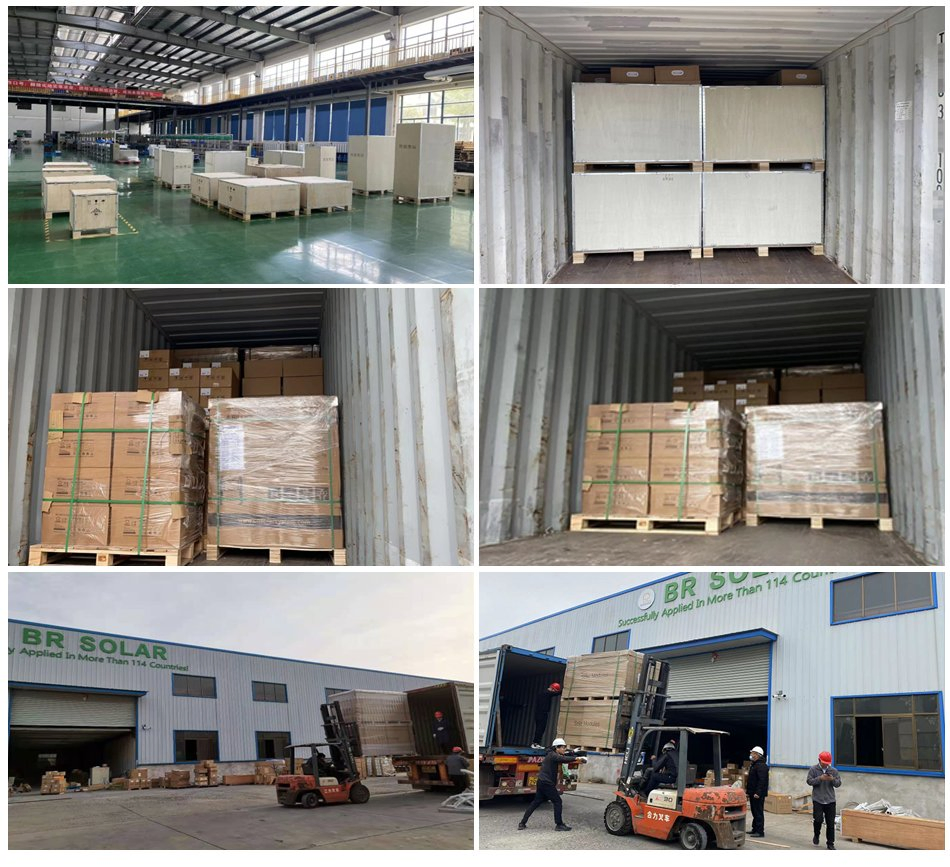

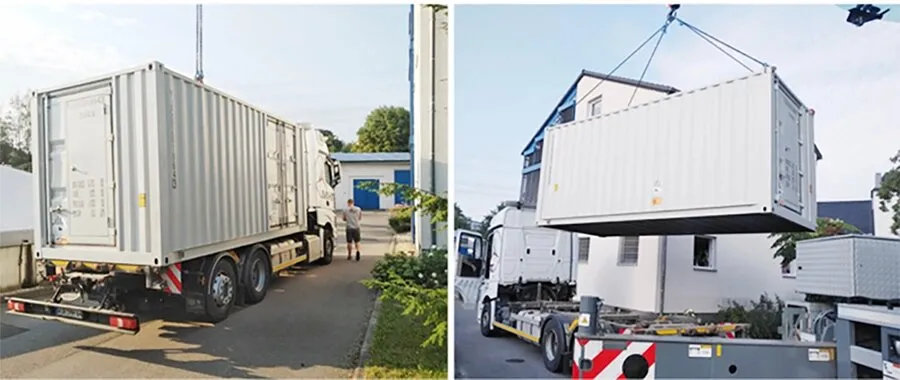

Packing & Shipping
Industrial Container Lithium System Power Supply Solar Renewable Battery Energy Storage with CE
Our Projects
Industrial Container Lithium System Power Supply Solar Renewable Battery Energy Storage with CE

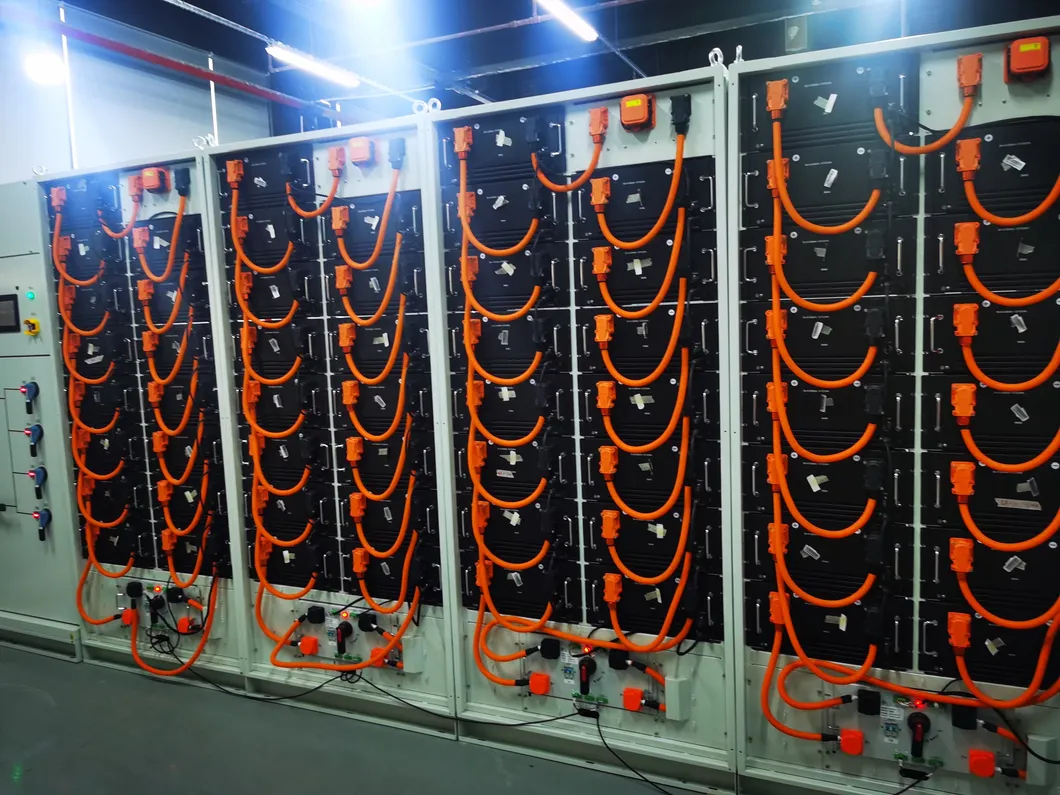

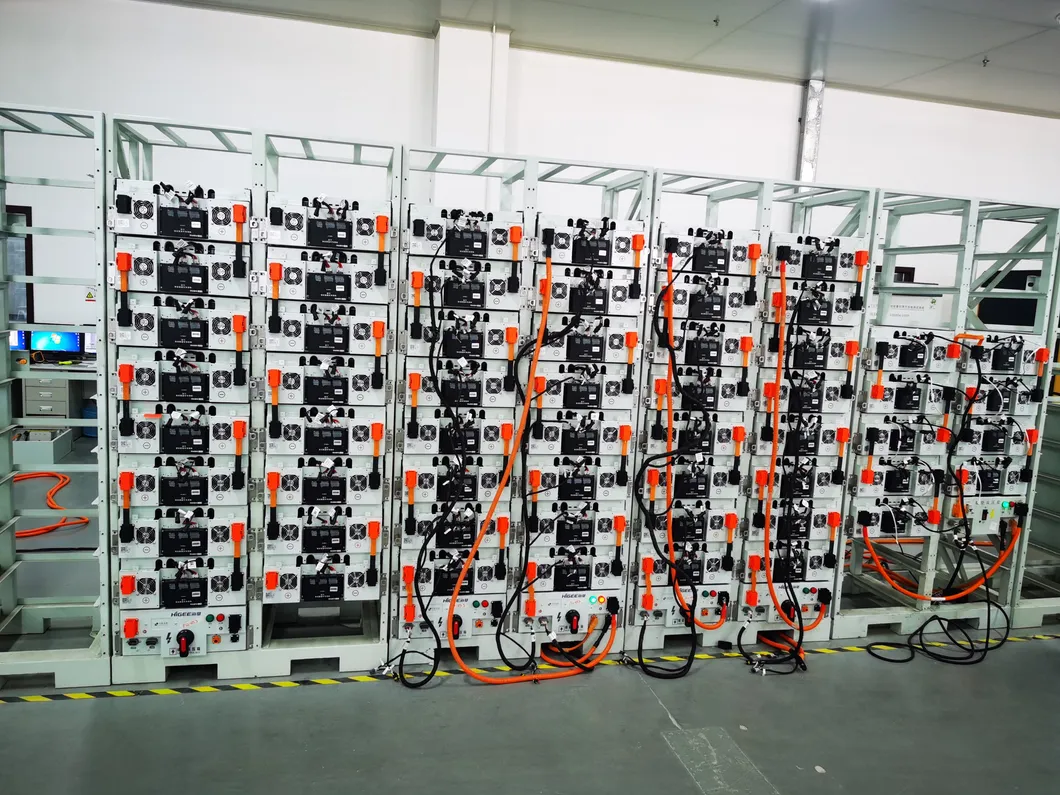

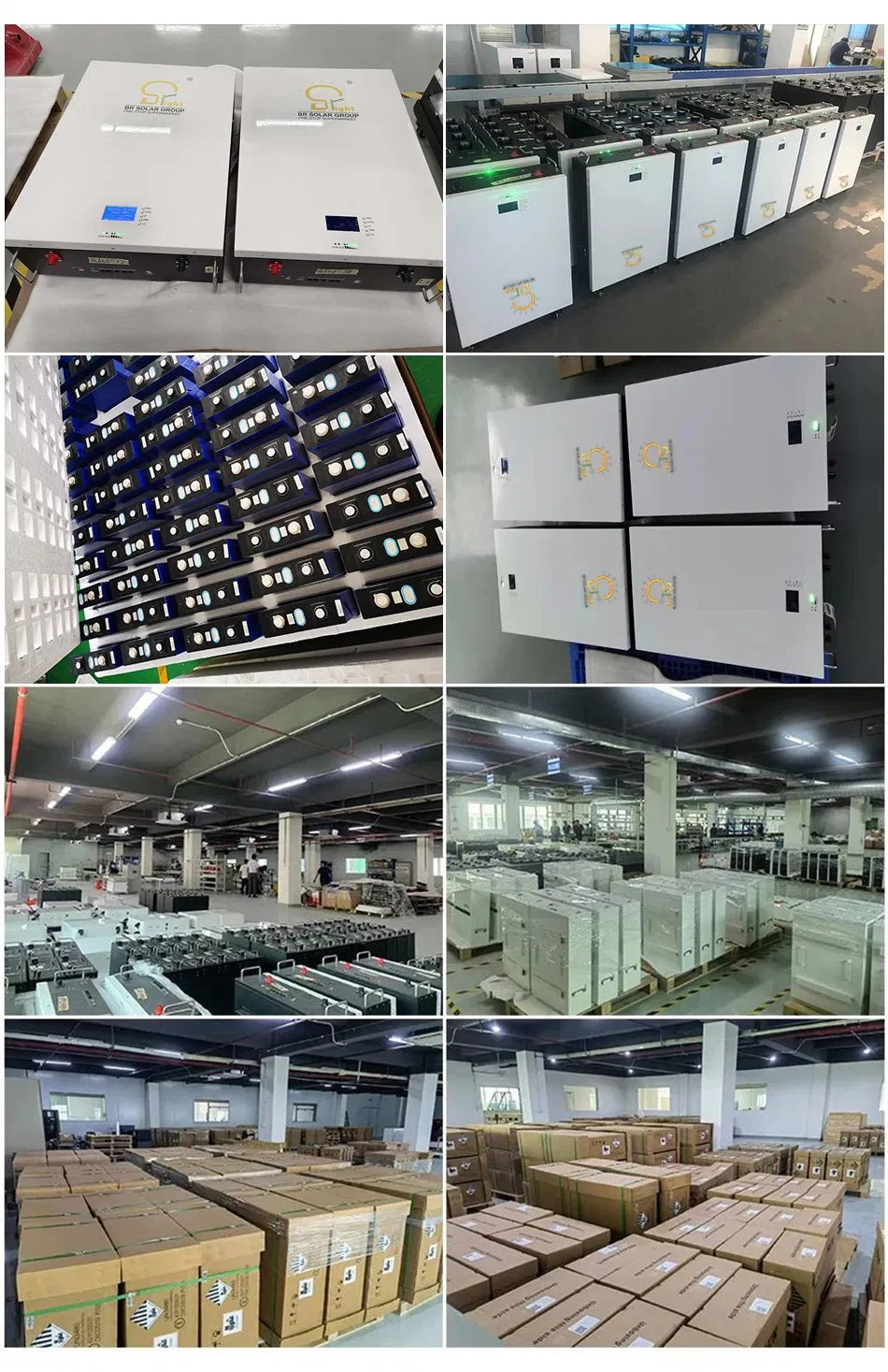

Our Factory
Industrial Container Lithium System Power Supply Solar Renewable Battery Energy Storage with CE

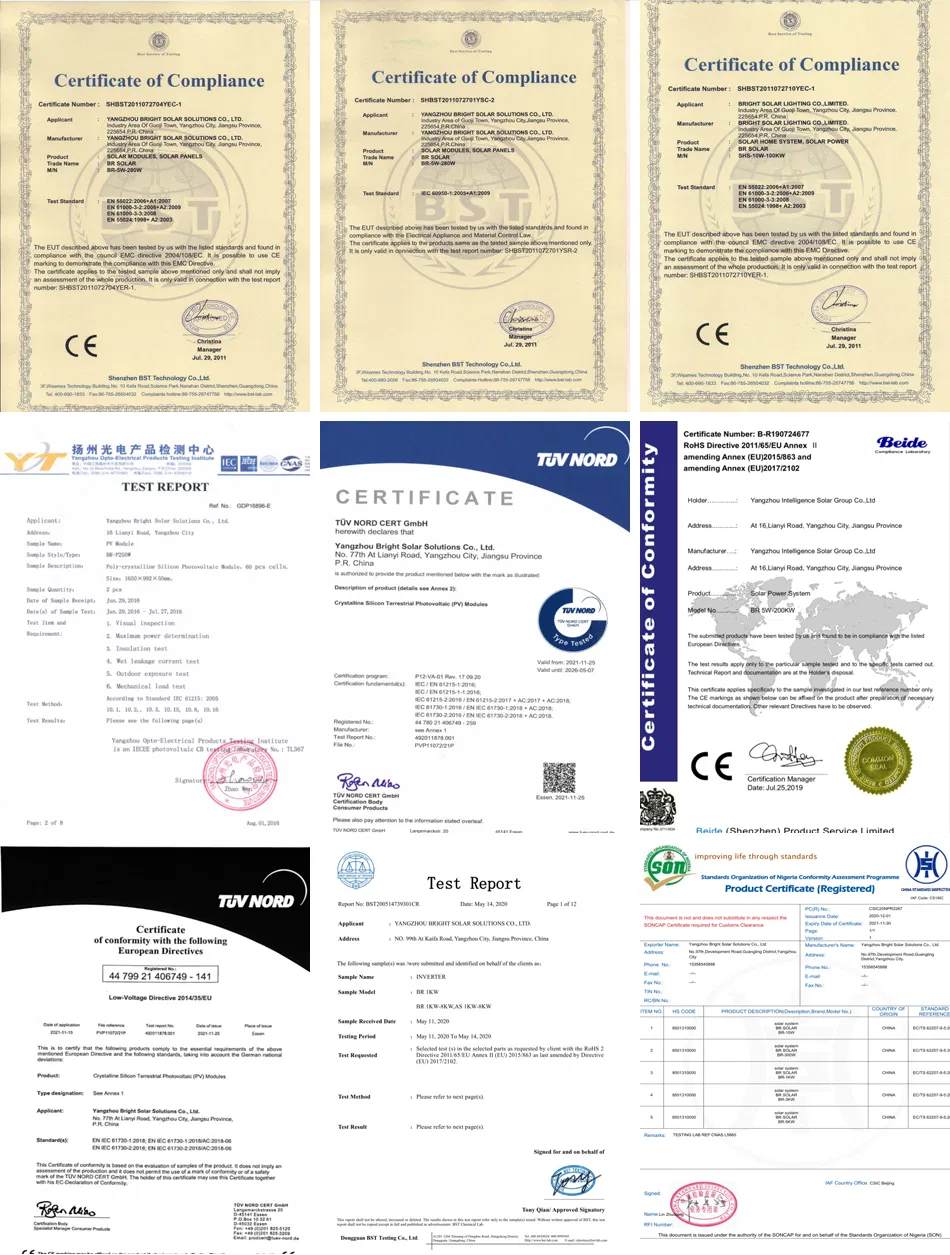

Certificates
Industrial Container Lithium System Power Supply Solar Renewable Battery Energy Storage with CE
A Billion Ways Go Green, Welcome to your inquiry.
Industrial Container Lithium System Power Supply Solar Renewable Battery Energy Storage with CE
Frequently Asked Questions (FAQ)
Q1: What battery technology is used in these containerized storage systems?
Our Energy Storage Systems utilize high-performance Lithium-Ion Battery Cells designed for long lifespan and optimal efficiency in commercial and industrial settings.
Q2: What sizes and capacities are available for the energy storage containers?

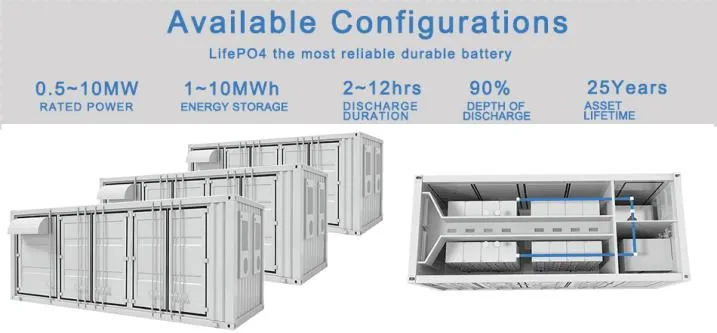

We offer standard 20ft and 40ft containers configured for either 1000V or 1500V architectures, supporting capacities up to 2800kWh for standard configurations, alongside customized power systems.
Q3: Can the storage system work in off-grid or isolated network environments?
Yes. The container system supports isolated network operation mode, featuring robust 380V rated voltage output and the capability to withstand 100% three-phase load imbalances.
Q4: How does the built-in system integration protect the installation?
The units feature highly integrated configurations including an advanced 3-level Battery Management System (BMS), active temperature control, fire control systems, AC/DC power distribution, and persistent remote monitoring systems.
Q5: What international standards and certifications do the systems comply with?
Our battery energy storage containers are fully certified under leading global standards including API, ISO, CB, CE, and TUV certifications.
Q6: Is customized system configuration available?
Yes, we offer fully customizable OEM/ODM integration, allowing tailoring of battery type, charge/discharge rates, rated power, and container sizing to fit your specific layout requirements.
