LFP Battery Storage for Industrial & Solar Projects 5000kwh

1 / 5

LFP Battery Storage for Industrial & Solar Projects 5000kwh

Customization:	Available
Nominal Voltage:	1331.2V
Warranty:	5 Years

Send Inquiry

Product Description

Basic Info

Model NO.

LFEC-5000

Nominal Capacity

100kw/215kwh

Cycle Life

6000-8000

Battery Type

Potassium Iron Phosphate Battery (LFP)

Rated Frequency

50/60hzn+5%

Selectable

Sts, Isolation Transformer

Connection

Offgrid/ Ongrid

Transport Package

Container

Specification

2500kW/5000kWh

Origin

China

HS Code

8504403090

Production Capacity

10000PCS/Year

★

Product Description

Product: LFEC-5000 Container Type 5000kWh Battery Storage System

Introduction: Modular high-capacity industrial energy storage solution, suitable for renewable energy integration, grid frequency regulation and off-grid power supply scenarios. Engineered for reliability, scalability, and seamless integration with renewable energy sources, this system delivers cost-efficient, long-duration energy storage to support grid stability, peak shaving, and off-grid power backup.

Installation: Outdoor

✔

Core Features

Massive Energy Capacity 5,000kWh per container, expandable to 20MWh+ with parallel configurations.

Superior Battery Chemistry Utilizes LFP (LiFePO4) battery chemistry for superior safety, 6,000+ cycles at 80% DoD, and a 10-year lifespan.

All-Weather, Plug-and-Play Design 40ft standard high-cube container with IP54 protection, built for harsh environments (-30°C to 55°C). Integrated liquid cooling + HVAC system ensures optimal thermal management.

Hybrid Energy Compatibility Supports solar/wind DC coupling and grid-tied AC applications with ≥95% round-trip efficiency. Black-start capable (<10ms response) for micro-grid resilience.

Smart Energy Management AI-driven load forecasting & demand charge optimization, reducing energy costs by 30%+. SCADA compatible EMS for remote monitoring and predictive maintenance.

⚙

Technical Parameters

Product Model	LFEC-5000
Battery Type	LFP314Ah
Rated Power	5015.96kWh
Battery Rated Voltage	1331.2V
Battery Voltage Range	1164.8-1500.0V
Weight	43t
Dimensions (WDH)	605824382896mm
Maximum System Efficiency	94%
Charge and Discharge Rate	0.5C
Cycle Times	>6000 @ 25ºC 0.5C/0.5C, 90%DOD, 70%EOL
Cooling Method	Liquid Cooling
Protection Level	IP54
Communication Interface	Ethernet/RS485/CAN/4G
Fire Protection	Perfluorohexanone + water spray

▤

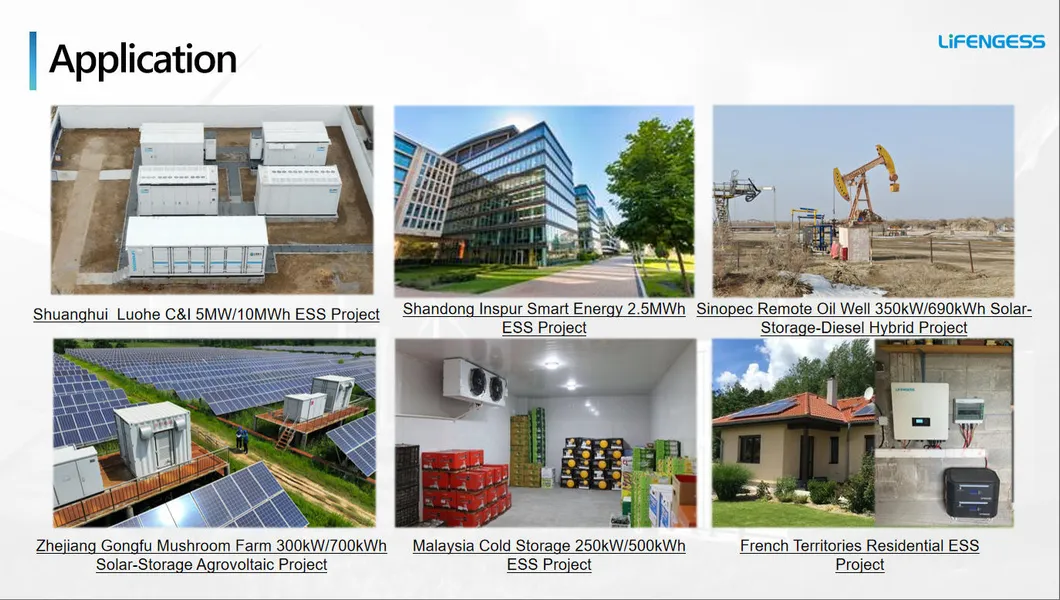

Applications

Utility-Scale Storage - Grid frequency regulation & renewable firming.
Industrial Microgrids - Peak shaving for factories, mines, and data centers.
Off-Grid & Emergency Backup - Seamless transition during outages.

📷

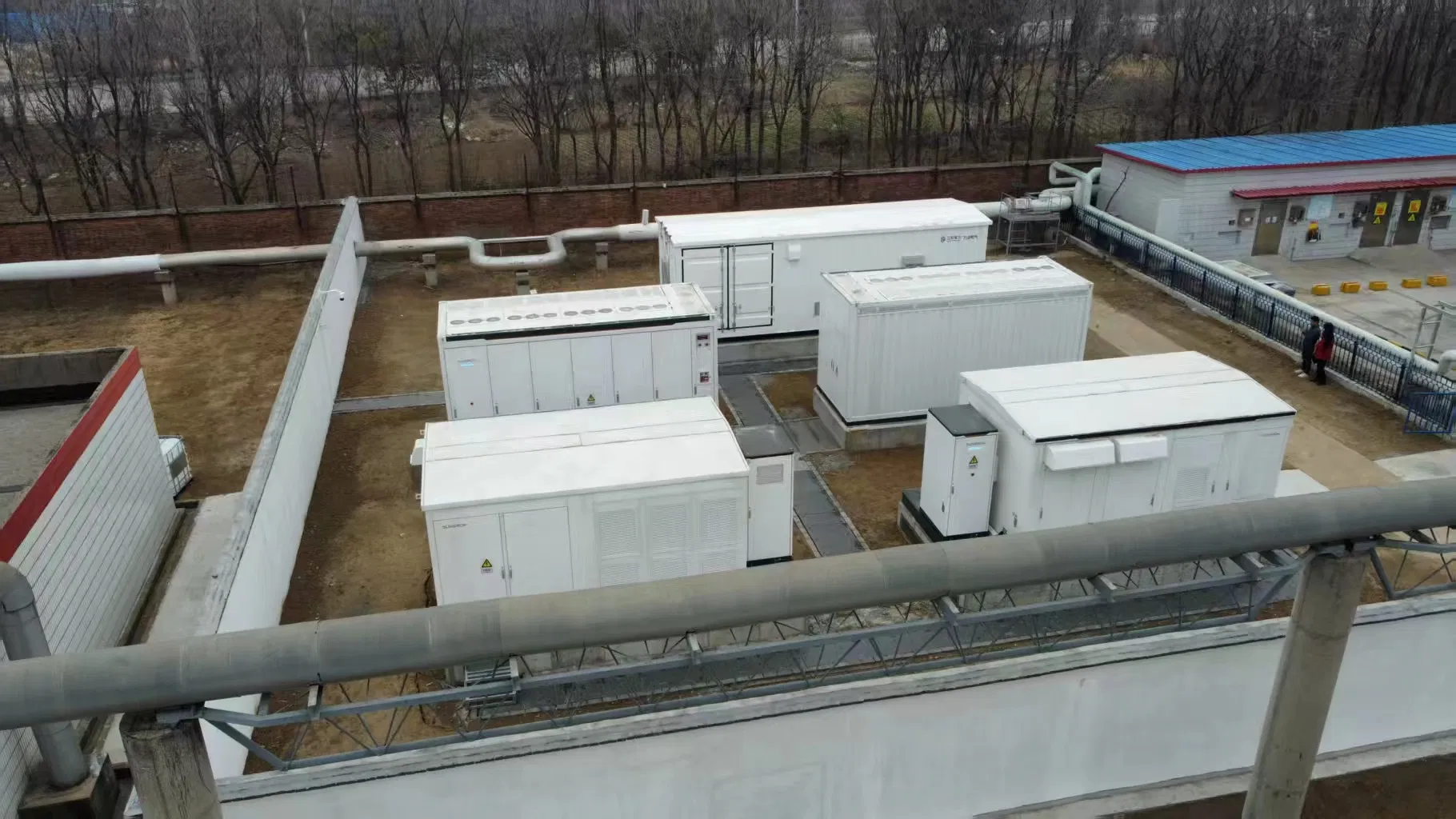

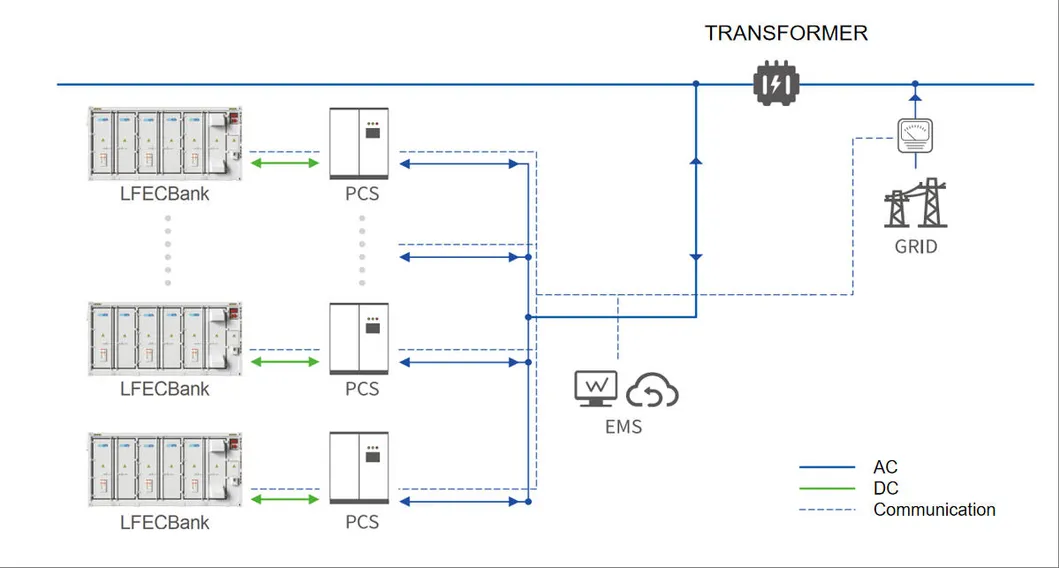

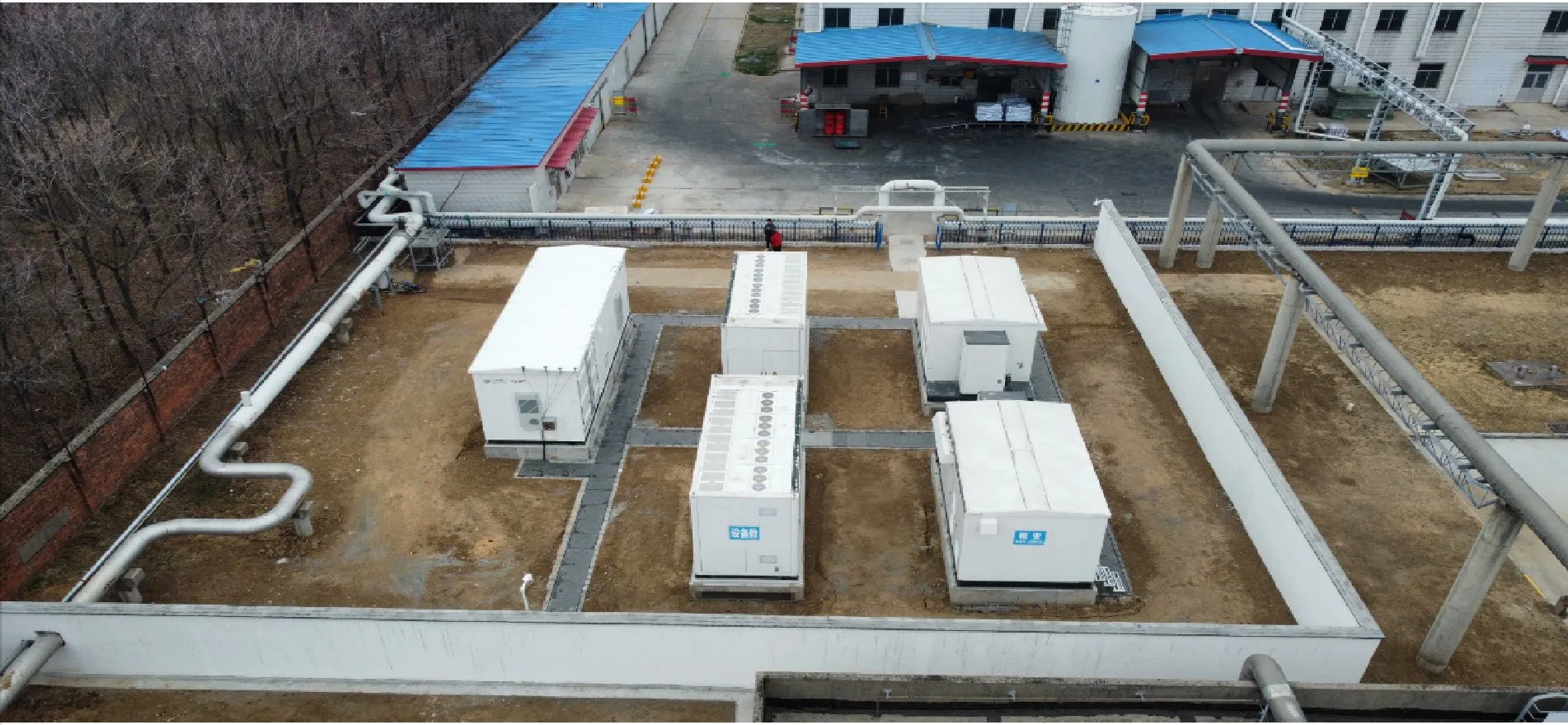

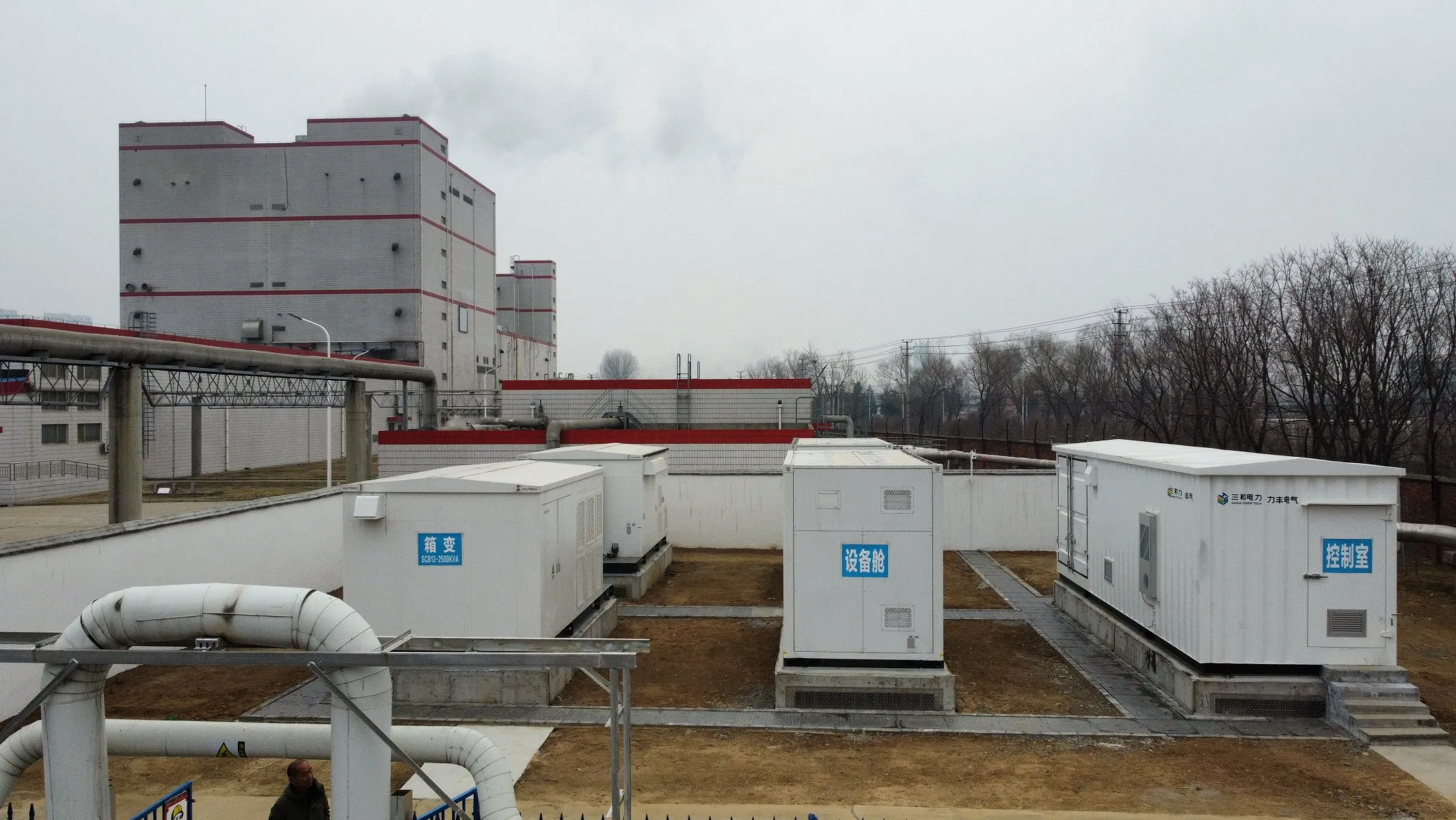

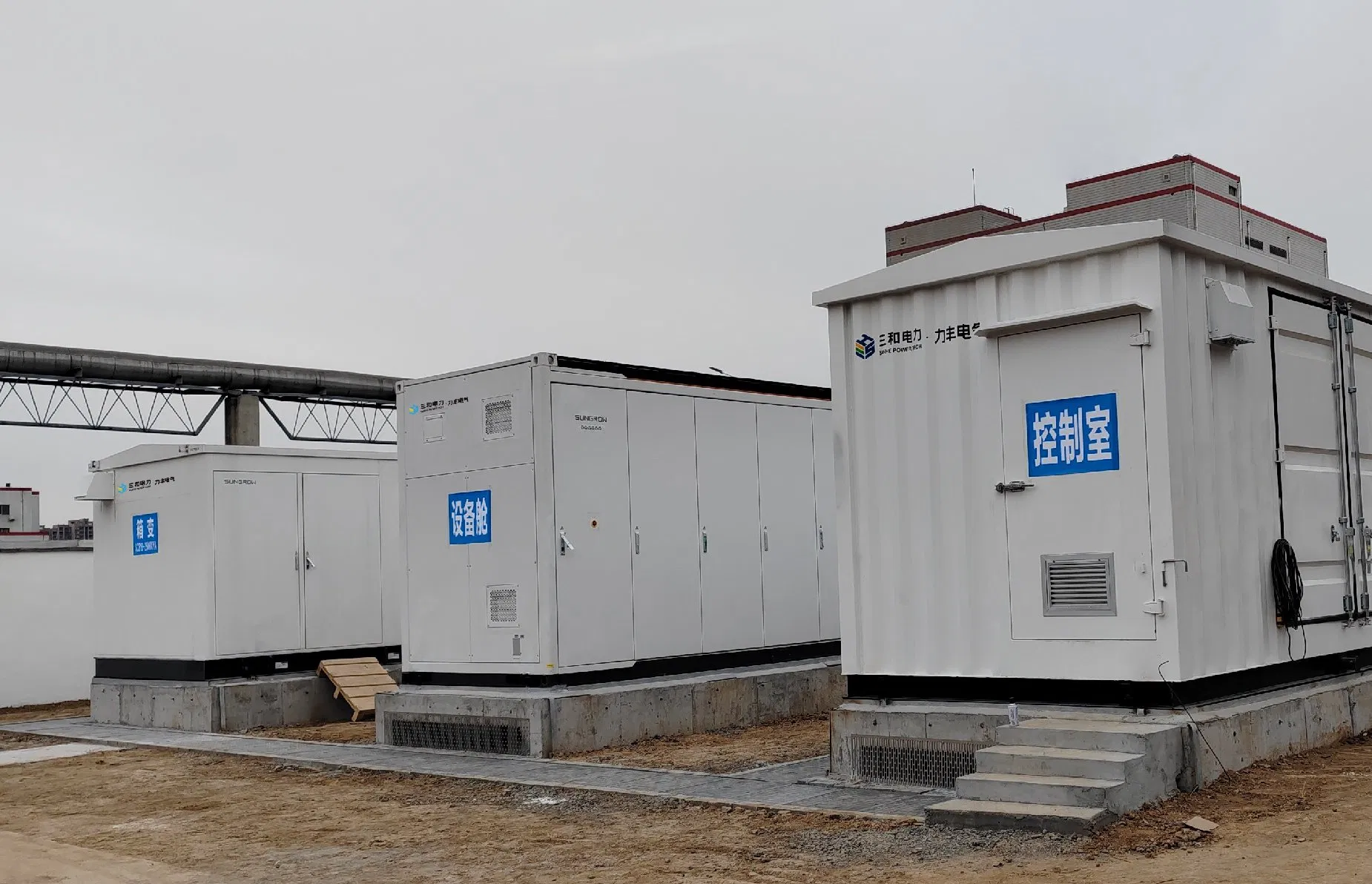

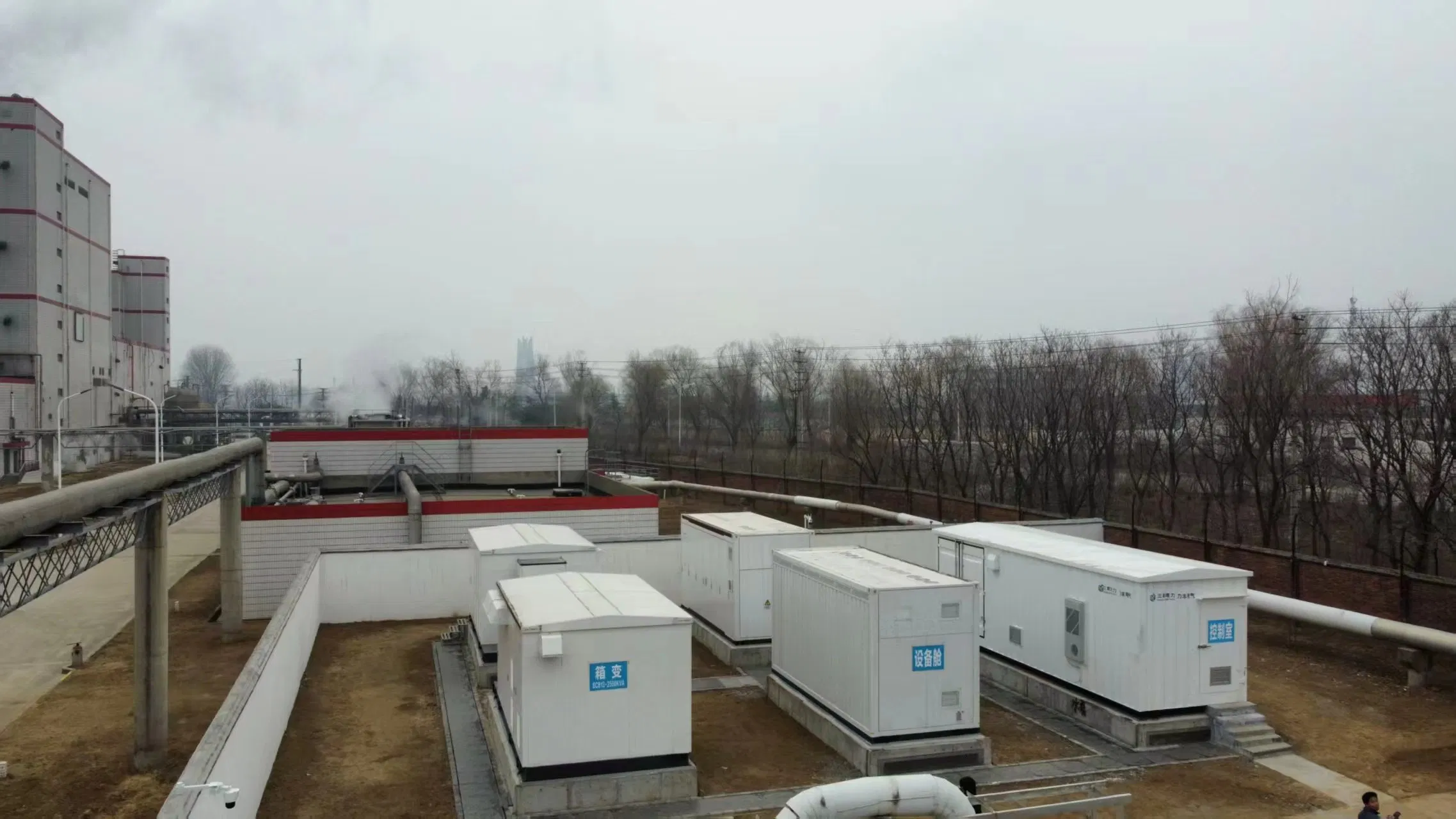

System Topology & Gallery

Questions and Answers

How to ensure the stability of the system in extreme climates?

LFEC-5000 adopts a three-level temperature control design including liquid cooling of battery cells, air conditioning in the warehouse, and an external insulation layer. It ensures operation from -30°C (via self-heating) to 55°C (via active heat dissipation).

Where does the cost advantage per kilowatt-hour come from?

Our advantage comes from increased cycle efficiency (92%), a 60% reduction in civil construction costs due to containerized deployment, and AI-driven O&M which reduces manual inspection frequency.

Does the system support the retrofitting of old photovoltaic power stations?

Yes. We provide DC couplers to adapt to existing inverters, and the EMS is fully compatible with major third-party photovoltaic monitoring systems.

How does the system handle sudden power outages?

The system features a black-start capability with a response time of less than 10ms. It also includes a fast-charging module and supports seamless linkage with diesel generators.

What is the expected lifespan and cycle count of the battery?

The system utilizes high-grade LFP cells designed for 6,000 to 8,000 cycles, providing a reliable operational lifespan of over 10 years depending on the depth of discharge.

Can the capacity be expanded if my industrial needs grow?

Absolutely. The modular design allows for parallel configuration, making it easy to expand from a single 5,000kWh unit to a large-scale 20MWh+ system as your power requirements increase.
