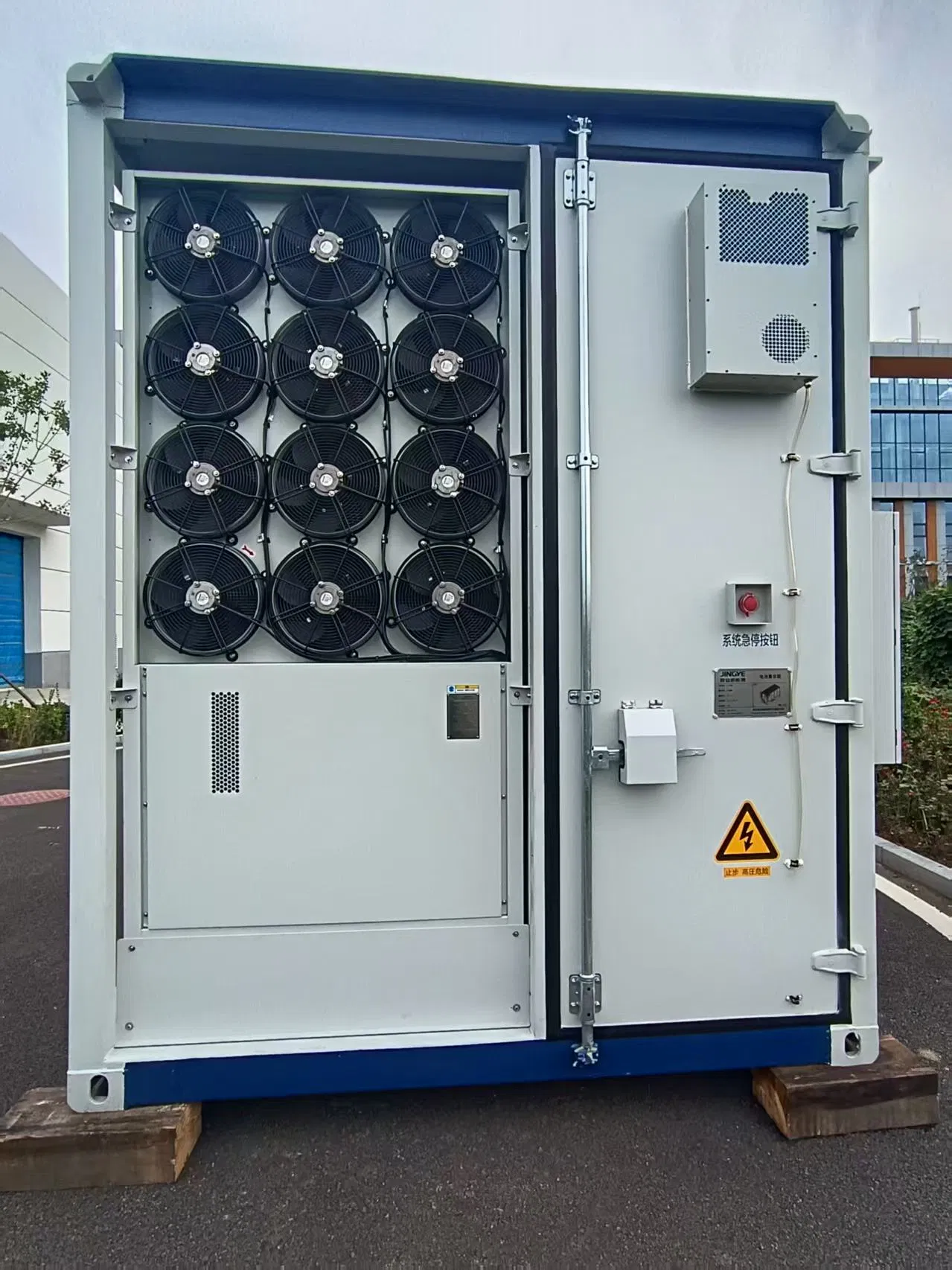

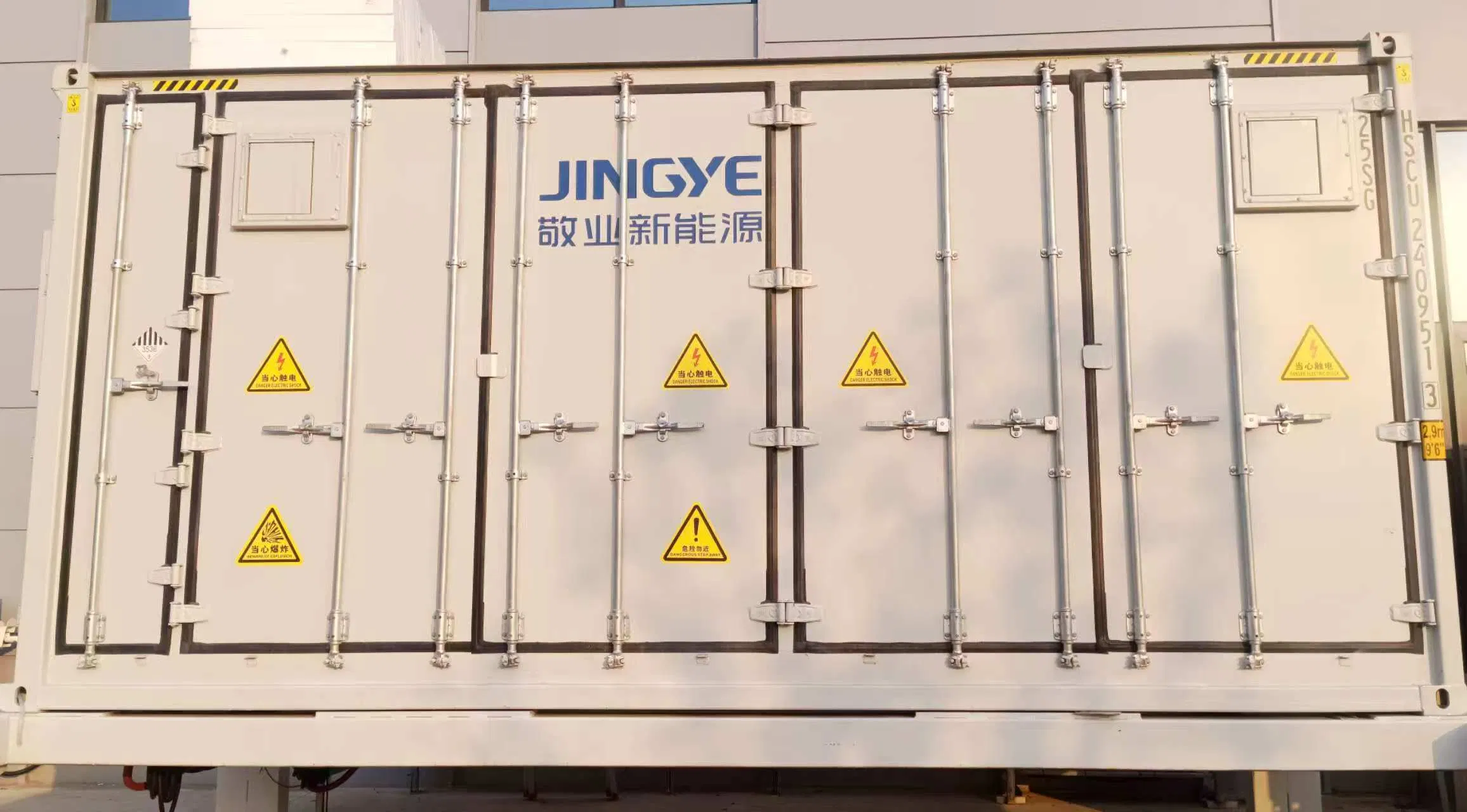

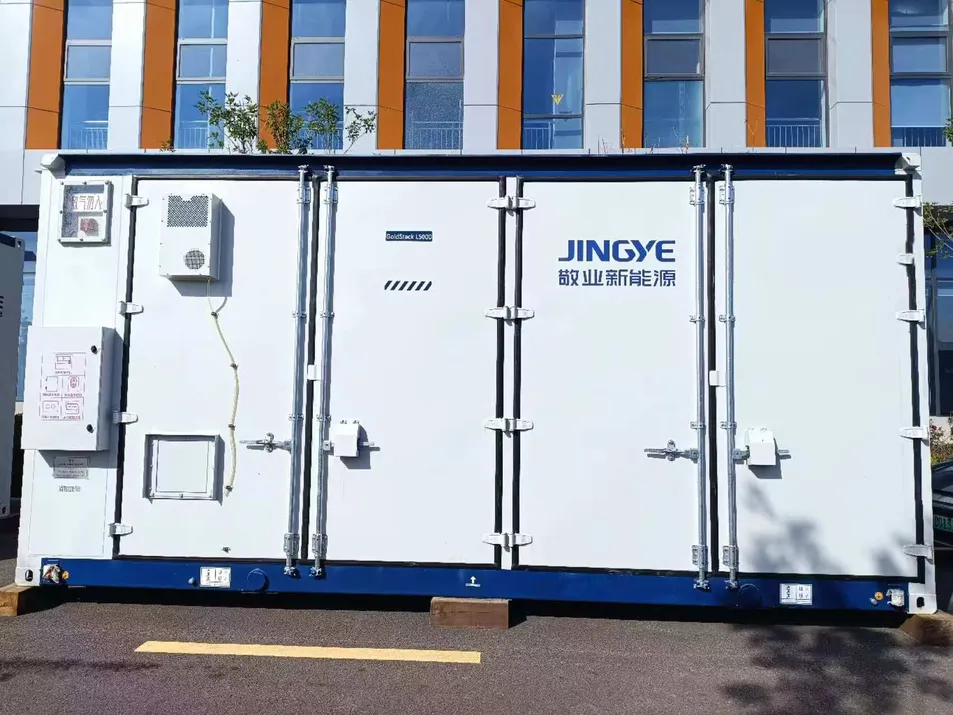

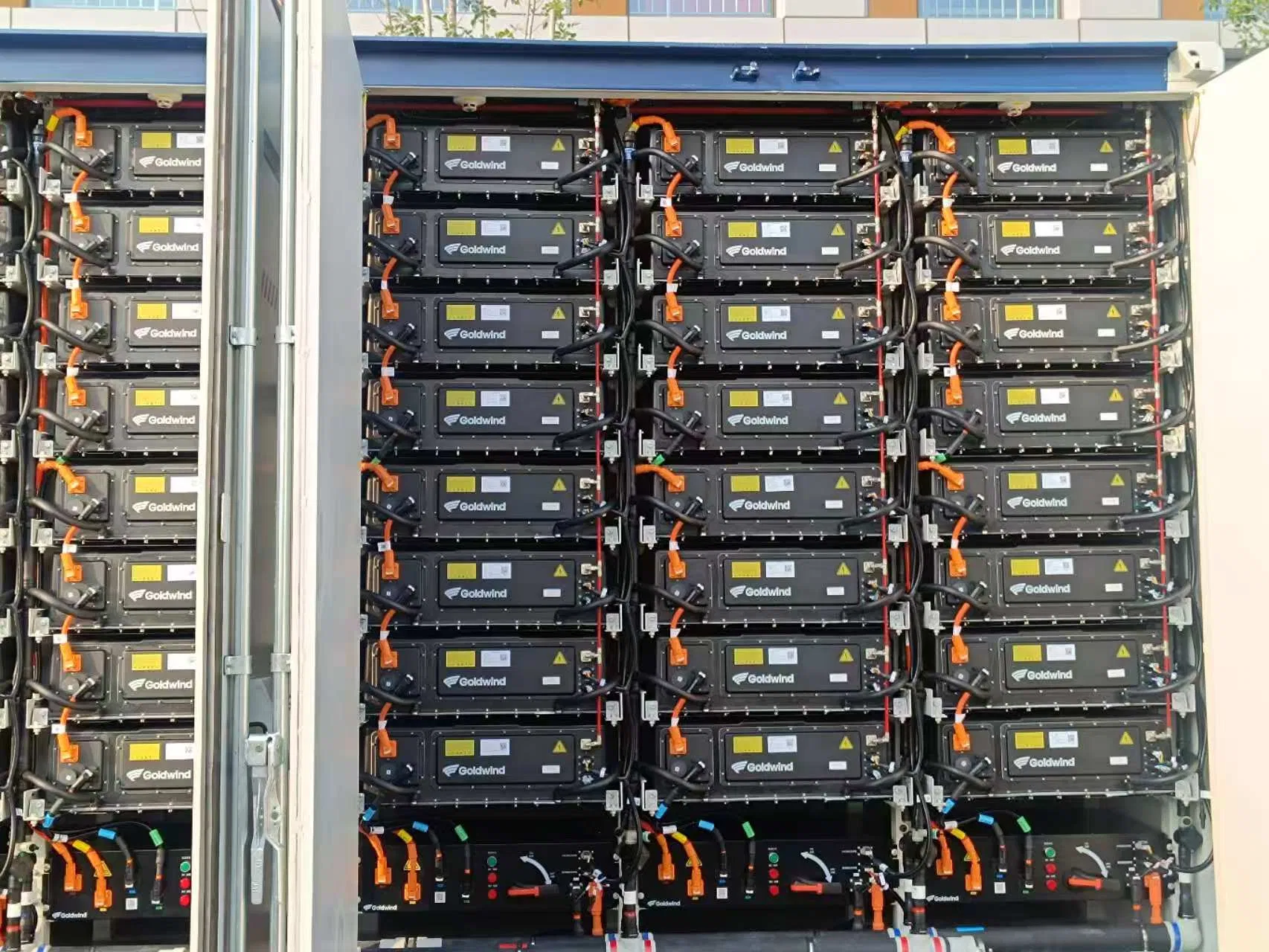

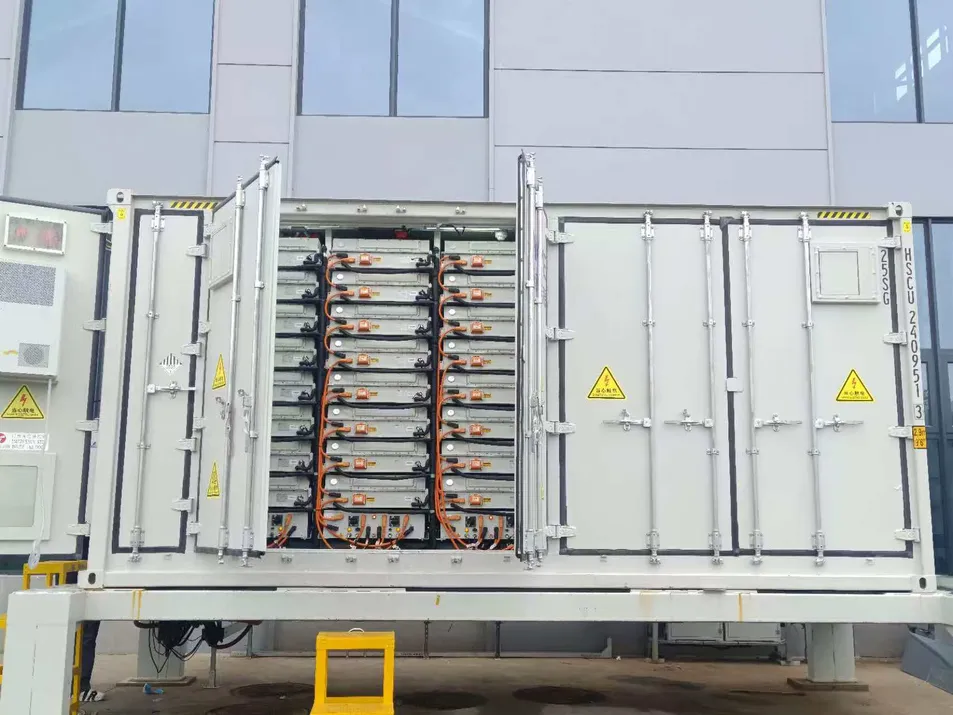

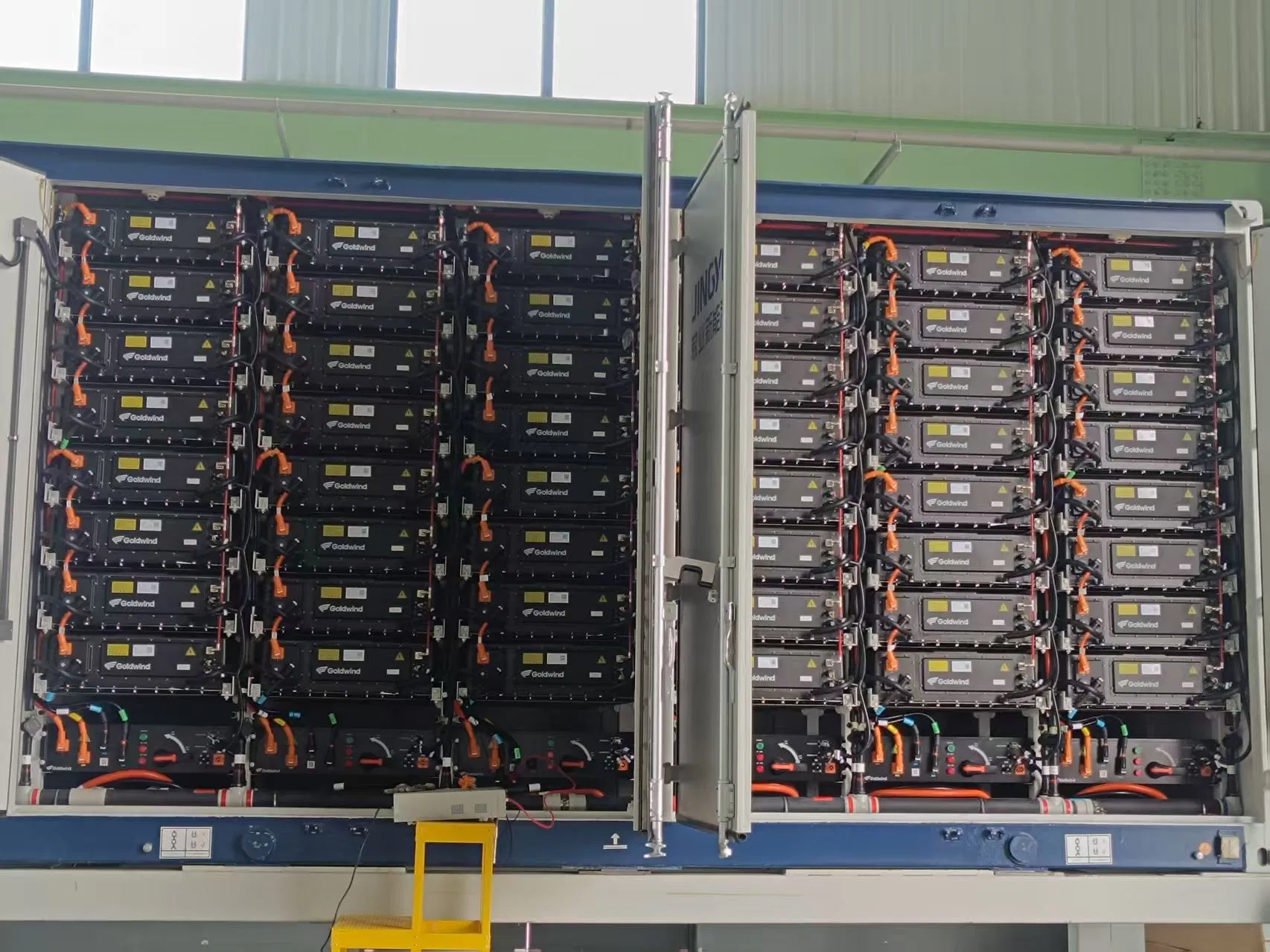

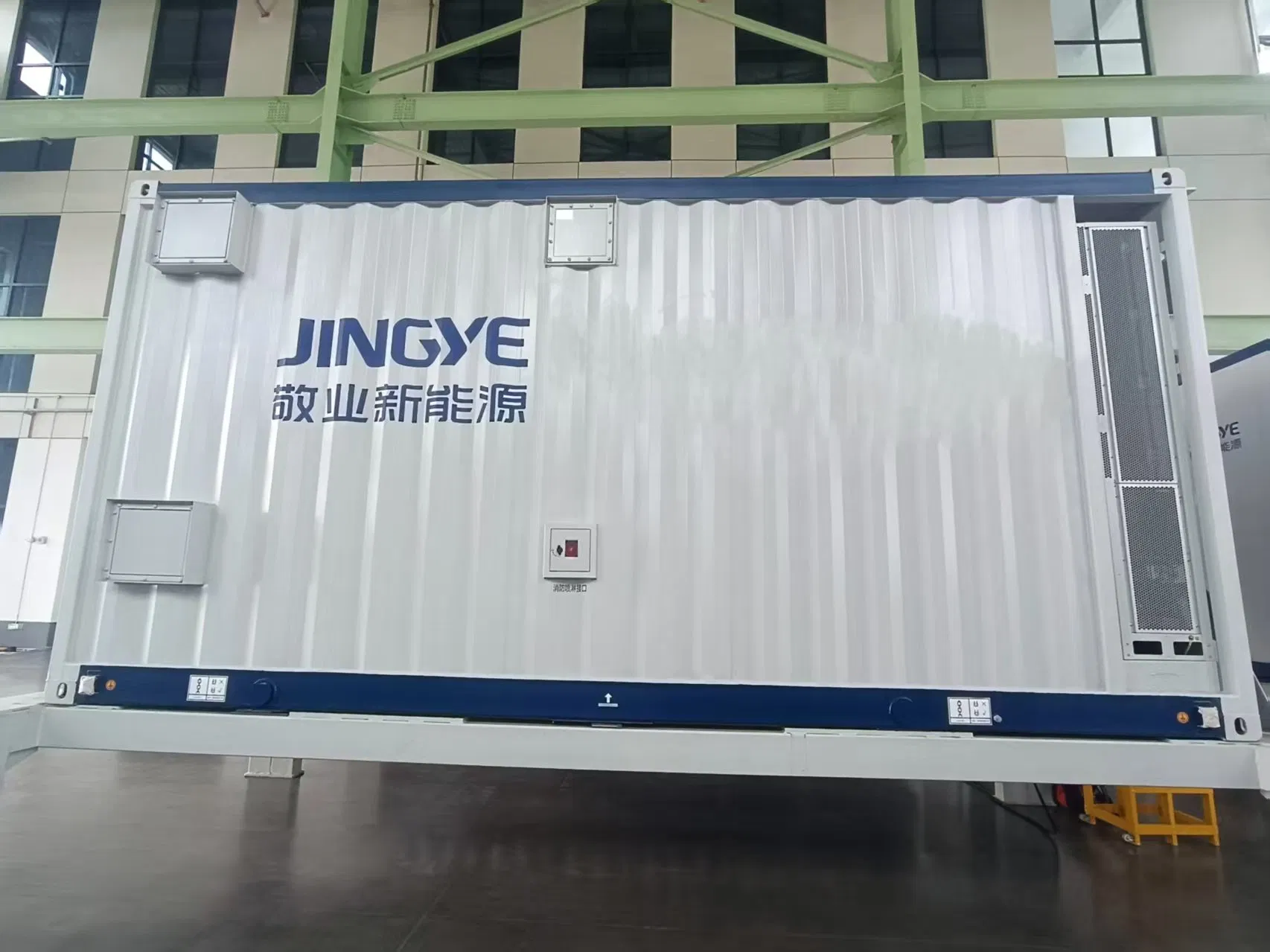

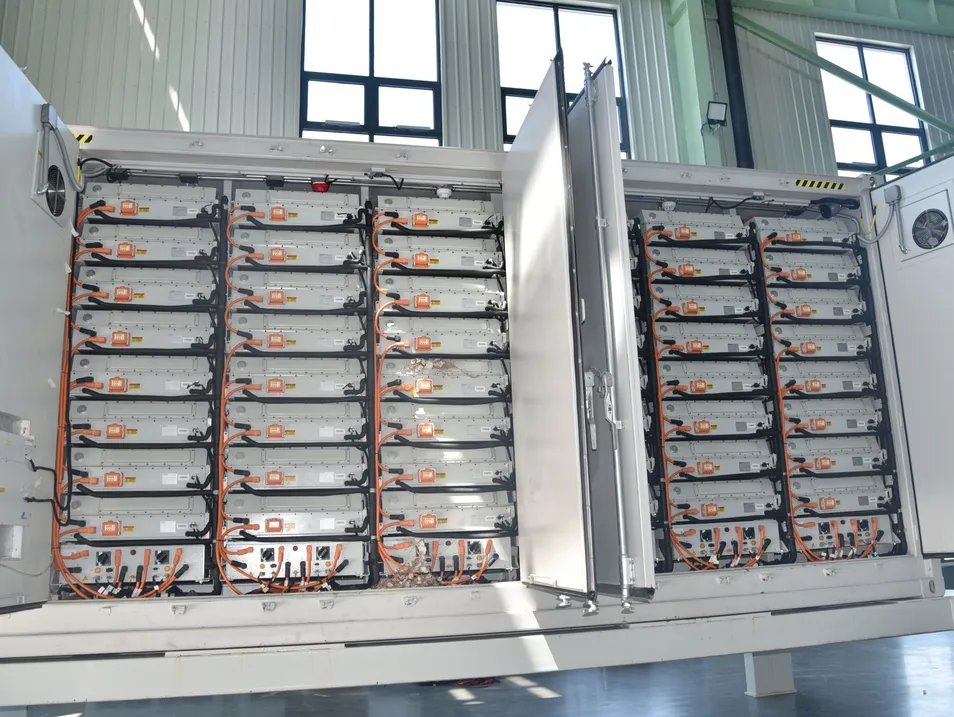

5015KWh Liquid Cooling energy storage system based on domestic high-capacity 314Ah energy storage cells, consisting of a 104S long PACK, battery cluster units, battery management systems, fire protection systems, lighting systems, thermal management systems, electrical systems, and environmental control systems. The energy storage system uses simplified integration technology, installing PACK, distribution busbars, liquid cooling units, temperature control systems, and fire protection systems within a standard 20-foot container (2438mm-2896mm-6058mm), arranged in three compartments, ensuring safety control while being suitable for various transportation conditions and site designs.
| 5MWh Liquid Cooling Battery Container | |||
|---|---|---|---|
| No. | Item | Specification | |
| 1 | Configuration | 12*(1P104S*4) | |
| 2 | Rated Power | 5MWh | |
| 3 | Rated Voltage | 1331.2VDC | |
| 4 | Voltage Range | 1164.8V -1497.6VDC | |
| 5 | Rated Charging Power | ≤ 2.5MW | |
| 6 | Rated Discharge Power | ≤ 2.5MW | |
| 7 | Auxiliary Power Supply | 400VAC±5% 50Hz/ 220VAC (significant load) | |
| 8 | Environmental Conditions | Storage | 5℃ < T ≤ 35℃ |
| 9 | Work | 0℃ < T ≤ 60℃ (charging) -30℃ < T ≤ 60℃ (discharging) |
|
| 10 | Altitude | ≤ 4000m (>4000m derating) | |
| 11 | General Parameters | Dimensions | L6058 x W2438 x H2896mm |
| 12 | Color | (default) | |
| 13 | Weight | About 43t | |
| 14 | IP Rating | IP54(default) | |
| 15 | Refrigeration method | Liquid Cooling | |
| 16 | Communication Protocol | Ethernet, CAN, ModbusRTU | |
| 17 | Coolant | 50% ethylene glycol aqueous solution | |

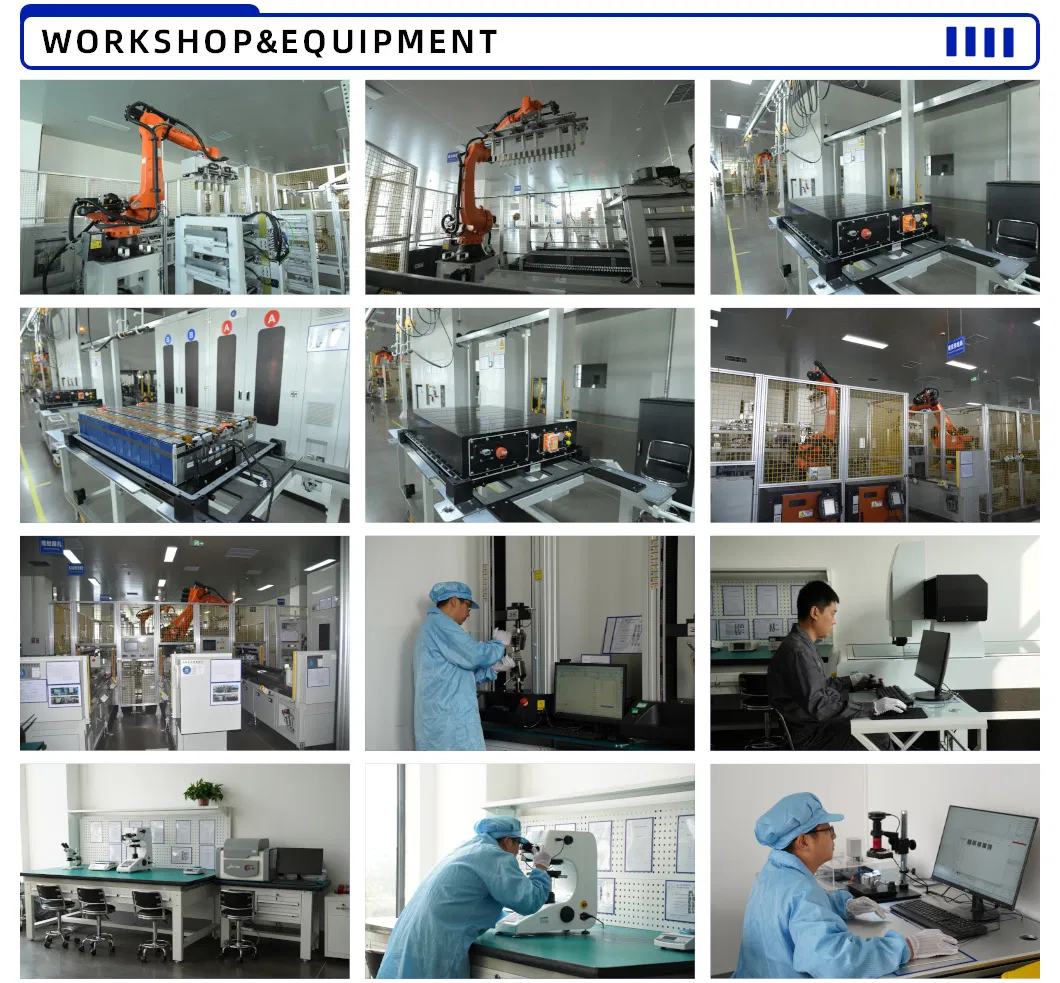

The company has the most advanced and automated production line, and now has an annual production capacity of 5 GWh of energy storage system and 2.4 million pieces of CCS busbars. The products are widely used in smart grids, wind and solar power distribution and storage, industrial and commercial energy storage, green transportation, and other fields. The company has a global layout of new energy market, established branches at domestic and overseas, and provides rapid, efficient, and high-quality services to global customers.
