Product Description

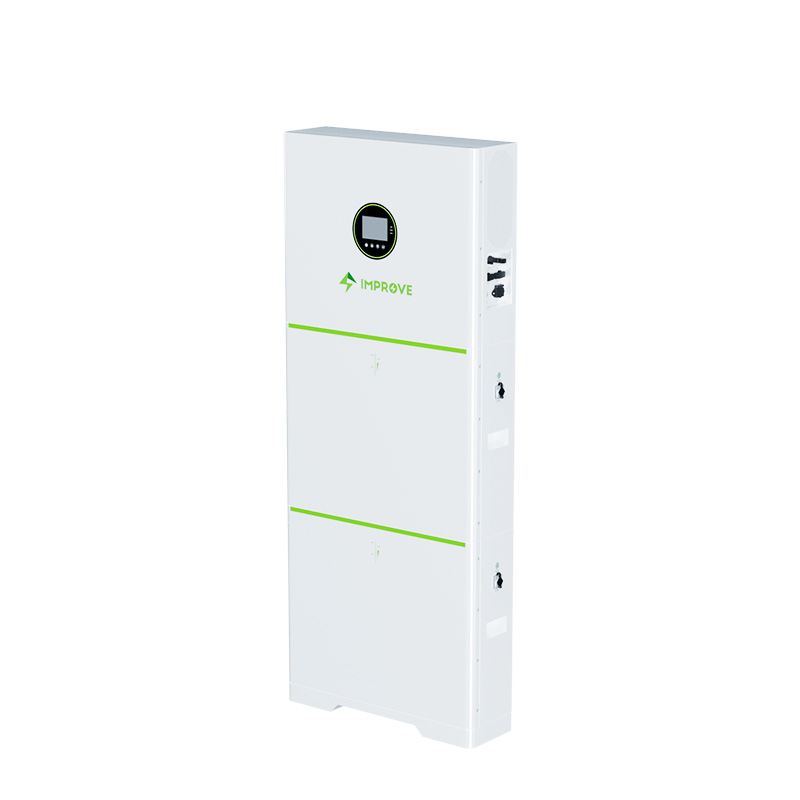

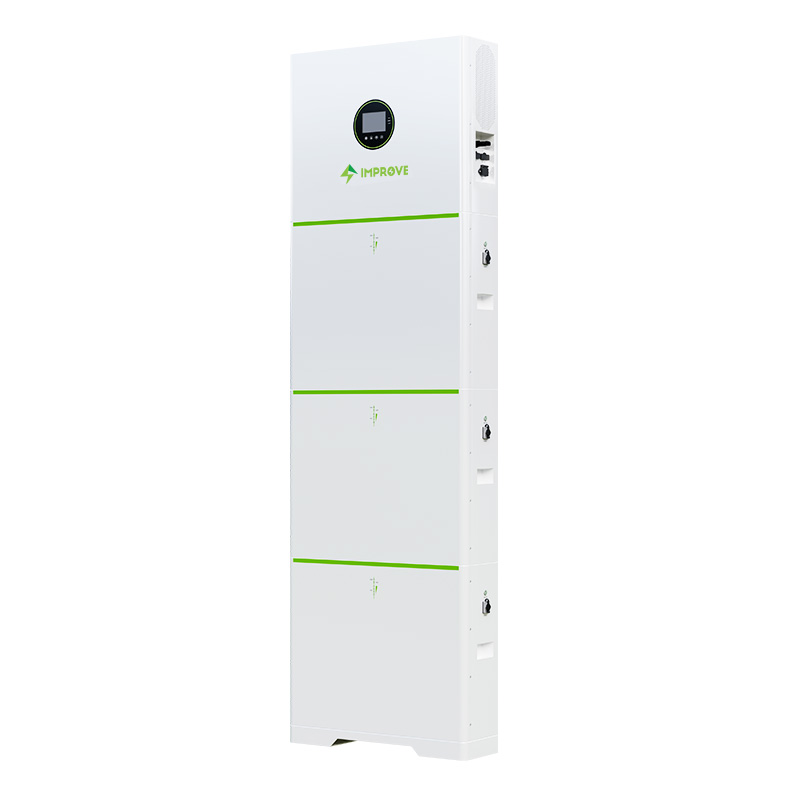

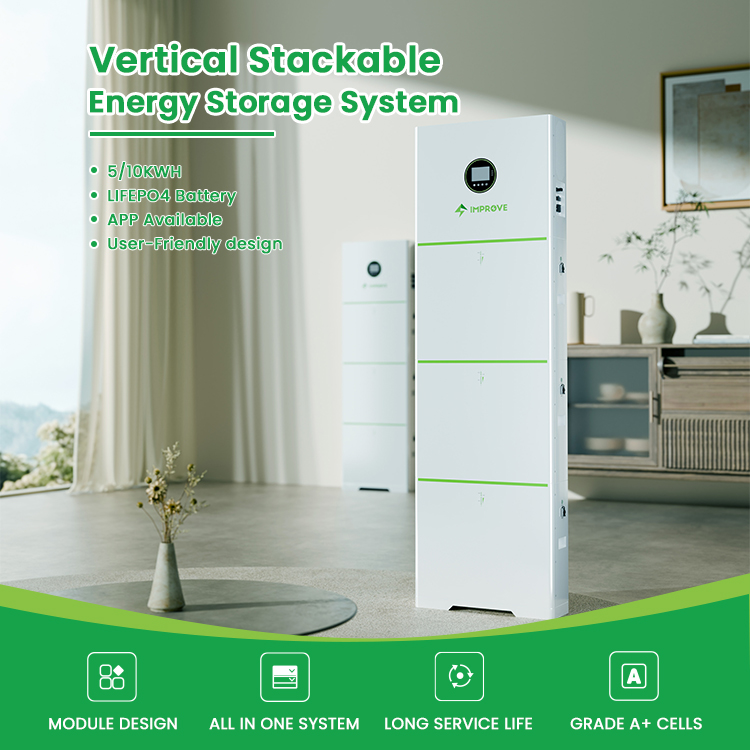

Vertical Stackable Energy Storage System
Vertical Stackable Energy Storage System

IMP BATTERY, stackable LiFePO4 battery system. Designed to provide reliable backup power for household energy storage systems.

Specification

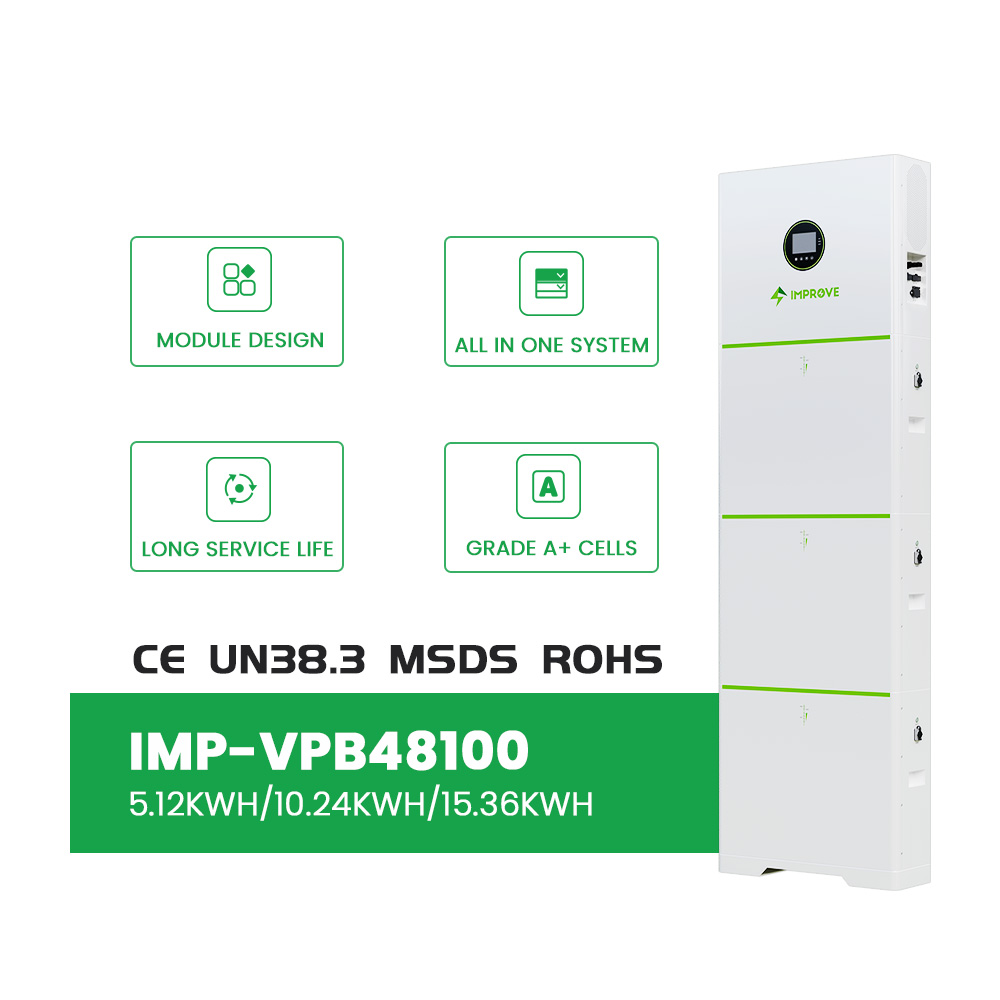

Battery Module IMP-VPB48100
48V 100Ah 4,800Wh (15S) / 51.2V 100Ah 5,120Wh (16S)
Num. of Modules 1 2 3

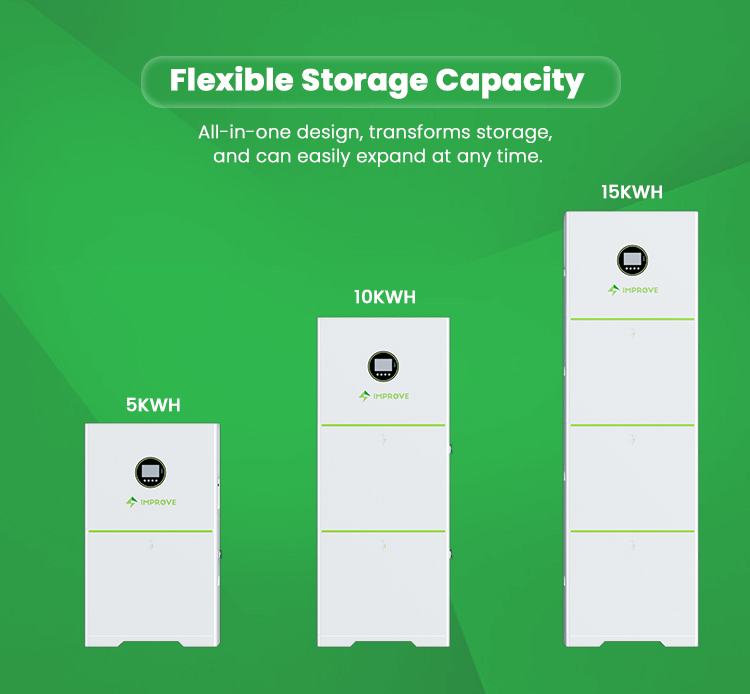

Nominal Energy 4.8kWh / 5.12kWh 9.6kWh / 10.24kWh 14.4kWh / 15.36kWh

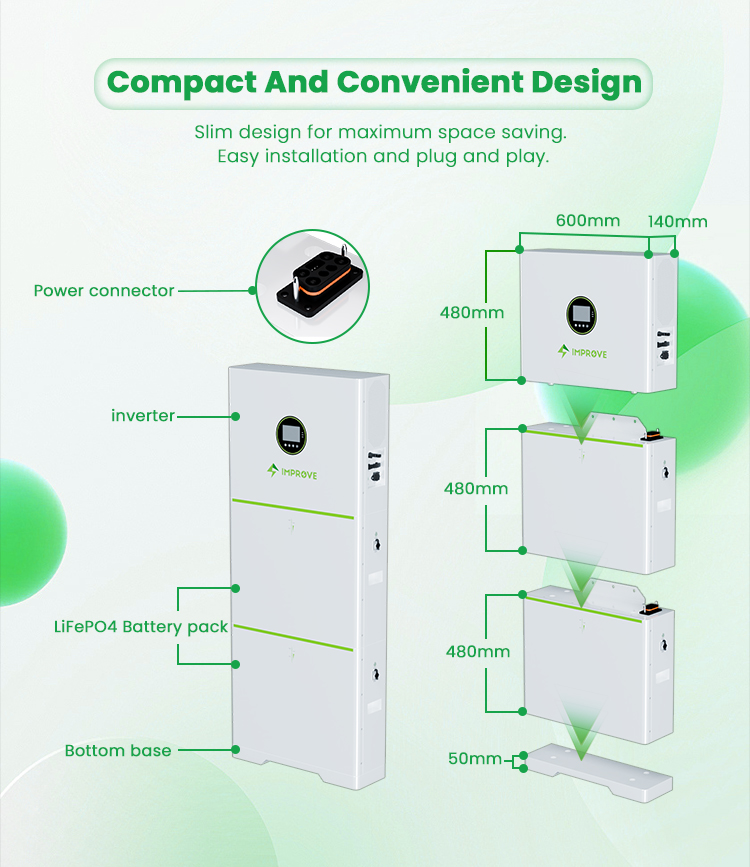

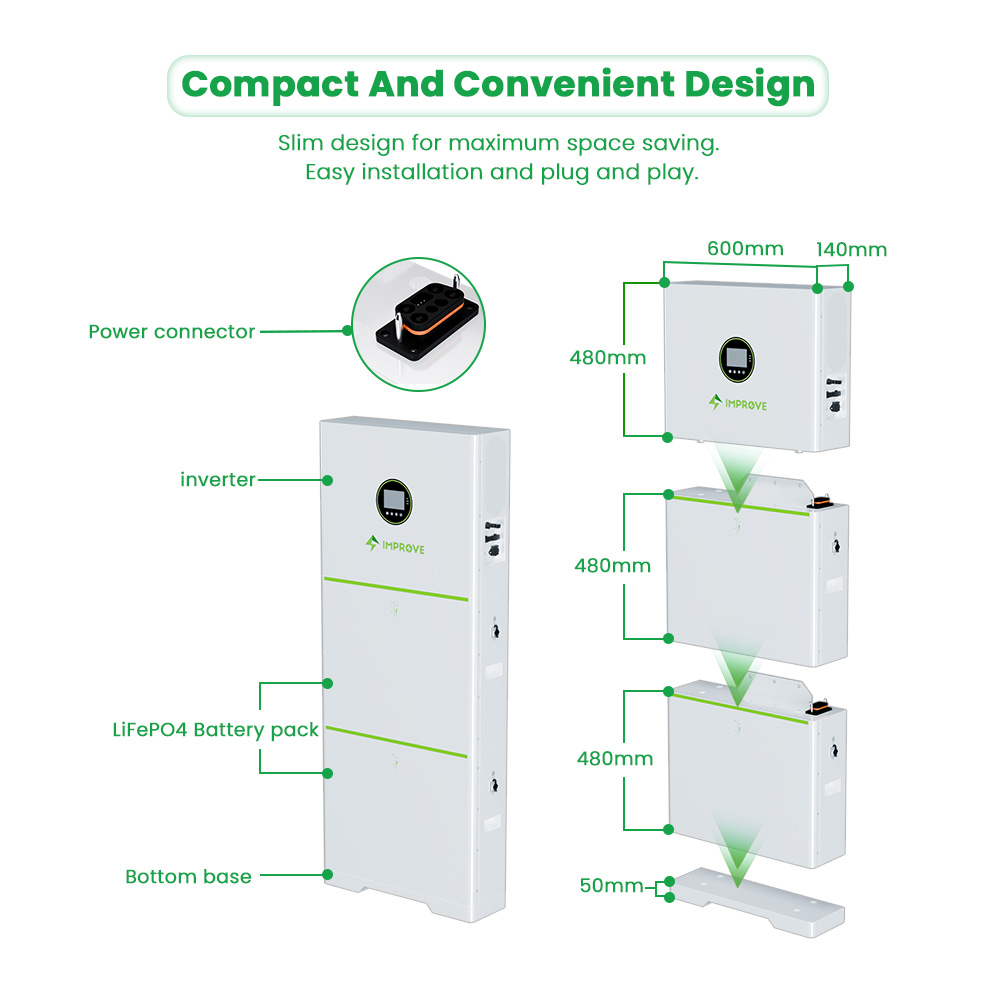

Dimension (W*D*H) 600*175*1010 mm 600*175*1490 mm 600*175*1970 mm
Approx. Weight 85kg 135kg 185kg
Life Cycles 6000 Cycles @80%DOD, 0.5C, 25°C
Communication RS485
Inverter & PV Input
Rated Output Power 5,000W
Rated Output Voltage 120Vac (L/N/PE single-phase) 230Vac (L/N/PE single-phase)
Rated AC Frequency 50Hz / 60Hz
Max. PV Array Power 5,500W
MPPT Voltage Range 125 ~ 450Vdc
Product Details

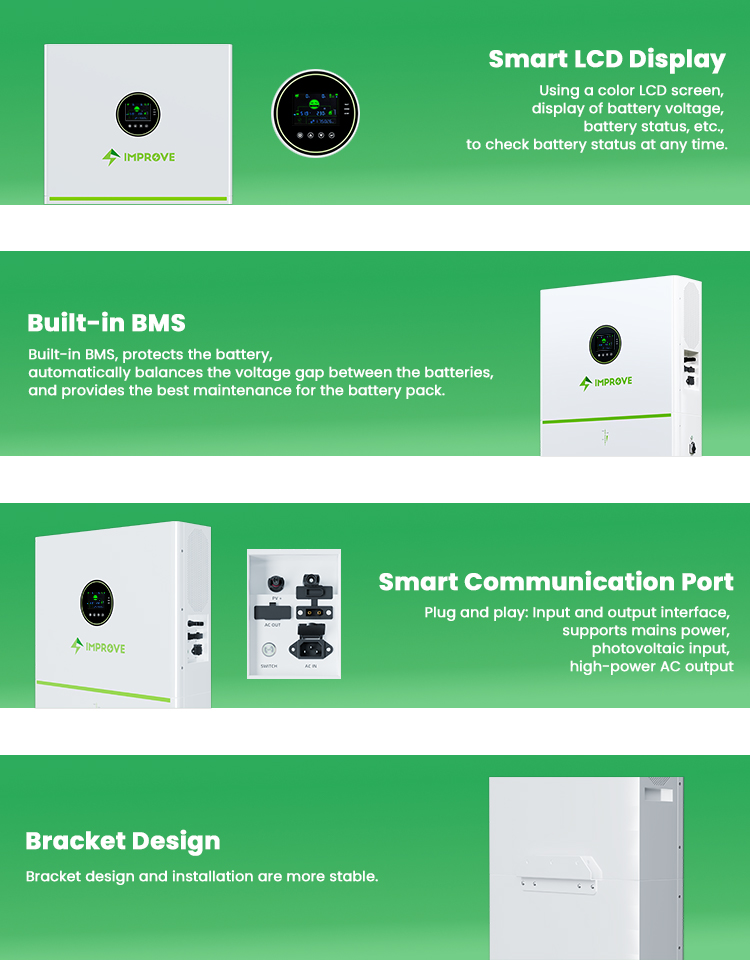

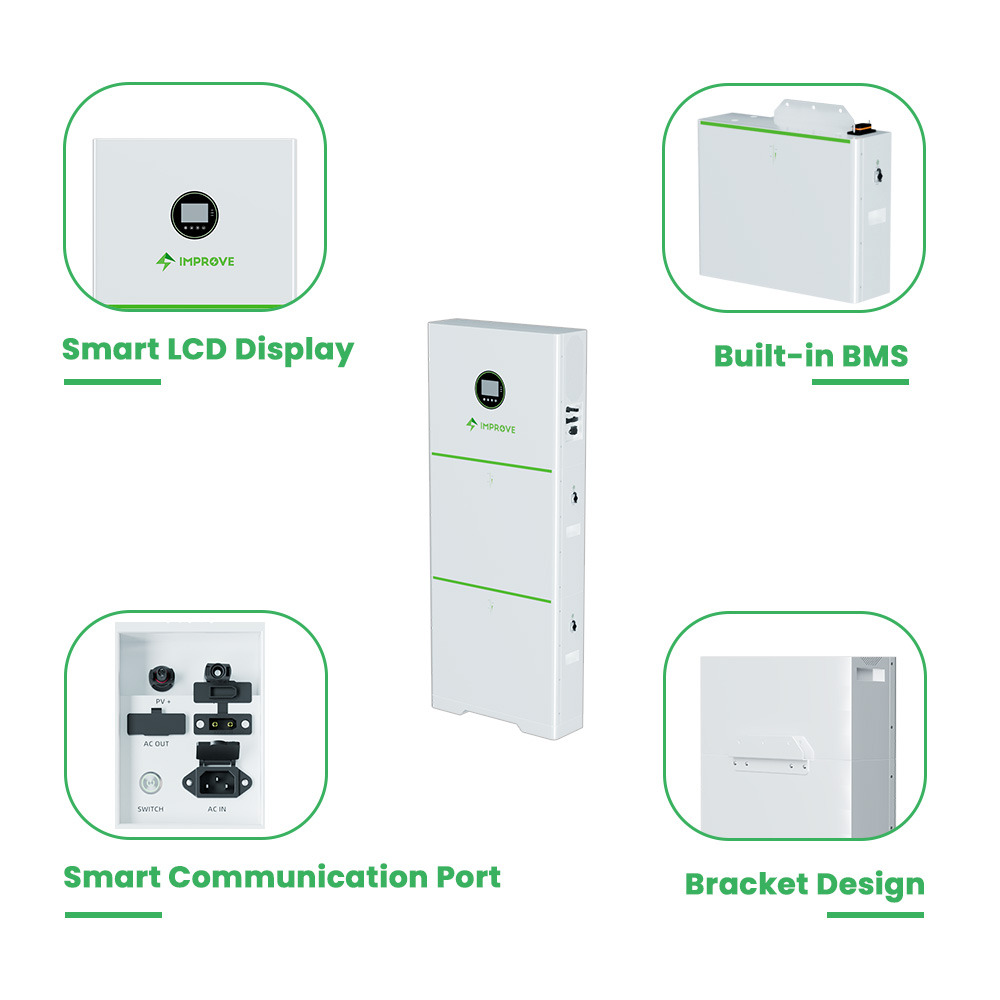

Product Functions

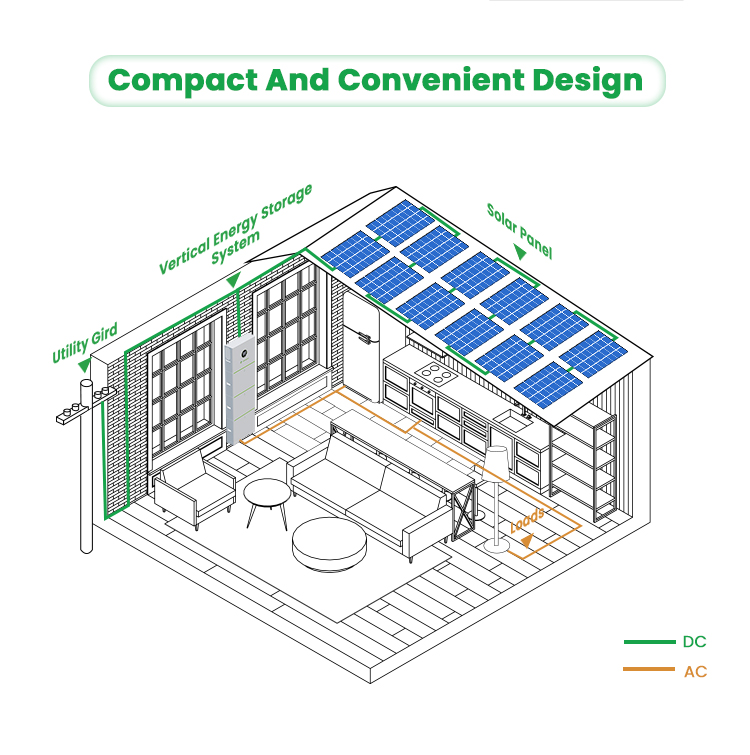

Applications & Certifications

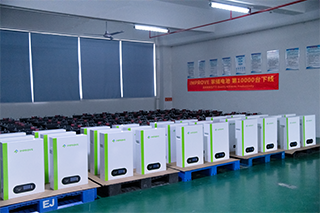

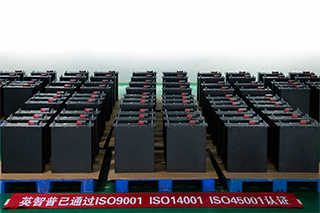

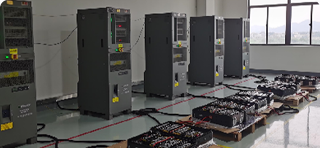

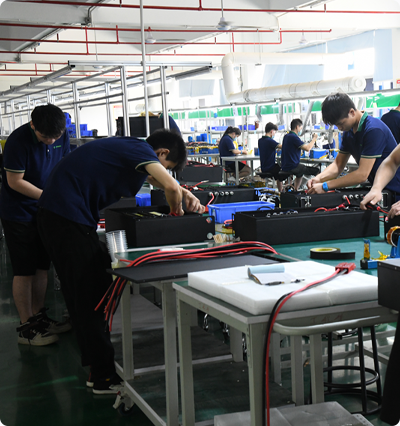

Workshop & Production
Frequently Asked Questions
What types of batteries do you offer?
We provide a wide range of energy solutions including Energy Storage Batteries, Household LiFePO4 Batteries, Cabinet Type LiFePO4 Batteries, and specialized batteries for Golf Carts and Forklifts.
How is the product quality guaranteed?
Quality is ensured through a rigorous process: always providing a pre-production sample before mass production and conducting a final inspection before every shipment.
What is the expected lifespan of the LiFePO4 battery?
The battery system is designed for longevity, offering over 6000 cycles at 80% Depth of Discharge (DOD) under standard operating conditions (0.5C, 25°C).
What are the supported payment and delivery terms?
We accept various delivery terms including FOB, CFR, and EXW. Payment can be made via T/T, PayPal, or Western Union in USD, HKD, or CNY.
Can the system handle different AC voltages?
Yes, the system is versatile and can be configured for both 110Vac and 230Vac output to meet different regional electrical requirements.
What are the operating temperature ranges?
The system supports charging between 0°C and +45°C, and discharging between -20°C and +55°C, making it suitable for various climates.
