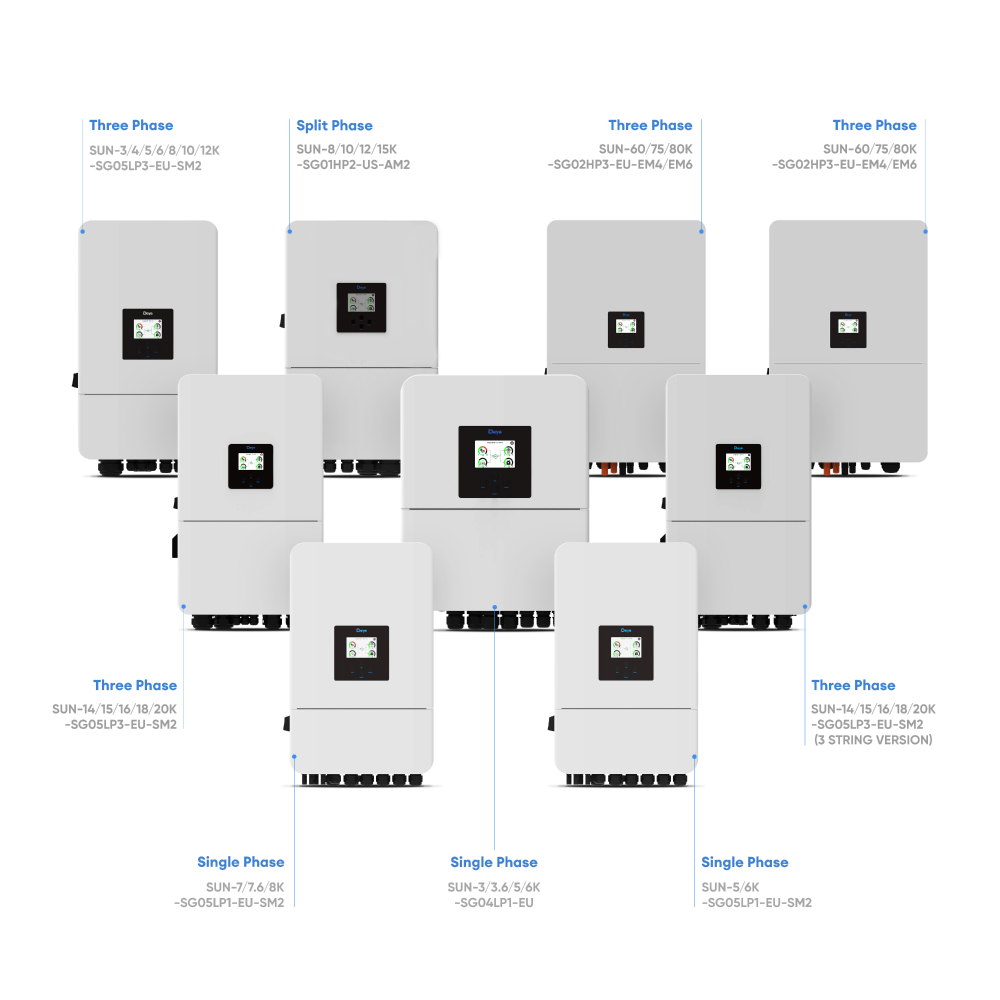

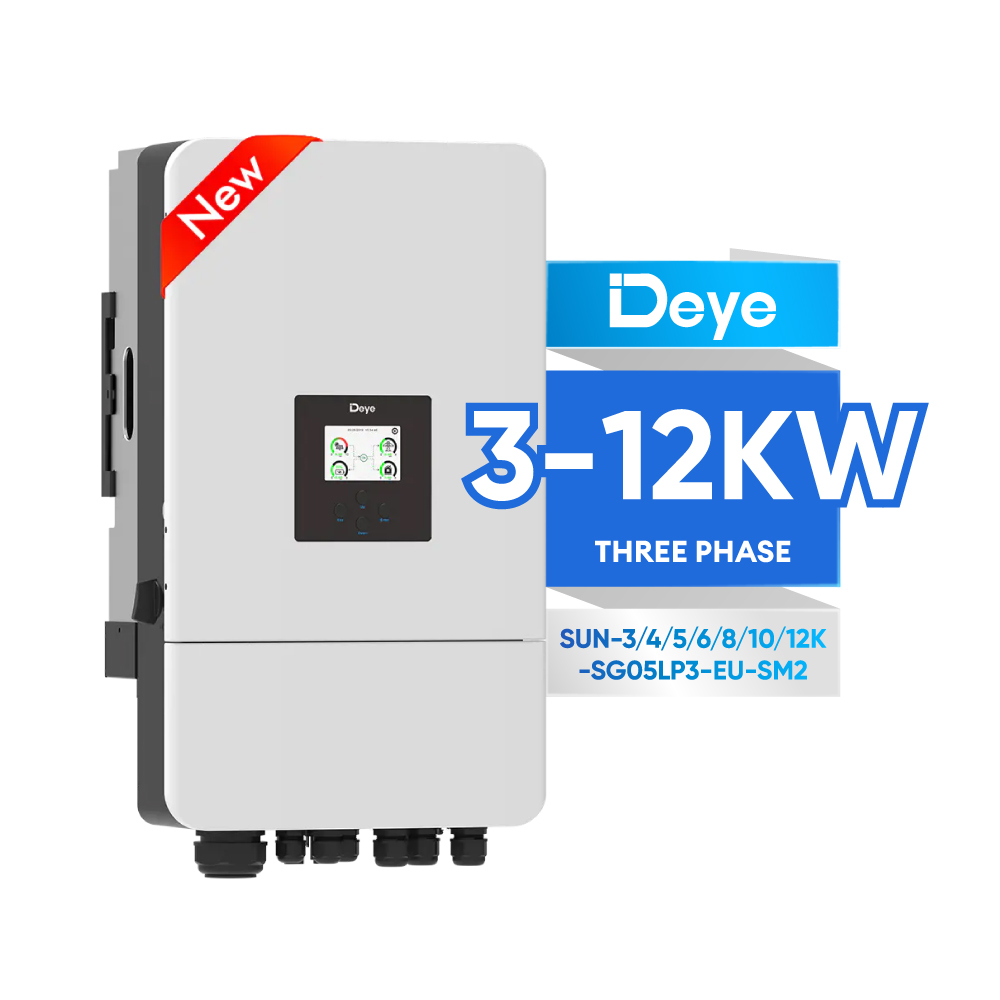

Deye SUN-3/4/5/6/8/10/12K-SG05LP3-EU-SM2 Hybrid Solar Inverter 3Kw 5Kw 8Kw 10Kw 12Kw Pure Sine Wave Power Inverters High Safety

Product Description

Products Description

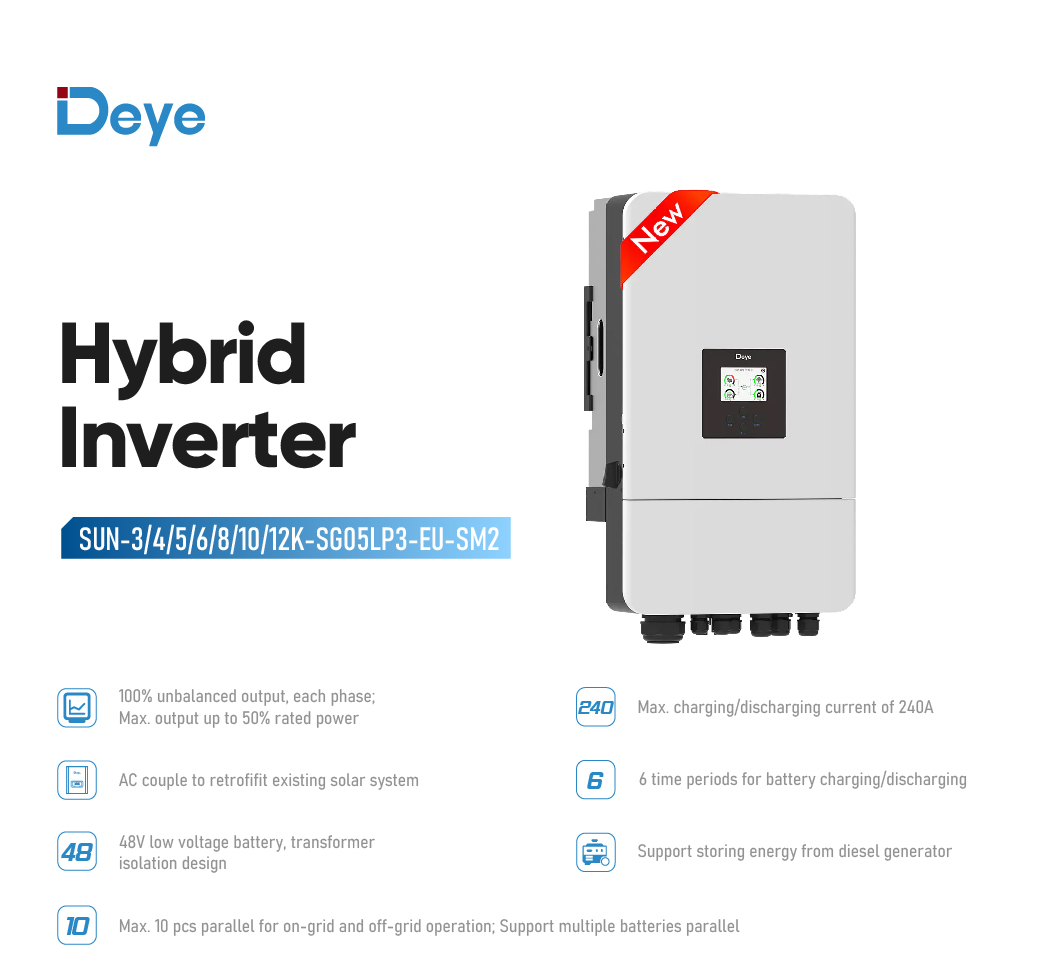

Products Description 1

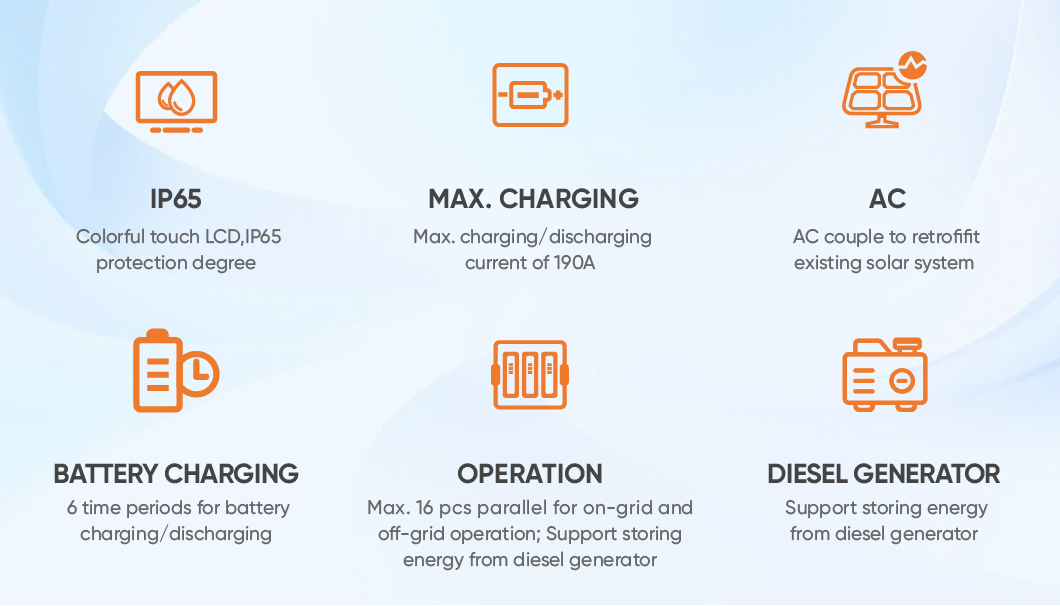

Products Description 2

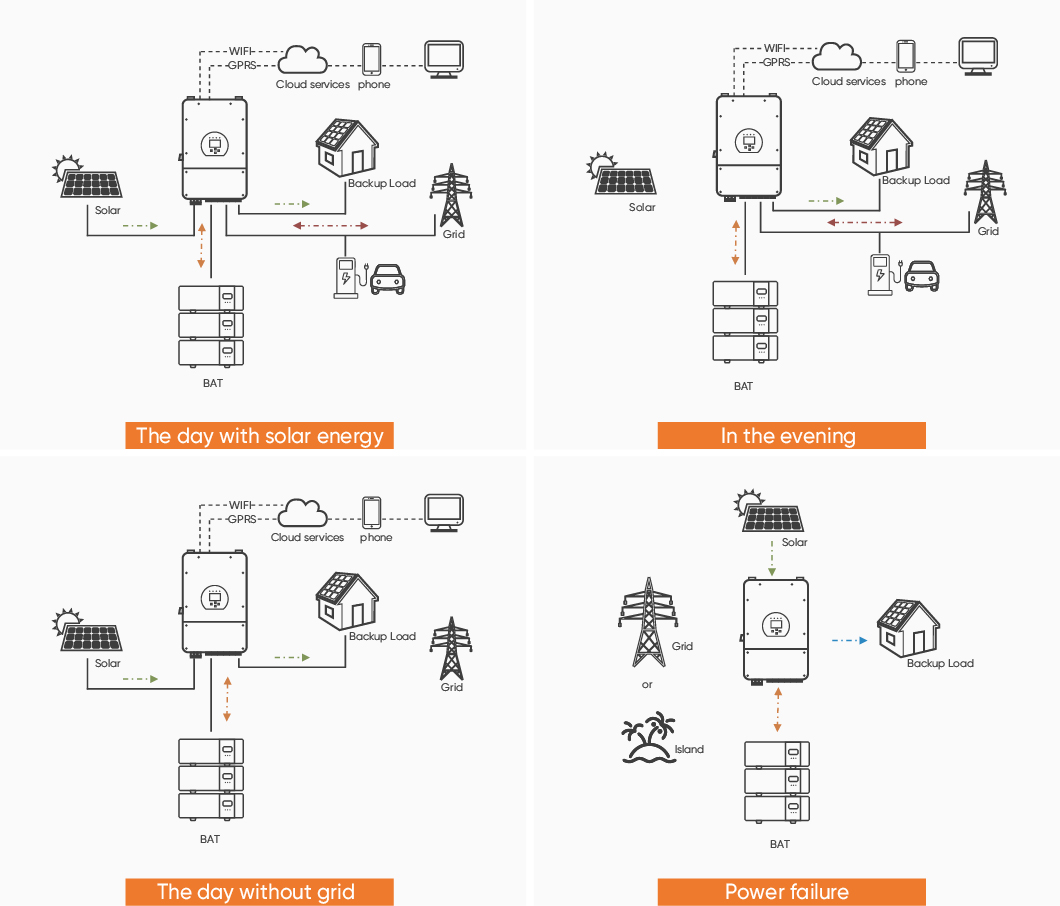

Applications
Applications
Details Images

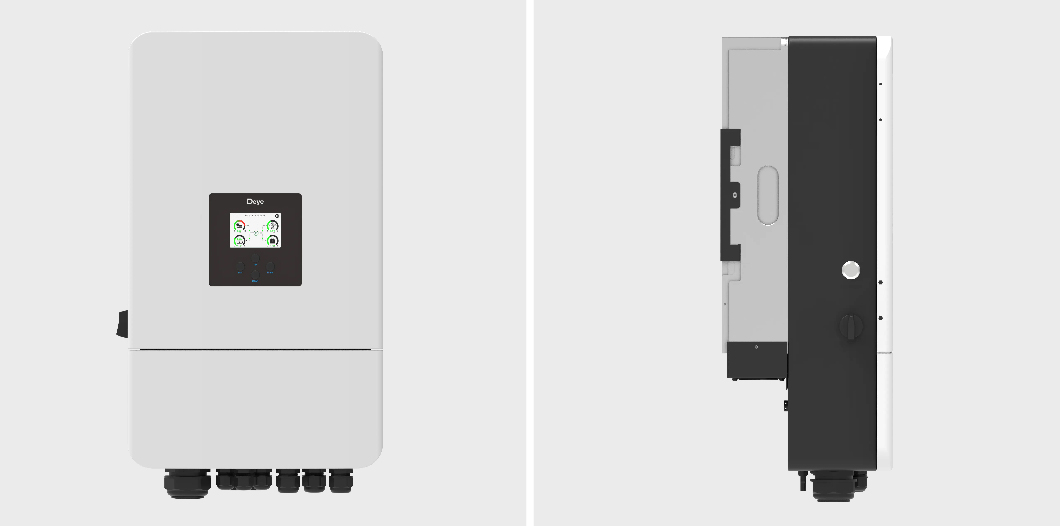

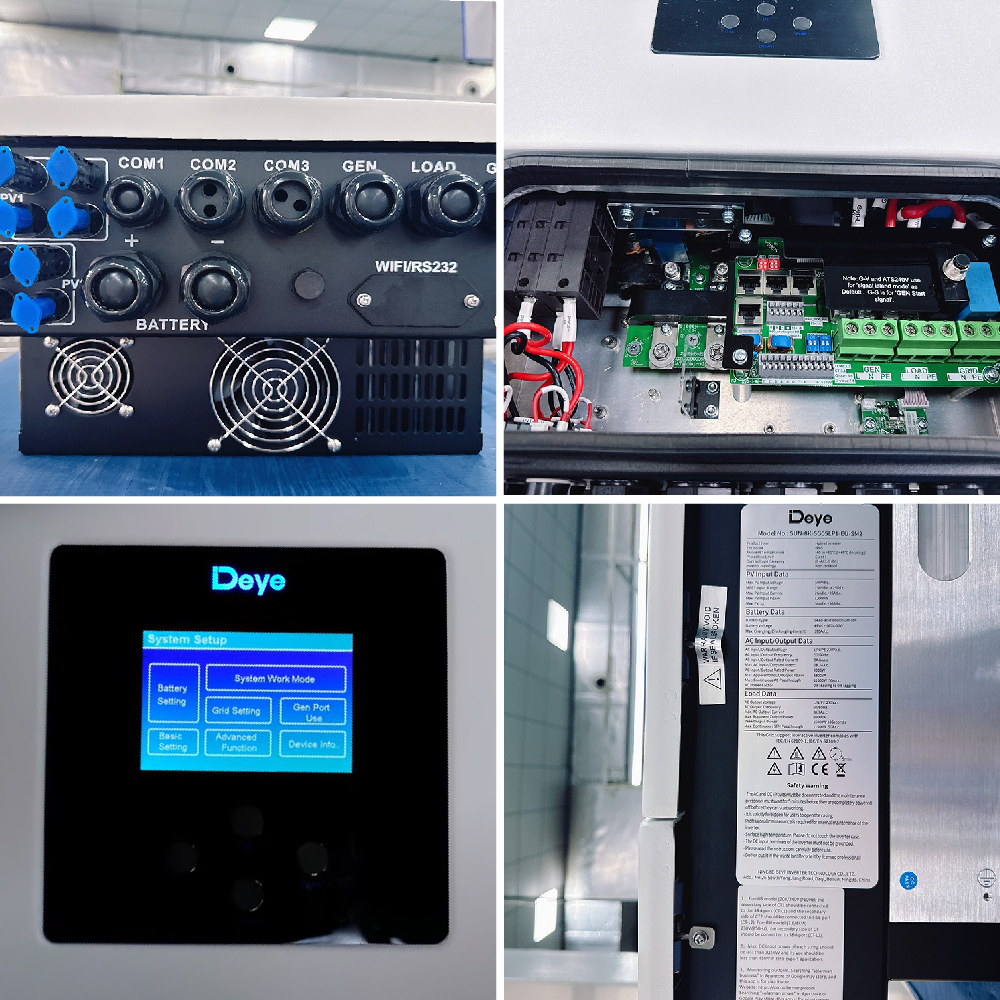

Details 1

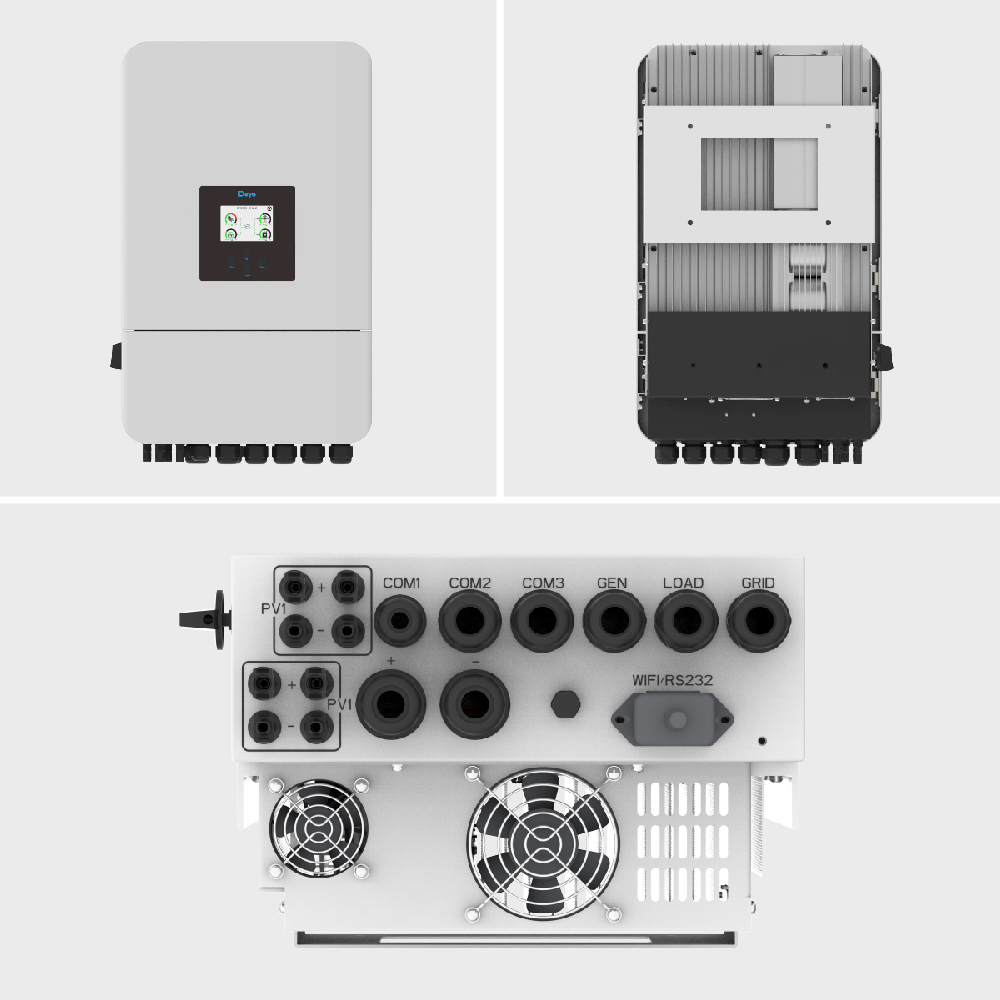

Details 2
Compatible Lithium Battery
Compatible Lithium Battery
Technical Specifications
Model SUN-3K-SG05
LP3-EU-SM2
SUN-4K-SG05
LP3-EU-SM2
SUN-5K-SG05
LP3-EU-SM2
SUN-6K-SG05
LP3-EU-SM2
SUN-8K-SG05
LP3-EU-SM2
SUN-10K-SG05
LP3-EU-SM2
SUN-12K-SG05
LP3-EU-SM2
Battery Input Data
Battery Type Lead-acid or Lithium-ion
Battery Voltage Range (V) 40-60
Max. Charging Current (A) 70 95 120 135 190 210 240
Max. Discharging Current (A) 70 95 120 135 190 210 240
Charging Strategy for Li-ion Battery Self-adaption to BMS
Number of Battery Input 1
PV String Input Data
Max. PV Access Power (W) 6000 8000 10000 12000 16000 20000 24000
Max. PV Input Power (W) 4500 6000 7500 9000 12000 15000 18000
Max. PV Input Voltage (V) 800
Start-up Voltage (V) 160
MPPT Voltage Range (V) 200-650
Rated PV Input Voltage (V) 550
Max. Operating PV Input Current (A) 20+20
Max. Input Short-Circuit Current (A) 30+30
No. of MPP Trackers/No. of Strings MPP Tracker 2/1+1
Rated Input/Output Voltage/Range (V) 220/380V, 230/400V 0.85Un-1.1Un
Rated Input/Output Grid Frequency/Range(Hz) 50/45-55, 60/55-65
Grid Connection Form 3L+N+PE
Interface
Communication Interface RS485/RS232/CAN
Monitor Mode GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Cabinet Size (WxHxD mm) 386×660×250 (Excluding Connectors and Brackets)
Weight (kg) 35.2
Type of Cooling Intelligent Air Cooling
Warranty 5 Years/10 Years (The Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy)
Our Factory
Factory Overview
A leading global energy storage solution and service provider. The factory specializes in residential, commercial and utility applications and delivers pre-eminent products and fit-for-purpose solutions. With 20+ years of experience producing energy storage products and 90,000+ systems actively running in 80+ countries, enabling millions of people to enjoy reliable, accessible and clean energy. Developing quickly, till the end of 2022, accumulatively, the facility has manufactured 620MWh BESS and battery strings. Internationally, the FlexCombo DC coupling microgrid ESS, from 50kW to 500kW, is a well-known trademark with more than 300 sets deployed in the EU, US, Canada, Brazil, Myanmar, African countries, etc. As a national high-tech enterprise, it maintains innovative platforms such as a national enterprise technology center, CNAS accredited laboratory, postdoctoral workstation, academician workstation, and Equipment and Electronics Research Institute. Equipped with core technology patents in new materials, new technologies, and new structures of battery power supplies, the facility has led and participated in the formulation of a number of international, national, and industrial standards.
Factory Production Line
Project Case

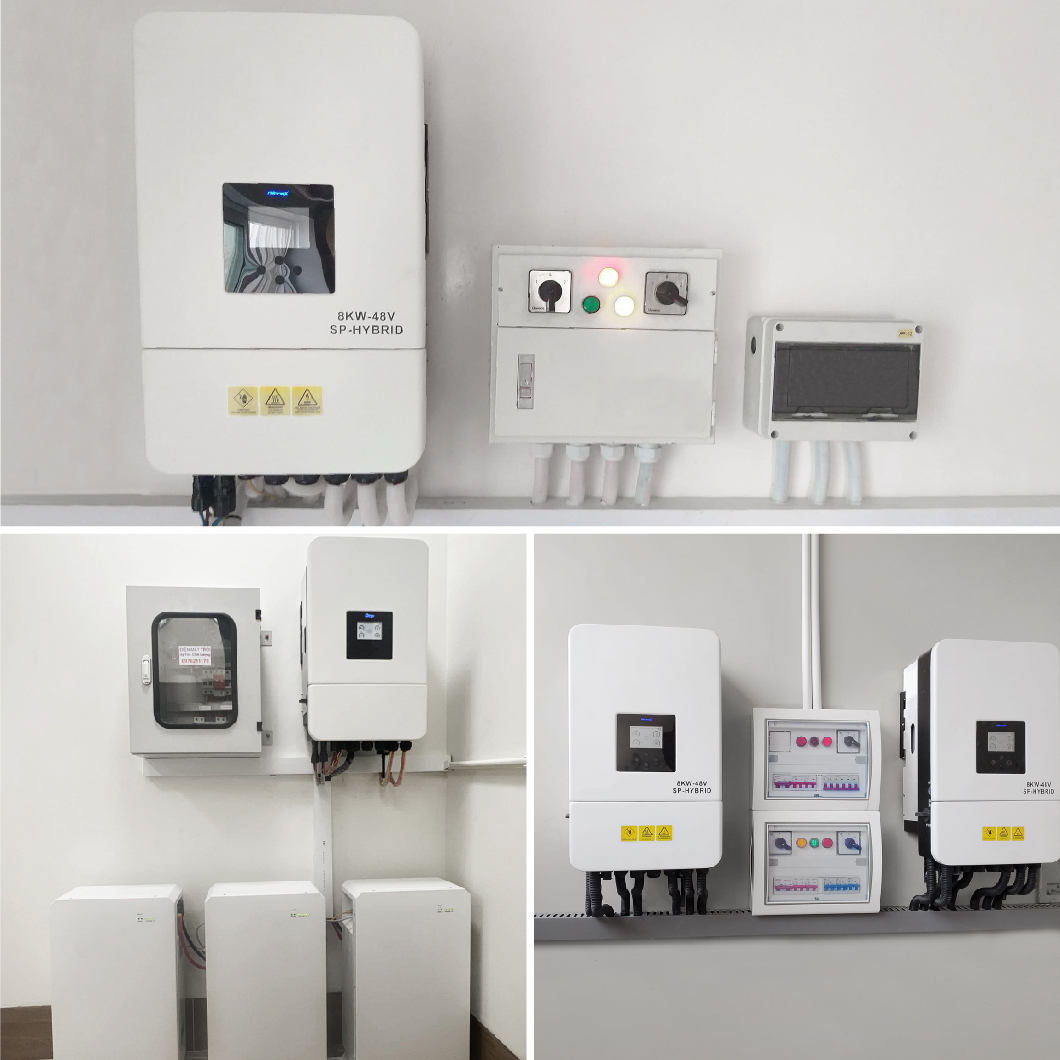

Project Case 1

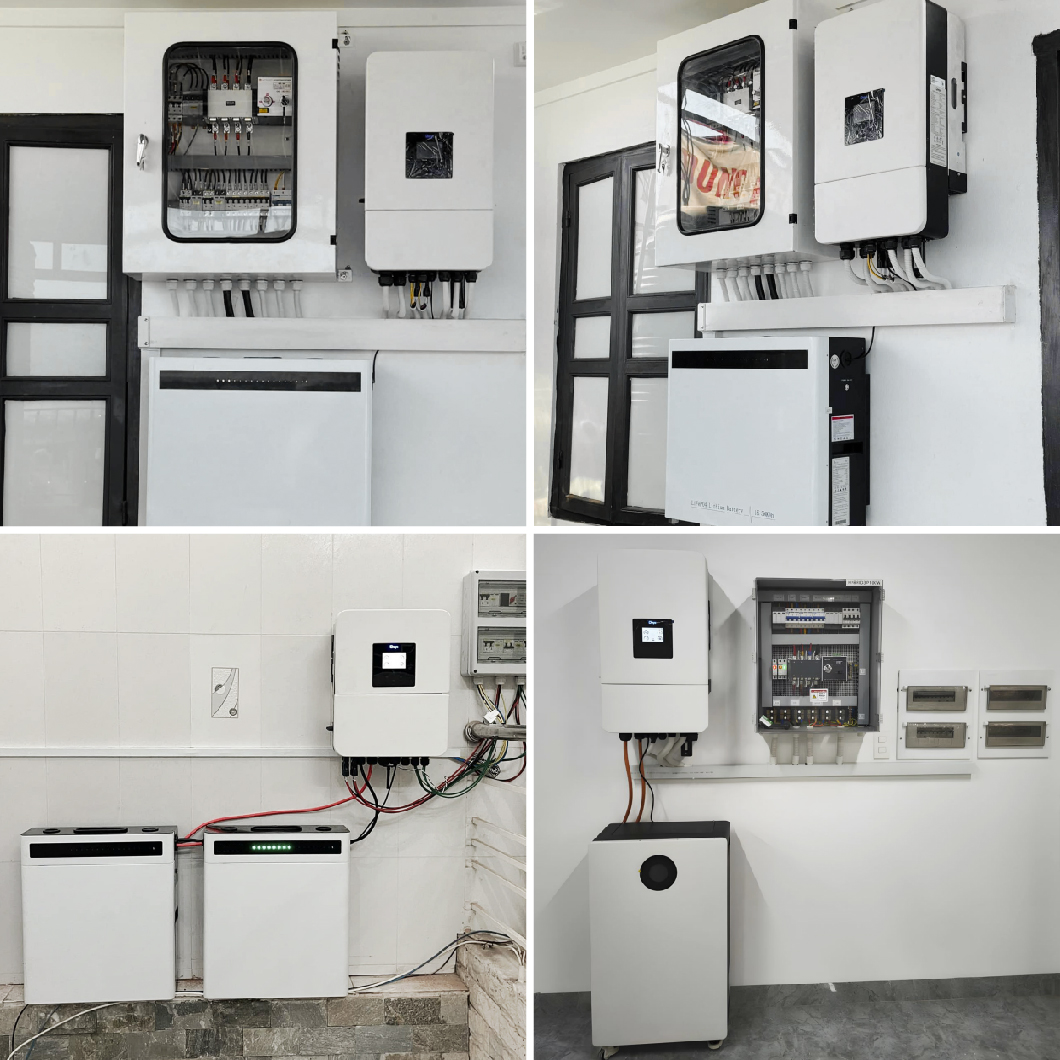

Project Case 2
Cooperative Factory

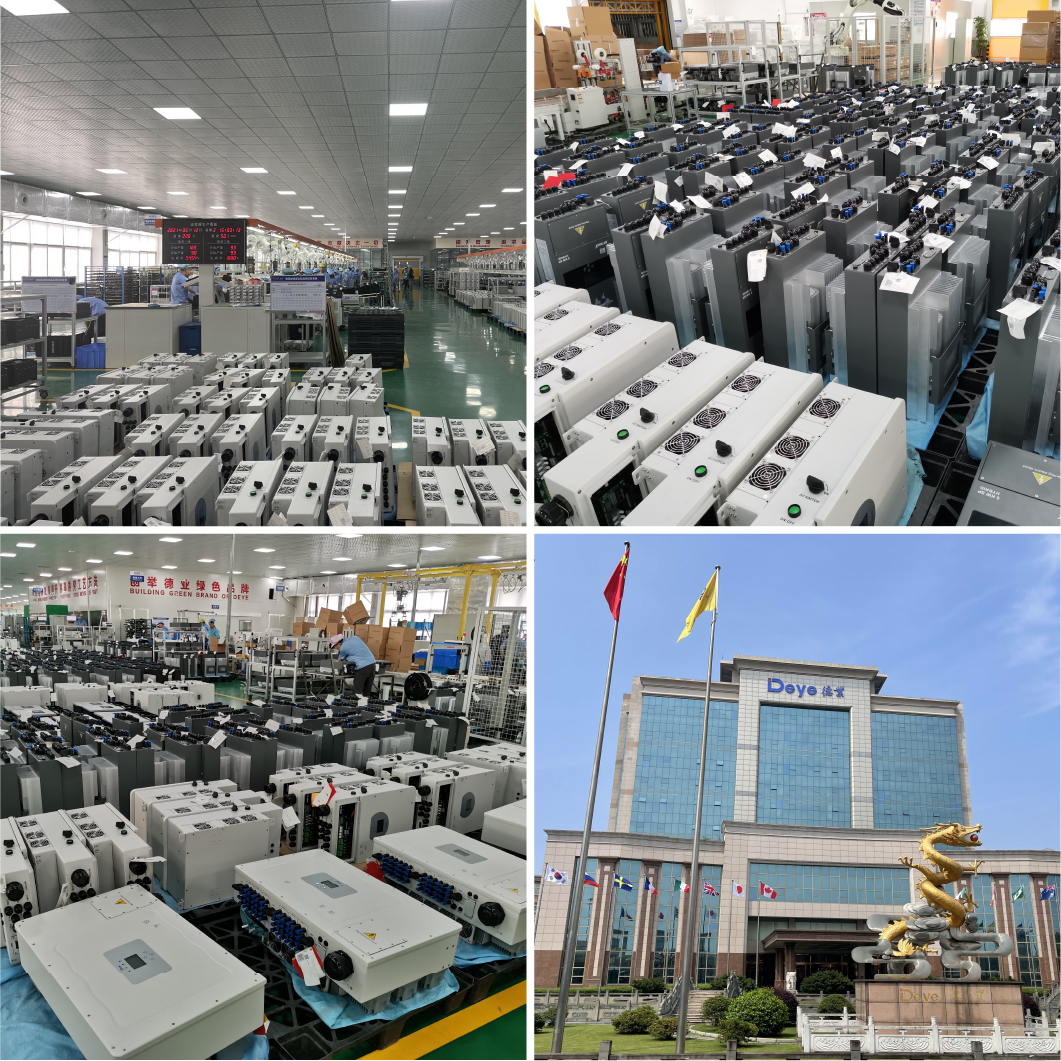

Cooperative Factory 1

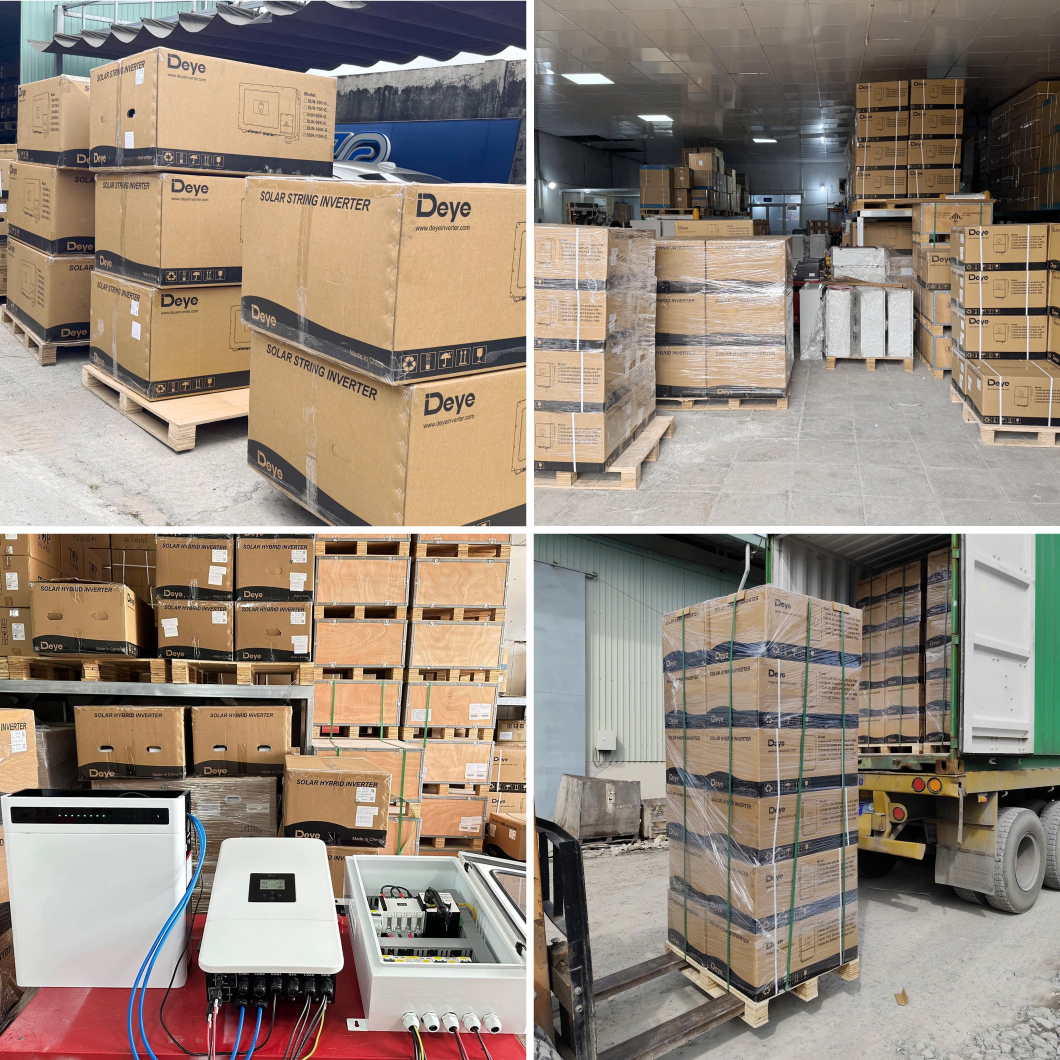

Cooperative Factory 2
Frequently Asked Questions (FAQ)
What type of batteries can be used with these hybrid inverters?
These inverters are compatible with both Lead-acid and Lithium-ion batteries. The system features self-adaption capability to match various Battery Management Systems (BMS).
What is the PV input voltage range and start-up voltage?
The maximum PV input voltage is 800V, with a start-up voltage of 160V. The MPPT voltage range operates efficiently between 200V and 650V.
What monitoring modes are supported by the system?
The inverter supports multiple monitoring configurations, including GPRS, WIFI, Bluetooth, 4G, and LAN (optional) for easy remote data management.
How is the inverter cooled during high-load operations?
It utilizes Intelligent Air Cooling system which adapts dynamically to current temperatures to maintain safe and efficient operating conditions.
What is the standard warranty period for this inverter series?
The standard warranty spans from 5 Years to 10 Years. The specific warranty period depends on the final installation site and regional policies.
