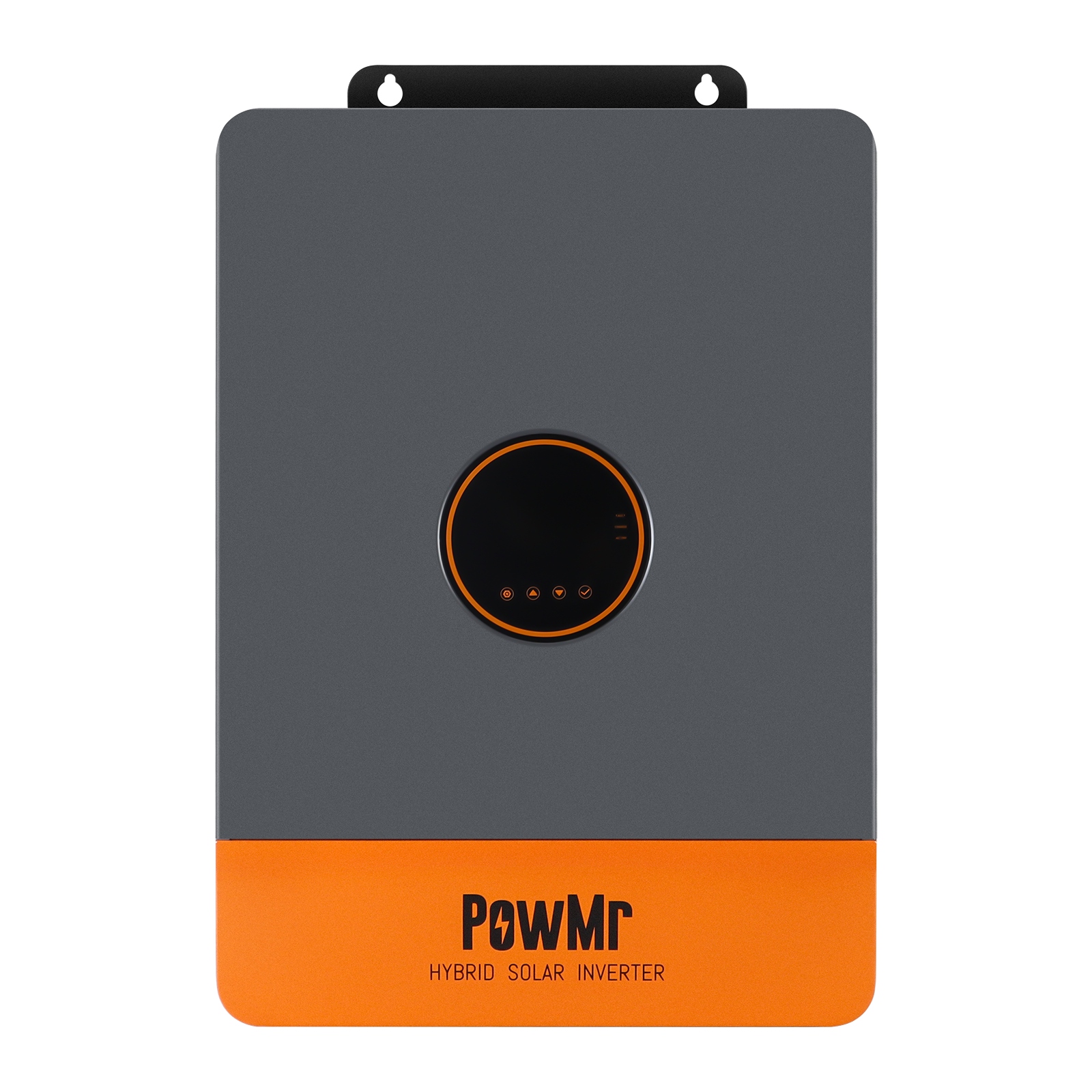

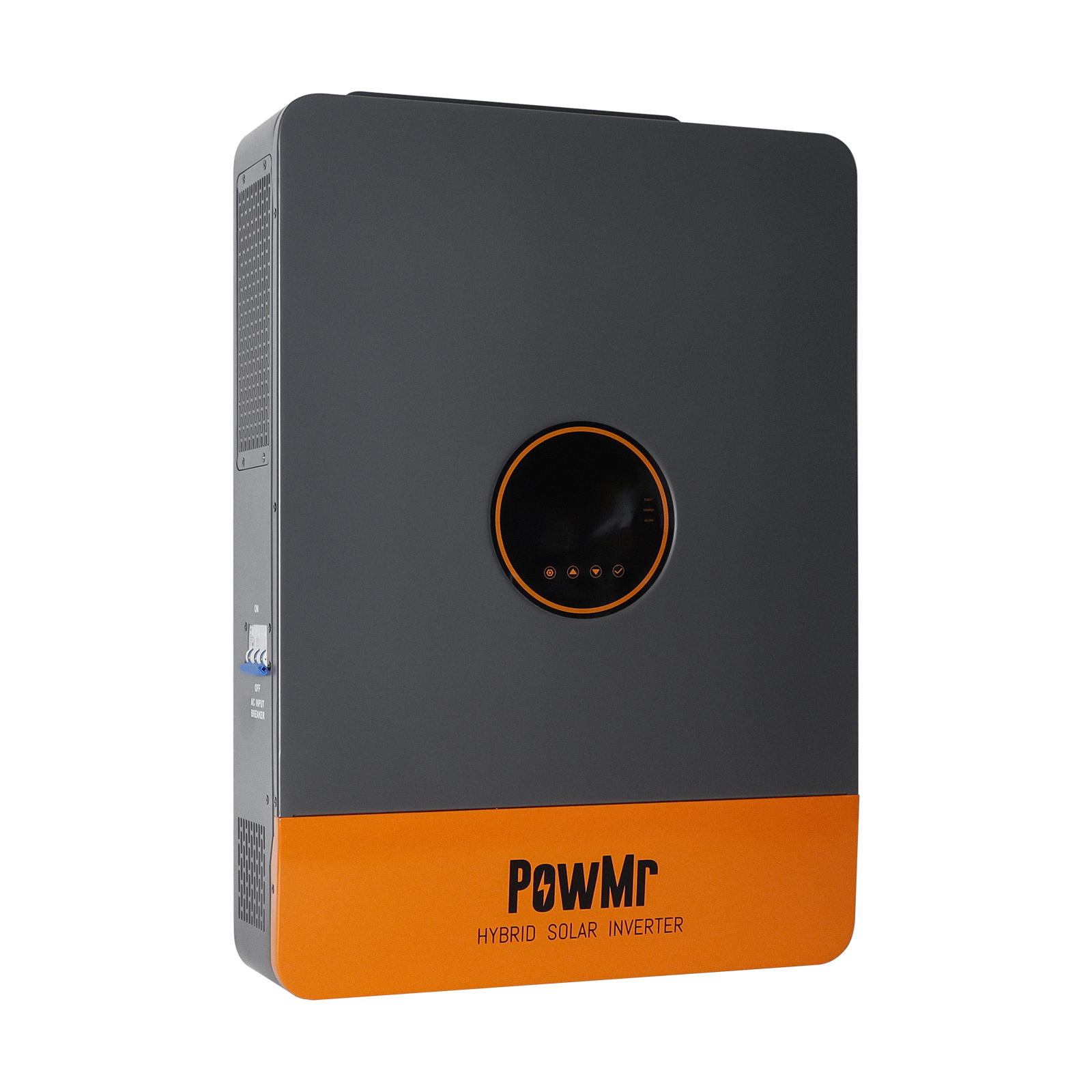

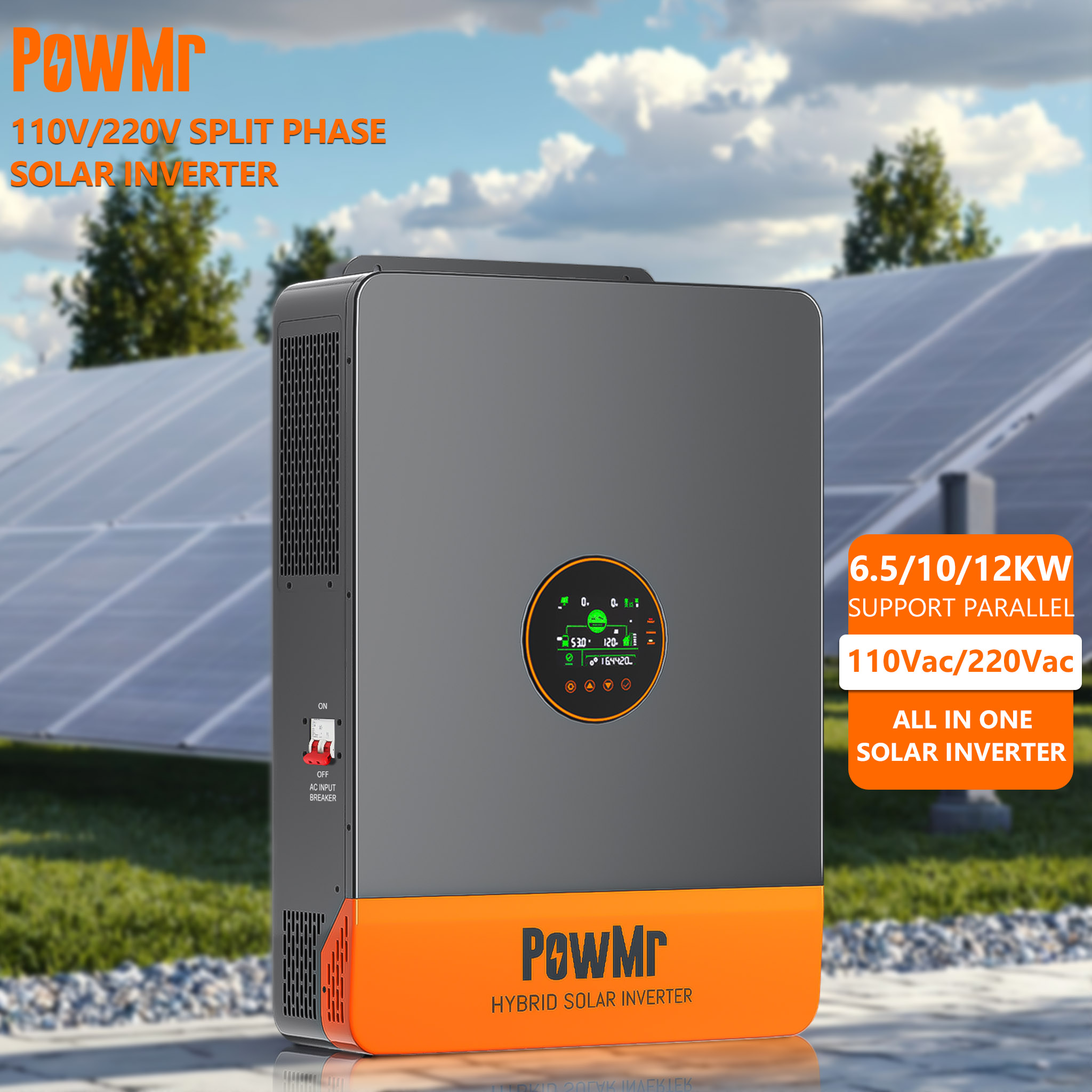

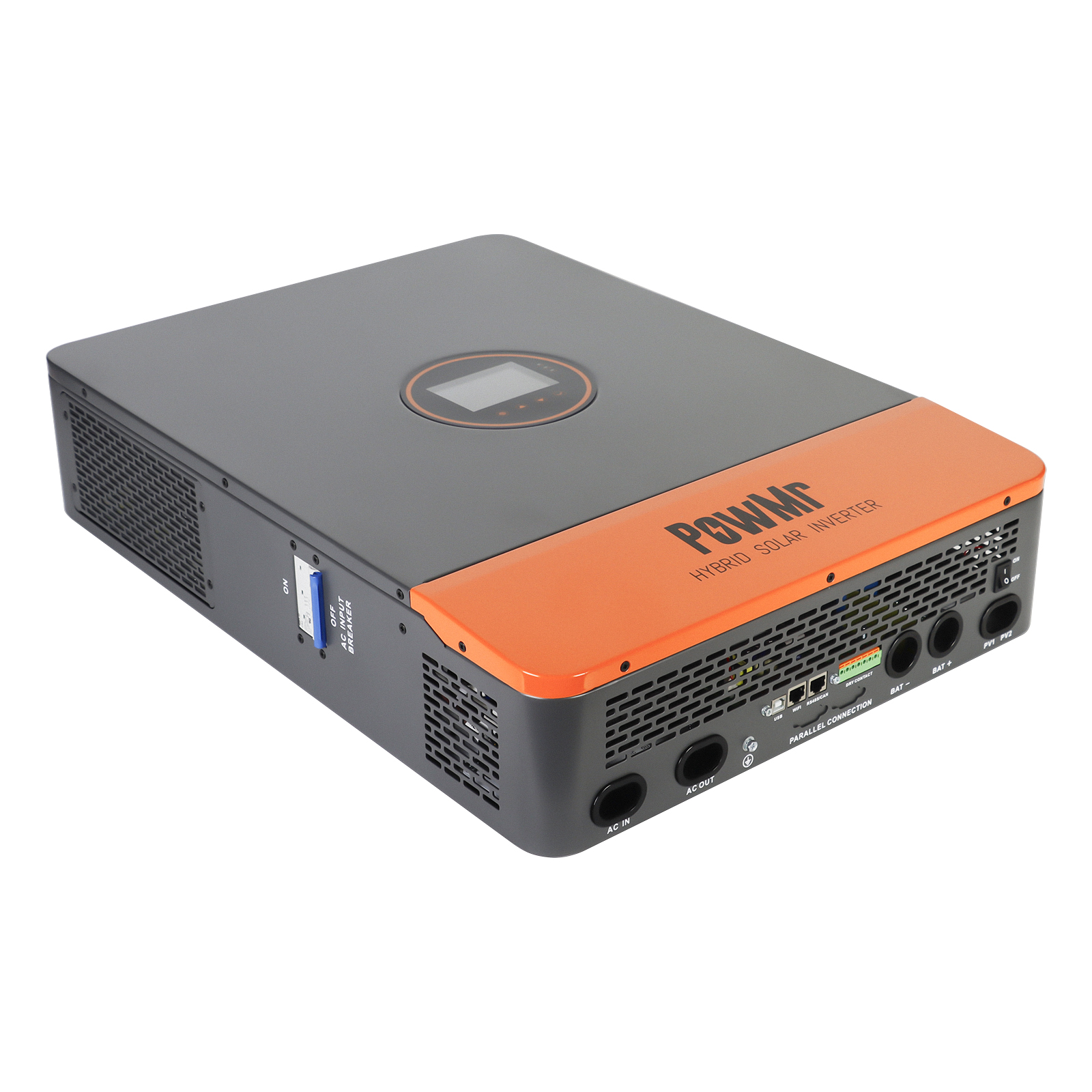

PowMr 5KW 6.5KW 12KW 10KW 48V Hybrid Solar Inverter 110V/230V/400V On/Off Grid Pure Sine Wave Hybrid Solar Inverter

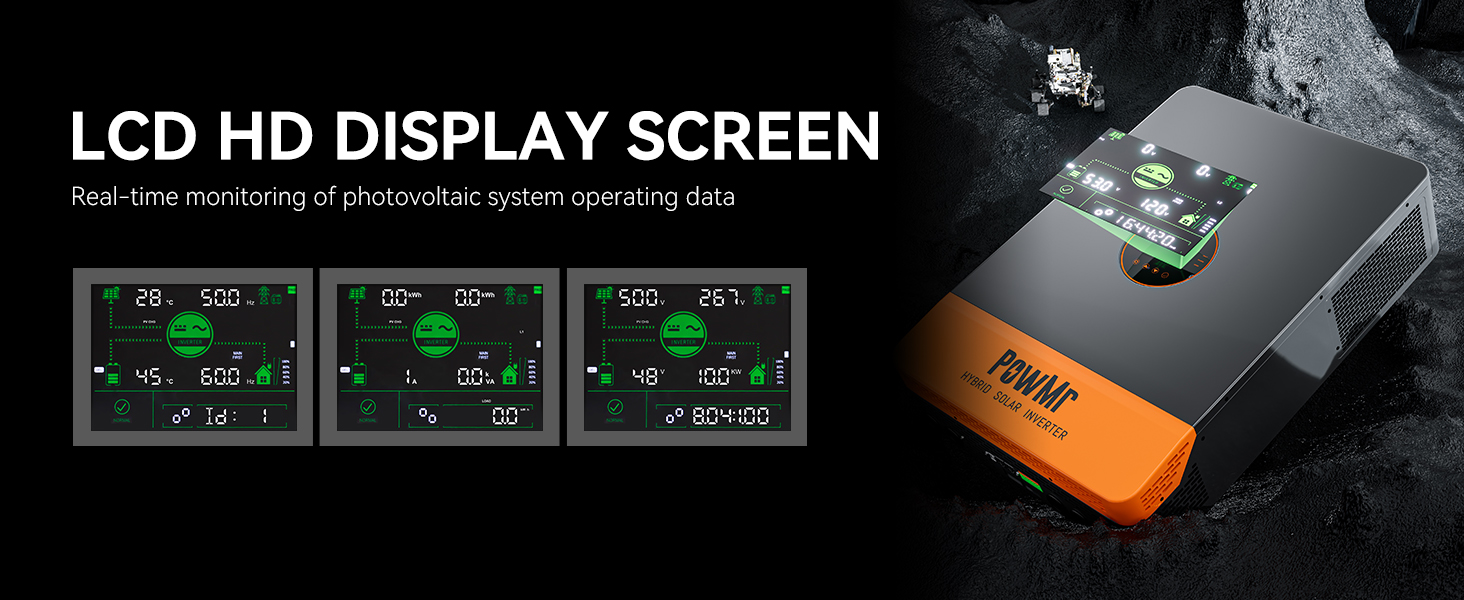

LCD Large Screen Dynamic Flow Diagram Design

LCD large screen dynamic flow diagram design, easy to understand the system data and operation status. Real-time monitoring of photovoltaic system operating data.

Built-in Multiple Protection Features

360° protection with complete short circuit protection, over current protection, over under voltage protection, overload protection, backfill protection, etc.

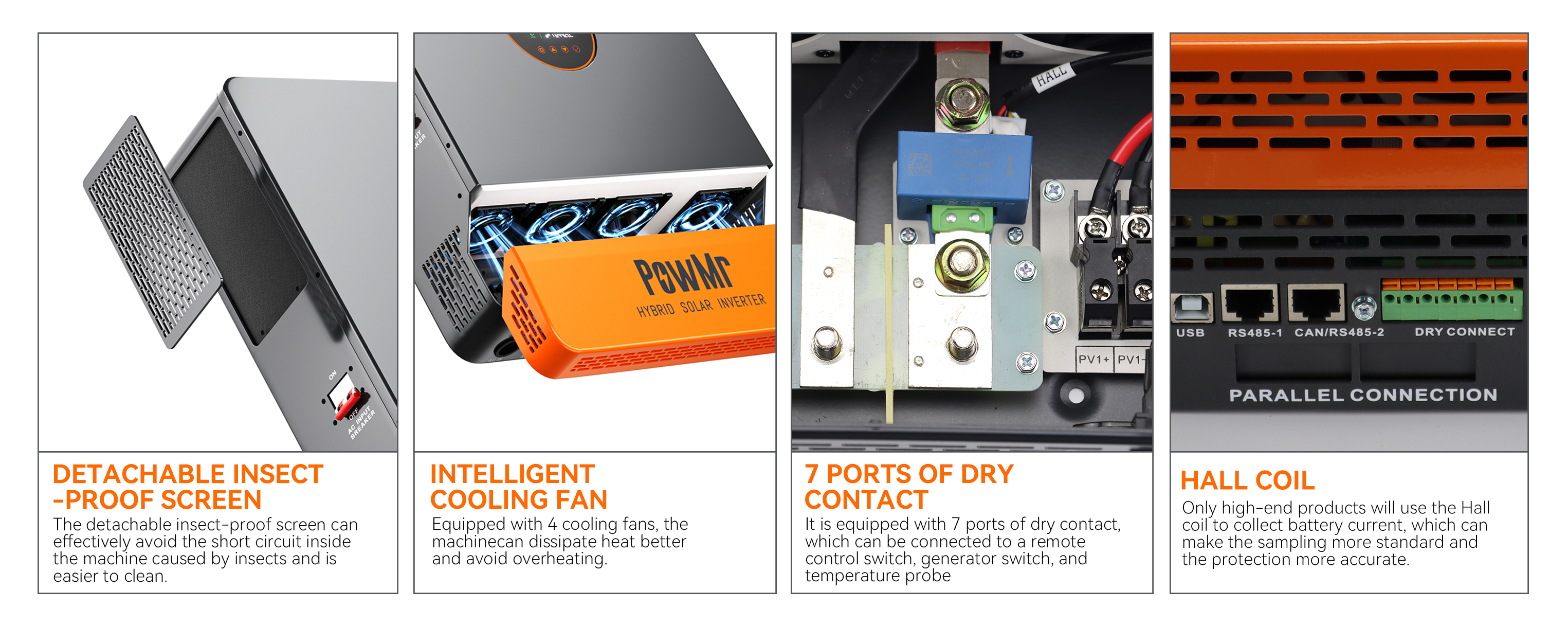

Product Design Details

Detachable insect-proof screen

The detachable insect-proof screen can effectively avoid the short circuit inside the machine caused by insects and is easier to clean.

Intelligent cooling fan

Equipped with 4 cooling fans, the machine can dissipate heat better and avoid overheating.

7 ports of dry contact

It is equipped with 7 ports of dry contact, which can be connected to a remote control switch, generator switch, and temperature probe.

Hall coil

Only high-end products will use the Hall coil to collect battery current, which can make the sampling more standard and the protection more accurate!

Single-Phase Inverter Parallel System

The inverter is designed in a modular form, allowing new units to be added without reconfiguring the entire system. The inverter installation and configuration process is simple, and parallel operation can be achieved without complex wiring. Users only need to perform simple settings on the inverter’s LCD interface, without the need for complex control or management.

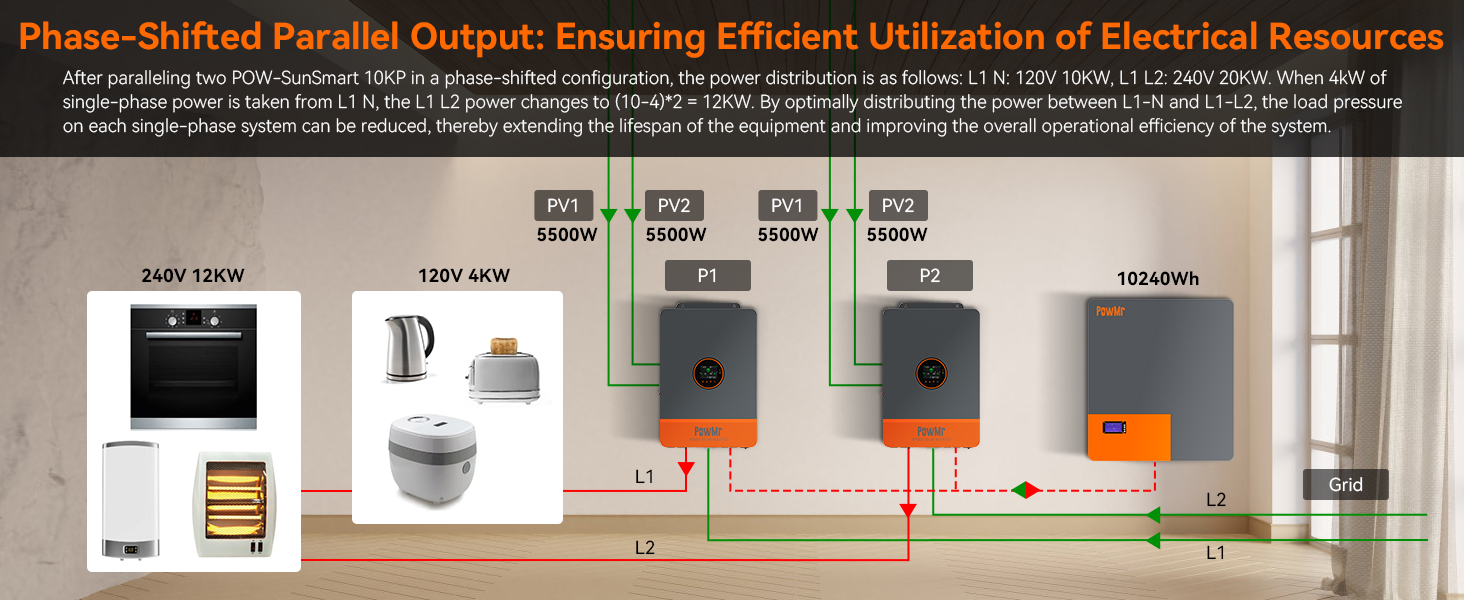

Parallel Split Phase Output

By optimally distributing the power between L1-N and L1-L2, the load pressure on each single-phase system can be reduced, thereby extending the lifespan of the equipment and improving the overall operational efficiency of the system.

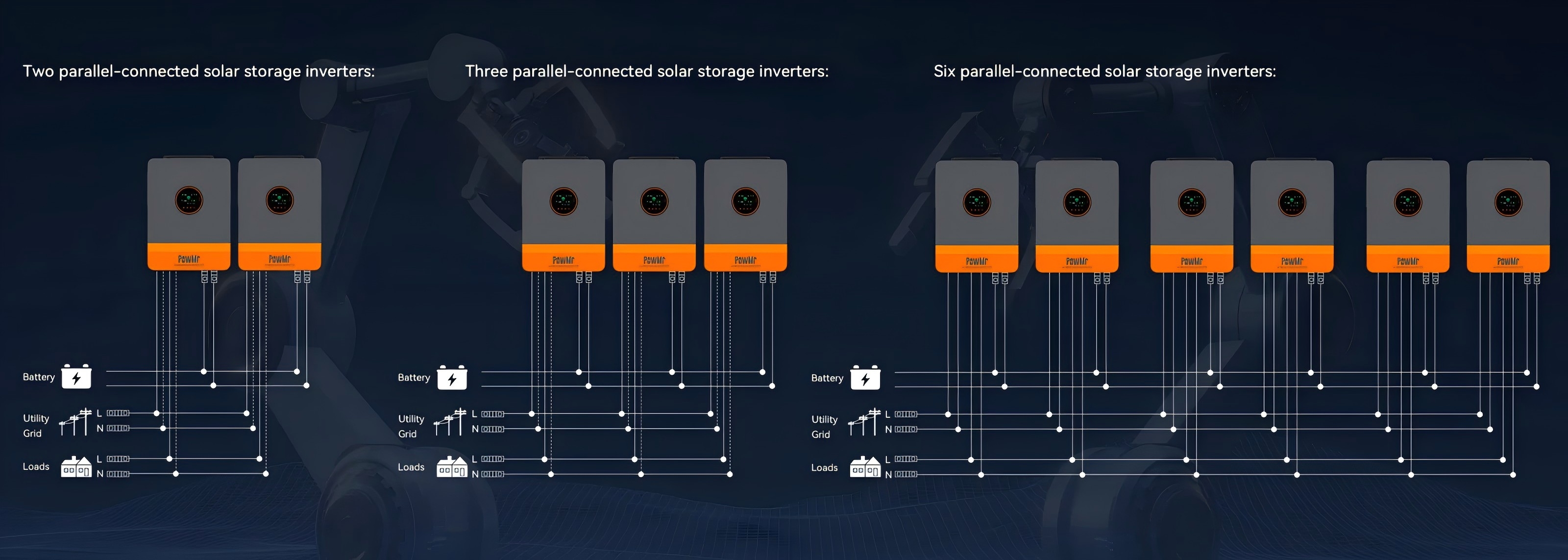

Supports up to 6 parallel units

Supports up to 6 inverters in parallel for a combined output of up to 60,000W. Suitable for large-scale systems as well as scalable commercial or industrial power applications.

Key Features

Supports up to 6 parallel units

90~140Vac AC input voltage range

125~500Vdc wide voltage range for PV access

Higher input DC current up to 22A in a single circuit

Compatible to both residential single phase & split phase equipment

Higher output power up to 10000W

2 MPP Tracker, dual MPPT with 99.9% efficiency

Compatible with 48V lithium-ion and lead-acid battery

Compliance with IEC and UL grid standards

Higher MPPT charging current up to 200A

Energy saving mode function to reduce no-load energy losses

Product Parameters

Inverter Model	POW-SunSmart 10KP
Permitted Parallel Number	1~6
AC Input
Input Voltage Waveform	Sinusoidal (Utility or generator)
Nominal Input Voltage	120Vac
Input Voltage Range	90~140Vac
Nominal Input Frequency	50/60Hz
Transfer Time	10ms typical
AC Output (Back-Up)
Rated Output Power	10000W
Output Voltage Regulation	120Vac/240Vac Single phase/Split phase
Output Frequency	50/60Hz
Battery Specification
Battery Type	Lithium and Lead Acid Battery, support user define
System Voltage	48V
Charging Voltage Range	40~60V
AC Charge & PV Charge Mode
Charging Algorithm	3-Stages
Max. AC Charging Current	120Amp
Max. PV Array Power	11000W
PV Array MPPT Voltage Range	125~425Vdc
Max. PV Array Open Circuit Voltage	500Vdc
Max. Charging Current (AC+PV)	200Amp
General Specification
Operation Temperature Range	-10℃ ~ 55℃, >45℃ derated (-14~131 ℉ ; 113 ℉ derated)
Communication interface	RS485 (WIFI) / CAN / USB / Dry contact
Dimension	620x445x130mm (2x1.5x0.4ft)
Net Weight	27kg (59.5Ib)
