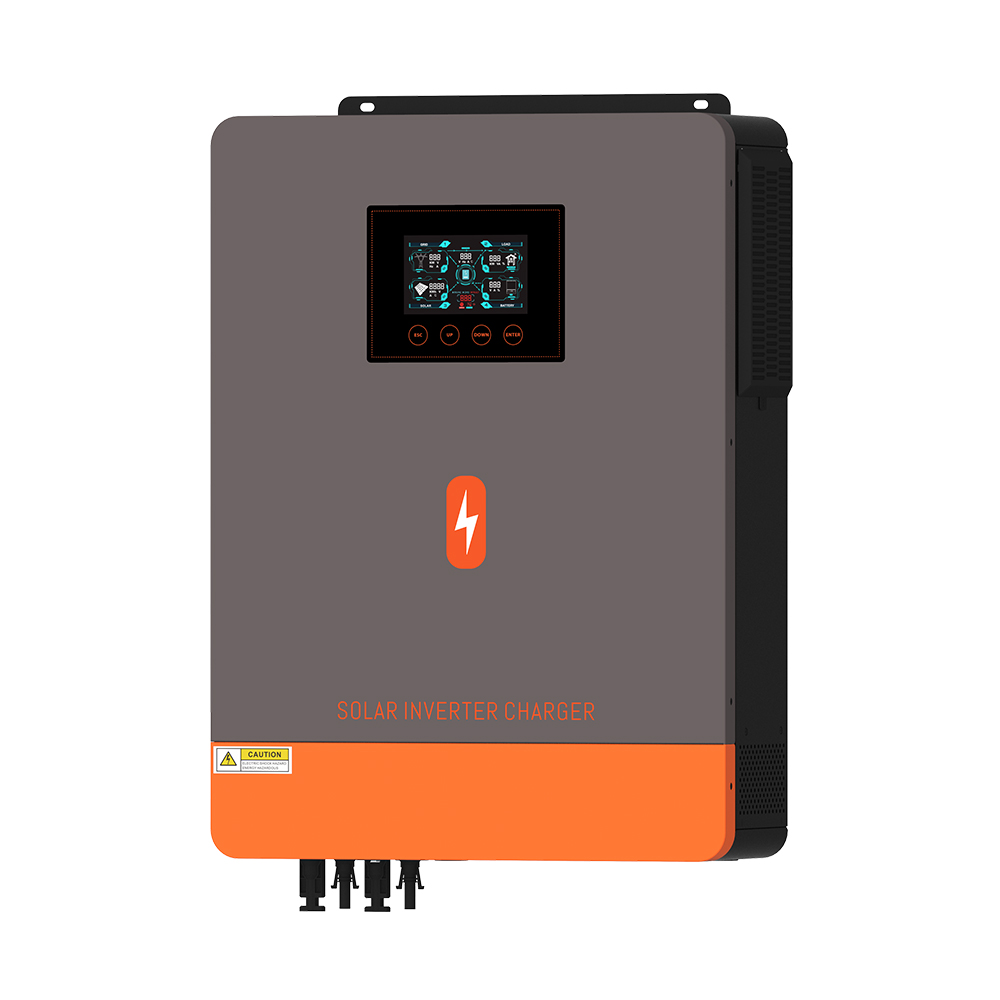

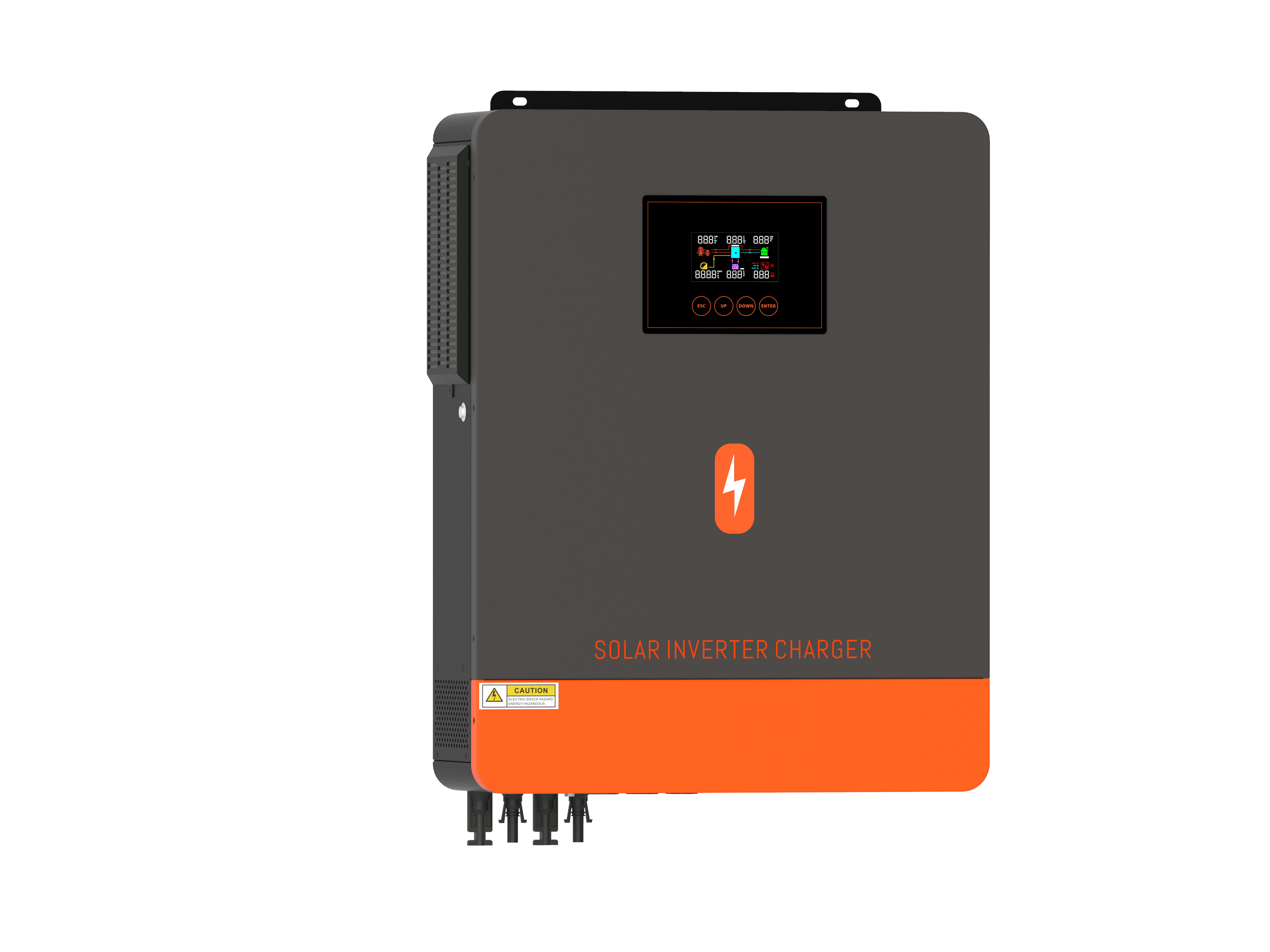

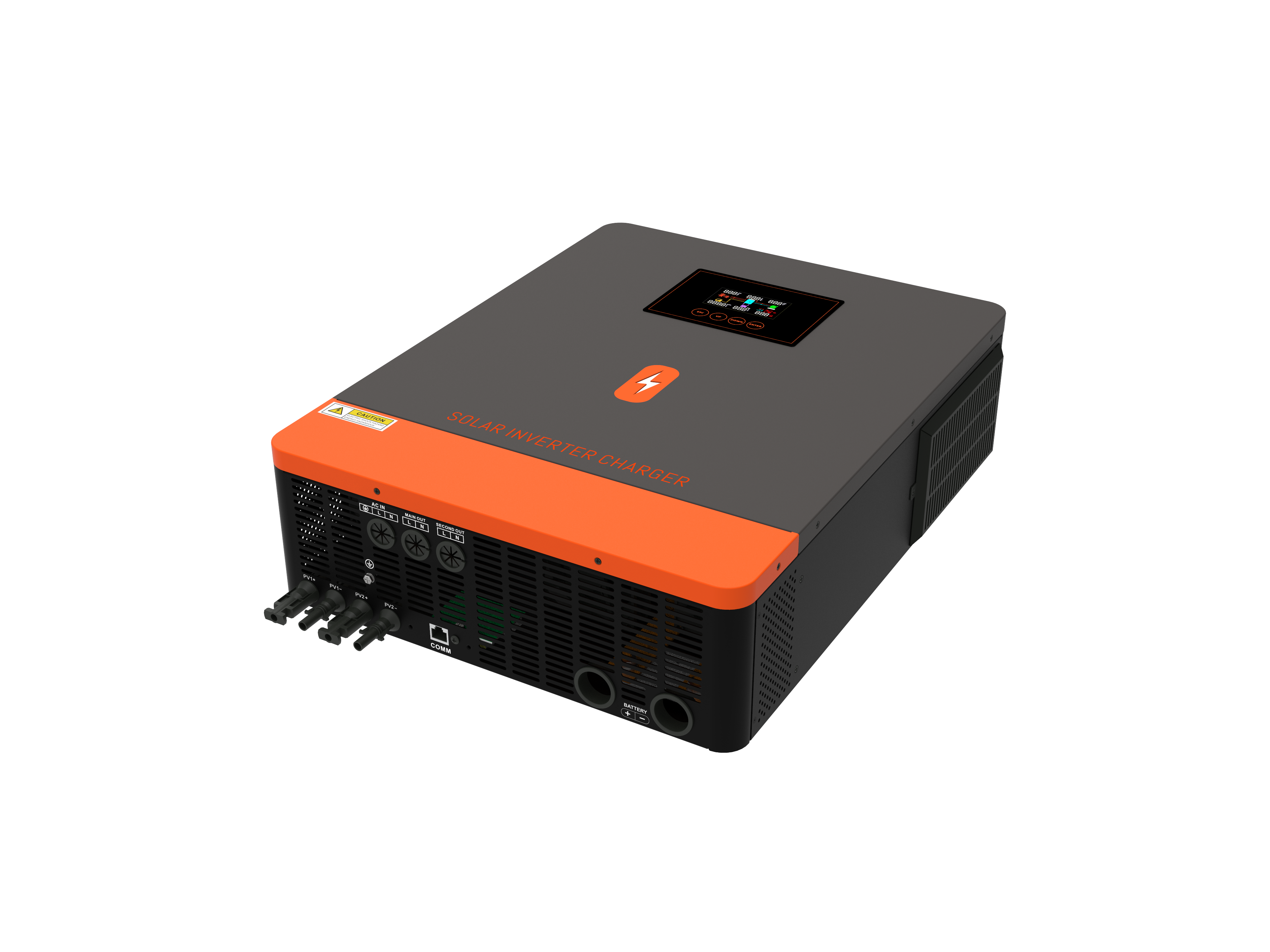

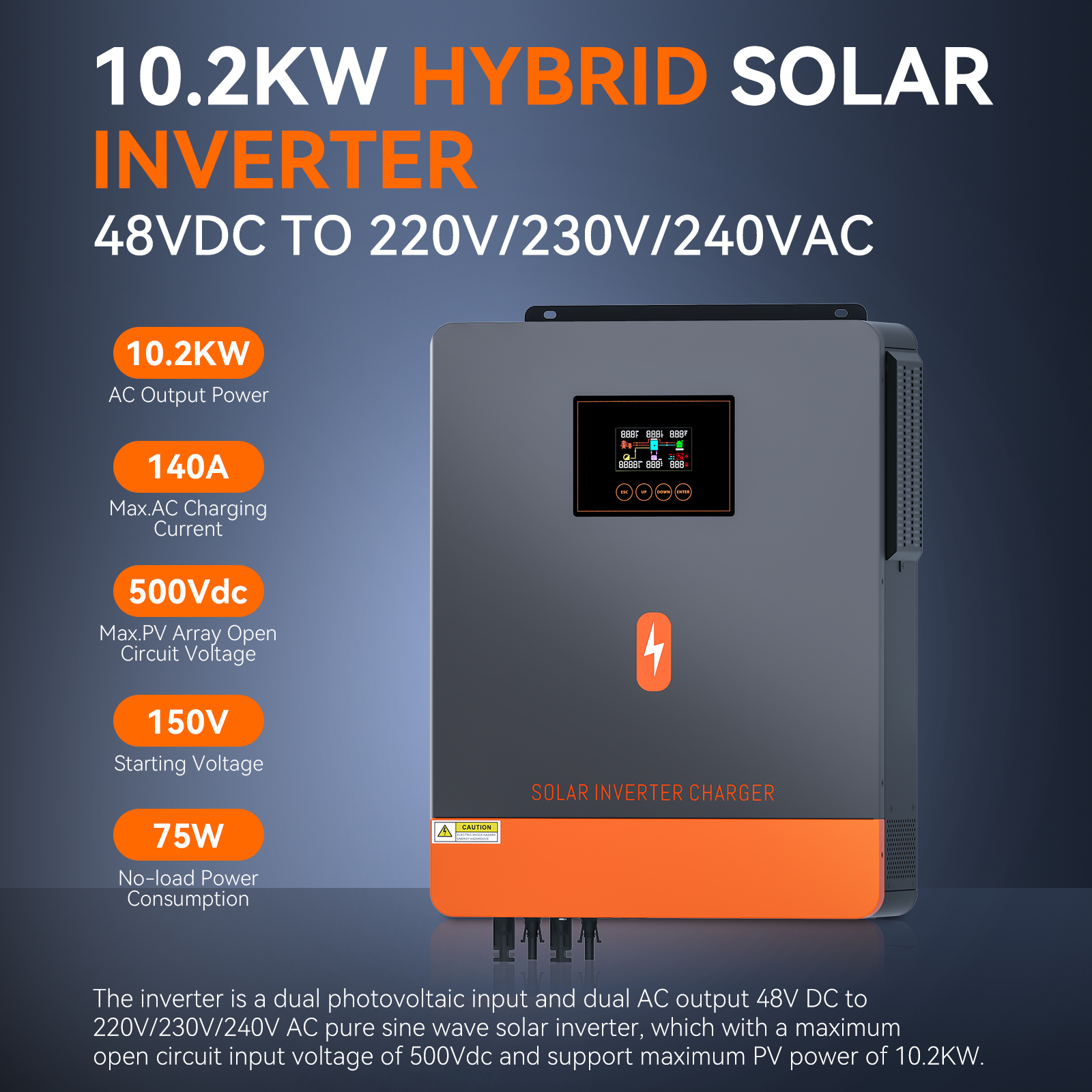

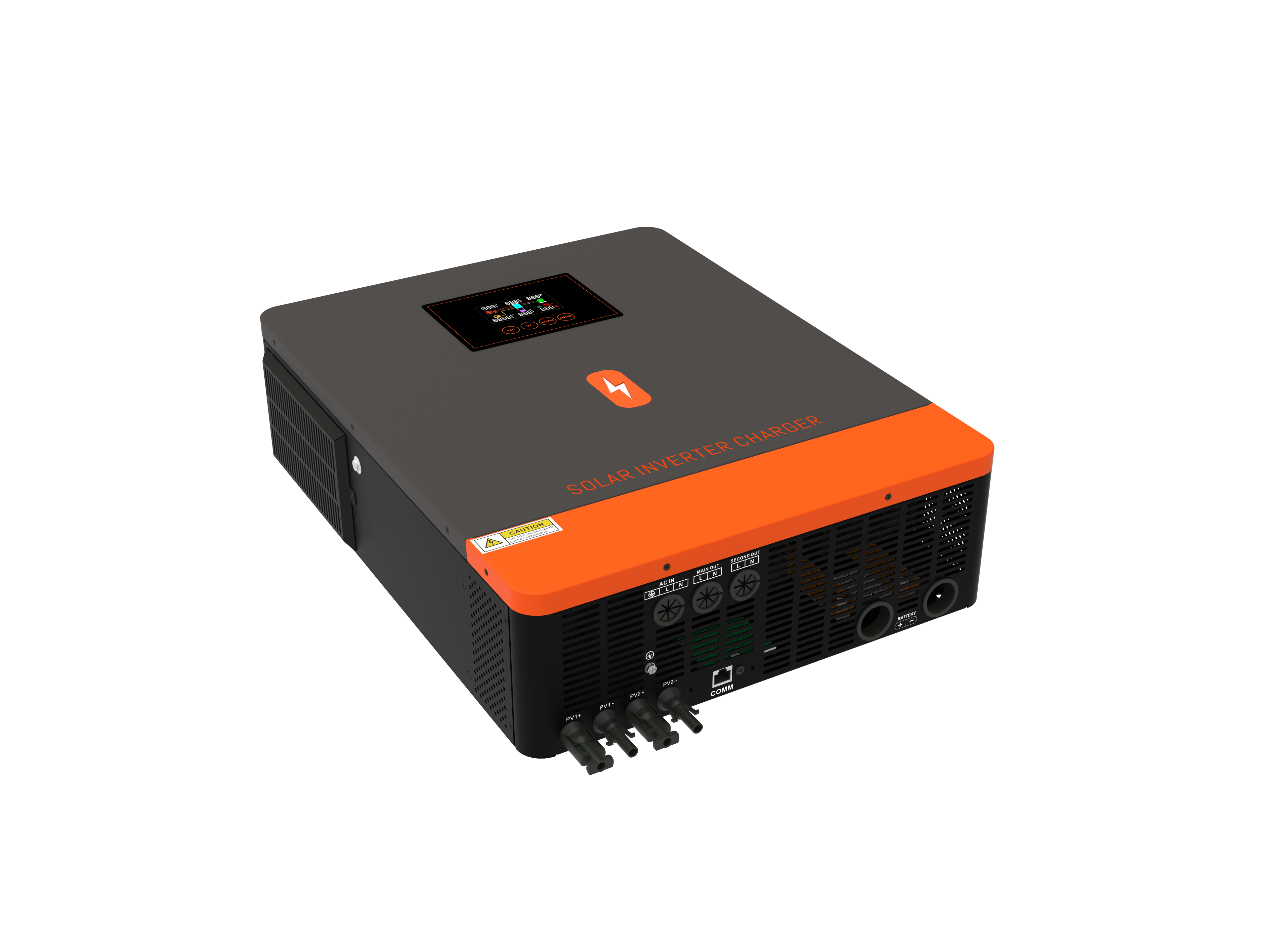

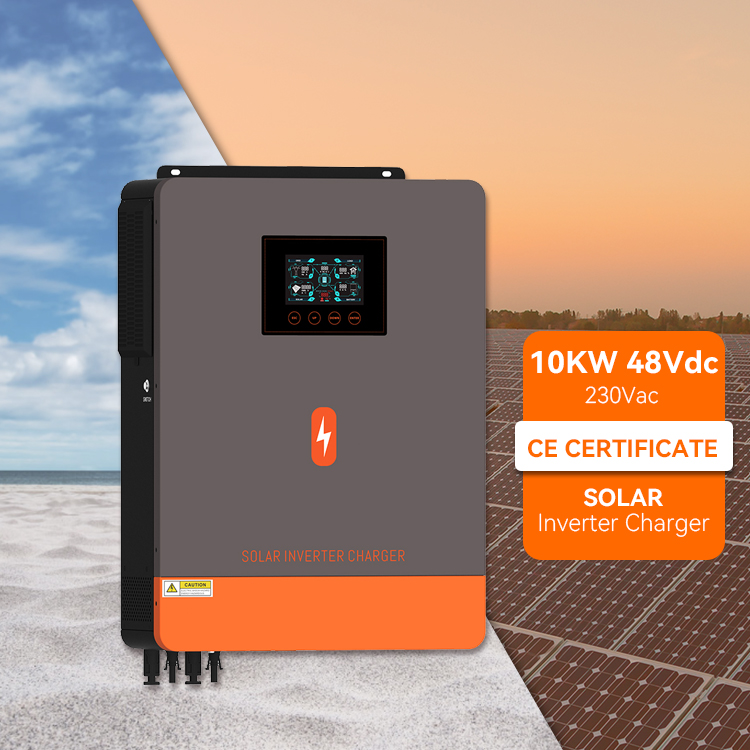

| Inverter Model | POW-HVM10.2M |
| AC Input | |
| Input Voltage Waveform | Sinusoidal (Utility or generator) |
| Nominal Input Voltage | 230Vac |
| Nominal Input Frequency | 50/60Hz (Auto detection) |
| AC Output (Back-Up) | |
| Rated Output Power | 10.2KW |
| Output Voltage Regulation | 230Vac±5% Single phase |
| Output Frequency | 50Hz |
| Battery Specification | |
| Battery Type | Lithium and Lead Acid Battery, support user define |
| System Voltage | 48V |

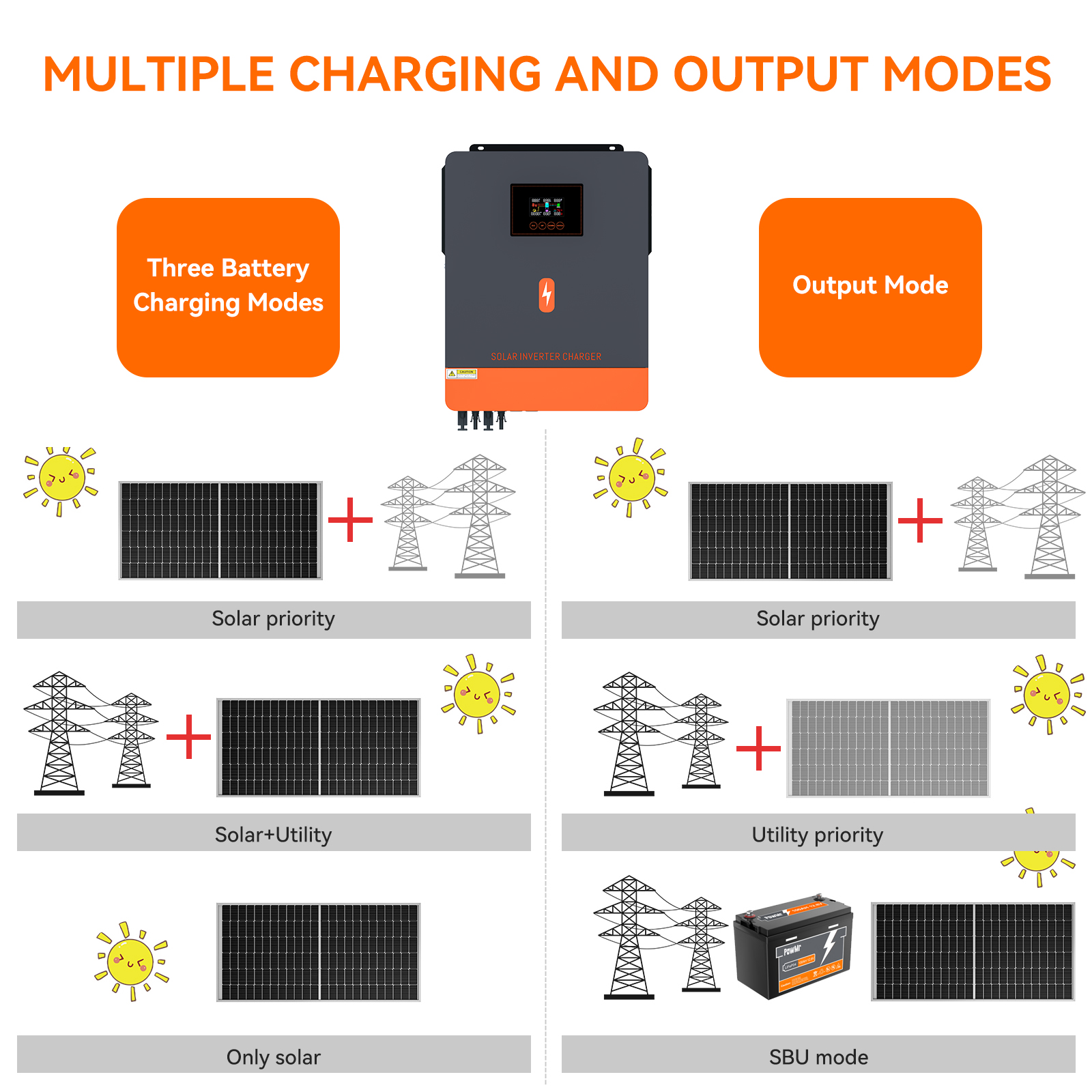

| AC Charge & PV Charge Mode | |
| Max. AC Charging Current | 140Amp |
| Max. PV Array Power | 10200W |
| PV MPPT Voltage Range | 90~500Vdc |
| Max. PV Array Open Circuit Voltage | 500Vdc |
| Max. Charging Current (AC+PV) | 160Amp |
| General Specification | |
| Operation Temperature | -10℃ ~ 50℃ |

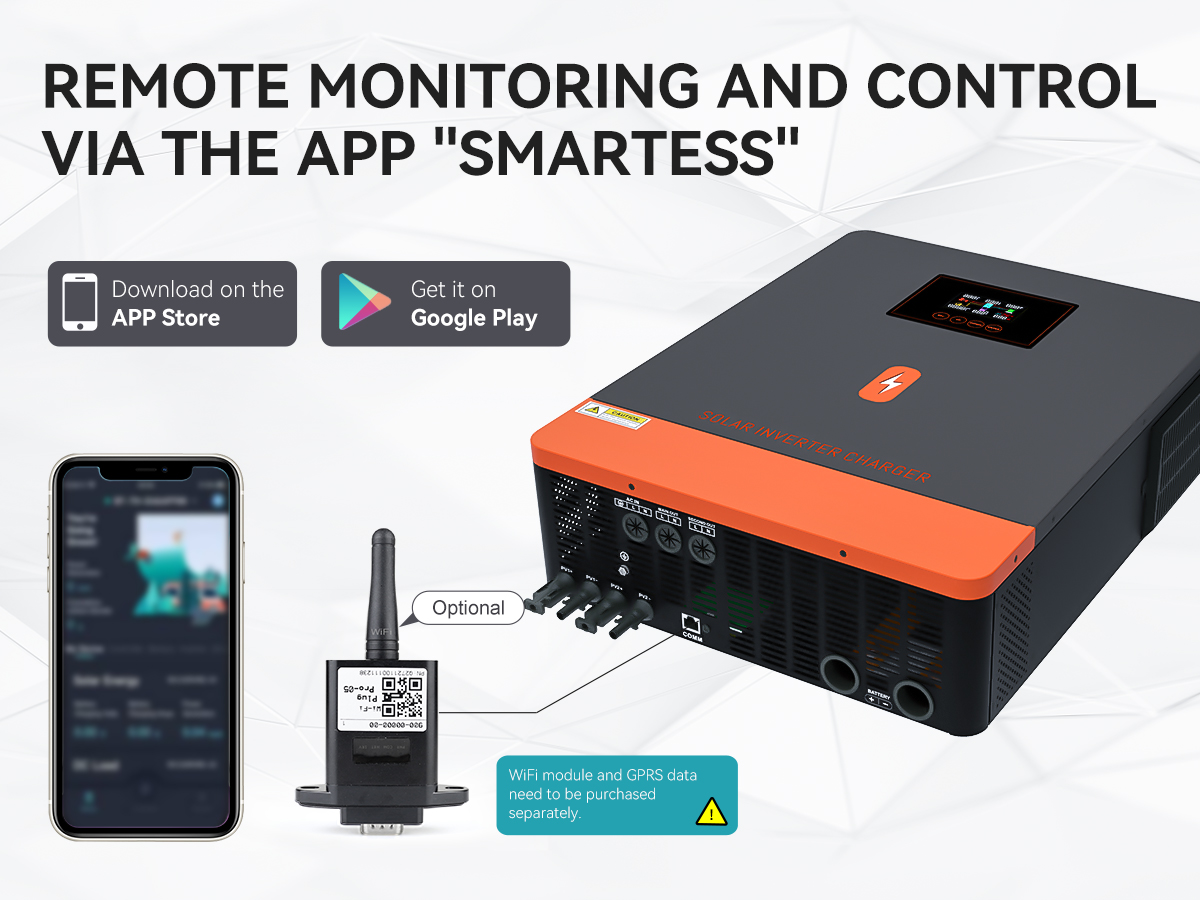

| Communication Interface | RS232 (WiFi) |
| Dimension | 537*390*130mm |
| Net Weight | 14.5kg |
