| Technical Specification Details | |||||
| Model No. | MB-2002 | MB-3002 | MB-4002 | MB-5002 | MB-6002 |
| Rated Power | 2KW | 3KW | 4KW | 5KW | 6KW |
| Battery Settings | |||||
| Rated Voltage | 24VDC / 48VDC / 96VDC | ||||
| Charge Current | 5A - 30A (Adjustable) | ||||
| Battery Type | Lead-acid, GEL, LiFePO4 | ||||
| Input Parameters | |||||
| Voltage Range | 170 - 275VAC | ||||
| Frequency | 45 - 65Hz | ||||
| Output Parameters | |||||
| Voltage Range | 220VAC ± 3% (Inverter Mode) | ||||
| Frequency | 50/60Hz ± 1% (Inverter Mode) | ||||
| Output Wave | Pure Sine Wave | ||||
| Conversion Time | < 7mS (Typical Load) | ||||
| Efficiency | > 85% | ||||
| Protection Function | Battery Overvoltage, Battery Undervoltage, Overload, Short Circuit, Overtemperature Protections, etc. | ||||
| Solar Charge Controller (Optional) | |||||
| Input Voltage | MPPT: 18VDC ~ 170VDC | ||||
| PV Power | 12VDC-60A (800W), 24VDC-80A (1600W), 48VDC-60A (3200W) | ||||
| PV Charge Current | 30A / 60A | ||||
| Efficiency | > 99% | ||||
| Boosting Charge Voltage | 12V/14.2VDC; 24V/28.4VDC; 48V/56.8VDC | ||||
| Floating Charge Voltage | 12V/13.75VDC; 24V/27.5VDC; 48V/55VDC | ||||
| Physical Specifications | |||||
| Operation Temp. | 0 - +40 ℃ | ||||
| Storage Temp. | -15 - +50 ℃ | ||||
| Operating/Storage Ambient | 10 - 90% (No Condensation) | ||||
| Gross Weight (kg) | 20 | 25 | 30 | 32 | 36 |

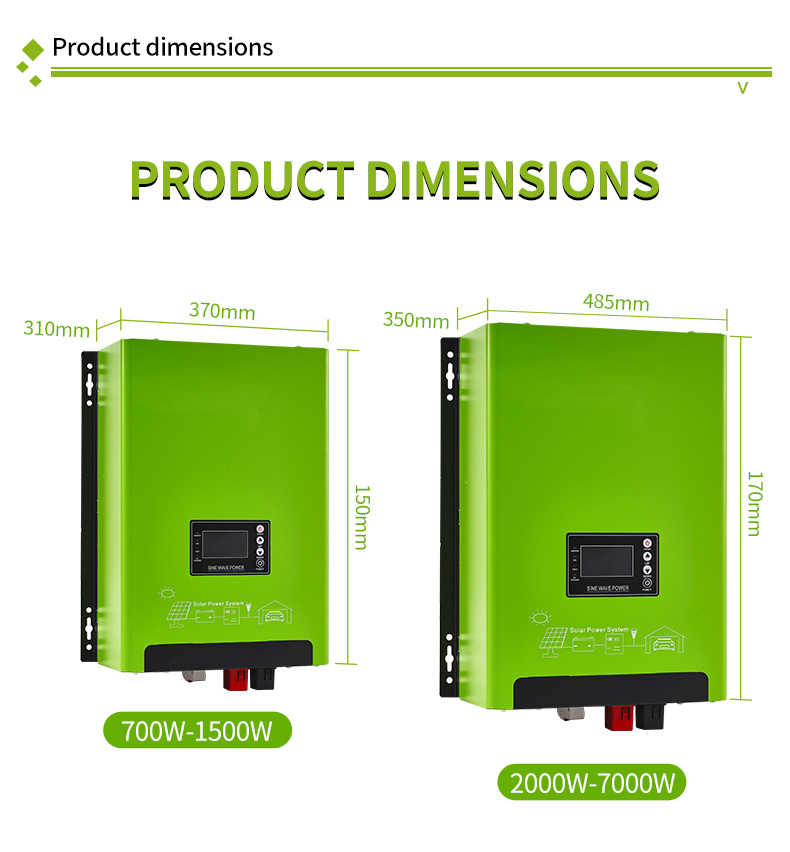

| Product Size D*W*H (mm) | 485 * 350 * 170 | ||||
| Package Size D*W*H (mm) | 620 * 425 * 262 | ||||
| Product specifications are subject to change. | |||||
