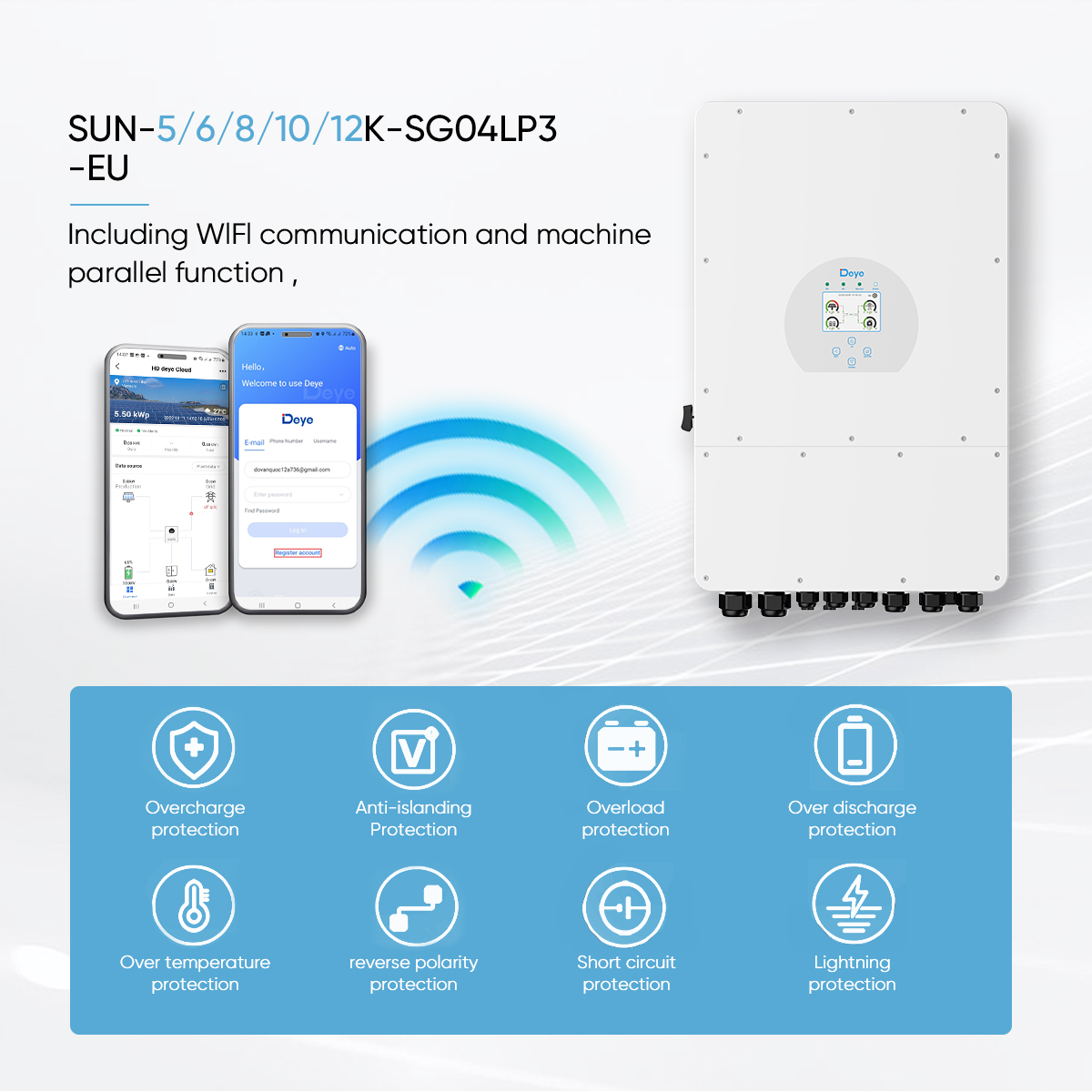

| Model | SUN-5K-SG04LP3-EU | SUN-6K-SG04LP3-EU | SUN-8K-SG04LP3-EU | SUN-10K-SG04LP3-EU | SUN-12K-SG04LP3-EU |
|---|---|---|---|---|---|
| Battery Input Data | |||||
| Battery Type | Lead-acid or Lithium-ion | ||||
| Battery Voltage Range (V) | 40~60V | ||||
| Max. Charging Current (A) | 120A | 150A | 190A | 210A | 240A |
| Max. Discharging Current (A) | 120A | 150A | 190A | 210A | 240A |
| PV String Input Data | |||||
| Max. DC Input Power (W) | 6500W | 7800W | 10400W | 13000W | 15600W |
| Rated PV Input Voltage (V) | 550V (160V-800V) | ||||
| Start-up Voltage (V) | 160V | ||||
| MPPT Range (V) | 200V-650V | ||||
| Number of MPPT / Strings | 2/1 | 2/2+1 | |||
| AC Output Data | |||||
| Rated AC Output Power (W) | 5000W | 6000W | 8000W | 10000W | 12000W |
| Max. AC Output Power (W) | 5500W | 6600W | 8800W | 11000W | 13200W |
| Peak Power (off grid) | 2 times of rated power, 10 S | ||||
| Output Freq & Voltage | 50/60Hz; 3L/N/PE 220/380Vac, 230/400Vac | ||||
| Efficiency | |||||
| Max. Efficiency | 97.60% | ||||
| Euro Efficiency | 97.00% | ||||
| MPPT Efficiency | 99.90% | ||||
| General Data | |||||
| Operating Temp Range | -45~60℃, >45℃ Derating | ||||
| Communication with BMS | RS485; CAN | ||||
| Weight (kg) | 38kg | ||||
| Protection Degree | IP65 | ||||
| Warranty | 5 years | ||||
