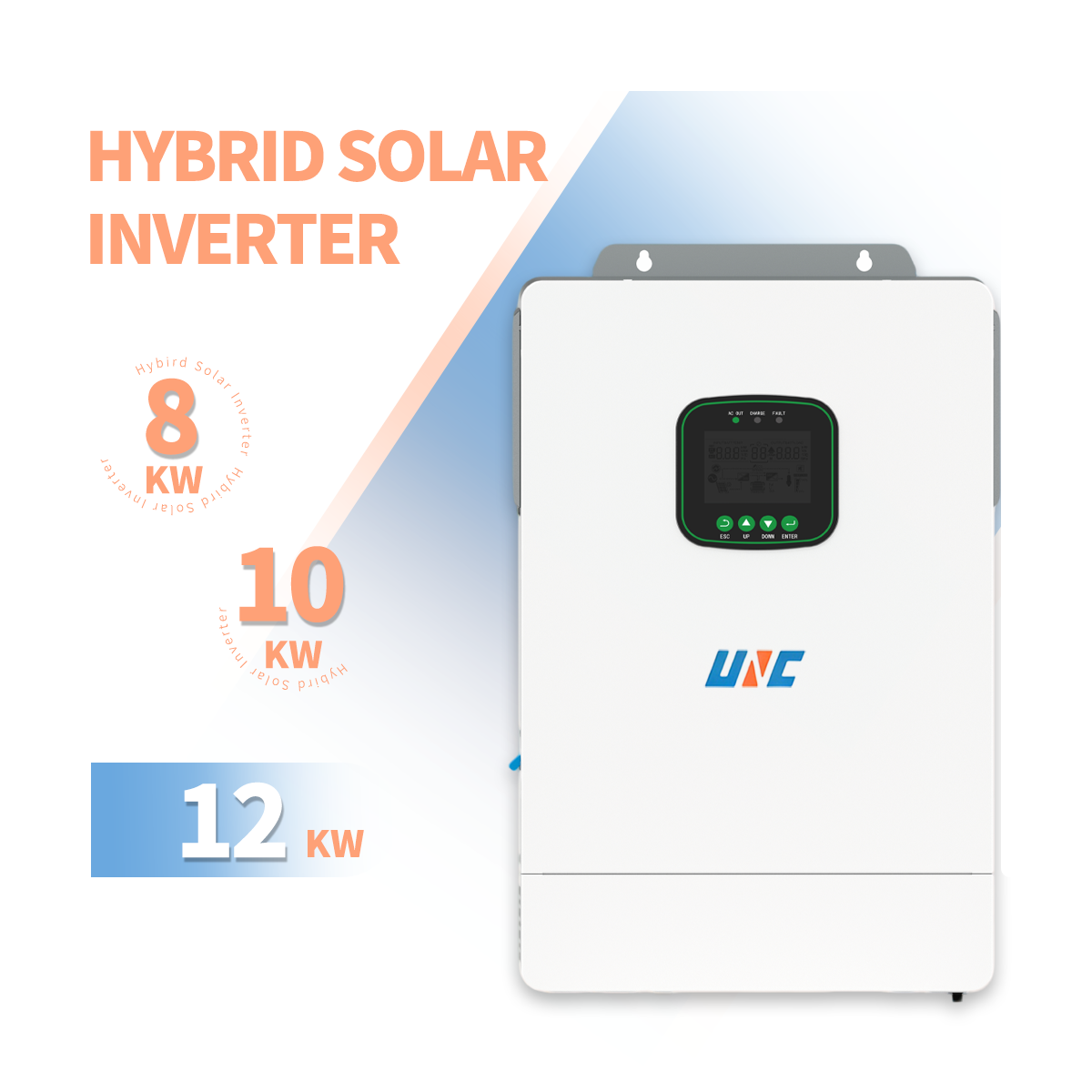

UNC Anti-reflux CT 220v On/Off Grid 12000w Solar String 10.2kw Hybrid Parallel Single String Phase Inverter 48v 51.2v WIFI LCD
UNC Anti-reflux CT 220v On/Off Grid 12000w Solar String 10.2kw Hybrid Parallel Single String Phase Inverter 48v 51.2v WIFI LCD
UNC Anti-reflux CT 220v On/Off Grid 12000w Solar String 10.2kw Hybrid Parallel Single String Phase Inverter 48v 51.2v WIFI LCD
UNC Anti-reflux CT 220v On/Off Grid 12000w Solar String 10.2kw Hybrid Parallel Single String Phase Inverter 48v 51.2v WIFI LCD
UNC Anti-reflux CT 220v On/Off Grid 12000w Solar String 10.2kw Hybrid Parallel Single String Phase Inverter 48v 51.2v WIFI LCD
1 / 5
UNC Anti-reflux CT 220v On/Off Grid 12000w Solar String 10.2kw Hybrid Parallel Single String Phase Inverter 48v 51.2v WIFI LCD
UNC Anti-reflux CT 220v On/Off Grid 12000w Solar String 10.2kw Hybrid Parallel Single String Phase Inverter 48v 51.2v WIFI LCD
UNC Anti-reflux CT 220v On/Off Grid 12000w Solar String 10.2kw Hybrid Parallel Single String Phase Inverter 48v 51.2v WIFI LCD
UNC Anti-reflux CT 220v On/Off Grid 12000w Solar String 10.2kw Hybrid Parallel Single String Phase Inverter 48v 51.2v WIFI LCD
UNC Anti-reflux CT 220v On/Off Grid 12000w Solar String 10.2kw Hybrid Parallel Single String Phase Inverter 48v 51.2v WIFI LCD

UNC Anti-reflux CT 220v On/Off Grid 12000w Solar String 10.2kw Hybrid Parallel Single String Phase Inverter 48v 51.2v WIFI LCD

Send Inquiry

Product Description

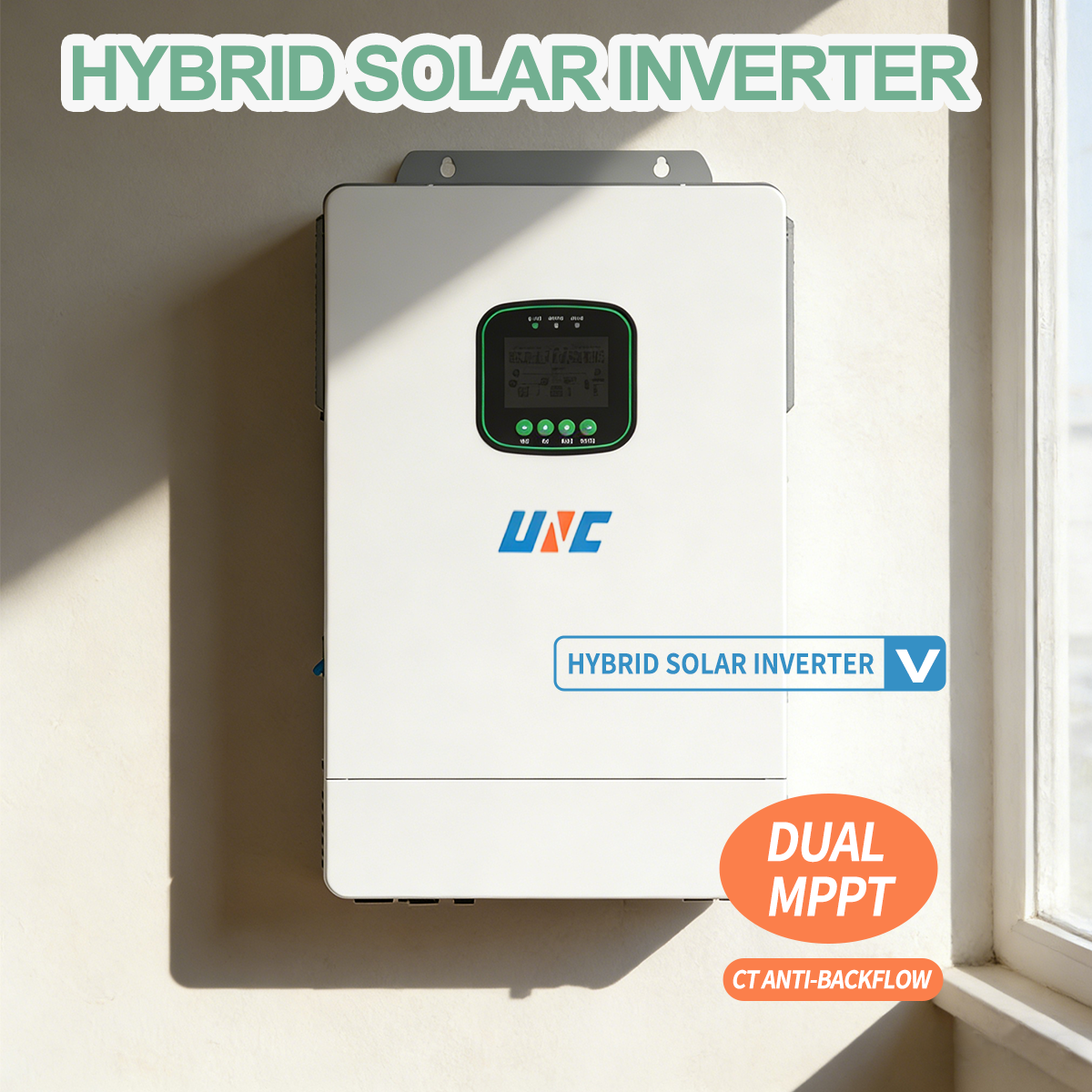

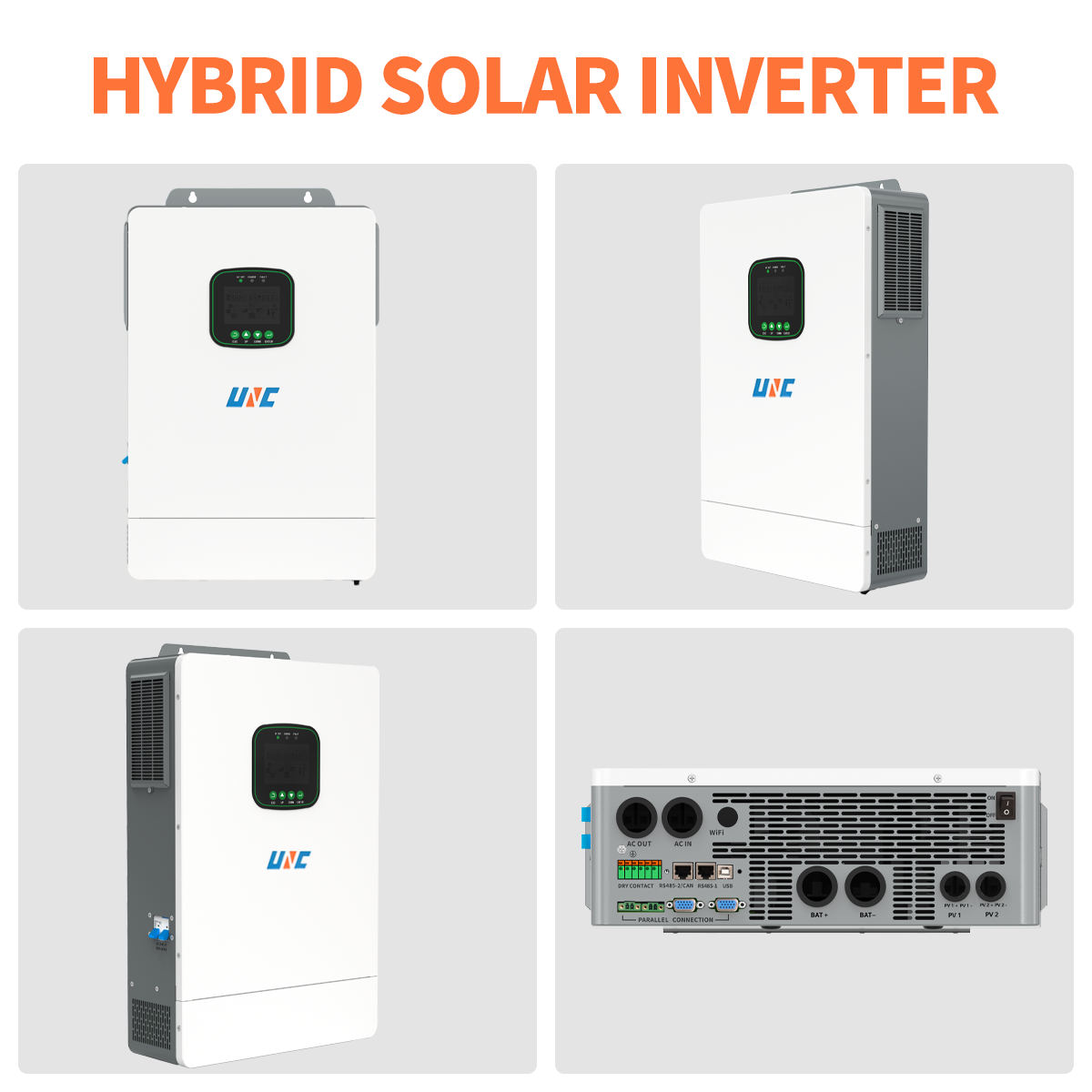

Anti-reflux CT 220v On/Off Grid 12000w Solar String 10.2kw Hybrid Parallel Single String Phase Inverter 48v 51.2v WIFI LCD Inversores Solares 10000w 12kw Wall Mount Lead Acid/Lithium/Gel Remote Monitoring Max Efficiency 93% 230v Dual MPPT

Solar Inverter
Product Description
01

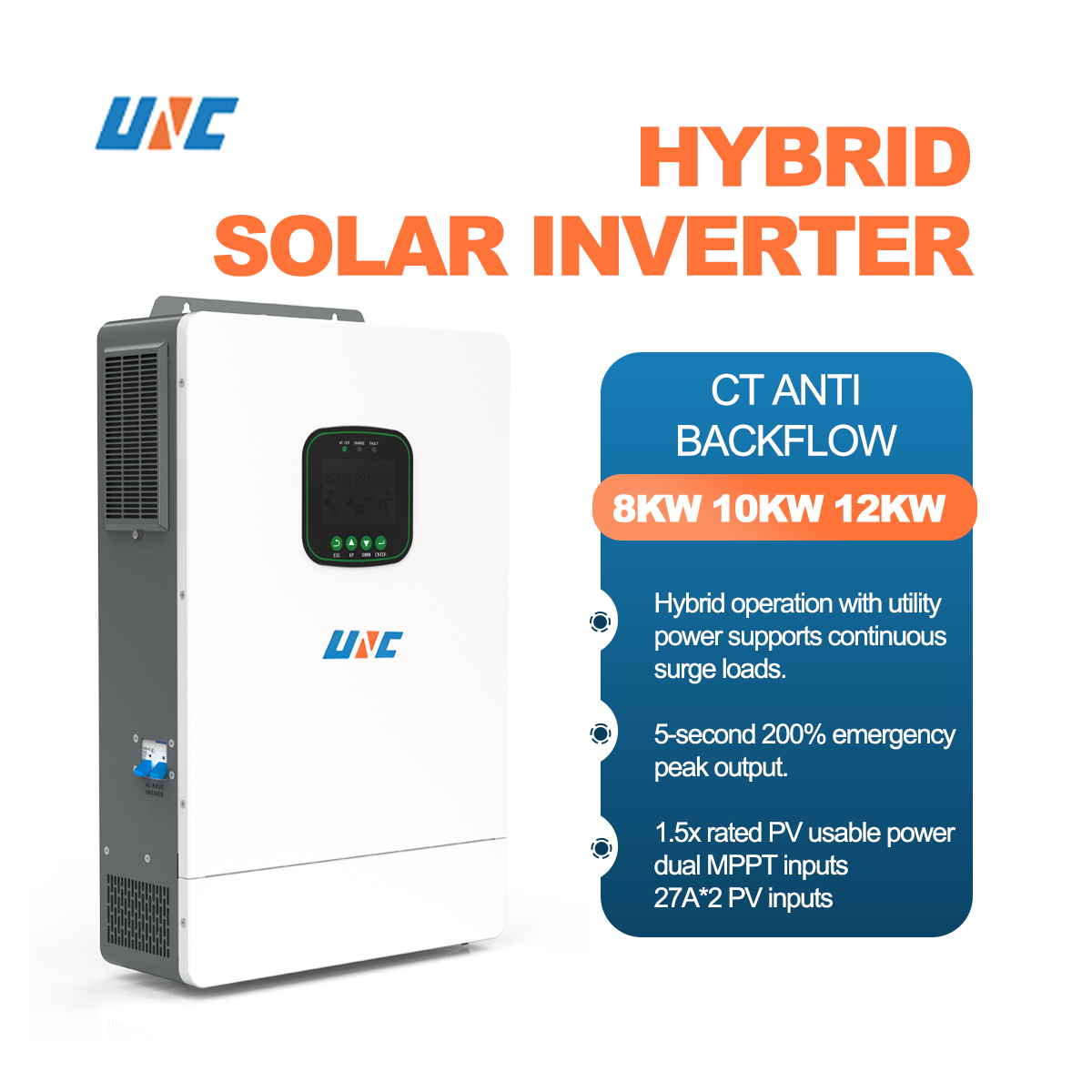

CT Zero export to grid.
02
Inverter and Grid hybrid Power supply capable of withstanding continuous impact loads.
03
Usable PV power up to 150% inverter rated power, Dual-channel MPPT, 27A*2 PV input, compatible with all residential modules and flexible arrays.
04
200% EPS peak output in 5s.
05
Up to 6 inverters in parallel or build three phase system.
06
UPS-Level Switching time down to 10ms.
07

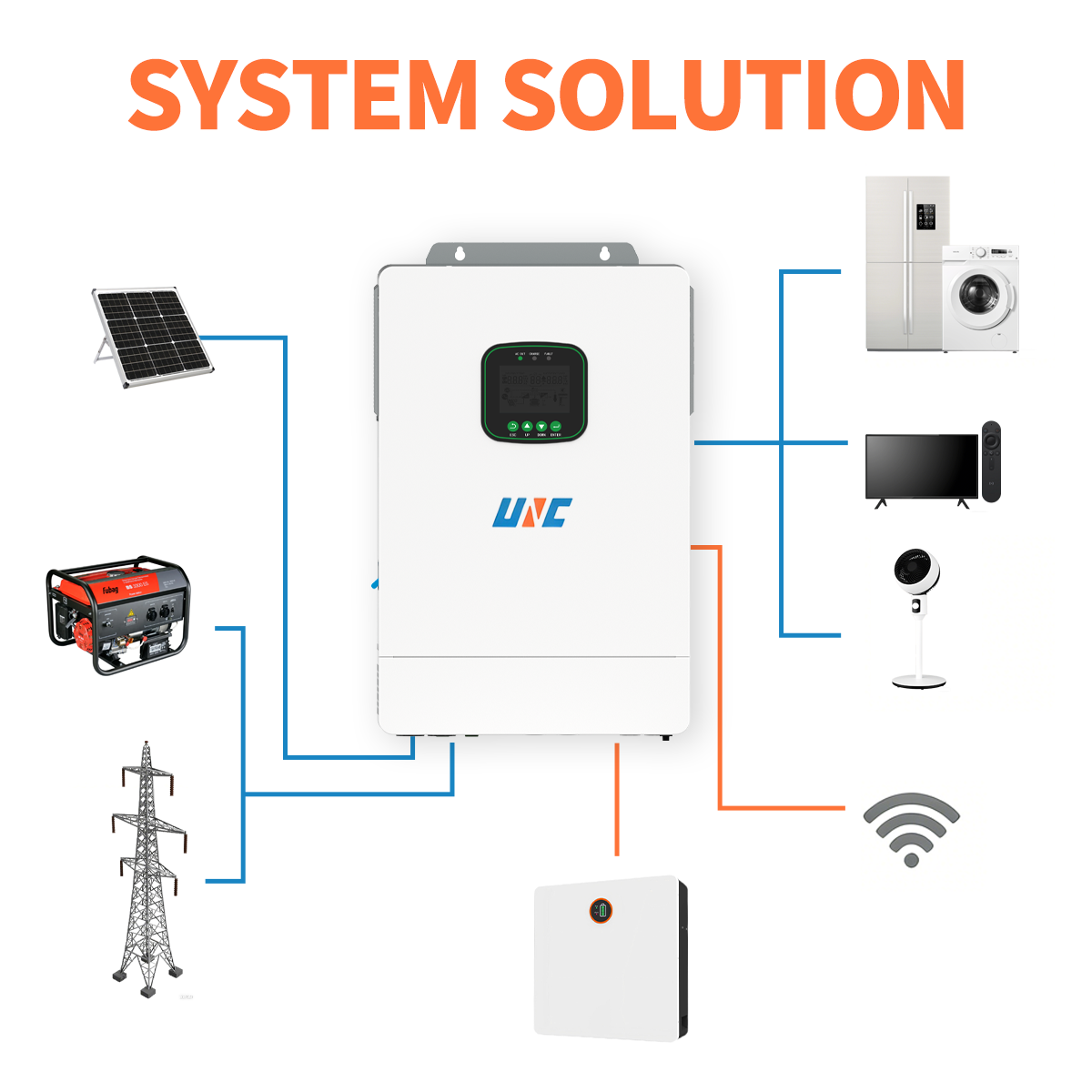

Support diesel generator input.
08

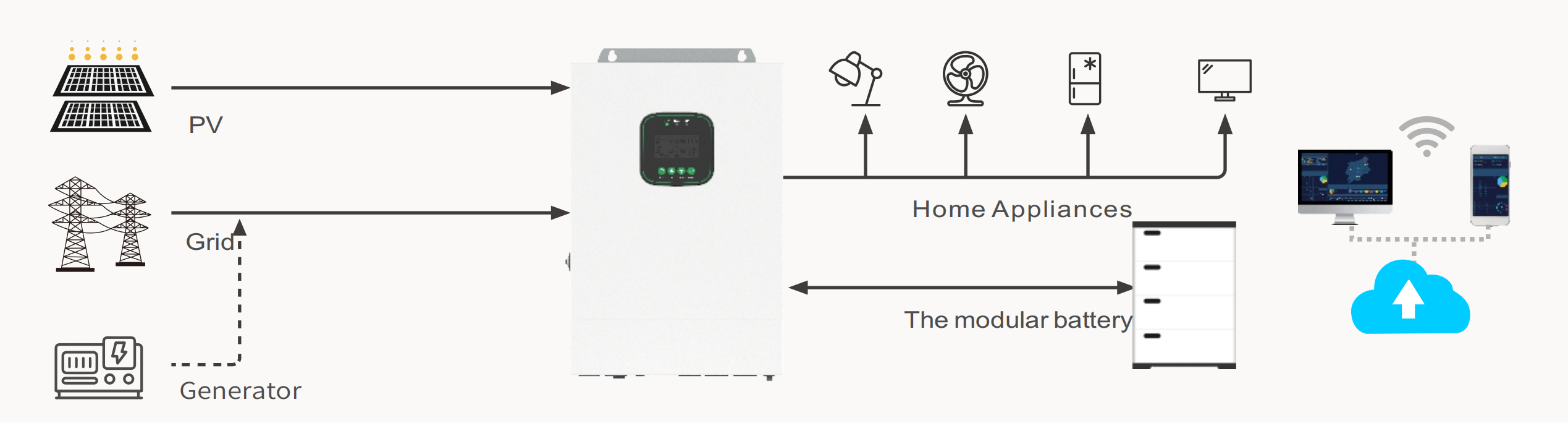

Supports use without battery. PV and grid can supply power to load together.
09
Easy & intuitive LCD.
10
Remote diagnostics & OTA update.
Product Parameters
Model ESS1-10K1P-01-LV-FG / ESS1-12K1P-01-LV-FG
Parallel mode
Permitted parallel number NO / 1~6
AC mode
Rated input voltage 230Vac ±5%
Input voltage range (170Vac~280Vac)±2% (UPS Mode) / (90Vac~280Vac)±2% (APL Mode)
Efficiency >93%
Conversion time 10ms (typical)
Inverter mode
Output voltage waveform Pure sine wave
Rated output power 12000VA / 12000W
Peak power 24000VA
Battery voltage range 40.0Vdc ~ 60Vdc
PV charging
MPPT way 2
Maximum PV input power 9000W + 9000W
Maximum PV input current 27A + 27A
Certification CE (IEC62109-1,2), EN61000

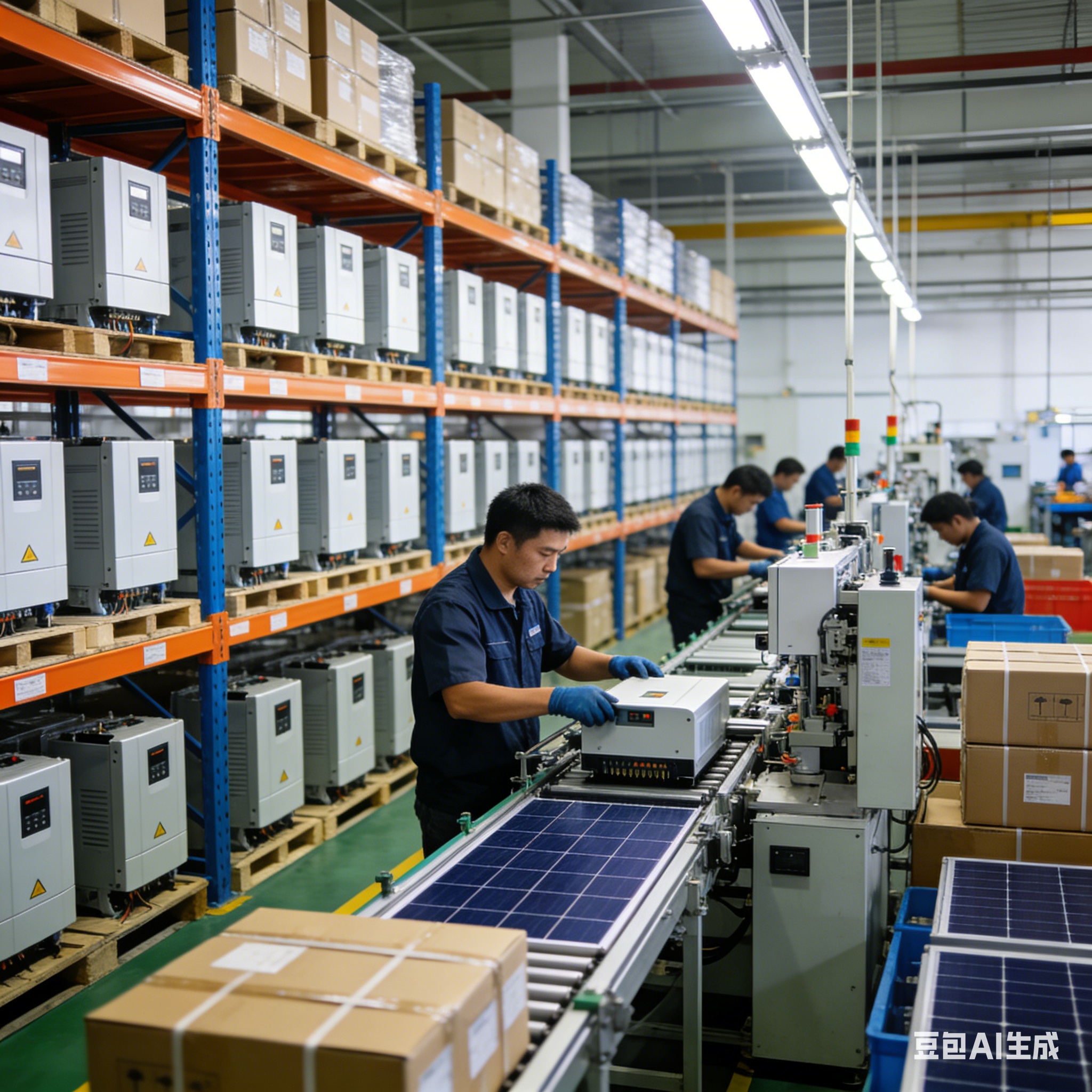

Production & Quality Control
Frequently Asked Questions
Q1.  Do you support Ready To Ship, OEM & ODM?
A1: Yes, we are a powerful factory. One piece can be shipped, and we can also customize products for you with a low MOQ.
Q2.  What is our advantage?
A2: We have a professional R&D team to customize the products you want. Our facility covers 10,000 square meters with over 100 experienced staff.
Q3.  How can we guarantee quality?
A3: Always a pre-production sample before mass production. All products pass CE, CCC, UL, and ROHS certifications. Final inspection is mandatory before packing.
Q4.  What products can you buy from us?
A4: Solar grid-tied inverters, off-grid hybrid inverters, solar pumping inverters, pure sine wave inverters, MPPT/PWM controllers, and solar lighting systems.
Q5.  How to select a suitable product?
A5: Simply tell us your power demand and application requirements, and we will recommend the most suitable solar solution for you.
Q6.  Does it support battery-less operation?
A6: Yes, this model supports use without a battery. PV and grid can supply power to the load together directly.
